DTC 63-47

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): 62-47,63-47: High Temperature
63-47 - High Temperature

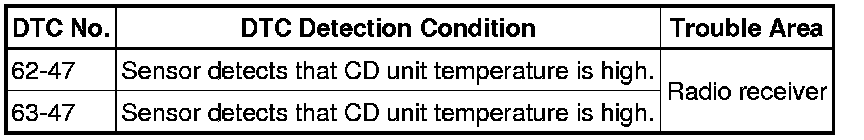

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK RADIO RECEIVER ASSEMBLY

(a) Park the vehicle in a cool place.

(b) Check that the temperature of the radio receiver becomes sufficiently low, and start the engine. Check that the malfunction disappears.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
