DTC 63-41

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): 62-41,62-42,63-41,63-42: Wrong Disc
63-42 - Disc cannot be Read

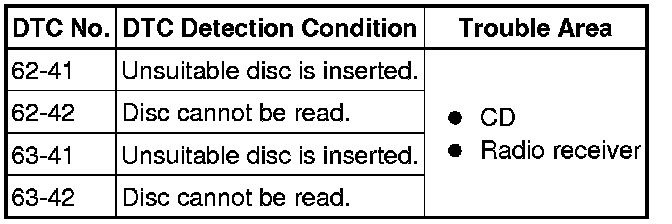

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.

2. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc.

NG -- DISC IS FAULTY
OK -- Continue to next step.

3. REPLACE DISC WITH ANOTHER AND RECHECK

(a) Replace the disc with another and recheck.

(1) Replace the disc with a normal one.

(2) Clear DTC Audio and Visual System (w/o Multi-Display).

(3) Recheck DTCs and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
