DTC 62-78

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): 62-78,63-78: DSP Error
63-78 - DSP Error

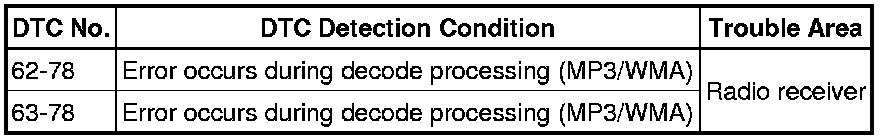

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

NOTICE:
* This code may be output even when a malfunction does not exist.
* When this code is output frequently, replace the radio receiver Removal.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTC Audio and Visual System (w/o Multi-Display).

HINT
These DTCs do not indicate a malfunction.

NEXT -- Continue to next step.

2. RECHECK DTC

(a) Recheck the DTC and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
