DTC 60-43

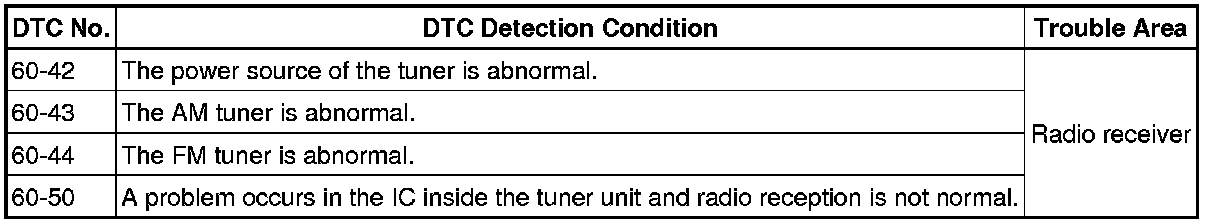

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): 60-42-60-44,60-50: Tuner Power Source Error
60-50 - Malfunction in Internal IC

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Audio and Visual System (w/o Multi-Display).

NEXT -- Continue to next step.

2. RECHECK DTC

(a) Recheck for DTCs and check if the same trouble occurs again.

HINT
If DTCs are detected frequently, replace the radio receiver Removal.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
