SCSS Changeover Solenoid Malfunction - Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1319/35: SCSS Changeover Solenoid Malfunction
C1319/35 - SCSS Changeover Solenoid Malfunction

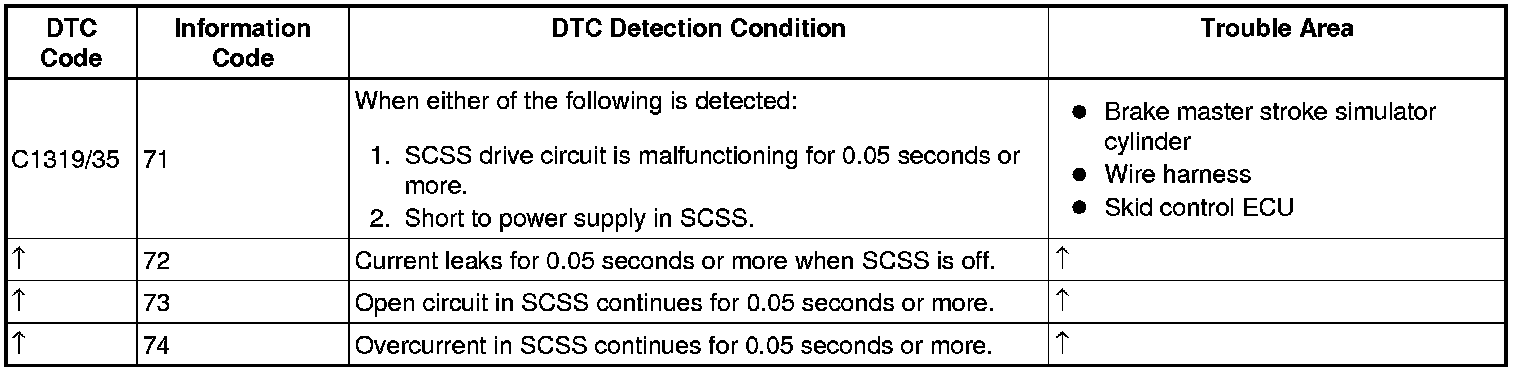

DESCRIPTION

The stroke simulator solenoid (SCSS) generates pedal reactive effort during electronically controlled brake system control. If one or more of the front wheels loses brake booster function, the simulator operation is prohibited.

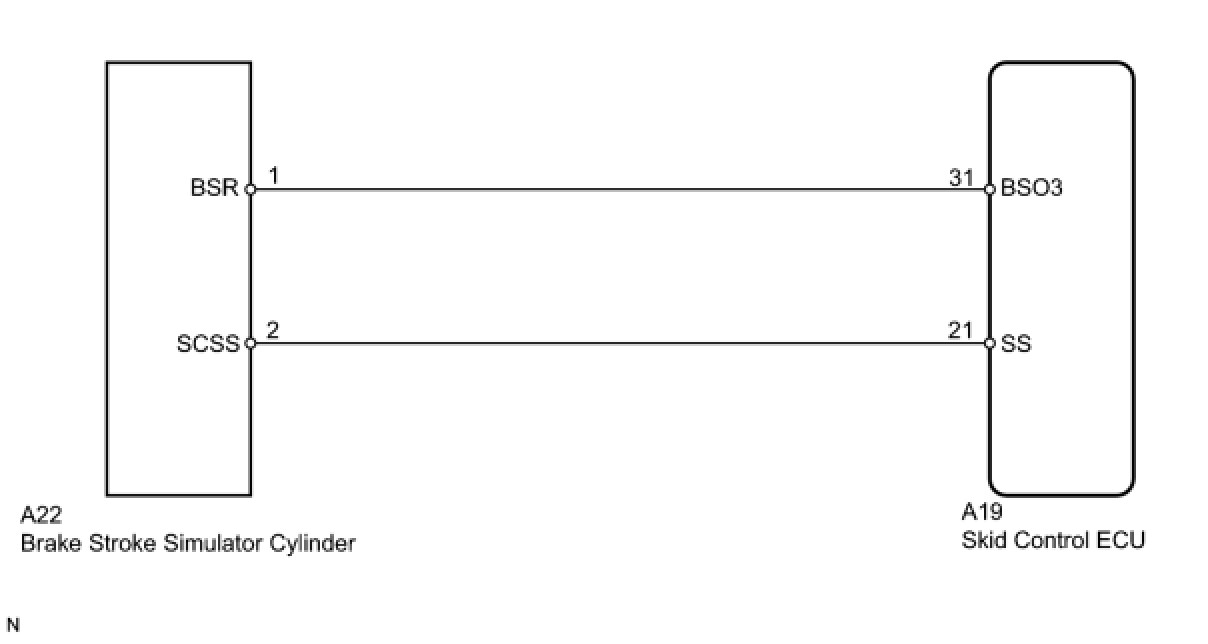

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration Initialization.

PROCEDURE

1. INSPECT BRAKE MASTER STROKE SIMULATOR CYLINDER ASSEMBLY

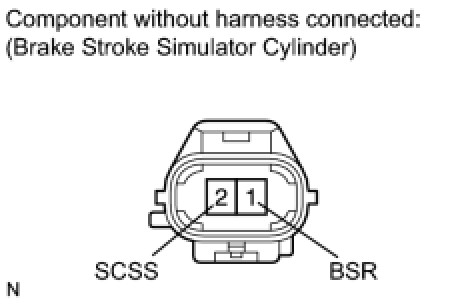

(a) Disconnect the A22 cylinder connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE BRAKE MASTER STROKE SIMULATOR CYLINDER ASSEMBLY Removal
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BRAKE MASTER STROKE SIMULATOR CYLINDER)

(a) Disconnect the A19 ECU connector.

(b) Disconnect the A22 cylinder connector.

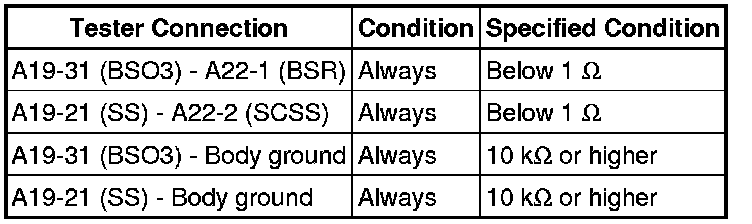

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. RECONFIRM DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Turn the engine switch on (IG).

(c) Check if the same DTC is recorded Reading and Clearing Diagnostic Trouble Codes.

HINT
Reinstall the sensors, connectors, etc. and restore the vehicle to its prior condition before rechecking for DTCs.

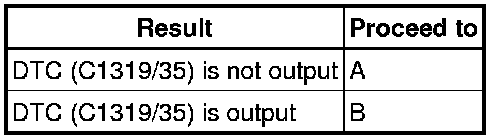

Result





B -- REPLACE SKID CONTROL ECU Removal

A -- END
