Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): B15E1: Media Malfunction
B15E1 - Media Malfunction

DESCRIPTION

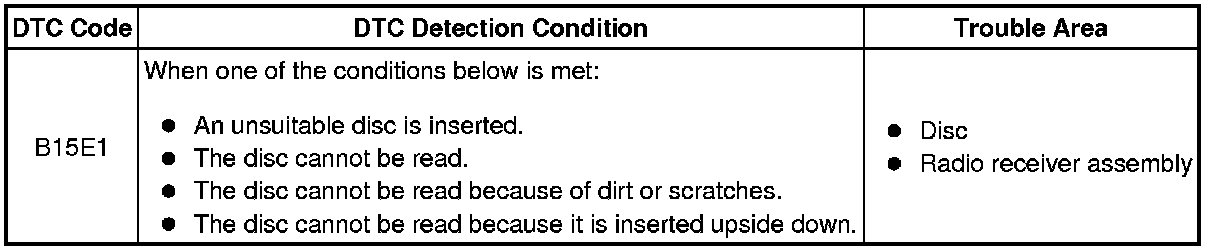

This DTC is output when signals from the disc in the display and navigation module display cannot be read.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks in the disc.

NG -- CHANGE DISC
OK -- Continue to next step.

2. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.

3. REPLACE DISC WITH ANOTHER AND RECHECK

(a) Replace the disc with another and recheck.

(b) Clear the DTCs Navigation System (for DVD).

(c) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
