Audio and Visual System (w/ Multi-Display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Multi-display): B15E1: Media Malfunction
B15E1 - Media Malfunction

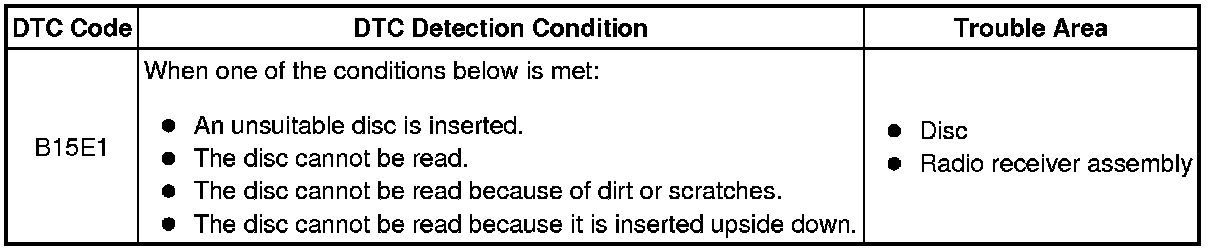

DESCRIPTION

This DTC is stored when signals from disc in the radio receiver assembly cannot be read.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc

NG -- CHANGE DISC
OK -- Continue to next step.

2. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.

3. REPLACE DISC WITH ANOTHER AND RECHECK

(a) Replace the disc with another and recheck.

(b) Clear the DTC Audio and Visual System (w/ Multi-Display).

(c) Check for DTC and check if the same trouble occurs again.

OK:

No DTC is output.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
