Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): B15A3: Stereo Component Amplifier Malfunction
B15A3 - Stereo Component Amplifier Malfunction

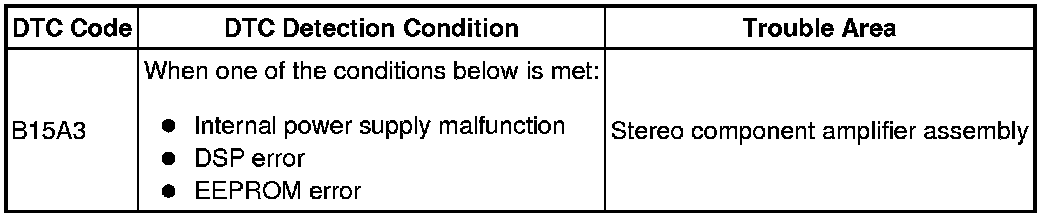

DESCRIPTION

This DTC is stored when a malfunction occurs in the stereo component amplifier assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Navigation System (for DVD).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure
