Installation

SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: INSTALLATION

1. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY

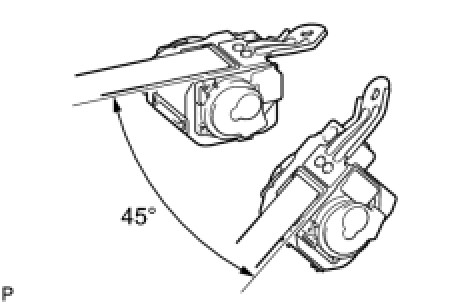

(a) Check the degree of the tilt when the ELR begins to lock.





(1) Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.

NOTICE:
Do not disassemble the retractor.

(b) Temporarily install the rear seat 3 point type belt assembly with the 2 bolts.

(c) Fully tighten the rear side bolt first, then the front side bolt to install the rear seat 3 point type belt assembly.

For front bolt - Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

For rear bolt - Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

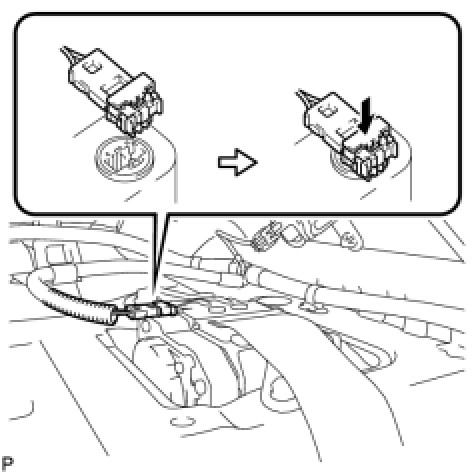

(d) Connect the pretensioner connector and lock the locking button as shown in the illustration.





2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) Installation

3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Installation

4. INSTALL CENTER STOP LIGHT SET (w/ Rear Spoiler) Installation

5. INSTALL ROOF SIDE INNER GARNISH LH Installation

6. INSTALL ROOF SIDE INNER GARNISH RH Installation

7. INSTALL REAR SEAT SIDE GARNISH LH Installation

8. INSTALL REAR SEAT SIDE GARNISH RH Installation

9. INSTALL REAR DOOR SCUFF PLATE LH Installation

10. INSTALL REAR DOOR SCUFF PLATE RH Installation

11. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY Installation

12. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

13. INSTALL REAR SEAT HEADREST ASSEMBLY

14. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY Installation

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

16. INSPECT SRS WARNING LIGHT

Inspect the SRS warning light. Diagnosis System
