Installation





SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: INSTALLATION

1. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

(a) Check the degree of the tilt when the ELR begins to lock.

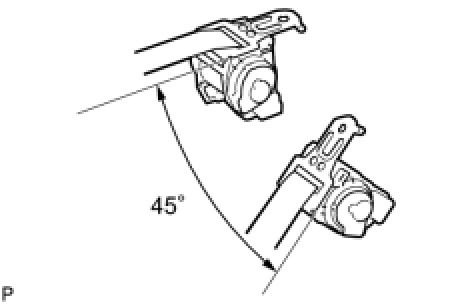

(1) Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.

NOTICE:
Do not disassemble the retractor.

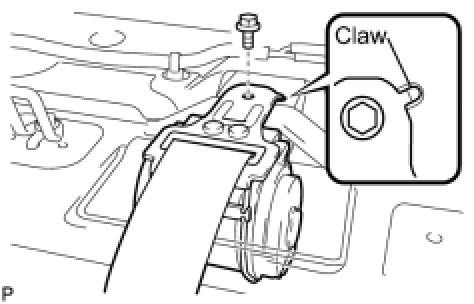

(b) Align the claw with the seat belt positioning hole and install the rear seat inner with center belt assembly RH with the bolt.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)

(a) w/o Rear Spoiler:

(1) Connect the connector to the center stop light assembly.

(2) Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

(3) Engage the 3 clips and 5 claws to install the package tray trim panel assembly and the center stop light assembly as a unit.

(b) w/ Rear Spoiler:

(1) Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

(2) Engage the 3 clips and 5 claws to install the package tray trim panel assembly.

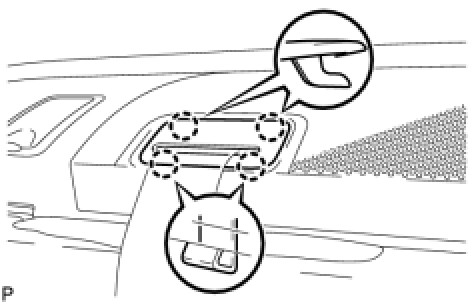

(c) Engage the 4 claws to install the rear seat shoulder belt cover center.





(d) Engage the 4 claws to install the rear seat shoulder belt cover LH.





HINT
Use the same procedures for the RH side and the LH side.

(e) Install the floor end of the rear seat inner with center belt assembly RH with the bolt.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:

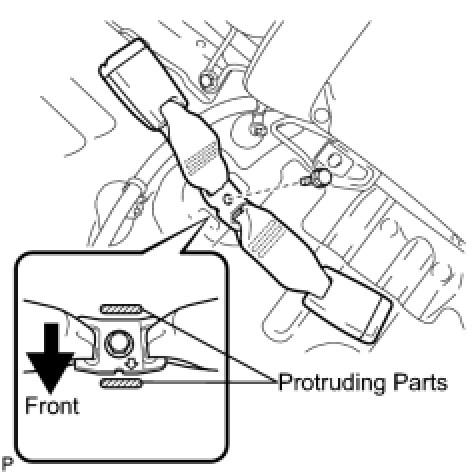

Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.

(f) Check if the ELR locks.

NOTICE:
The check should be performed with the outer belt assembly installed.

(1) With the belt assembly installed, check that the belt locks when it is pulled out quickly.

(g) Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:
Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap protruding parts of the floor panel.

HINT
Use the same procedures for the RH side and the LH side.

(h) Check if the ELR locks.

NOTICE:
The check should be performed with the outer belt assembly installed.

(1) With the belt assembly installed, check that the belt locks when it is pulled out quickly.

3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)

(a) Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

(b) Engage the 3 clips to install the package tray trim panel assembly.

(c) Engage the 4 claws to install the rear seat shoulder belt cover center.





(d) Engage the 4 claws to install the rear seat shoulder belt cover LH.





HINT
Use the same procedures for the RH side and the LH side.

(e) Install the floor end of the rear seat inner with center belt assembly RH with the bolt.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:
Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.

(f) Check if the ELR locks.

NOTICE:
The check should be performed with the outer belt assembly installed.

(1) With the belt assembly installed, check that the belt locks when it is pulled out quickly.

(g) Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:
Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap the protruding parts of the floor panel.

HINT
Use the same procedures for the RH side and the LH side.

(h) Check if the ELR locks.

NOTICE:
The check should be performed with the outer belt assembly installed.

(1) With the belt assembly installed, check that the belt locks when it is pulled out quickly.

4. INSTALL CENTER STOP LIGHT SET (w/ Rear Spoiler) Installation

5. INSTALL ROOF SIDE INNER GARNISH LH Installation

6. INSTALL ROOF SIDE INNER GARNISH RH

HINT
Use the same procedures for the RH side and the LH side.

7. INSTALL REAR SEAT SIDE GARNISH LH Installation

8. INSTALL REAR SEAT SIDE GARNISH RH

HINT
Use the same procedures for the RH side and the LH side.

9. INSTALL REAR DOOR SCUFF PLATE LH Installation

10. INSTALL REAR DOOR SCUFF PLATE RH

HINT
Use the same procedures for the RH side and the LH side.

11. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY Installation

12. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

13. INSTALL REAR SEAT HEADREST ASSEMBLY

14. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

(a) Install the rear seat inner with center belt assembly LH with the bolt.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:
Do not allow the anchor part of the rear seat inner with center belt assembly LH to overlap the protruding parts of the floor panel.

15. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY Installation
