Installation

SEAT BELT: FRONT SEAT OUTER BELT ASSEMBLY: INSTALLATION

1. INSTALL FRONT SEAT OUTER BELT ASSEMBLY

(a) Check the degree of tilt when the ELR begins to lock.





(1) Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.

NOTICE:
Do not disassemble the retractor.

(b) Temporarily install the front seat outer belt assembly with the 2 bolts.





(c) Fully tighten the upper side bolt first, then the lower side bolt to install the front seat outer belt assembly.

For upper bolt - Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

For lower bolt - Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

(d) Connect the pretensioner connector and lock the locking button as shown in the illustration.





NOTICE:
Securely lock the locking button.

(e) Connect the connectors.

(f) Install the shoulder anchor of the front seat outer belt assembly with the nut.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

2. INSTALL CENTER PILLAR GARNISH Installation

3. CONNECT FRONT SEAT OUTER BELT ASSEMBLY

(a) Install the floor end of the front seat outer belt assembly with the bolt.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

(b) for Front Passenger Side:





(1) Attach the claws and install the lap belt outer anchor cover.

NOTICE:

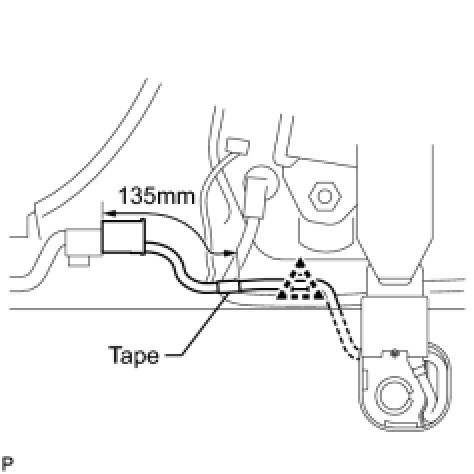

Install the wire harness, as shown in the illustration.

(2) Connect the connector.

NOTICE:
* Pass the connector through the carpet hole before tightening bolt.
* Set the taped position of wire harness at the front of the clamp on the vehicle body.





(3) Install the floor end of the front seat outer belt assembly with the bolt.

Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

(c) Check if the ELR locks.

NOTICE:
The check should be performed with the outer belt assembly installed.

(1) With the belt assembly installed, check that the belt locks when it is pulled out quickly.

4. INSTALL LOWER CENTER PILLAR GARNISH Installation

5. INSTALL LAP BELT OUTER ANCHOR COVER

(a) Attach the 3 claws to install the lap belt outer anchor cover.





(b) for Front Passenger Side:





Attach the claws and install the lap belt outer anchor cover.

6. INSTALL REAR DOOR SCUFF PLATE Installation

7. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination) Installation

8. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination) Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

10. INSPECT SRS WARNING LIGHT

Inspect the SRS warning light. Diagnosis System
