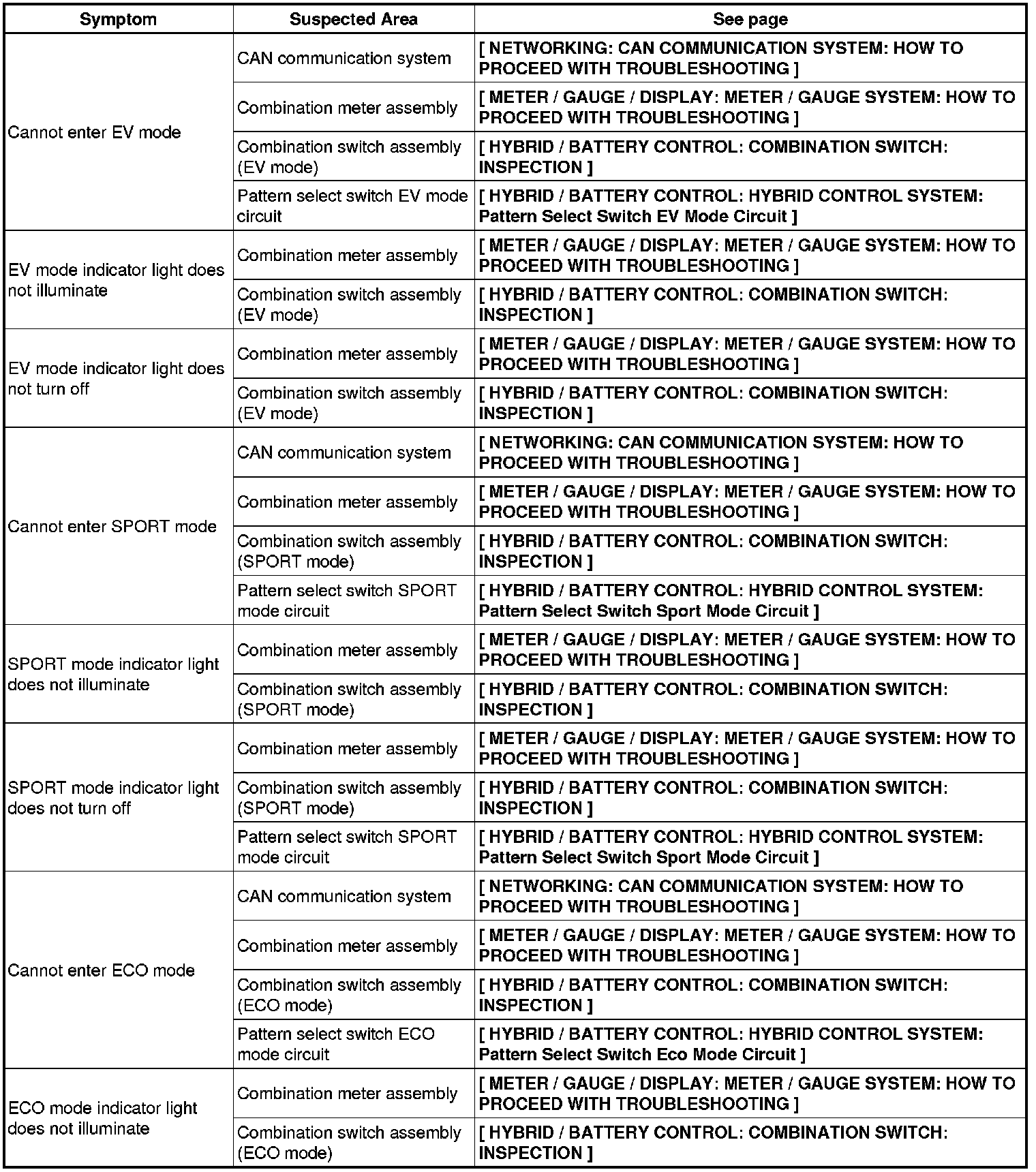

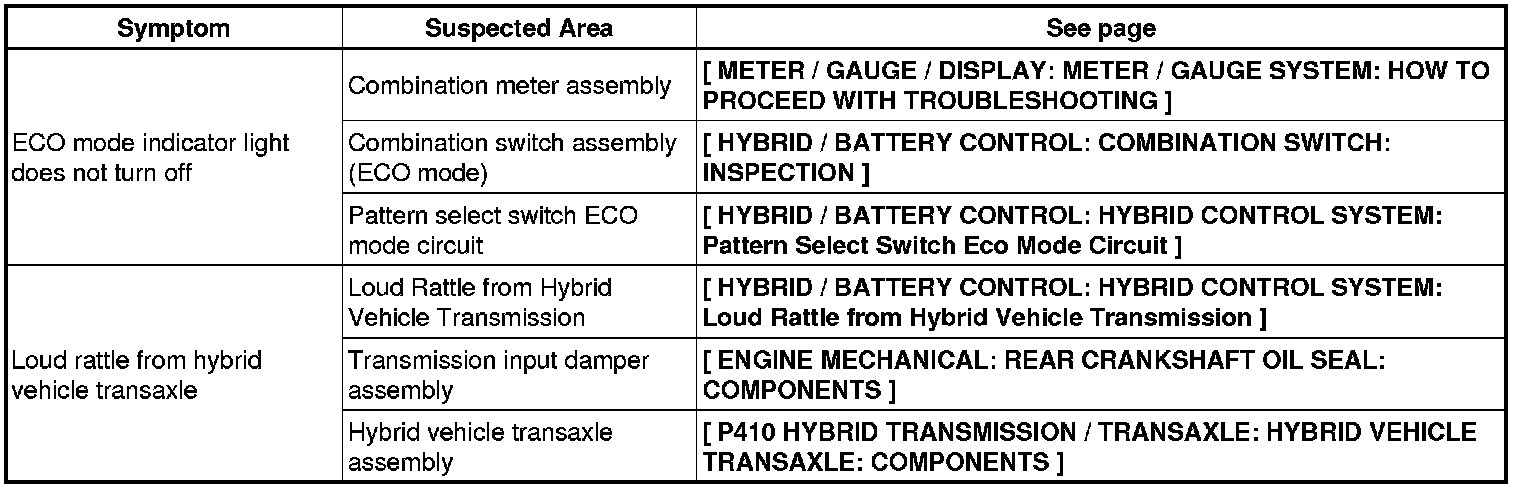

Problem Symptoms Table





HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

Hybrid Vehicle Control System
