Removal

1UR-FSE ENGINE CONTROL SYSTEM: THROTTLE BODY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal

3. REMOVE ENGINE ROOM SIDE COVER LH Removal

4. REMOVE ENGINE ROOM SIDE COVER RH Removal

5. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

6. REMOVE NO. 1 AIR CLEANER INLET Removal

7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal

8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal

9. REMOVE ENGINE UNDER COVER

10. REMOVE ENGINE UNDER COVER REAR LH

11. REMOVE ENGINE UNDER COVER REAR RH

12. DRAIN ENGINE COOLANT Service and Repair

13. REMOVE THROTTLE BODY

(a) Disconnect the throttle motor connector.

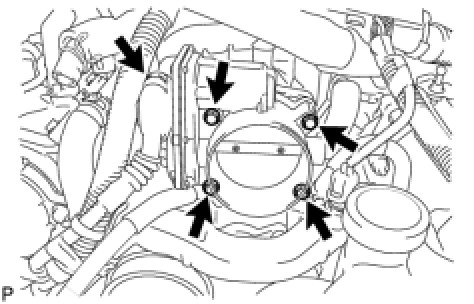

(b) Remove the 4 bolts and throttle body.

(c) Slide the clamps, and disconnect the No. 4 and No. 5 water by-pass hoses from the throttle body.





(d) Remove the gasket from the intake manifold.
