Removal

1UR-FSE EXHAUST: EXHAUST PIPE: REMOVAL

CAUTION:
* Wear protective gloves when removing the exhaust pipe.
* The exhaust pipe is extremely hot immediately after the engine has stopped.
* Confirm that the exhaust pipe has cooled down before removing it.
1. REMOVE TAIL EXHAUST PIPE ASSEMBLY

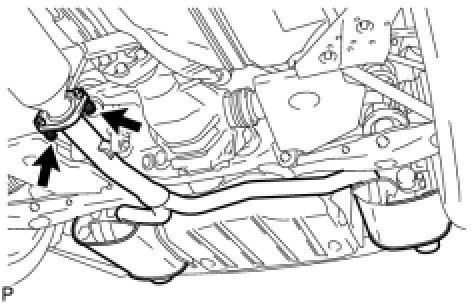

(a) Remove the 2 bolts and 2 compression springs.

(b) Remove the tail exhaust pipe assembly from the 6 exhaust pipe supports.





(c) Remove the gasket from the front exhaust pipe assembly.

2. REMOVE EXHAUST PIPE DAMPER

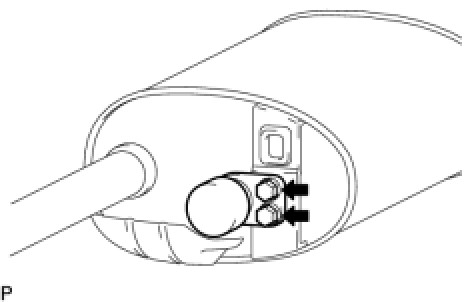

(a) Remove the 2 bolts and damper.





3. REMOVE EXHAUST TAIL PIPE BAFFLE SUB-ASSEMBLY

(a) Using a plastic-faced hammer, uniformly tap off the exhaust tail pipe baffle sub-assembly.





4. REMOVE FRONT FLOOR COVER CENTER LH Removal

5. REMOVE FRONT FLOOR COVER CENTER RH Removal

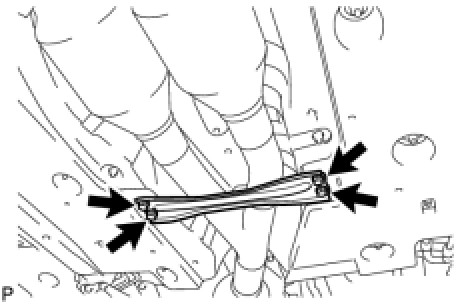

6. REMOVE REAR NO. 1 FLOOR PANEL BRACE

(a) Remove the 4 bolts and panel brace.

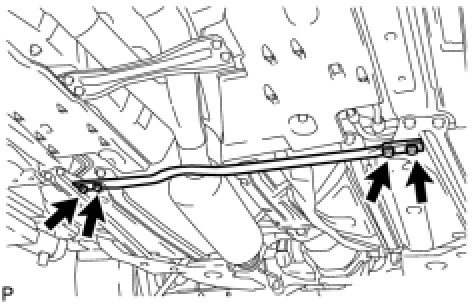

7. REMOVE FRONT CENTER FLOOR BRACE

(a) Remove the 4 bolts and front center floor brace.





8. DISCONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

(a) Disconnect the grommets from the floor panel.

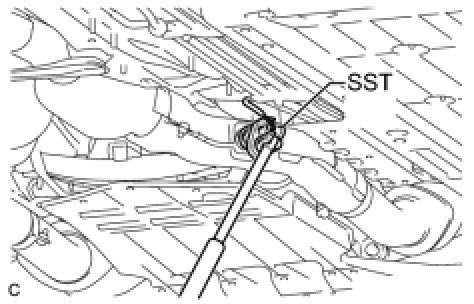

(b) Using SST, loosen the heated oxygen sensor, and the disconnect the sensor by hand.





SST : 09224-00010

9. DISCONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

(a) Disconnect the grommet from the floor panel.

(b) Using SST, loosen the heated oxygen sensor, and disconnect the heated oxygen sensor by hand.





SST : 09224-00010

10. REMOVE FRONT EXHAUST PIPE ASSEMBLY

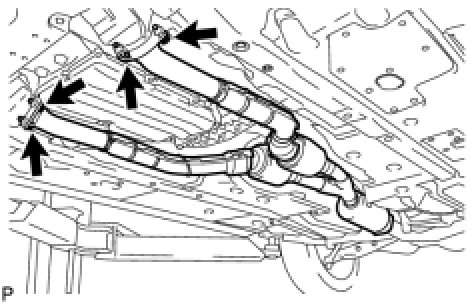

(a) Remove the 4 bolts, 4 nuts and front exhaust pipe assembly.





(b) Remove the 2 gaskets from the exhaust manifold RH and exhaust manifold LH.
