Removal

1UR-FSE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: REMOVAL

1. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

(a) Remove the automatic transmission assembly Removal.

2. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Removal

3. REMOVE ENGINE REAR OIL SEAL

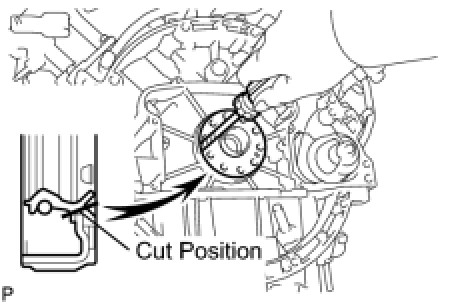

(a) Using a knife, cut through the oil seal lip.

(b) Using a screwdriver with its tip taped, pry out the oil seal.





NOTICE:
After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
