Removal

BRAKE CONTROL: BRAKE ACTUATOR (for 1UR-FSE): REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE ENGINE ROOM SIDE COVER RH Removal

3. REMOVE ENGINE ROOM SIDE COVER LH Removal

4. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH Removal

5. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH Removal

6. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal

7. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal

8. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal

9. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal

10. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal

11. PERFORM ACCUMULATOR PRESSURE ZERO DOWN Service and Repair

12. BRAKE CONTROL OFF

NOTICE:
* Prohibit the brake control certainly before air bleeding.
* Be sure to remove the 2 ABS motor relays first, then the brake actuator.

(a) With the engine switch off to prohibit brake control, remove the 2 ABS motor relays.





NOTICE:
If the pump motor operates with air remaining inside the brake actuator hose, the air will enter the actuator and cause resulting in difficulty in air bleeding.

13. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

14. DRAIN BRAKE FLUID

NOTICE:
If brake fluid leaks onto any painted surface, wash and remove it completely.

15. REMOVE SKID CONTROL ECU ASSEMBLY Removal

16. SEPARATE ENGINE ROOM RELAY NO. 3 BLOCK

(a) Separate the engine room relay No. 3 block.

17. REMOVE FRONT WHEEL LH

18. REMOVE BRAKE ACTUATOR ASSEMBLY WITH ACTUATOR BRACKET

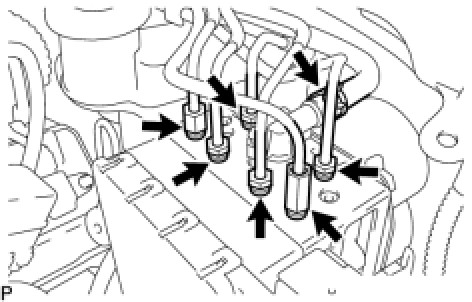

(a) Using SST, disconnect the 6 brake tubes from the actuator assembly with bracket.





SST : 09023-00101

(b) Remove the clip and reservoir tube No. 1 hose.

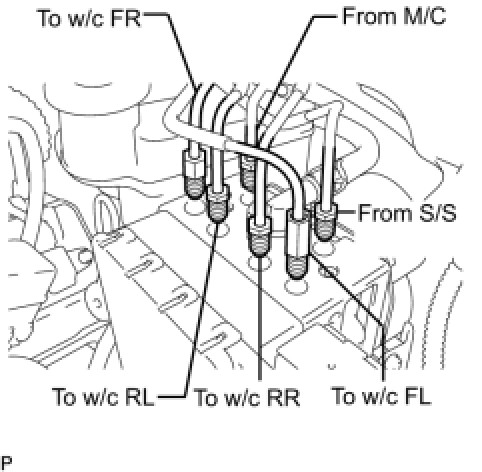

(c) Use tags or make a memo to identify the places to reconnect.





(d) Using SST, disconnect the brake No. 1 and No. 2 tubes.





NOTICE:
Do not damage the brake No. 1 and No. 2 tubes.

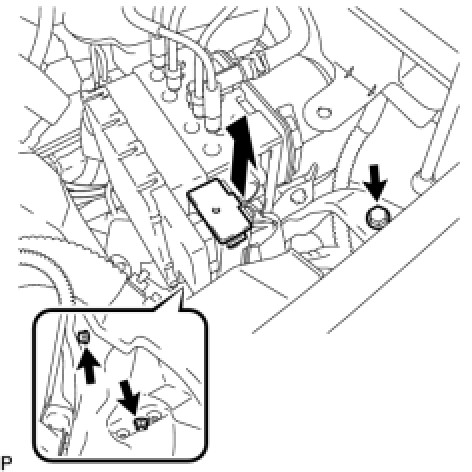

(e) Release the lock lever and disconnect the actuator connector.





(f) Remove the 2 bolts, nut and brake actuator assembly with bracket.

NOTICE:
Do not damage the brake tubes.
