Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

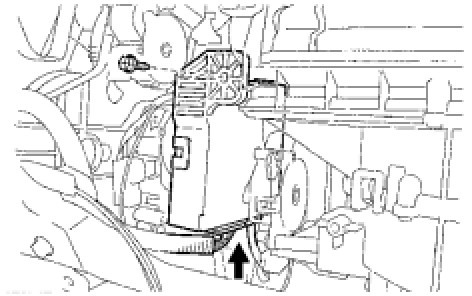

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Install the A/C amplifier with the screw and connect the connector.

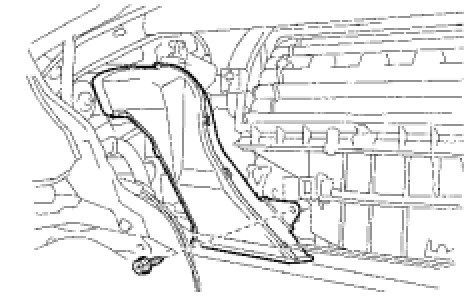

2. INSTALL NO. 2 AIR DUCT

(a) Install the air duct and screw.





3. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY Installation

4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

5. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Installation

6. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

7. INSTALL CONSOLE UPPER PANEL ASSEMBLY Installation

8. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation

9. INSTALL INSTRUMENT SIDE PANEL RH Installation

10. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation

11. INSTALL FRONT DOOR SCUFF PLATE RH Installation

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

13. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
