P0403





2ZR-FXE ENGINE CONTROL: SFI SYSTEM: P0403: Exhaust Gas Recirculation Control Circuit
P0403 - Exhaust Gas Recirculation Control Circuit

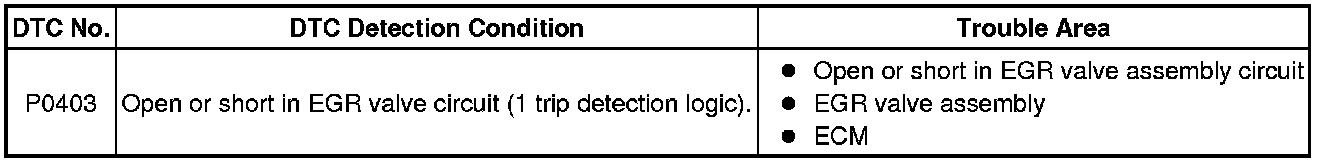

DESCRIPTION

Refer to DTC P0401 P0401.





HINT
DTC P0403 is set when the power switch is on (IG).

MONITOR DESCRIPTION

This DTC is designed to detect an open or short in the EGR valve assembly circuit.

Example:

- If the EGR1, EGR2, EGR3 or EGR4 terminal output voltage is excessively low, but the step motor is still operating, the ECM determines that there is a short in the EGR valve assembly circuit , and sets the DTC.

- If the EGR1, EGR2, EGR3 or EGR4 terminal output voltage is excessively low, and the step motor is not operating, the ECM determines that there is an open in the EGR valve assembly circuit, and sets the DTC.

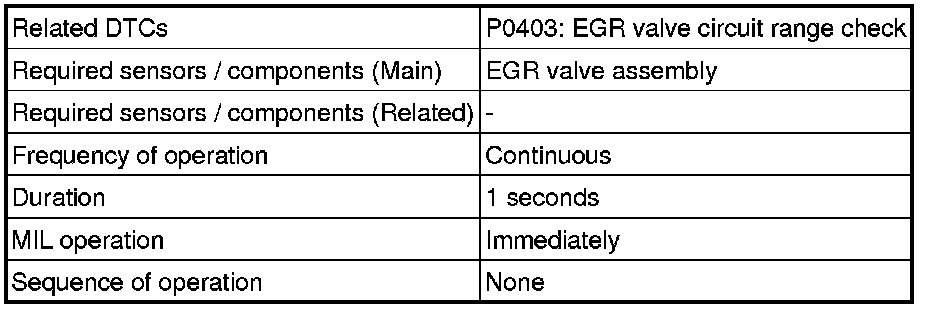

MONITOR STRATEGY

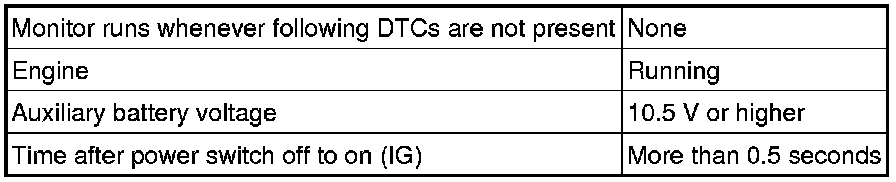

TYPICAL ENABLING CONDITIONS

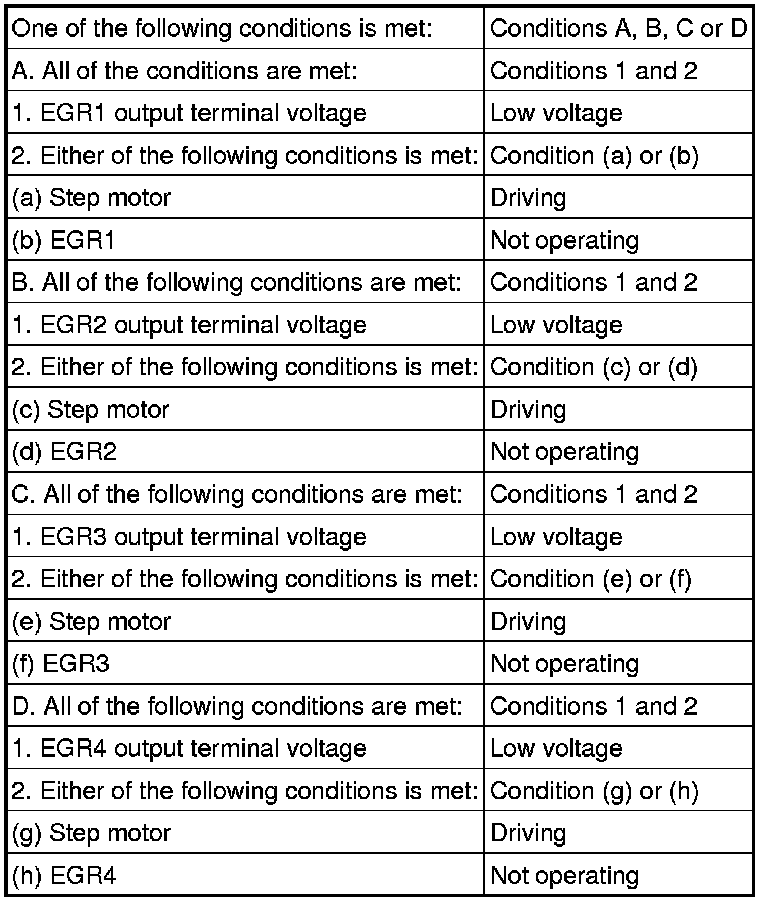

TYPICAL MALFUNCTION THRESHOLDS

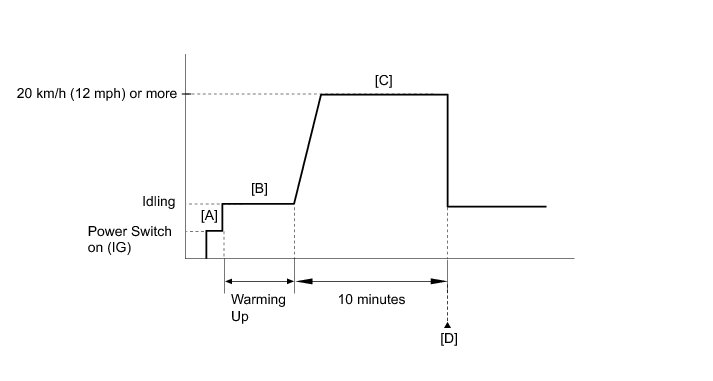

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the power switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the power switch off and wait for 30 seconds.

5. Turn the power switch on (IG) and turn the Techstream on [A].

6. Put the engine in inspection mode (maintenance mode) Component Tests and General Diagnostics.

7. Start the engine and warm it up [B].

8. Drive the vehicle at 20 km/h (12 mph) or more for 10 minutes [C].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [D].

10. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

12. Input the DTC: P0403.

13. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system has a normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.

14. If the judgment result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Put the engine in inspection mode (maintenance mode) Component Tests and General Diagnostics.

(e) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

HINT
The A/C switch and all accessory switches should be off.

(f) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position / Data List / Primary / Throttle Idle Position and MAP.

(g) Confirm that the Throttle Idle Position is ON and check the engine idling condition and MAP values in the Data List while performing the Active Test.

HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when the Active Test is completed.
- Do not open the EGR valve 30 steps or more during the Active Test.

OK:

MAP and idling condition change in response to EGR step position when Throttle Idle Position is ON in Data List.

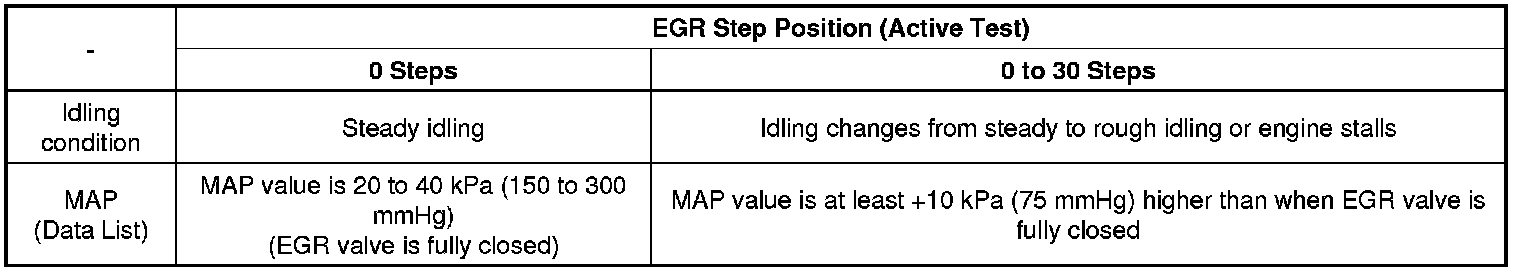

Standard:





HINT
During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in the EGR valve.

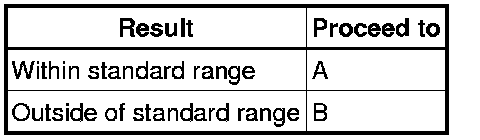

Result





B -- INSPECT EGR VALVE ASSEMBLY

A -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems

2. INSPECT EGR VALVE ASSEMBLY

(a) Inspect the EGR valve assembly Testing and Inspection.

NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- Continue to next step.

3. INSPECT EGR VALVE ASSEMBLY (+B1 OR +B2 VOLTAGE)

(a) Disconnect the EGR valve assembly connector.





(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

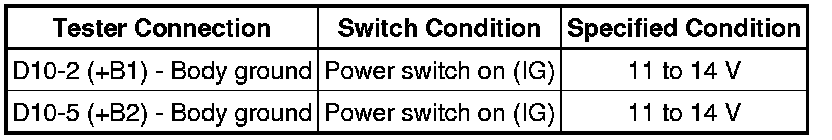

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (EGR VALVE ASSEMBLY - EFI MAIN RELAY)
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (ECM - EGR VALVE ASSEMBLY)

(a) Disconnect the EGR valve assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

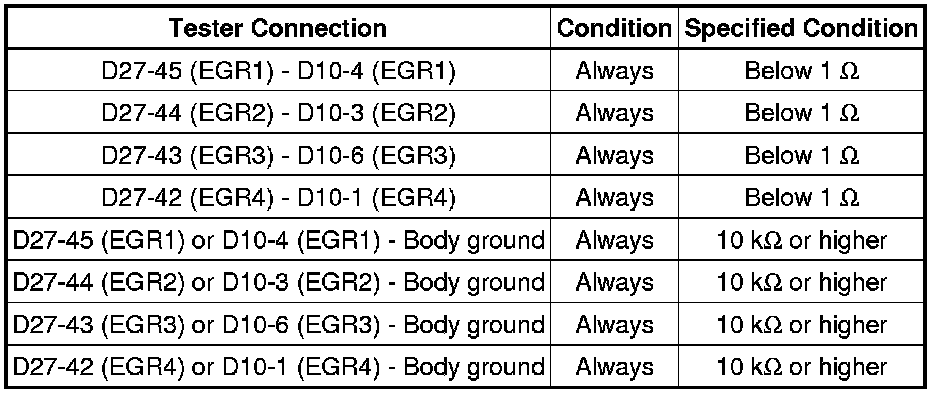

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK DTC OUTPUT RECORDS (DTC P0403)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG) and turn the Techstream on.

(c) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(d) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(e) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(f) Read the DTCs.

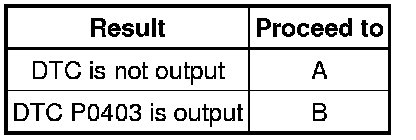

Result





B -- REPLACE ECM Removal

A -- END
