Removal

AXLE: REAR AXLE HUB: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.
* A bolt without a torque specification is shown in the standard bolt chart Specified Torque For Standard Bolts.
1. REMOVE REAR WHEEL

2. LOOSEN REAR AXLE SHAFT NUT LH

(a) Remove the cotter pin and rear axle lock nut plate.

(b) Loosen the nut.

3. DISCONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH

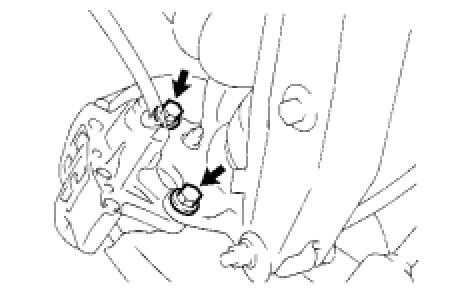

(a) Remove the 2 bolts and disconnect the brake cylinder from the axle carrier.

(b) Support the brake cylinder securely.

4. REMOVE REAR DISC

5. DISCONNECT SPEED SENSOR REAR LH Removal

6. REMOVE PARKING BRAKE ASSEMBLY

(a) Remove the parking brake assembly Disassembly.

7. DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Disconnect the parking brake cable Removal.

8. DISCONNECT TOE CONTROL LINK SUB-ASSEMBLY LH

(a) Remove the nut.

(b) Using SST, disconnect the toe control link from the axle carrier.

SST : 09610-20012

NOTICE:
Be careful not to damage the dust cover.

9. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

(a) Remove the bolt and nut, and disconnect the suspension arm.

10. DISCONNECT REAR UPPER CONTROL ARM ASSEMBLY LH

(a) Remove the nut.

(b) Using SST, disconnect the upper control arm from the axle carrier.

SST : 09628-00011

NOTICE:
Be careful not to damage the dust cover.

(c) Connect the rear axle carrier to the upper control arm, and loosely install the nut.

(d) Using a plastic-faced hammer, tap the rear drive shaft assembly's tip to detach the rear drive shaft assembly.

(e) Remove the nut and disconnect the upper control arm.

11. DISCONNECT REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

(a) Place matchmarks on the adjusting cam and rear suspension arm.

(b) Remove the nut, No. 2 camber adjusting cam and No. 1 camber adjusting cam. Then disconnect the rear suspension arm and remove the axle carrier assembly.

12. REMOVE REAR NO. 2 WHEEL BEARING DUST DEFLECTOR LH

(a) Using a screwdriver, pry out the dust deflector.

13. REMOVE REAR AXLE SHAFT LH

(a) Remove the 2 bolts and nuts.

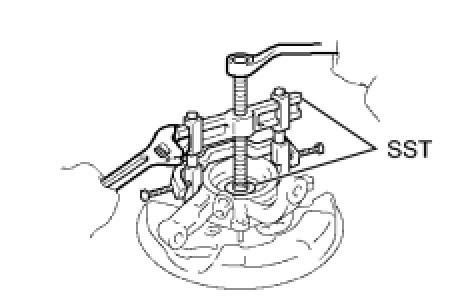

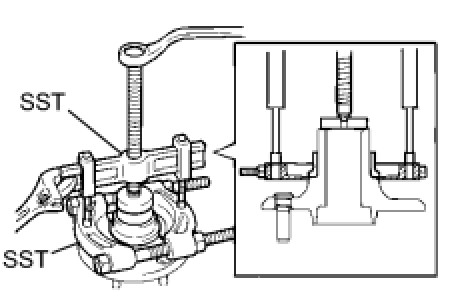

(b) Using SST, remove the axle shaft from the axle carrier.

SST : 09950-40011

09951-04020

09952-04010

09953-04030

09954-04010

09955-04051

09957-04010

09958-04011

SST : 09950-60010

09951-00480

SST : 09950-00020

SST : 09950-60010

09951-00480

SST : 09950-40011

09951-04020

09952-04010

09953-04030

09954-04020

09955-04041

NOTICE:
Be careful not to damage the axle shaft.

14. REMOVE REAR AXLE SHAFT SNAP RING LH

(a) Using snap ring pliers, remove the snap ring.

15. REMOVE REAR AXLE SHAFT BEARING LH

(a) Using SST and a press, press out the shaft bearing from the axle carrier.

SST : 09950-60010

09951-00650

SST : 09950-70010

09951-07100
