Display Signal Circuit Between Navigation ECU and Multi-display

NAVIGATION: NAVIGATION SYSTEM (for HDD): Display Signal Circuit between Navigation ECU and Multi-display
- Display Signal Circuit between Navigation ECU and Multi-display

DESCRIPTION

The display image signal*1 from the display and navigation module display is sent to the multi-display assembly using a digital communication cable.

* *1: Except DVD image signal for vehicles with DVD player.

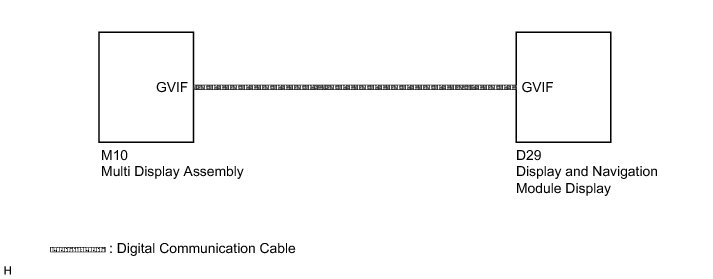

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK DIGITAL COMMUNICATION CABLE CONNECTOR

(a) Check digital communication cable connector

(1) Check if the digital communication cable connectors between the display and navigation module display and the multi-display assembly have any connection problems How to Proceed with Troubleshooting.

(b) Check that the screen display is normal.

OK:

Screen display is normal.

NG -- REPLACE WIRE HARNESS (DIGITAL COMMUNICATION CABLE)

OK -- END

2. REPLACE WIRE HARNESS (DIGITAL COMMUNICATION CABLE)

(a) Replace the digital communication cable between the display and navigation module display and the multi-display assembly.

(b) Check that the screen display is normal.

OK:

Screen display is normal.

NG -- REPLACE MULTI DISPLAY ASSEMBLY

OK -- END

3. REPLACE MULTI DISPLAY ASSEMBLY

(a) Replace the multi-display assembly Removal.

(b) Check that the screen display is normal.

OK:

Screen display is normal.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

OK -- END
