SFI System

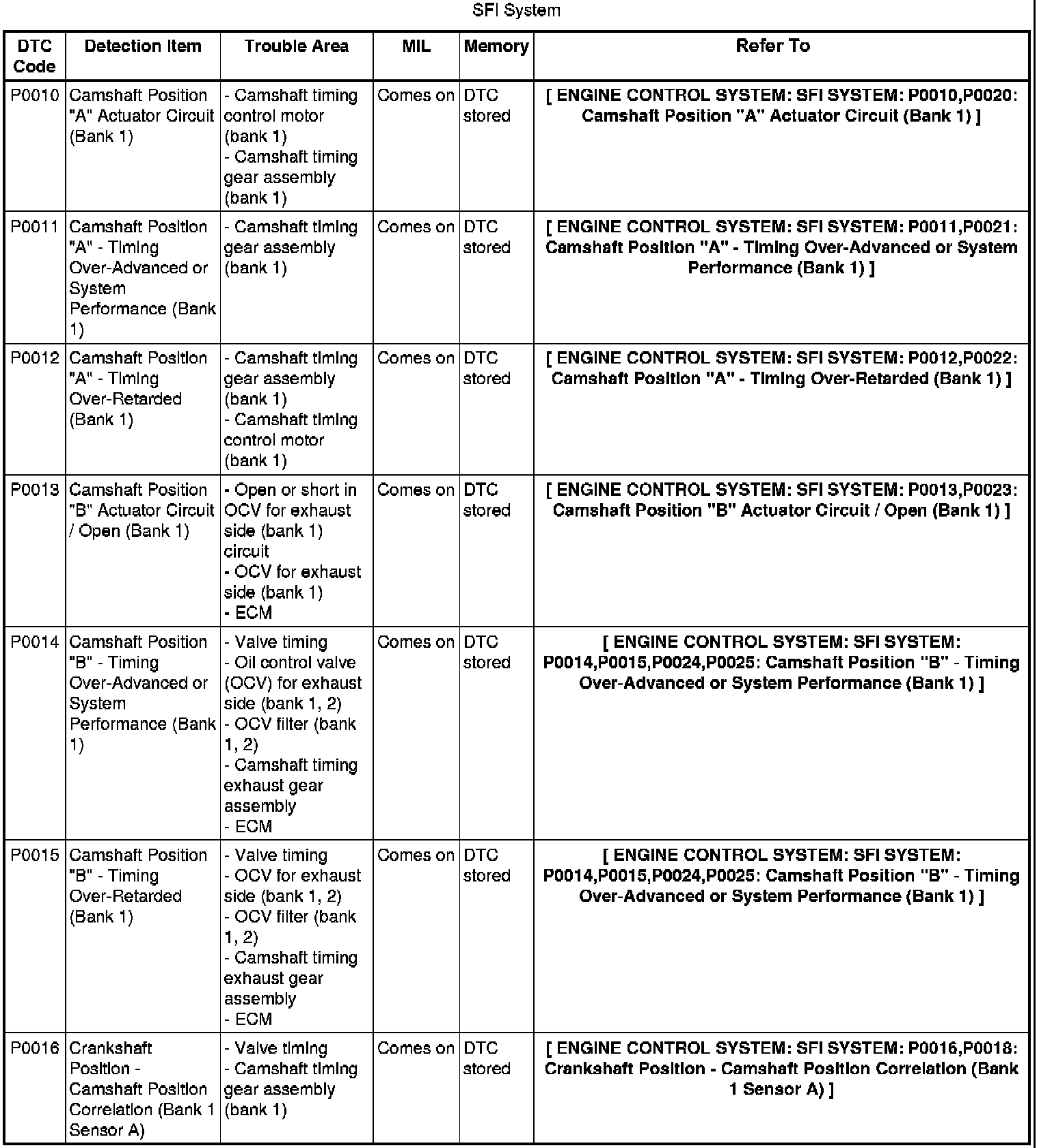

1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART HINT * Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors. If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below. * *: MIL flashes when a catalyst damaged misfire is detected.P0010 - P0016:

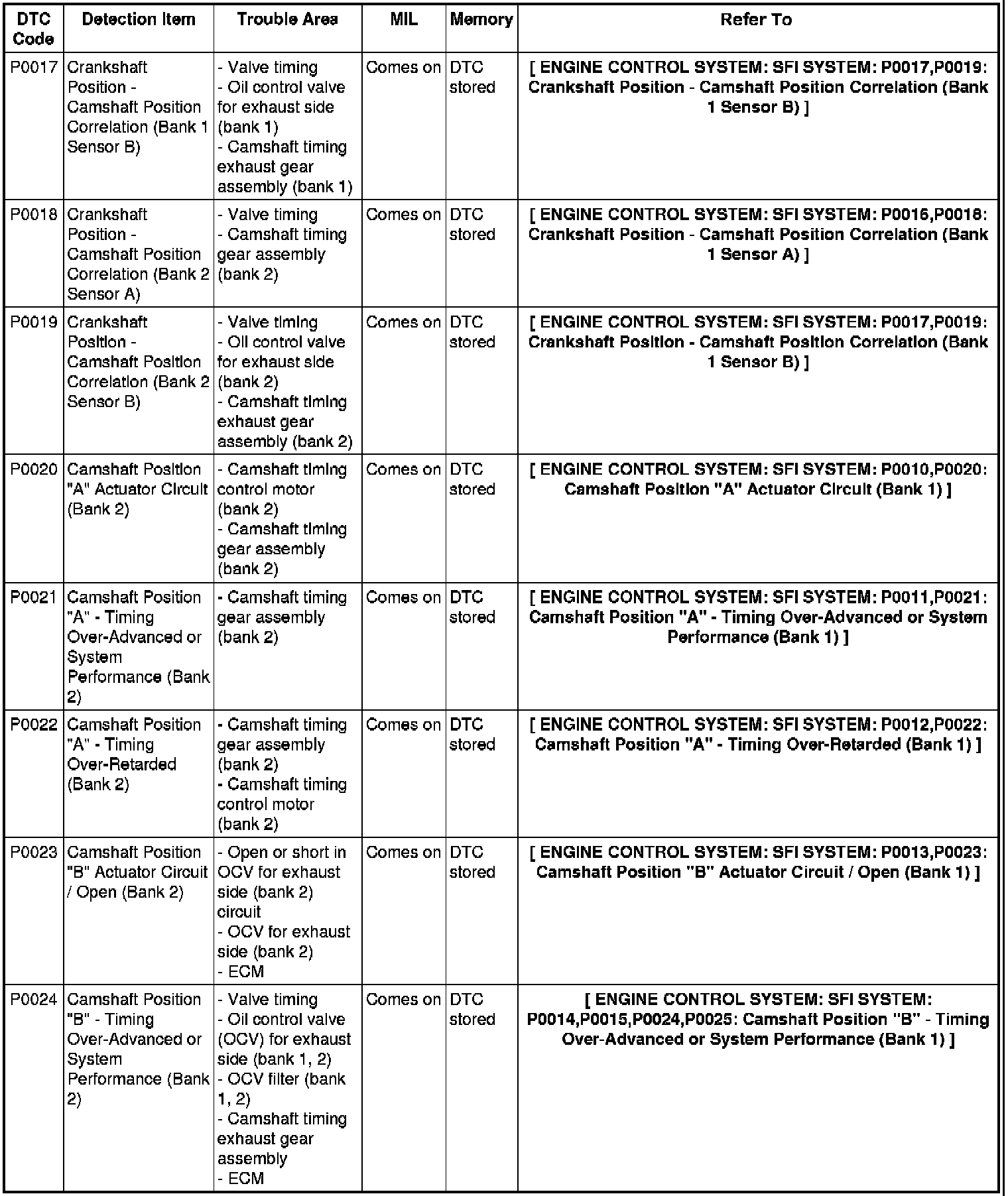

P0017 - P0024:

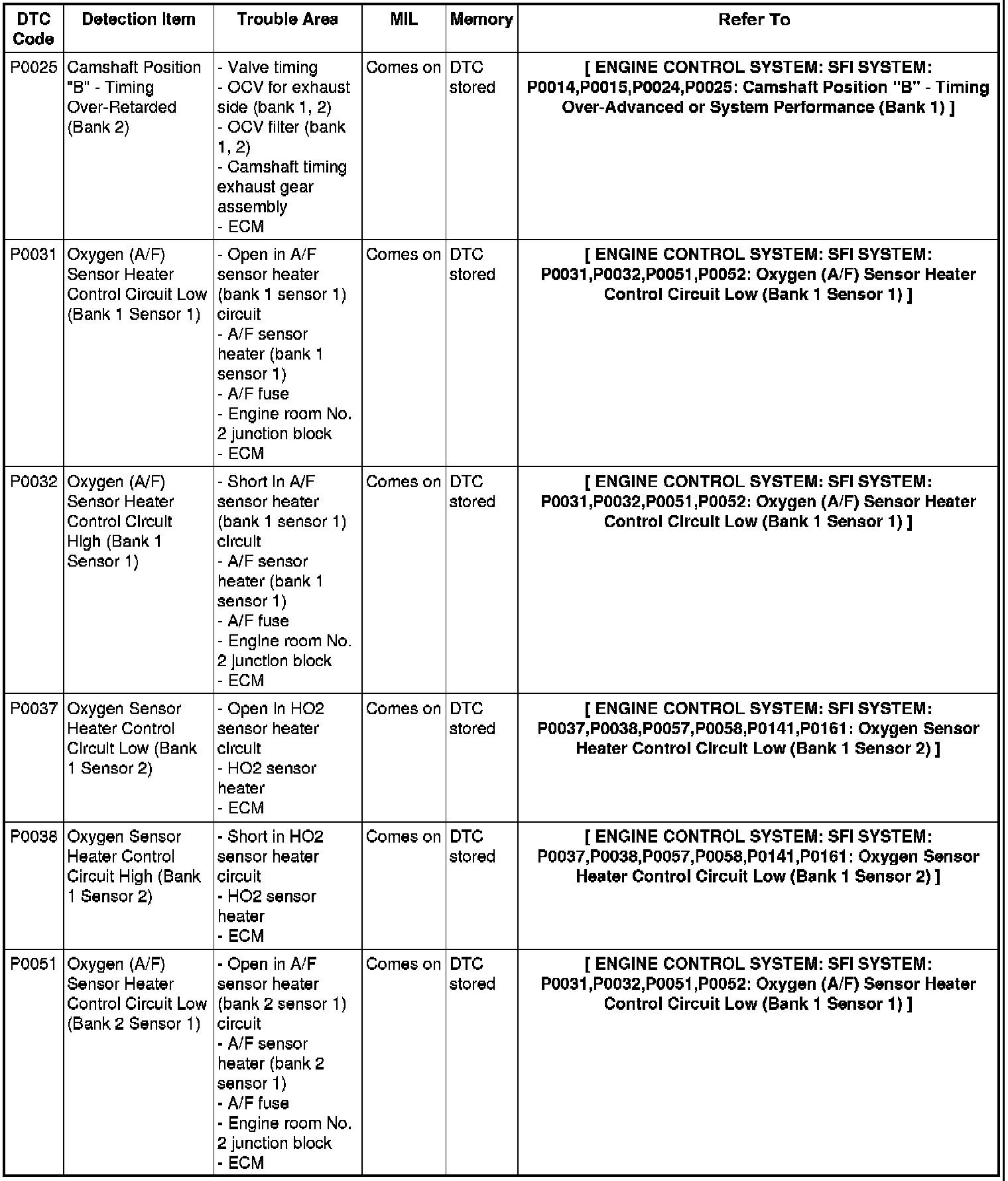

P0025 - P0051:

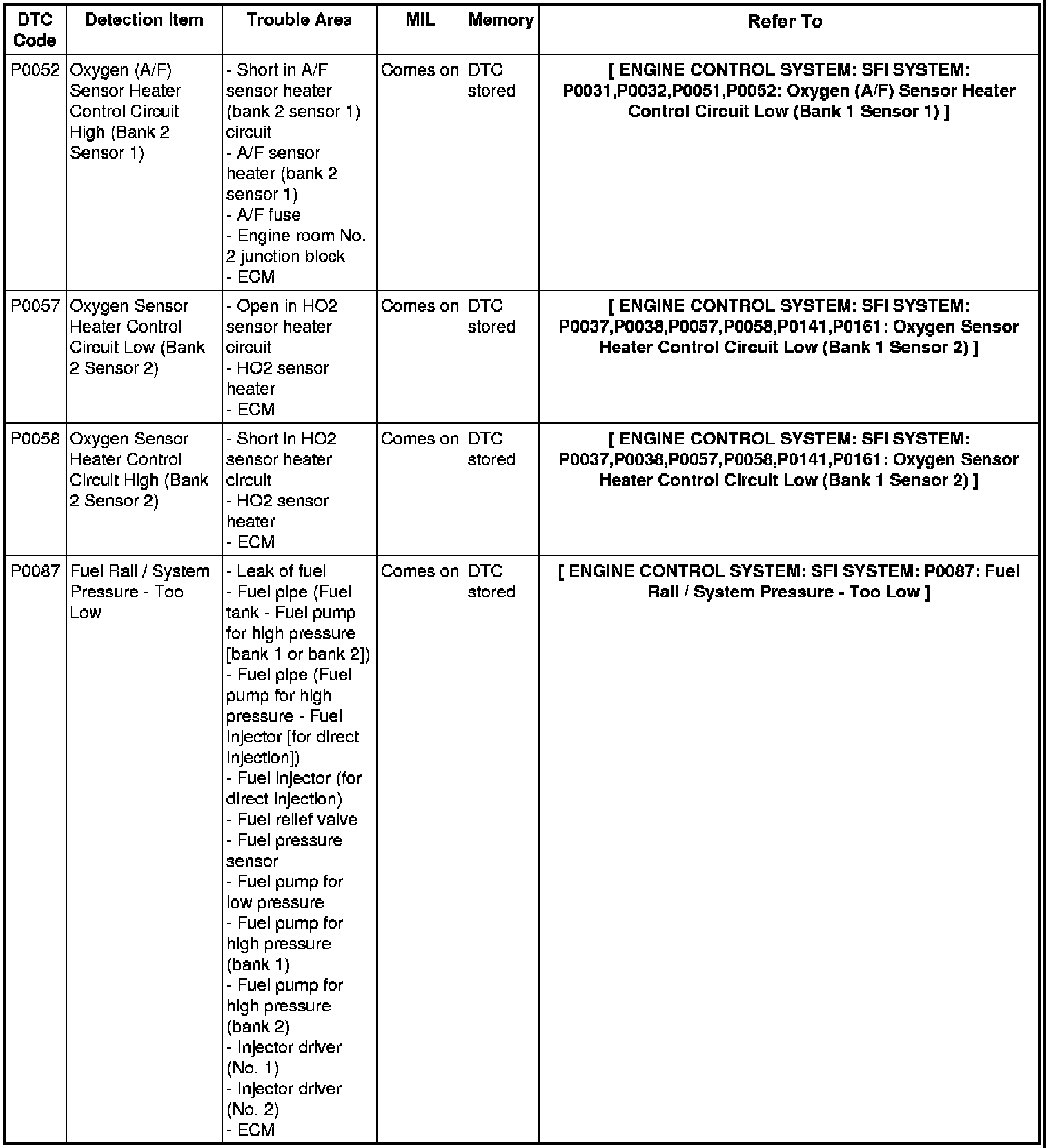

P0052 - P0067:

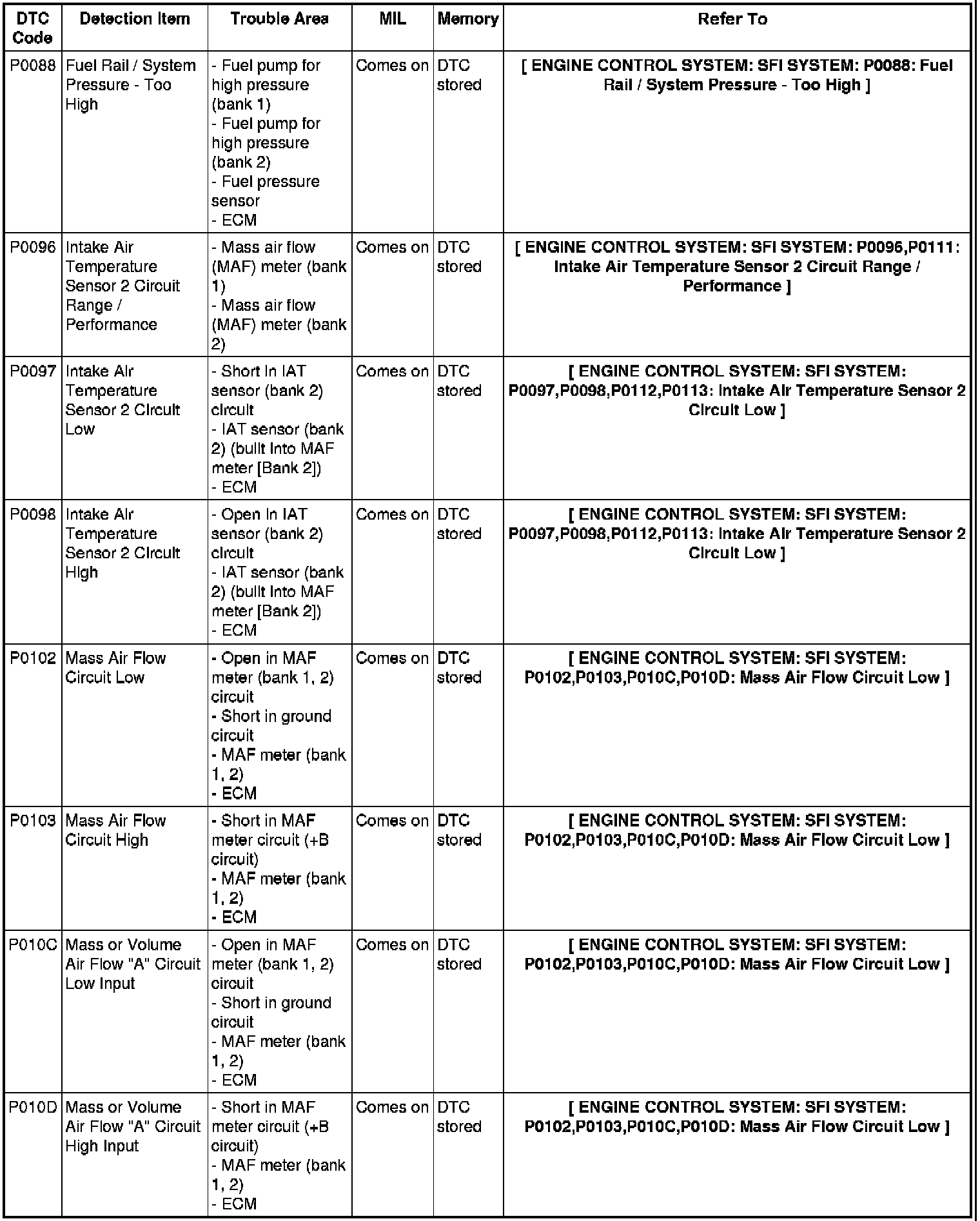

P0088 - P010D:

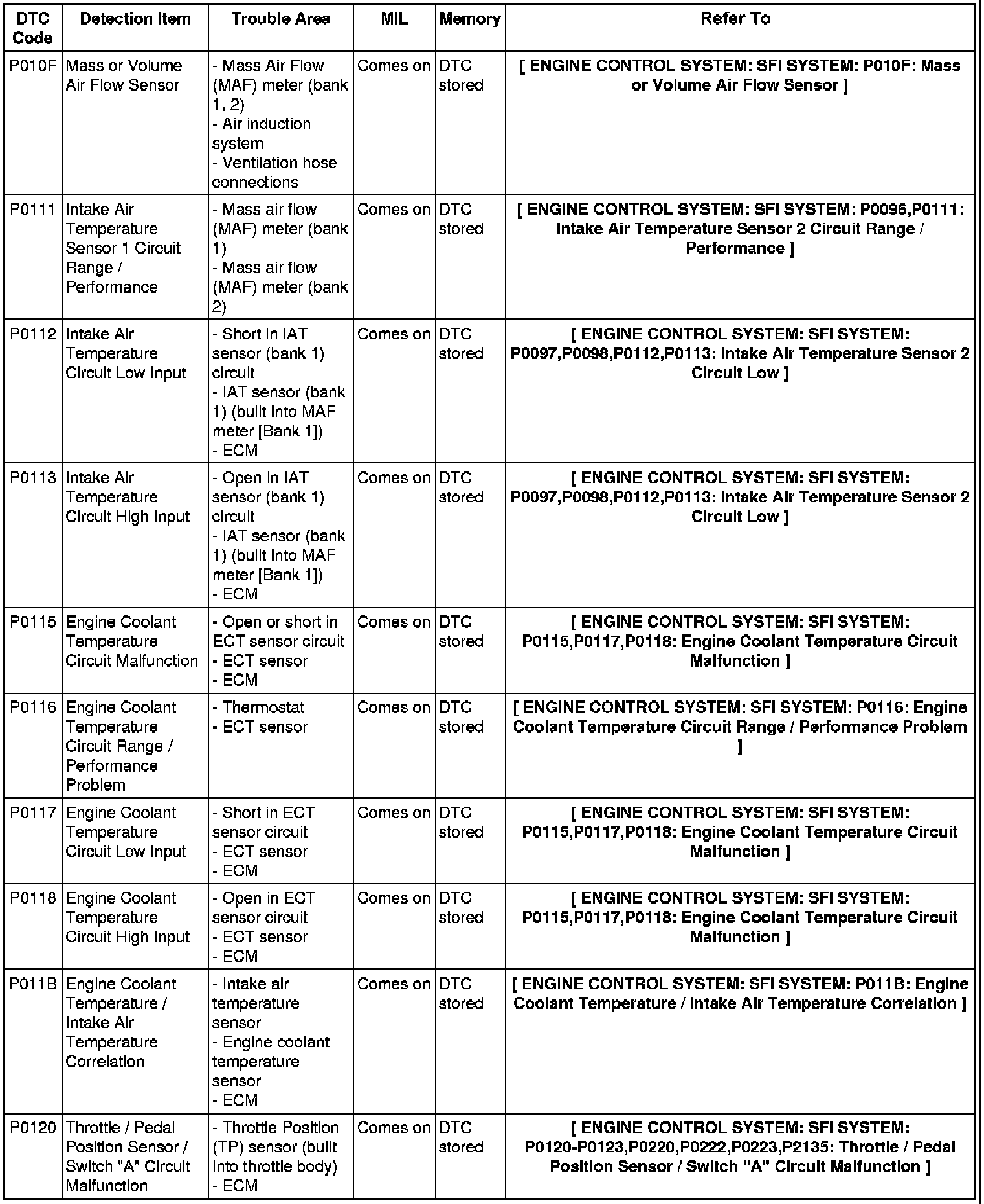

P010F - P0120:
P0121 - P0136:

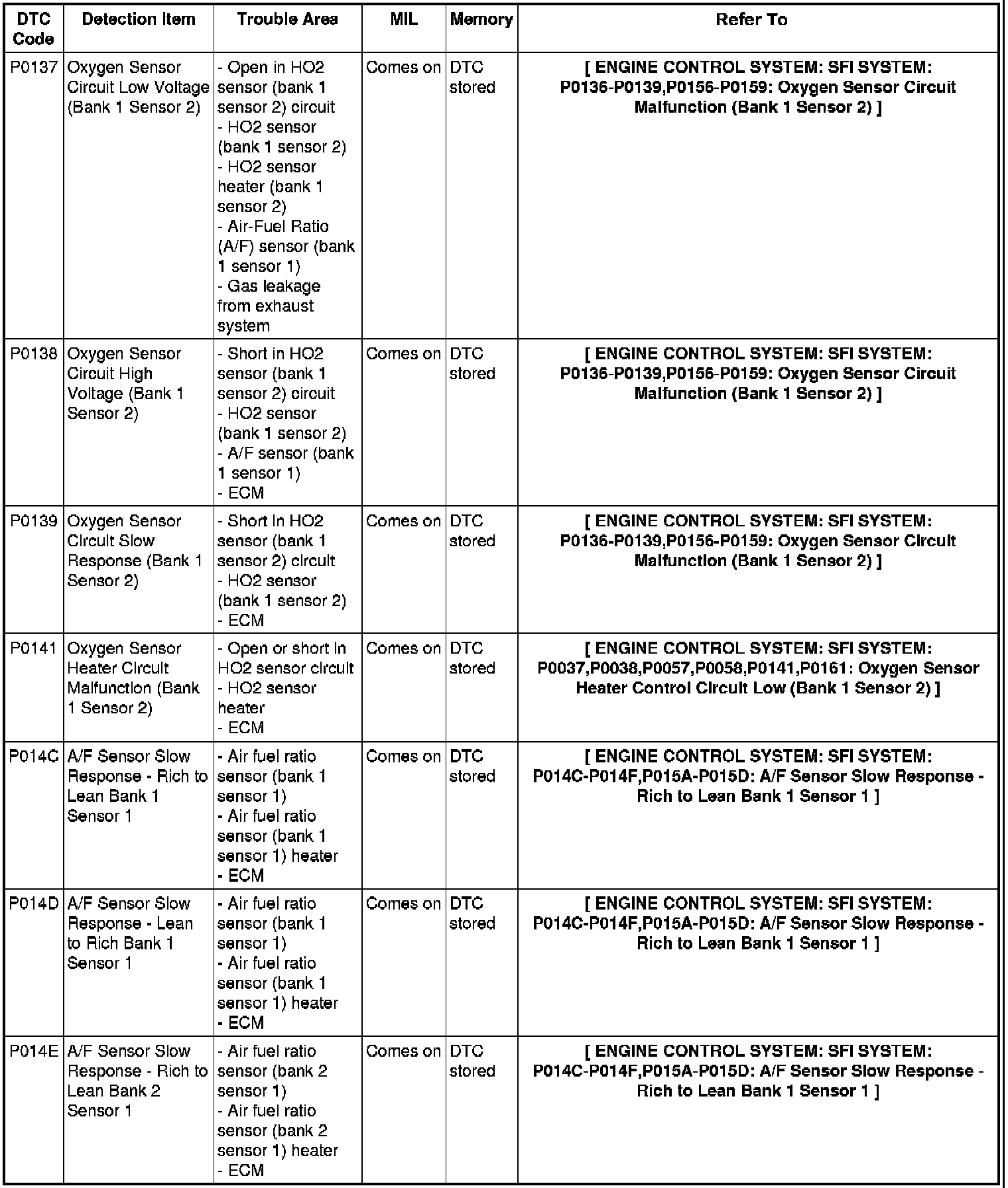

P0137 - P014E:
P014F - P015A:

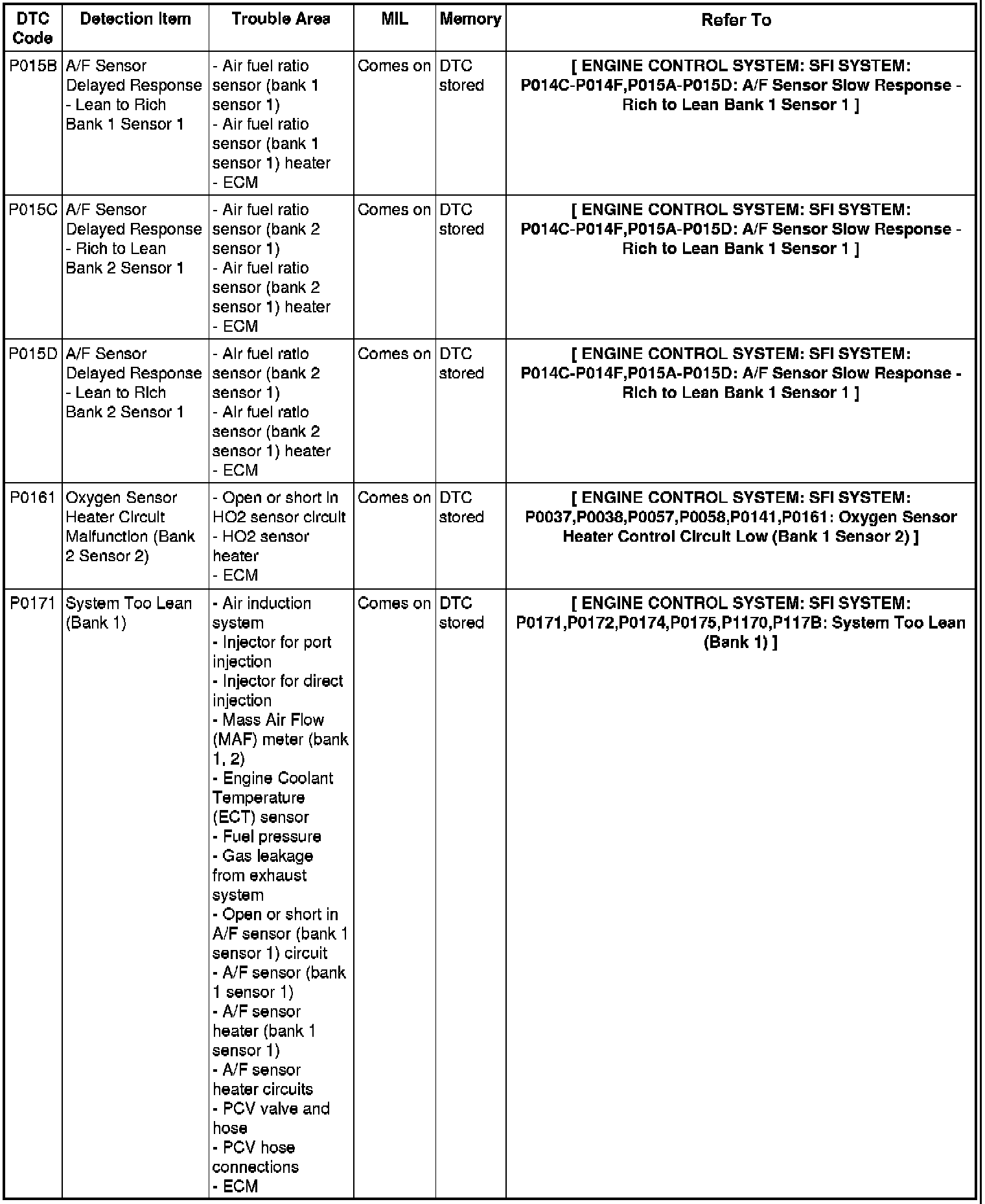

P015B - P0171:
P0172 - P0174:

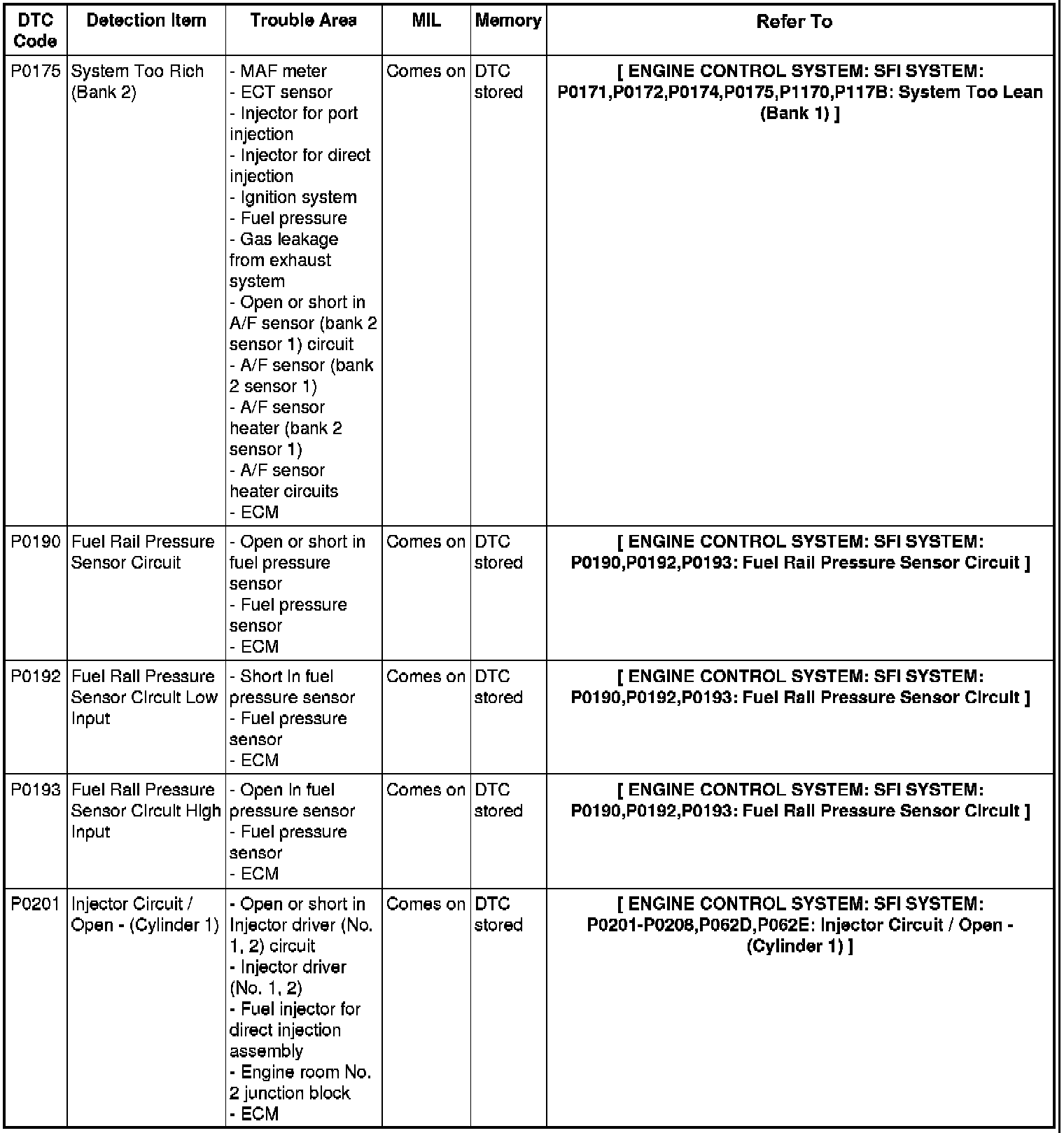

P0175 - P0201:

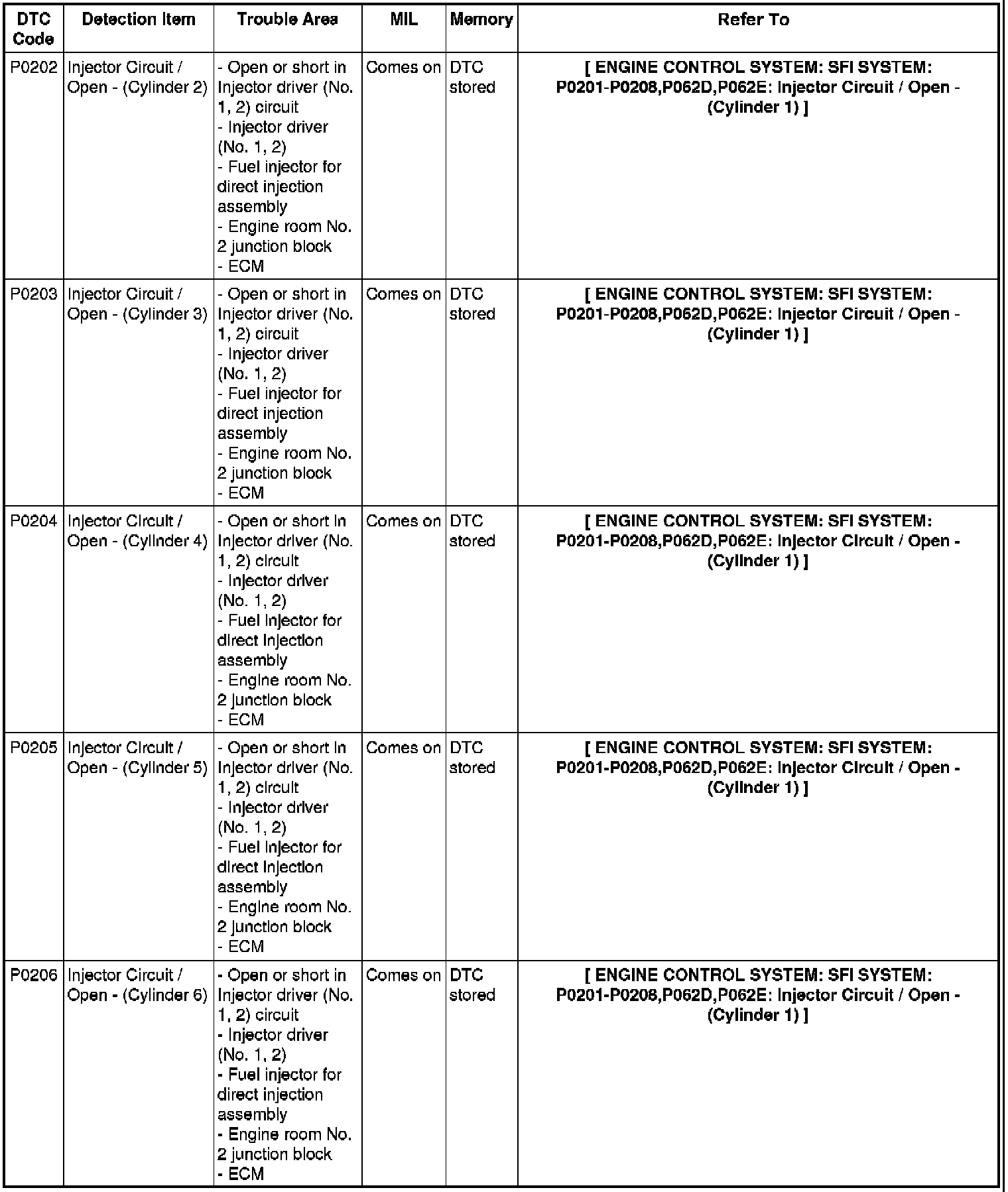

P0202 - P0206:

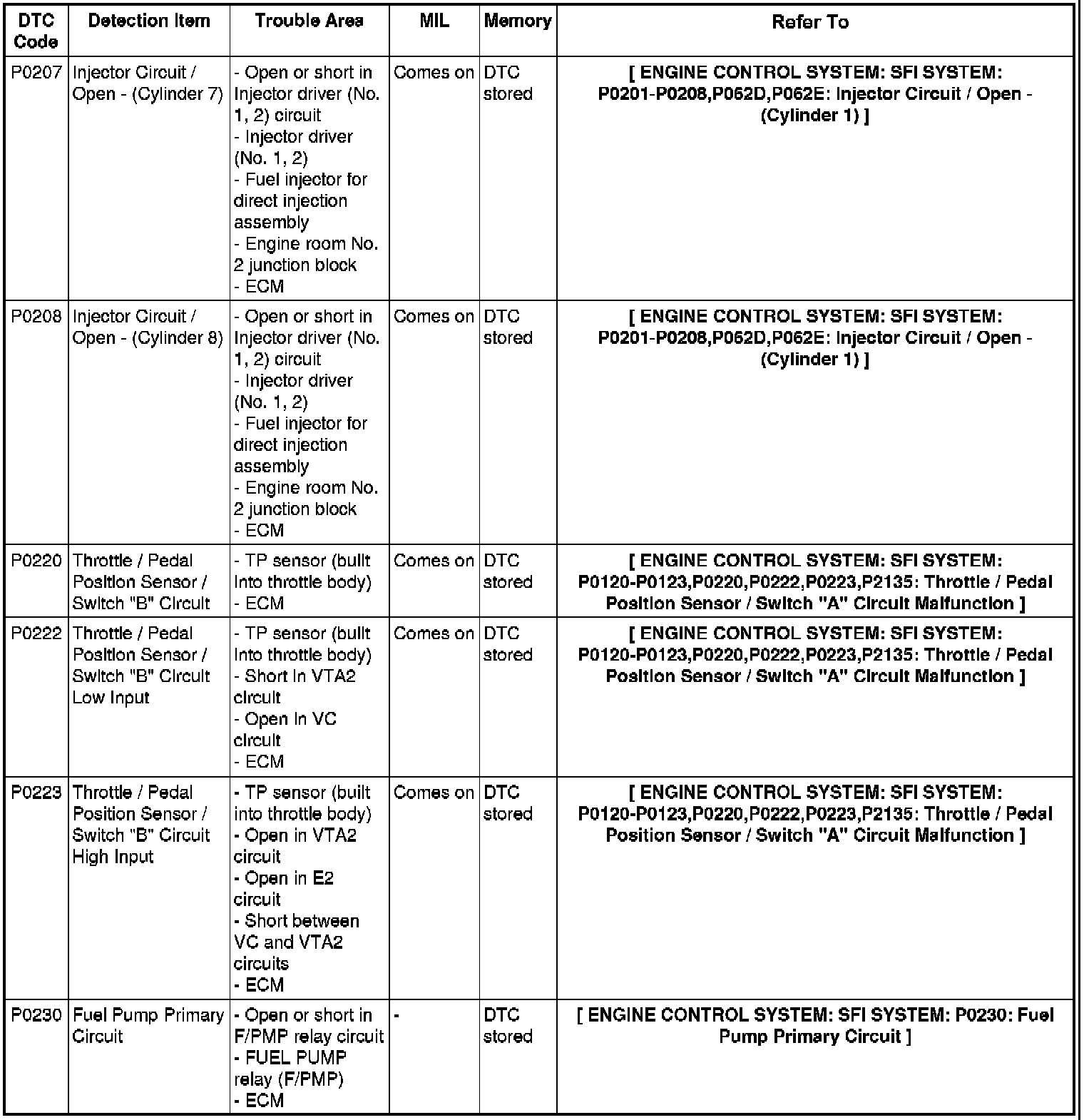

P0207 - P0230:

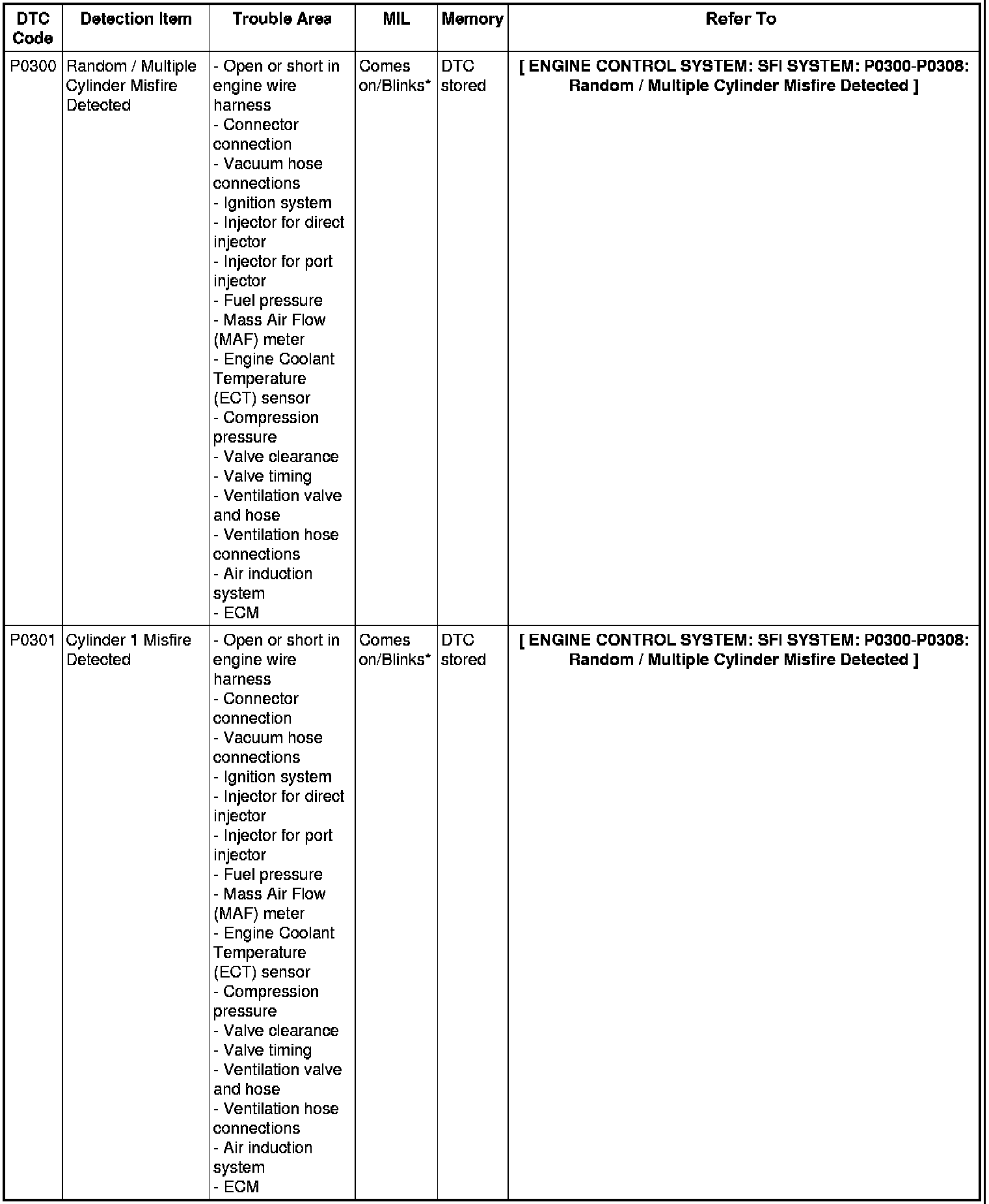

P0300 - P0301:
P0302 - P0303:

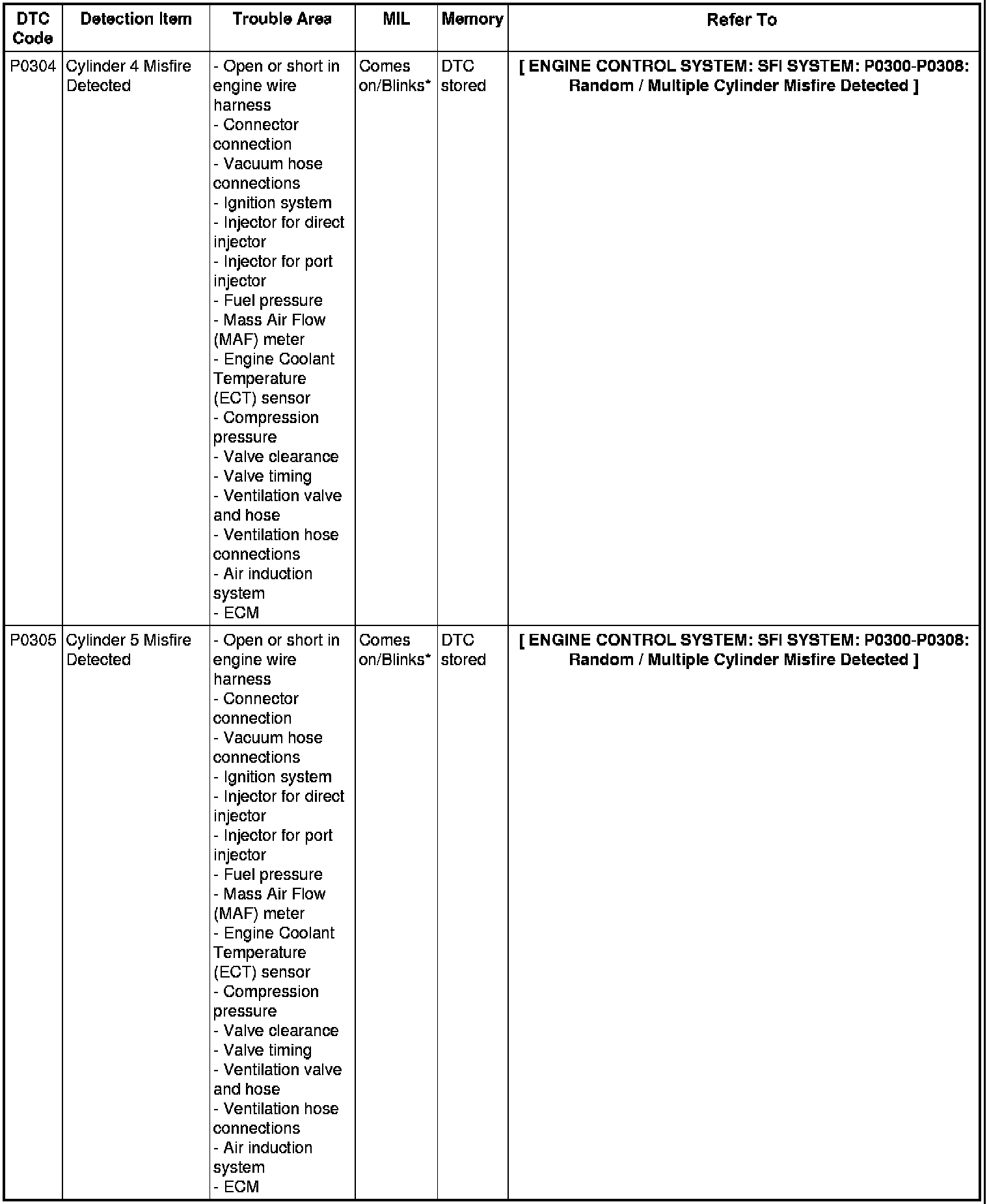

P0304 - P0305:
P0306 - P0307:

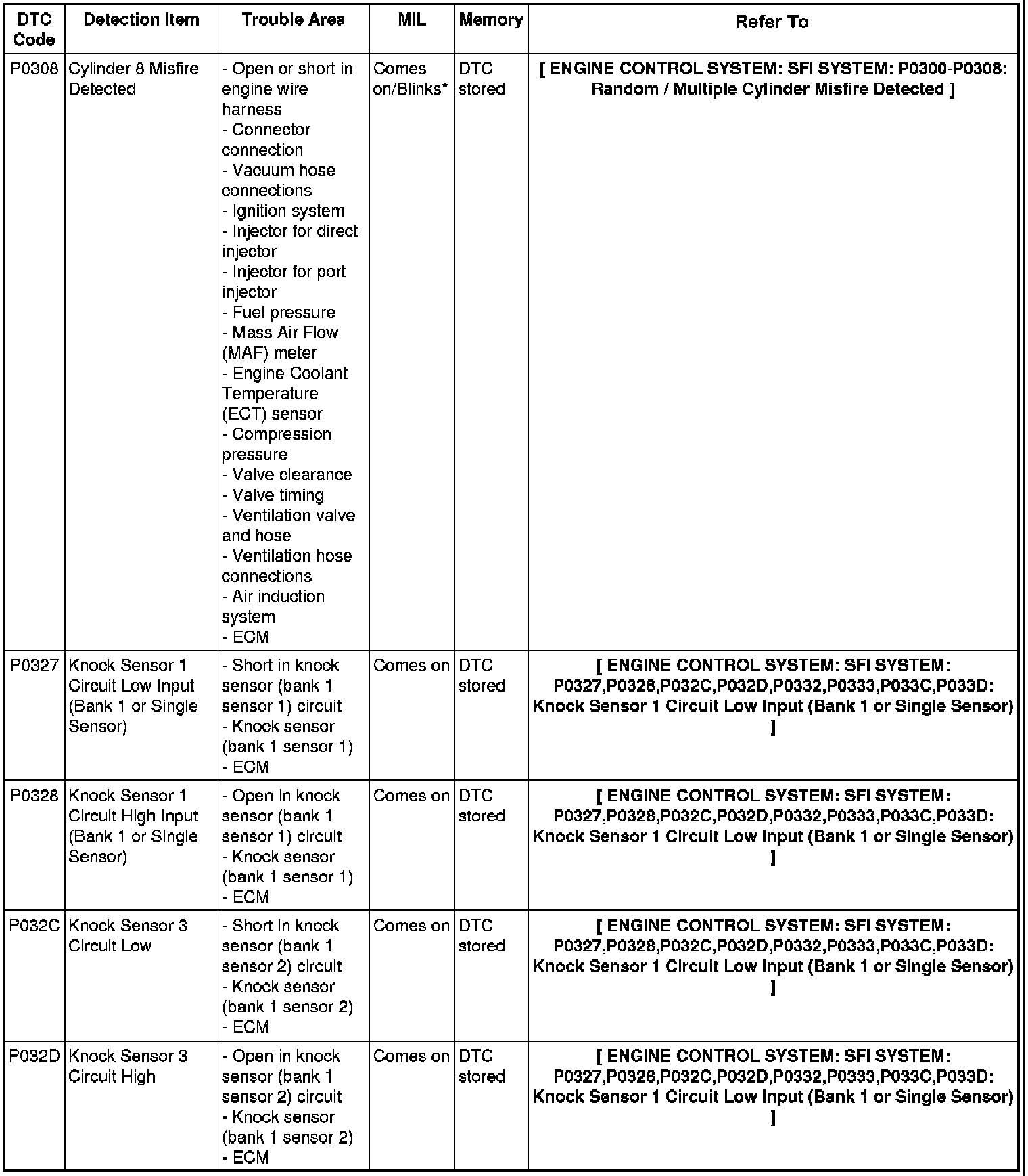

P0308 - P032D:
P0332 - P0340:
P0342 - P0351:

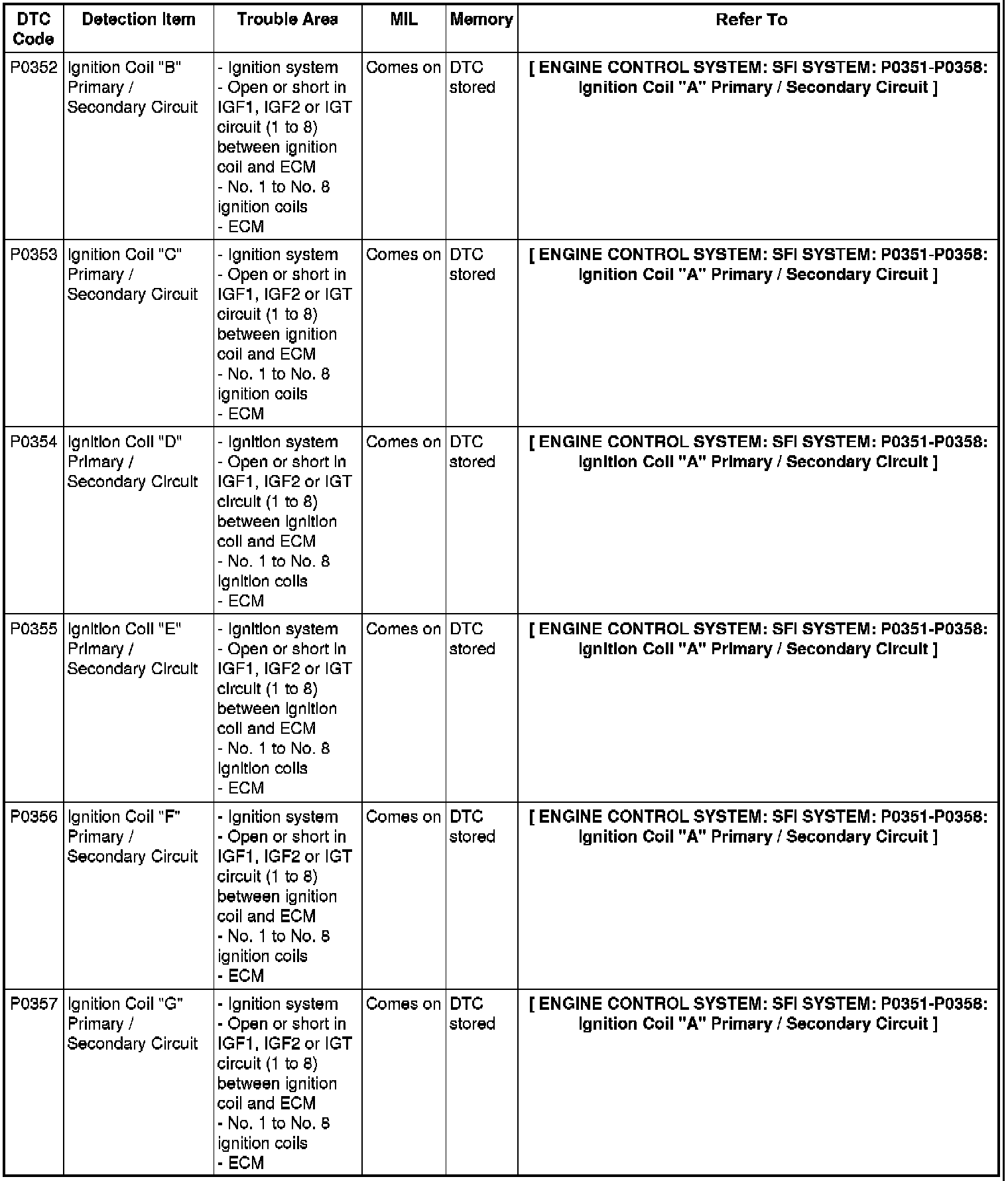

P0352 - P0357:

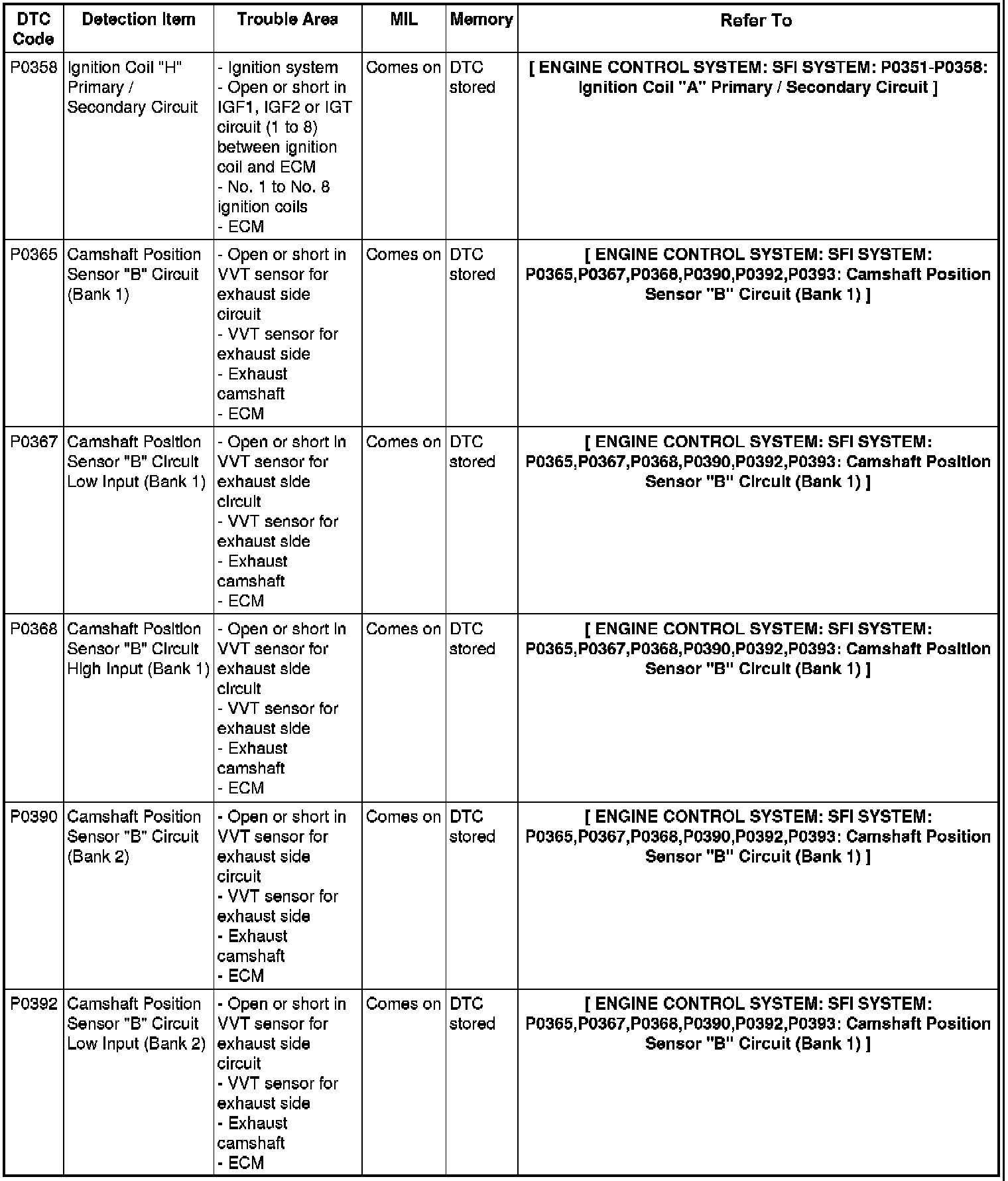

P0358 - P0392:

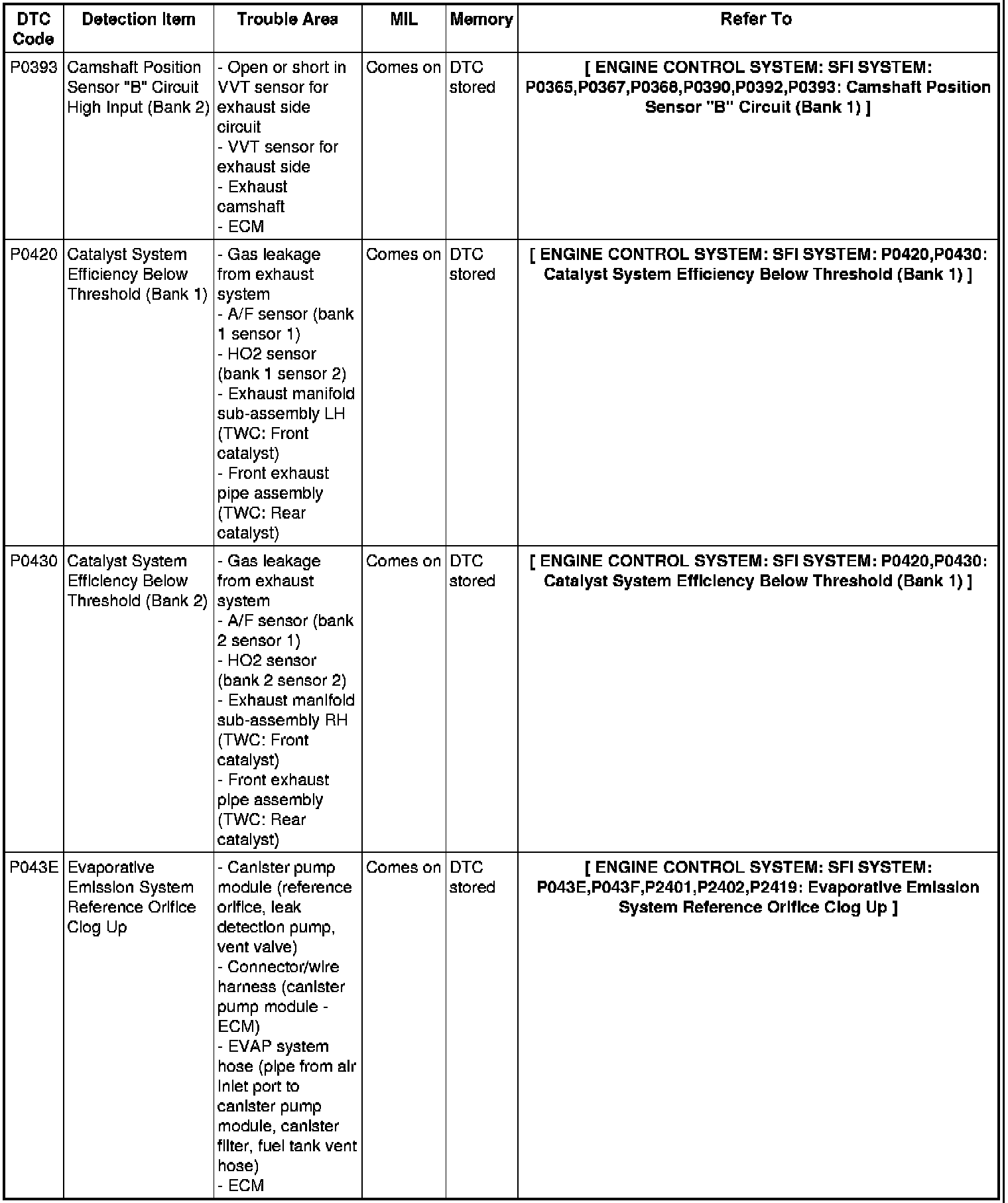

P0393 - P043E:

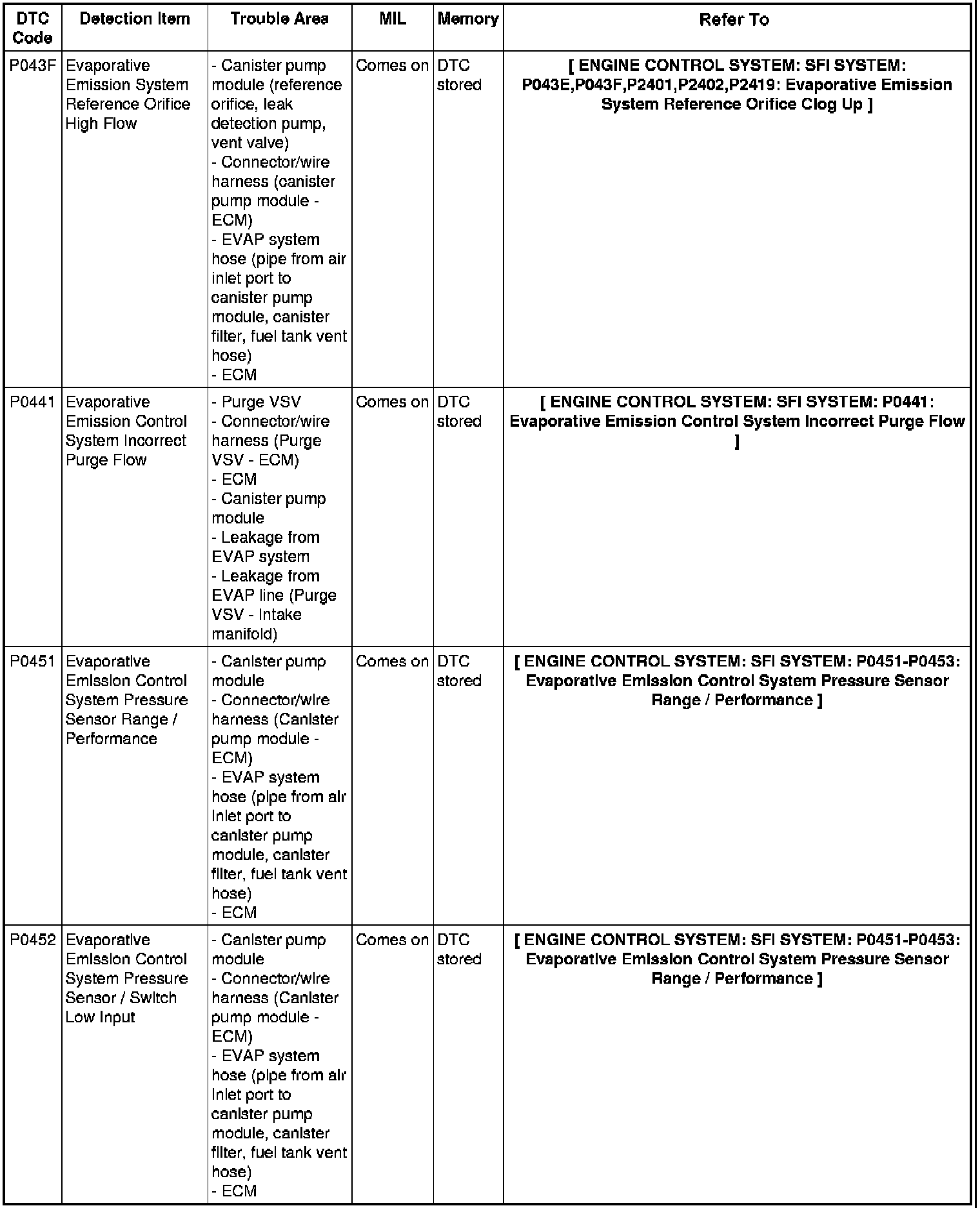

P043F - P0452:

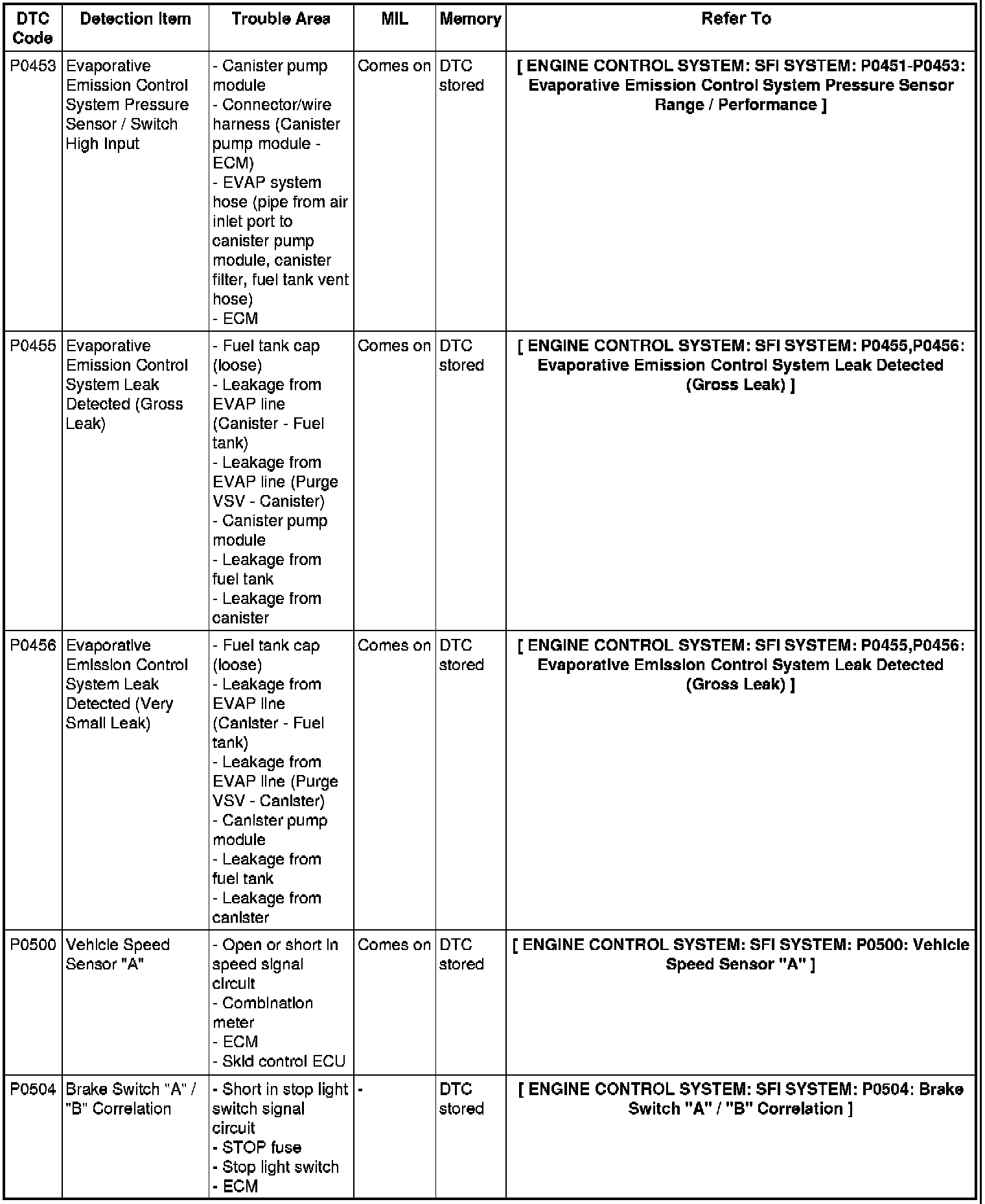

P0453 - P0504:

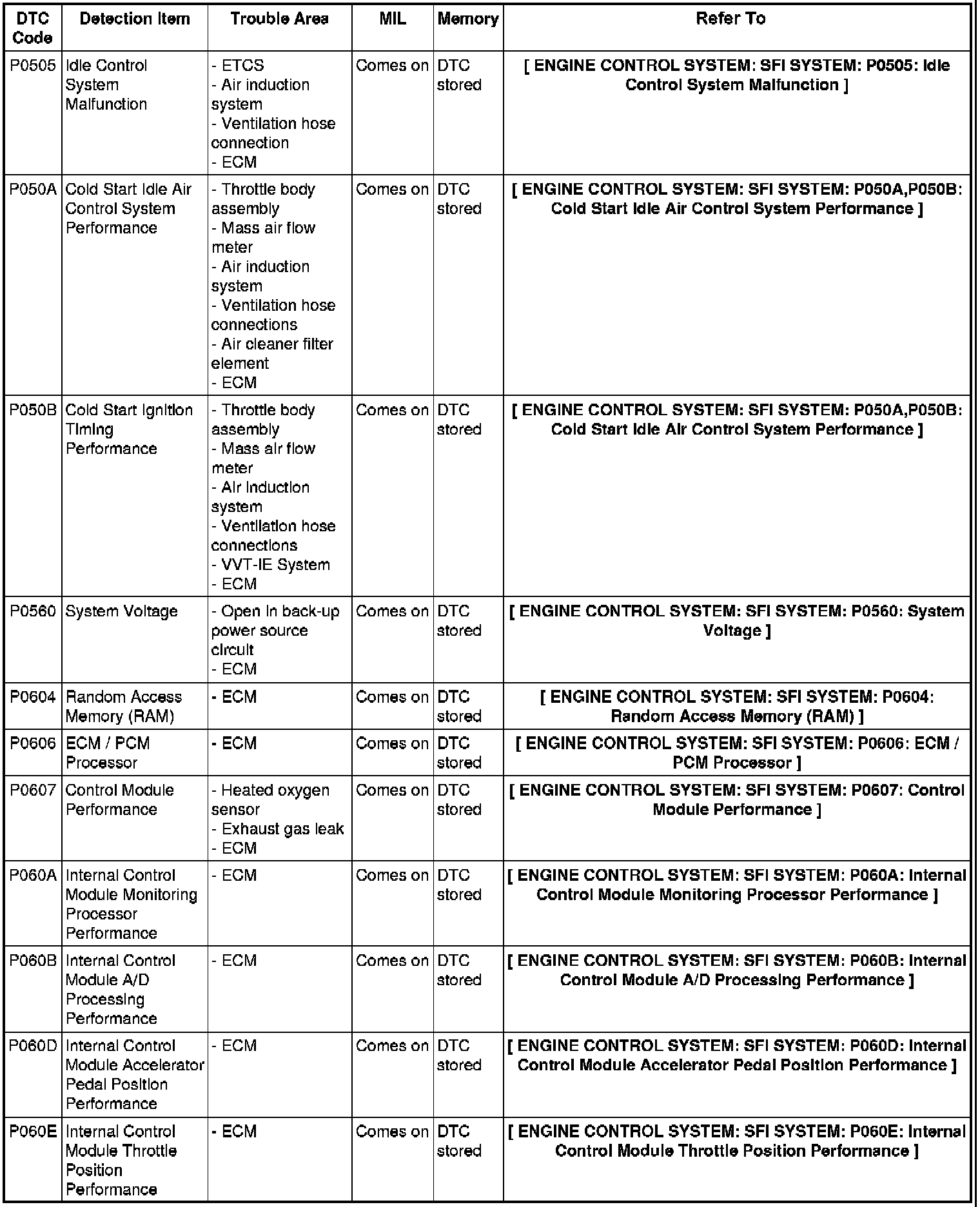

P0505 - P060E:

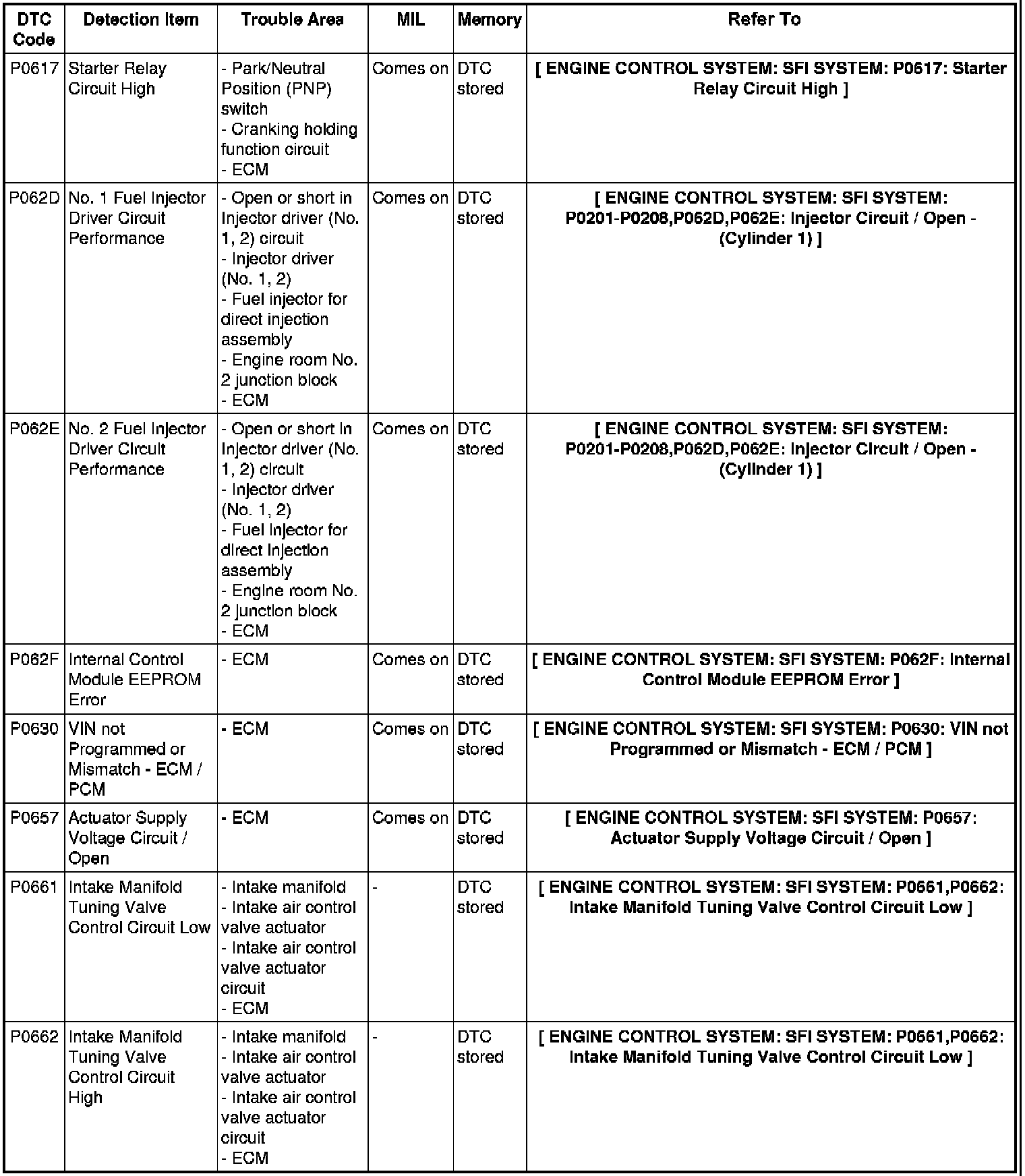

P0617 - P0662:

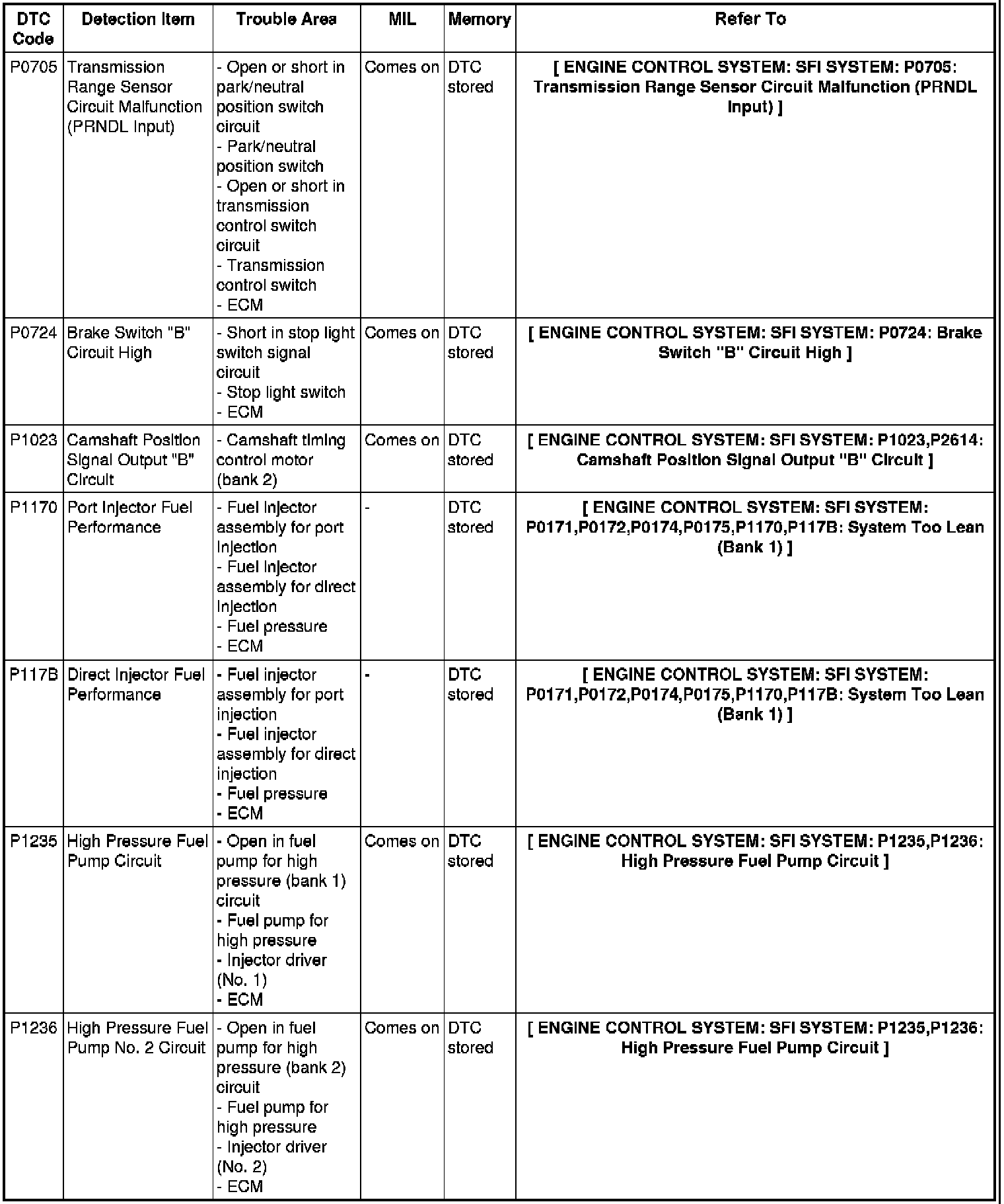

P0705 - P1236:

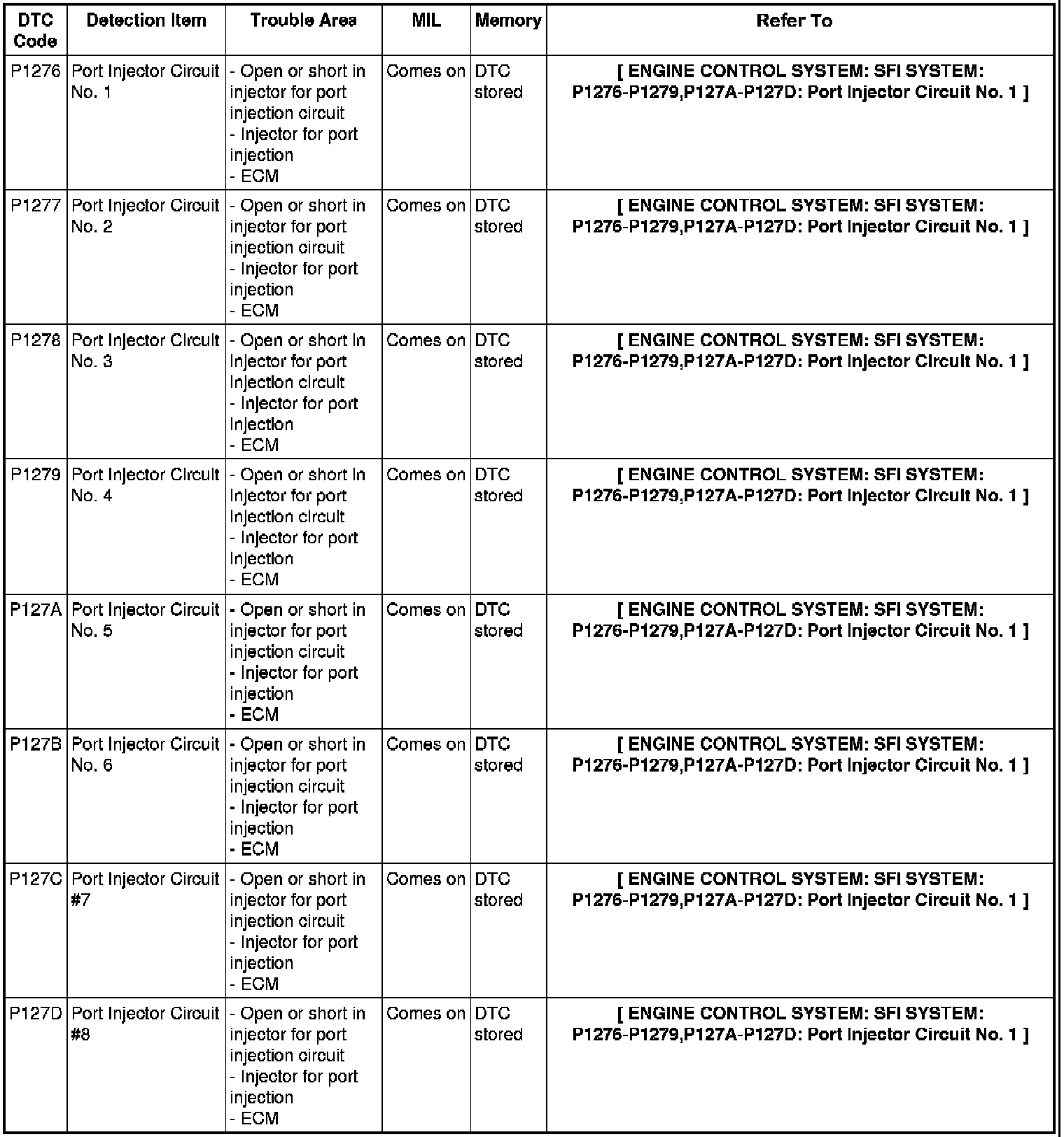

P1276 - P127D:

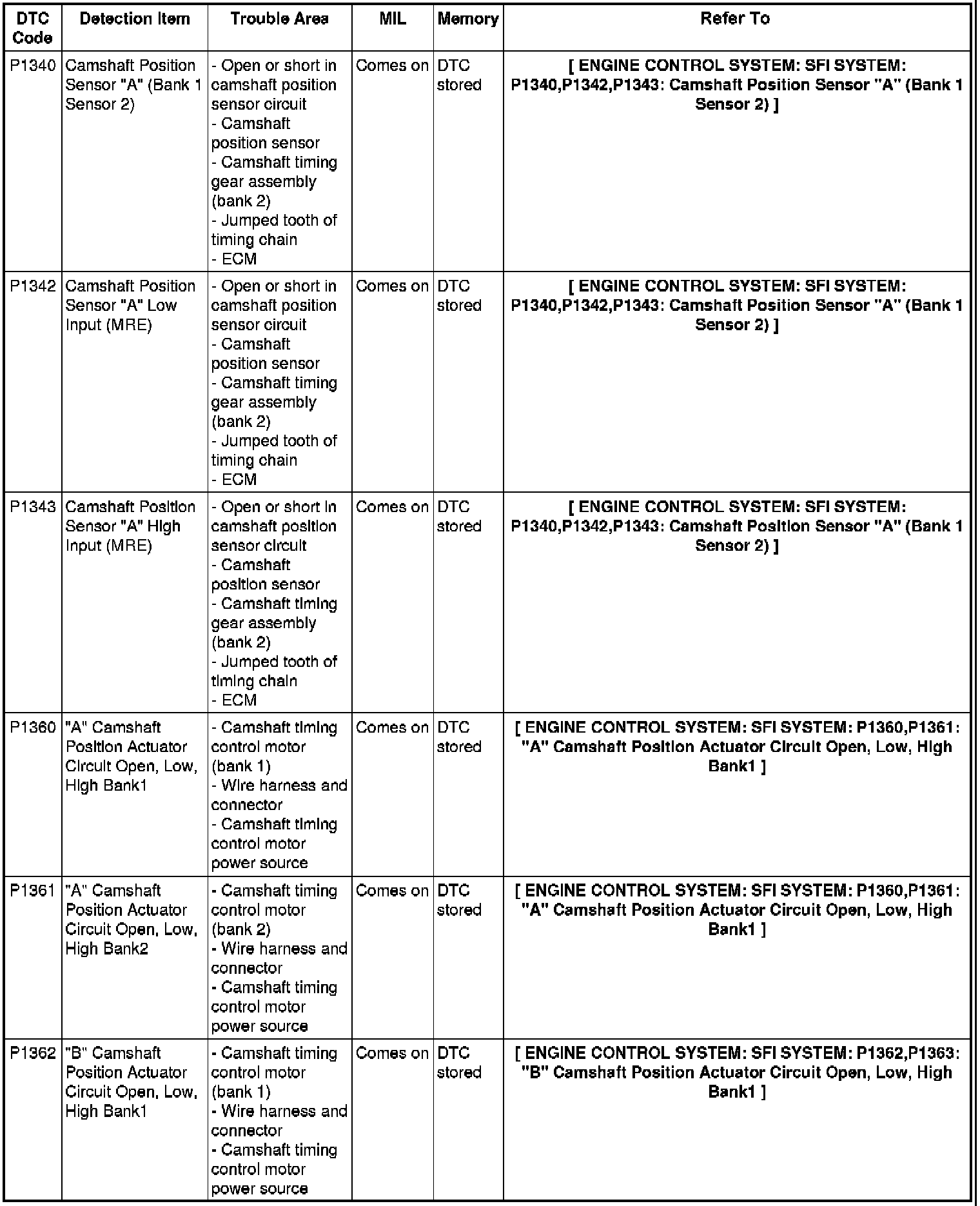

P1340 - P1362:

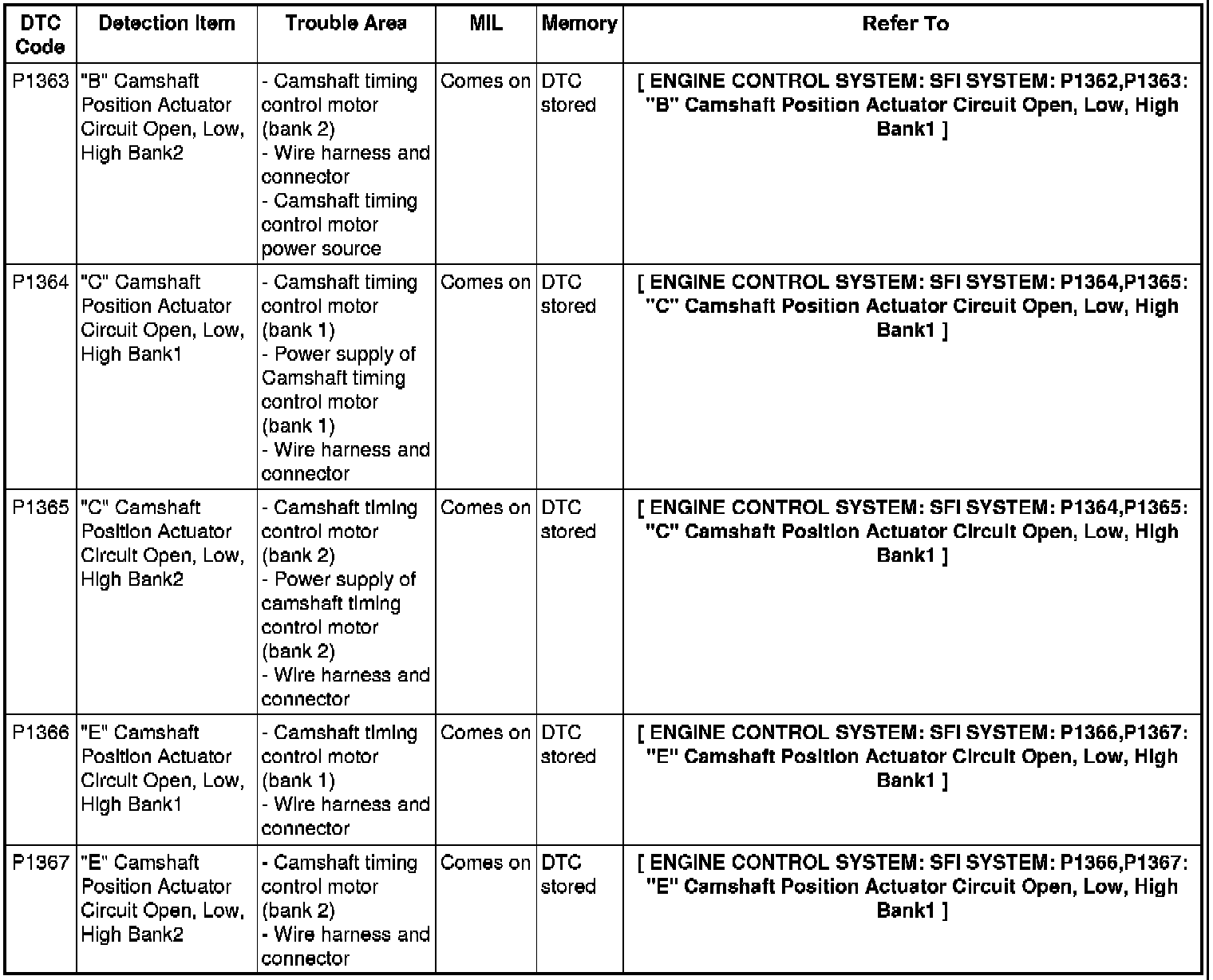

P1363 - P1367:

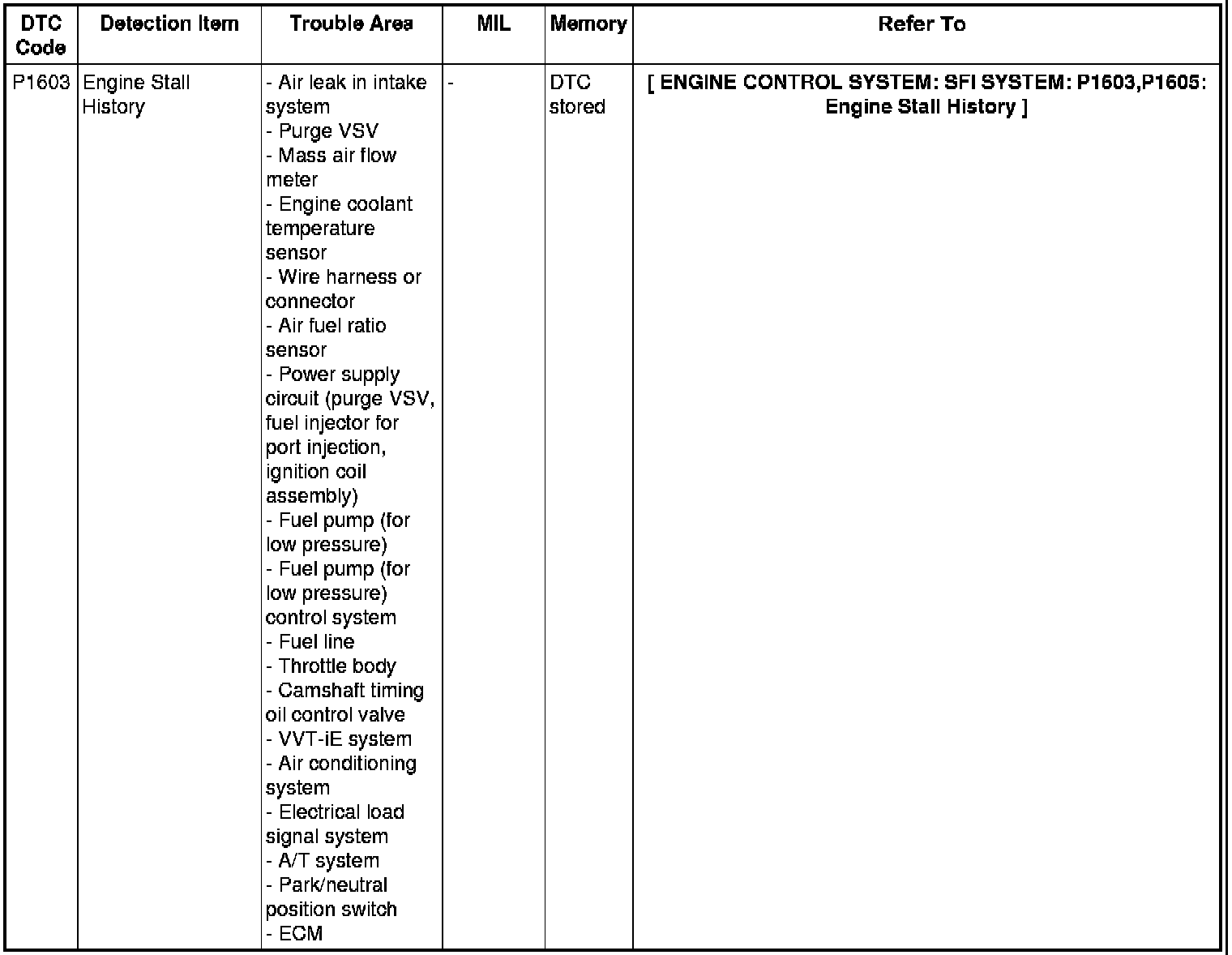

P1603:

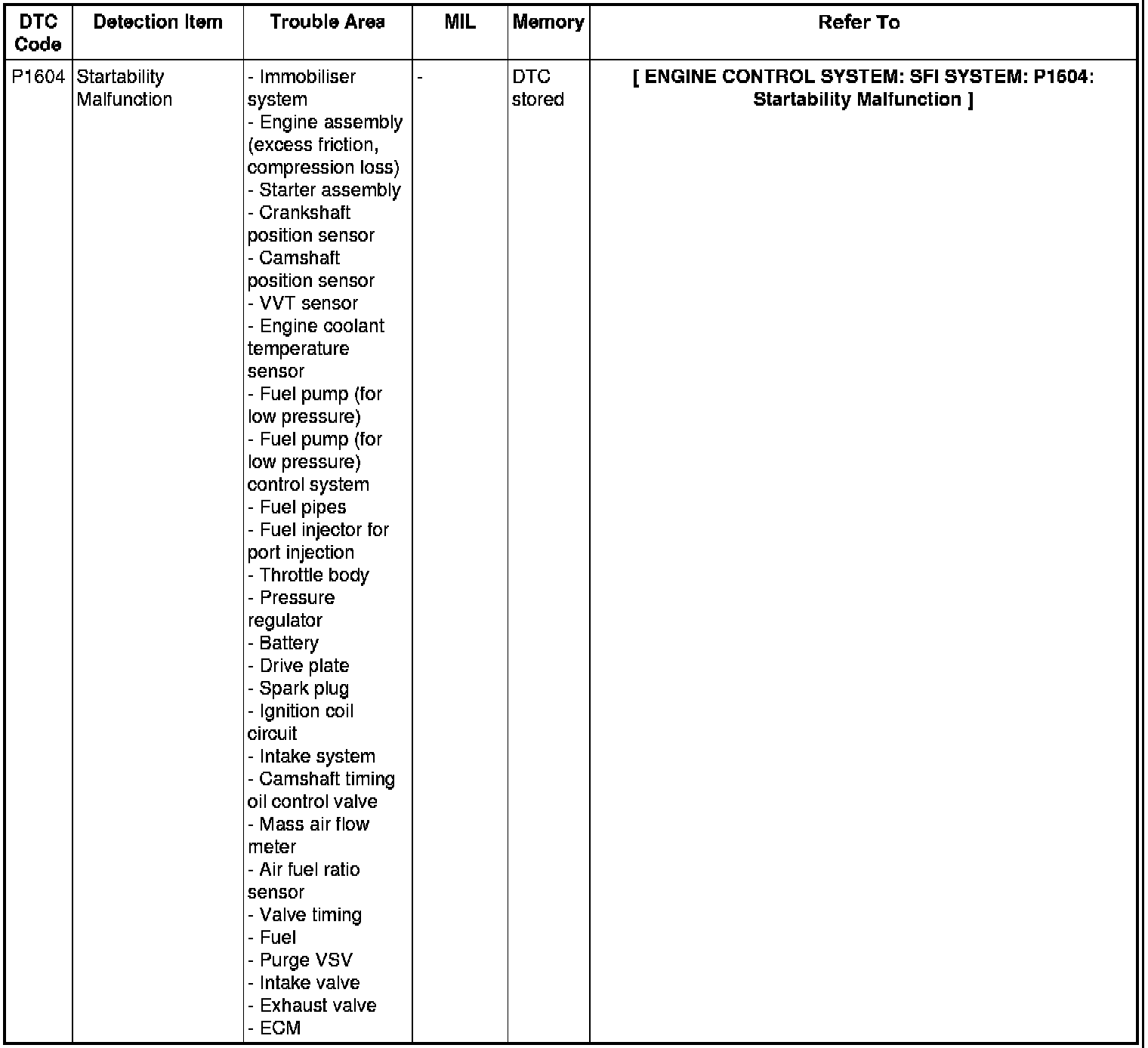

P1604:

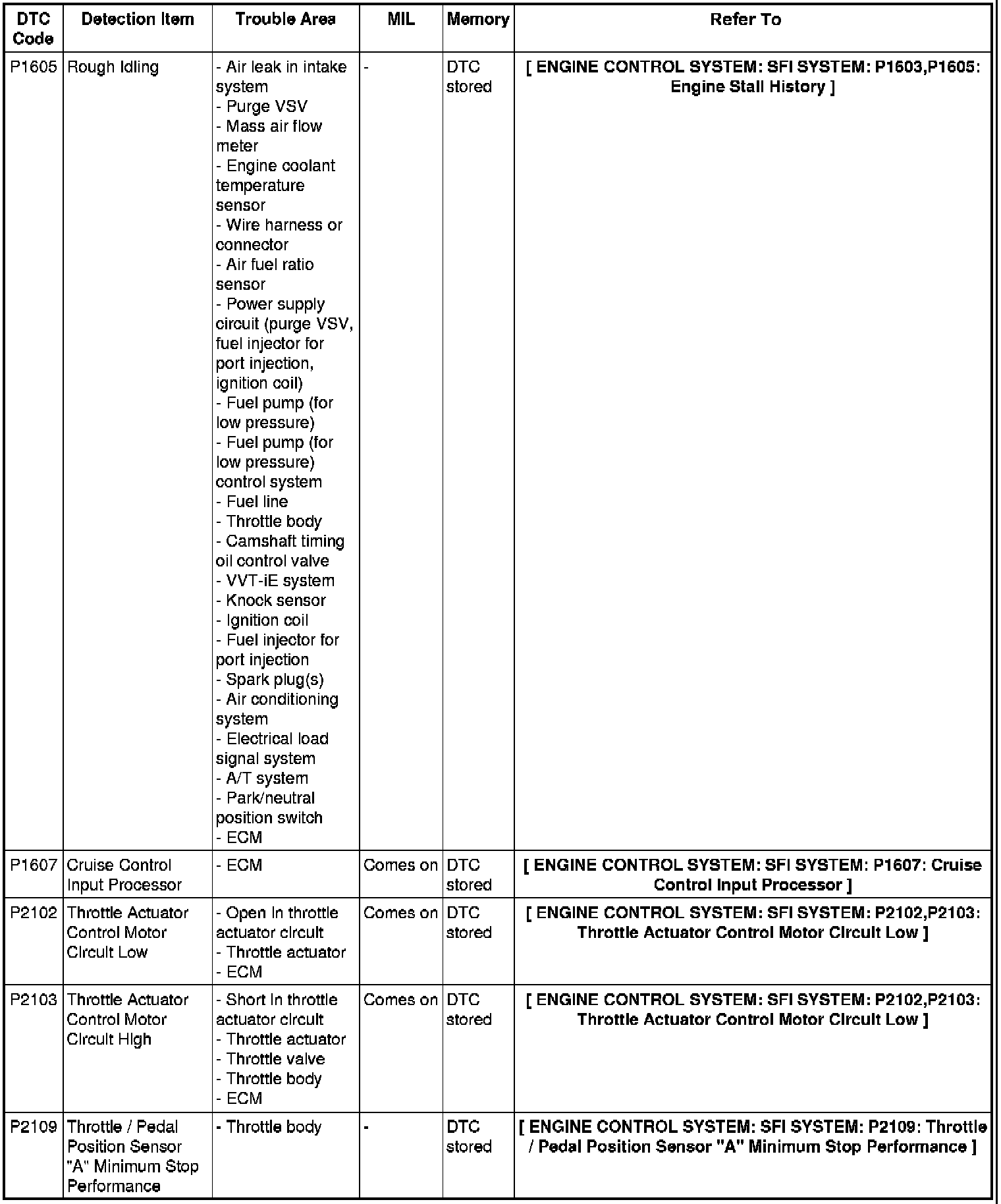

P1605 - P2109:

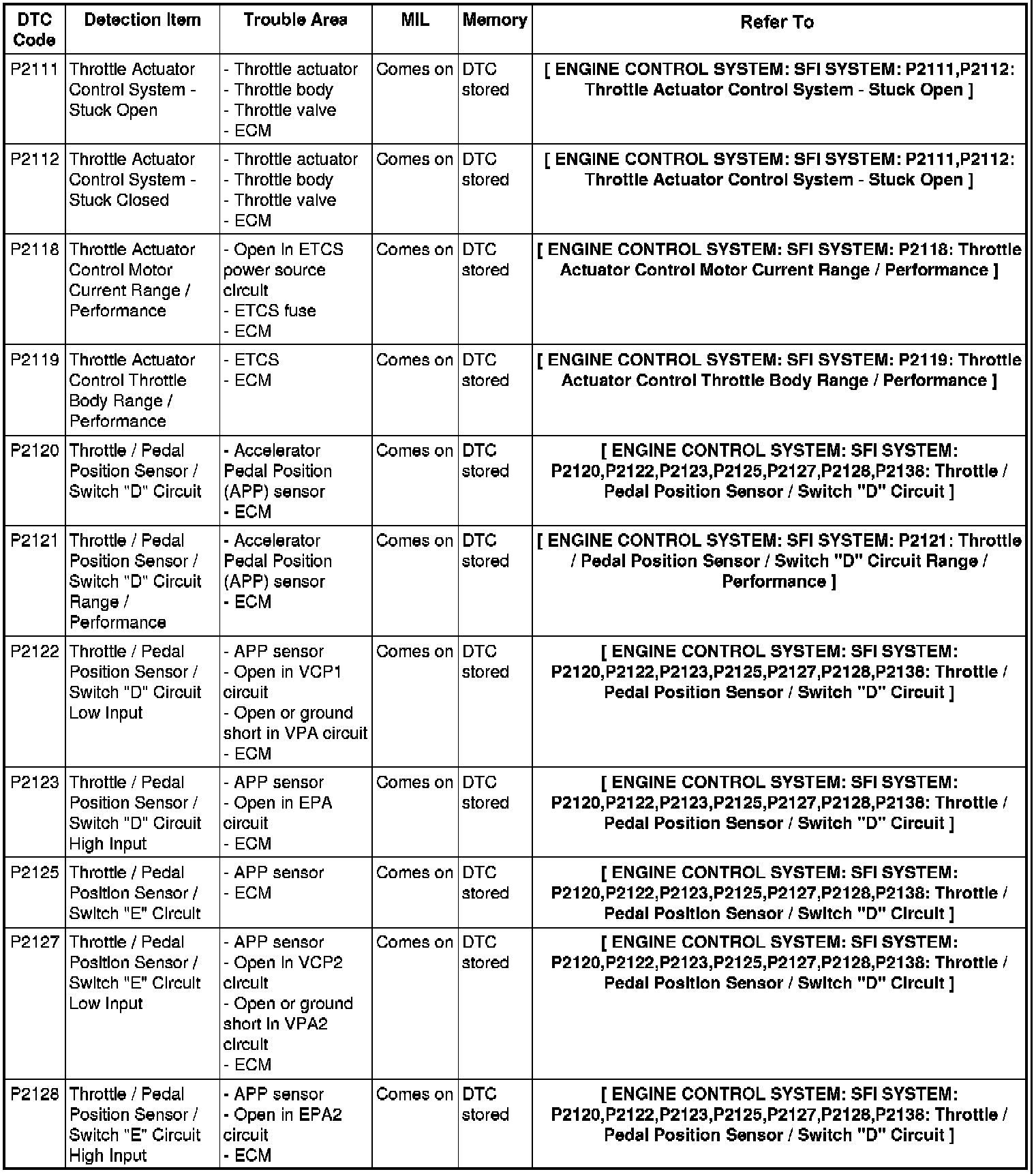

P2111 - P2128:

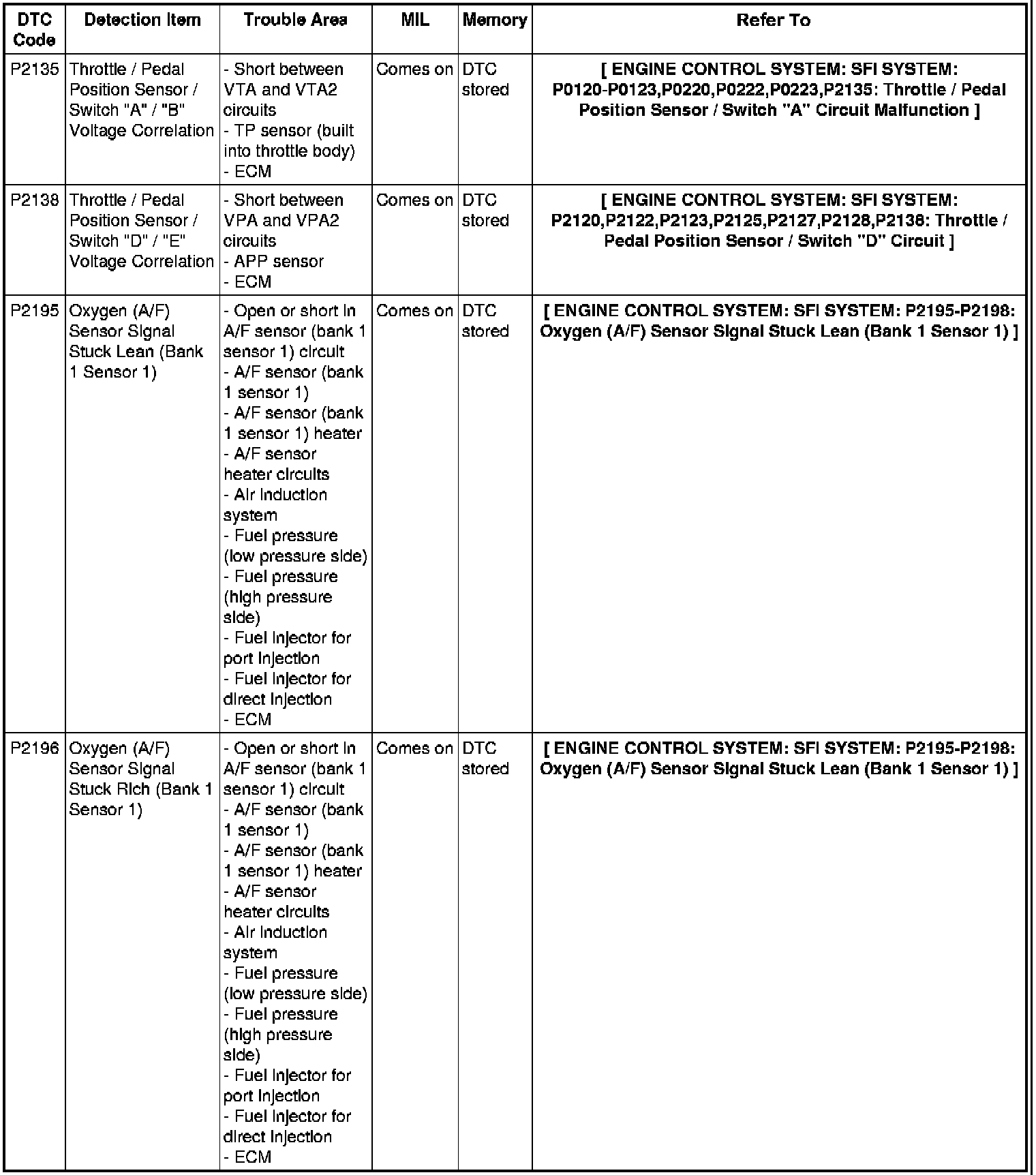

P2135 - P2196:

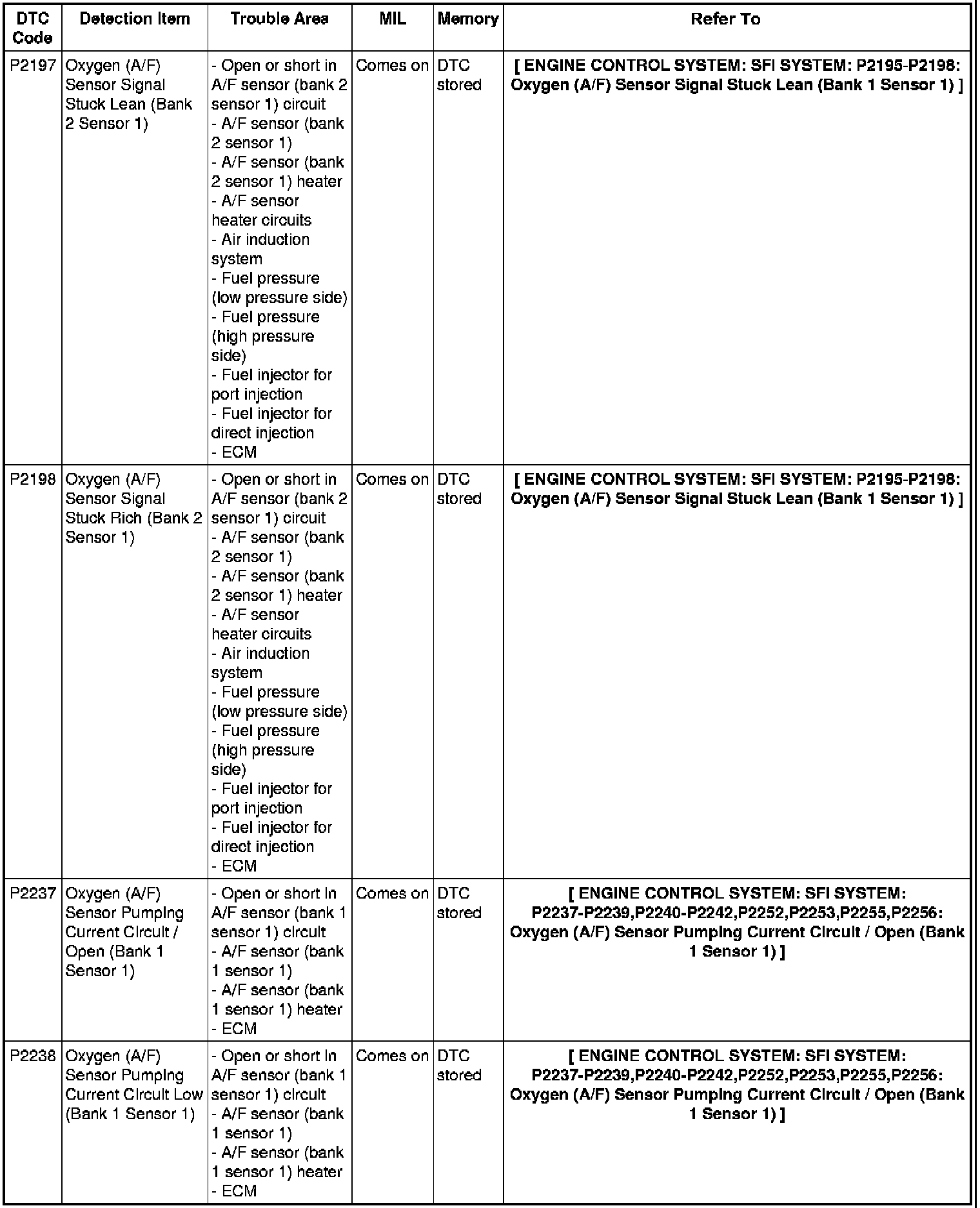

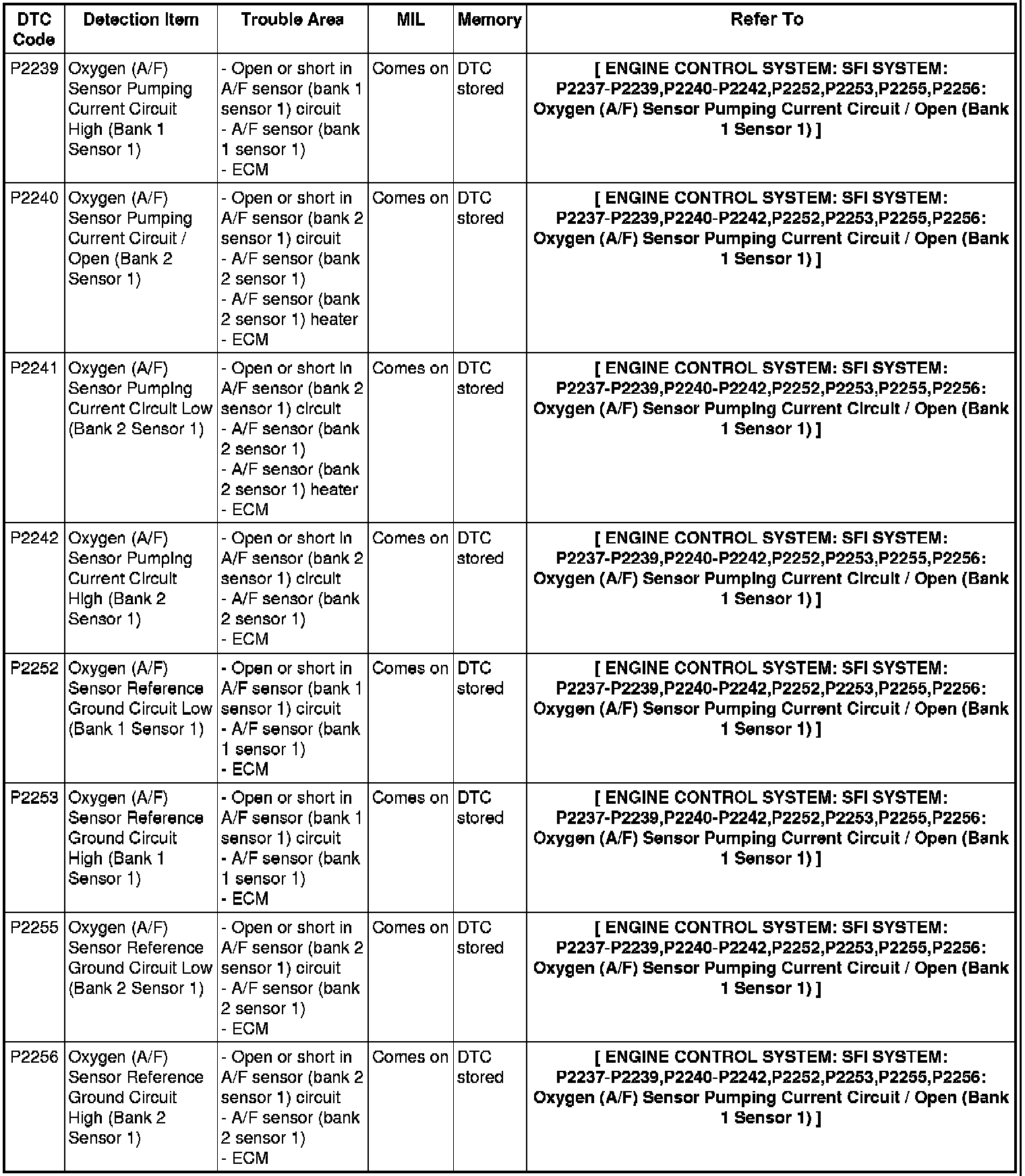

P2197 - P2238:
P2239 - P2256:

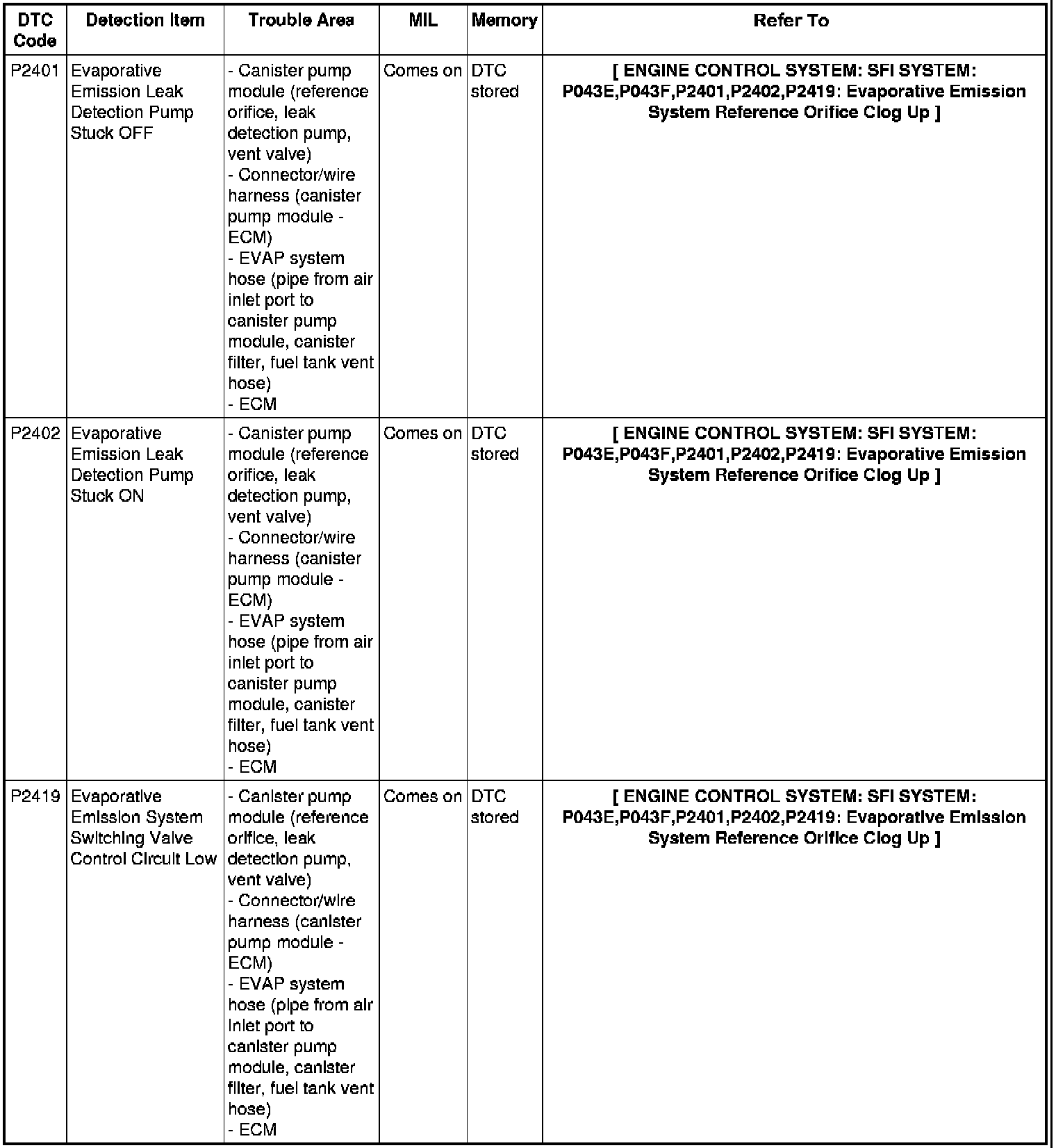

P2401 - P2419:

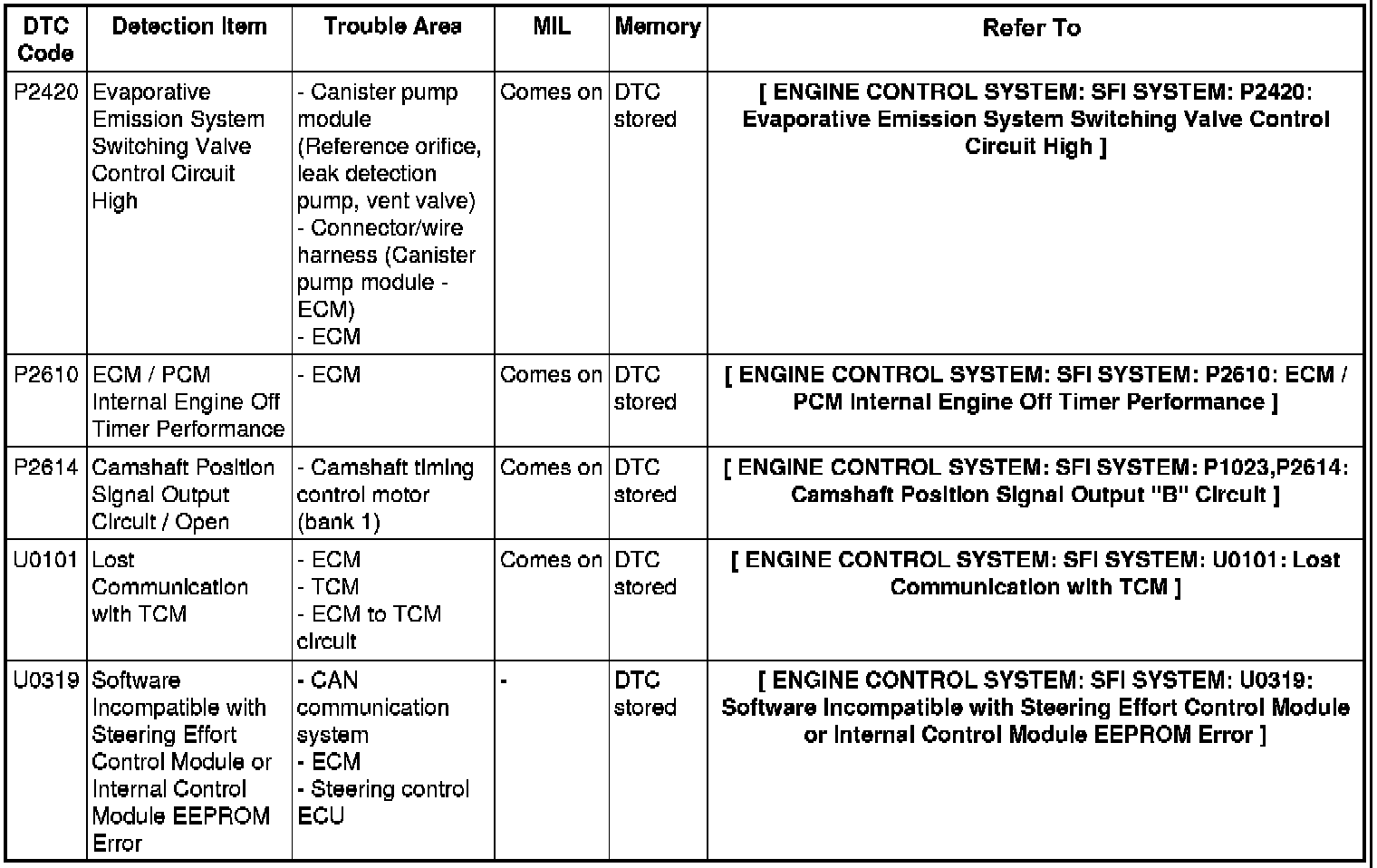

P2420 - P2614 / U0101 - U0319:
