A760E AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSTALLATION

1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

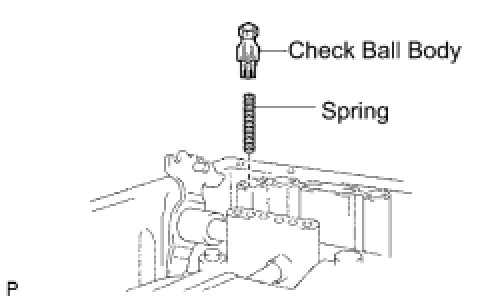

(a) Install the check ball body and spring.





NOTICE:
Do not drop the check ball body and spring.

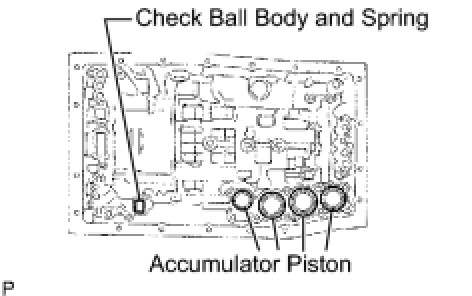

(b) Check the accumulator pistons, check ball body and spring as shown in the illustration.

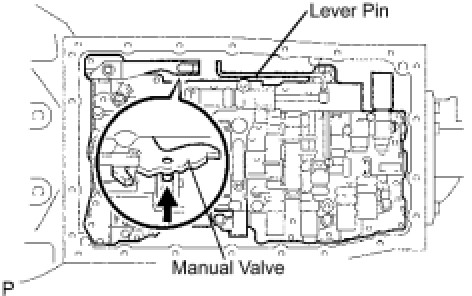

(c) Align the groove of the manual valve with the pin of the lever.





(d) Install the 20 bolts.





Torque : 11 Nm (112 kgf-cm, 8 ft-lbf)

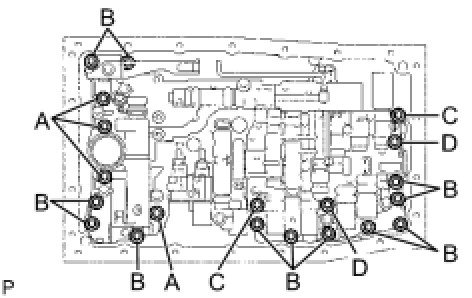

Bolt length:

36 mm (1.42 in.) for bolt A

25 mm (0.98 in.) for bolt B

45 mm (1.77 in.) for bolt C

50 mm (1.97 in.) for bolt D

2. CONNECT TRANSMISSION WIRE Installation

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. ADD AUTOMATIC TRANSMISSION FLUID

(a) Add automatic transmission fluid A760E Automatic Transmission.

7. INSTALL NO. 2 ENGINE UNDER COVER

8. PERFORM RESET MEMORY

(a) Perform the RESET MEMORY procedures (A/T initialization) A760E Automatic Transmission System.

9. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
