Installation

AA80E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSTALLATION

1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

(a) Install the floor shift assembly with the 4 bolts.





NOTICE:
Do not allow the wire harness to get caught between the parts.

Torque : 8.3 Nm (85 kgf-cm, 74 in-lbf)

(b) Connect the 6 clamps to the floor shift assembly.

(c) Connect the 2 connectors to the floor shift assembly.

2. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

(a) Turn the control shaft lever of the neutral start switch counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.





(b) Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.





Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

NOTICE:
Do not push the shift lever too hard.

3. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR Installation

4. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

5. CONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) Installation

6. CONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) Installation

7. INSTALL FRONT FLOOR COVER CENTER LH

8. INSTALL FRONT FLOOR COVER CENTER RH

(a) Install the front floor cover center RH with the 3 grommets.





Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

9. INSTALL REAR NO. 1 FLOOR PANEL BRACE Installation

10. INSTALL FRONT FLOOR BRACE CENTER Installation

11. INSTALL NO. 2 CONSOLE BOX DUCT Installation

12. INSTALL CONSOLE BOX ASSEMBLY Installation

13. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

14. INSTALL CONSOLE BOX PLATE Installation

15. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

16. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

17. INSTALL UPPER CONSOLE PANEL ASSEMBLY Installation

18. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation

19. INSTALL SHIFT LEVER KNOB

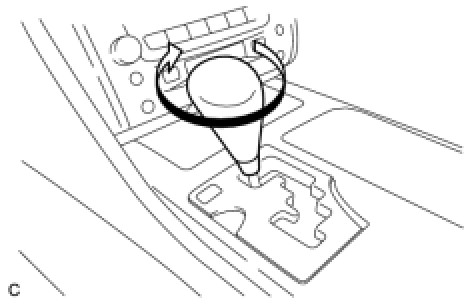

(a) Install the shift lever knob and turn it in the direction indicated by the arrow.





20. ADJUST SHIFT LEVER POSITION AA80E Automatic Transmission

21. INSPECT FOR EXHAUST GAS LEAK
