Installation

A760H AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSTALLATION

1. INSTALL FLOOR SHIFT ASSEMBLY

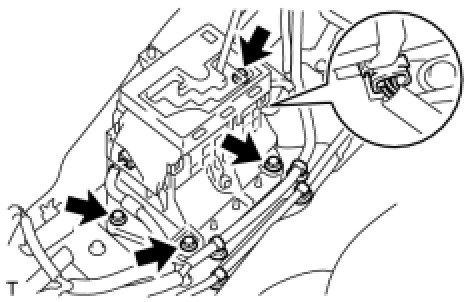

(a) Install the floor shift assembly with the 4 bolts.





Torque : 8.3 Nm (85 kgf-cm, 73 in-lbf)

(b) Connect the connector to the floor shift assembly.

2. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

(a) Install the floor shift gear shifting rod sub-assembly with the nut.





Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

3. ADJUST SHIFT LEVER POSITION A760H Automatic Transmission

4. INSPECT SHIFT LEVER POSITION A760H Automatic Transmission

5. INSTALL FRONT FLOOR HEAT INSULATOR NO.1 Installation

6. INSTALL FRONT EXHAUST PIPE ASSEMBLY

Installation

7. INSTALL CONSOLE BOX DUCT NO.2 Installation

8. INSTALL CONSOLE BOX Installation

9. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

12. REMOVE CONSOLE UPPER PANEL ASSEMBLY Installation

13. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation

14. INSTALL ENGINE UNDER COVER NO.1

15. CONNECT BATTERY NEGATIVE TERMINAL

16. PERFORM INITIALIZATION

Repair Instruction - Initialization
