Removal

LIGHTING: HEADLIGHT DIMMER SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at lest 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE PLACE FRONT WHEELS FACING STRAIGHT AHEAD

3. REMOVE NO. 3 STEERING WHEEL COVER LOWER Removal

4. REMOVE STEERING WHEEL COVER LOWER NO.2 Removal

5. REMOVE STEERING PAD Removal

6. REMOVE STEERING WHEEL ASSEMBLY Removal

7. REMOVE STEERING COLUMN COVER LOWER Removal

8. REMOVE STEERING COLUMN COVER UPPER Removal

9. REMOVE SPIRAL CABLE SUB-ASSEMBLY W/STEERING SENSOR Removal

10. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY Removal

11. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY





(a) Disconnect the connector.

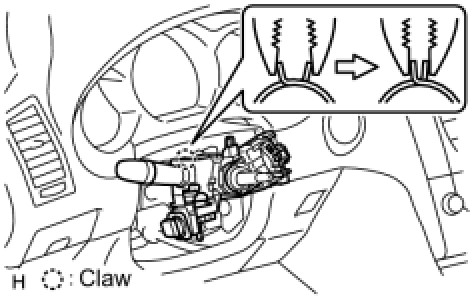

(b) Detach the clamp from the headlight dimmer switch as shown in the illustration.

(c) Disengage the claw and remove the headlight dimmer switch as shown in the illustration.
