Installation

2GR-FSE ENGINE MECHANICAL: ENGINE ASSEMBLY: INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

(a) Install a new gasket to the sensor.

(b) Using a 19 mm deep socket wrench, install the temperature sensor.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

2. INSTALL OIL PRESSURE SWITCH ASSEMBLY

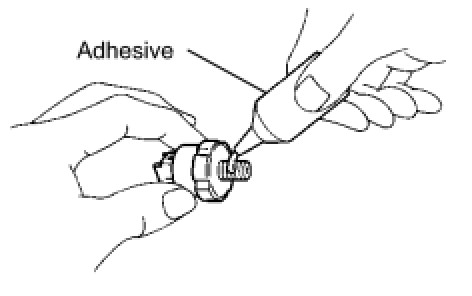

(a) Apply adhesive to 2 or 3 threads of the oil pressure switch.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

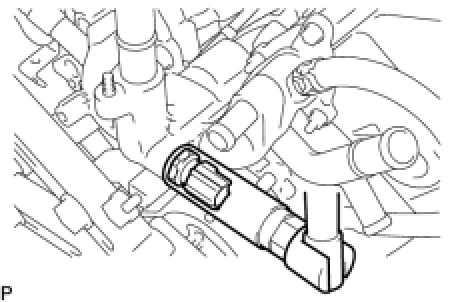

(b) Using a 24 mm deep socket wrench, install the oil pressure switch.

Torque : 15 Nm (153 kgf-cm, 11 ft-lbf)

NOTICE:
Do not start the engine within 1 hour after the installation.

3. INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD)

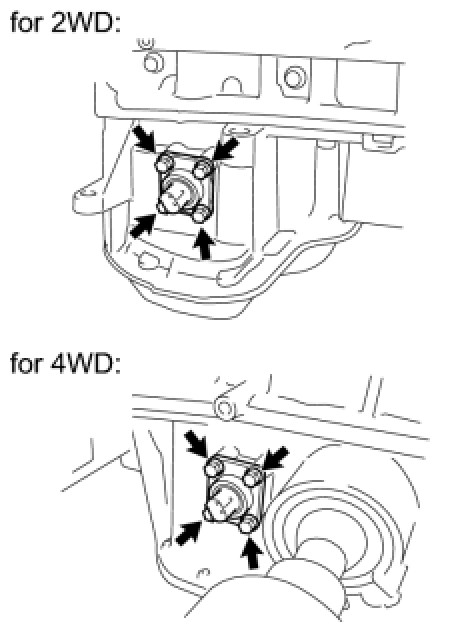

4. INSTALL ENGINE OIL LEVEL SENSOR

(a) Install the engine oil level sensor and a new gasket with the 4 bolts.

Torque : 7.0 Nm (71 kgf-cm, 62 in-lbf)

5. INSTALL IGNITION COIL ASSEMBLY

(a) Install the 6 ignition coils with the 6 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

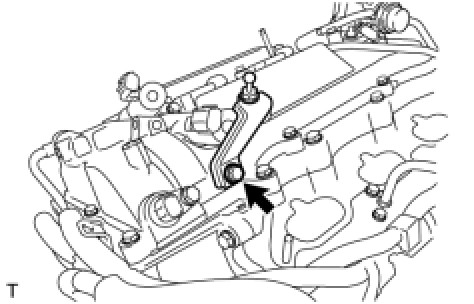

6. INSTALL V-BANK COVER BRACKET

(a) Install the bracket with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

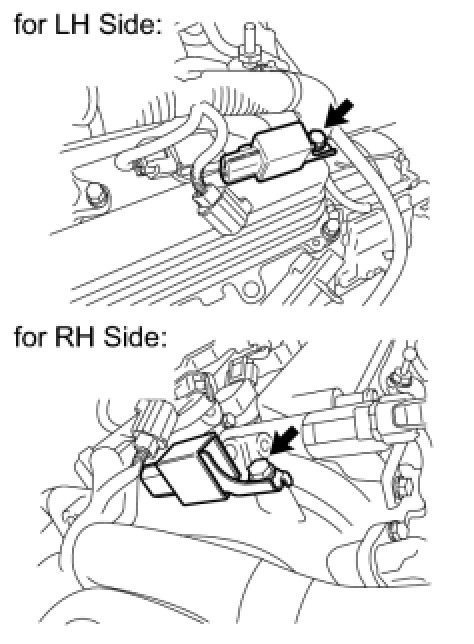

7. INSTALL RADIO SETTING CONDENSER

(a) Install the 2 condensers with the 2 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

8. INSTALL KNOCK SENSOR Installation

9. INSTALL FUEL INJECTOR SEAL (for Direct Injection) Installation

10. INSTALL FUEL INJECTOR ASSEMBLY

(a) for Port:

Install the injector assembly Installation.

(b) for Direct:

Install the injector assembly Installation.

11. INSTALL NO. 1 FUEL DELIVERY PIPE SUB-ASSEMBLY Installation

12. INSTALL NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY Installation

13. INSTALL NO. 3 FUEL PIPE SUB-ASSEMBLY Installation

14. INSTALL HIGH PRESSURE SIDE FUEL PUMP Installation

15. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY Installation

16. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY Installation

17. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY Installation

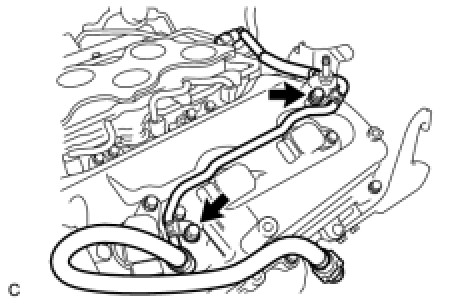

18. INSTALL FUEL TUBE SUB-ASSEMBLY

(a) Install the tube with the 2 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

19. INSTALL INTAKE MANIFOLD Installation

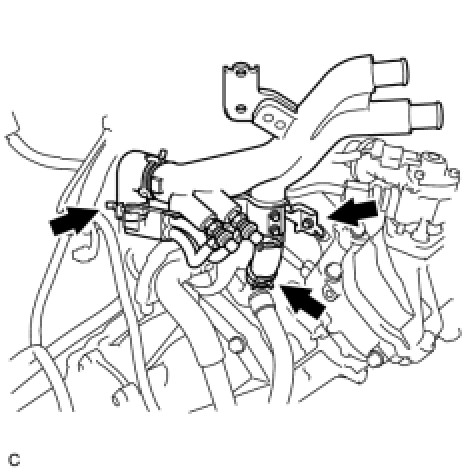

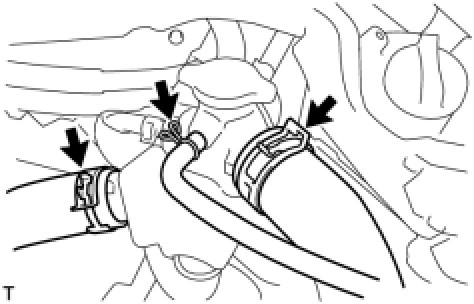

20. INSTALL WATER HOSE JOINT

(a) Connect the 2 hoses.

(b) Install the pipe with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

21. INSTALL NO. 2 SURGE TANK STAY

NOTICE:
Make sure there is no oil on the bolts. If there is oil on the bolts, clean them before installing them.

(a) Install the stay with the bolt.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

22. INSTALL INTAKE AIR SURGE TANK SUB-ASSEMBLY Installation

23. INSTALL WATER PUMP PULLEY Installation

24. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY (for 2WD)

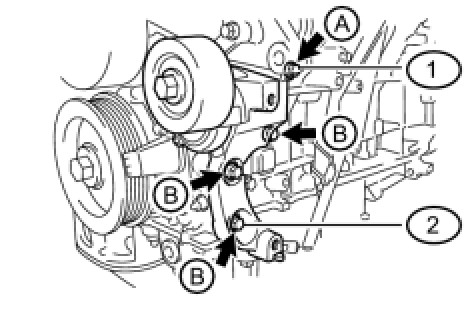

(a) Temporarily install the V-ribbed belt tensioner with the 5 bolts.

Each bolt length is as follows:

(b) Install the V-ribbed belt tensioner by tightening the bolt 1 and 2 in the order shown in the illustration.

Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

(c) Tighten the other bolts.

Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

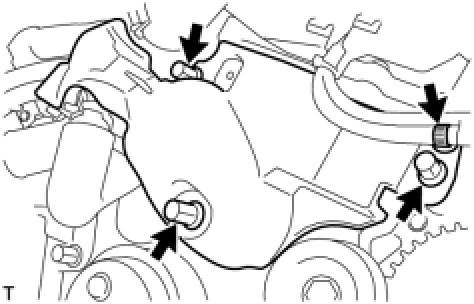

25. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY (for 4WD)

(a) Temporarily install the V-ribbed belt tensioner with the 4 bolts.

Each bolt length is as follows:

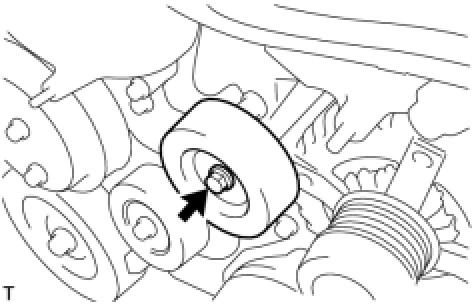

(a) Install the pulley and idler pulley cover plate with the bolt.

Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

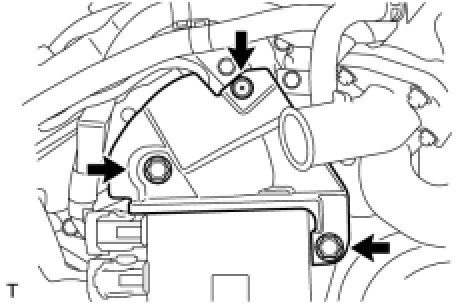

27. INSTALL INJECTOR DRIVER

(a) Install the injector driver with the bolt and 2 nuts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

28. CONNECT ENGINE WIRE AND CONNECTOR

(a) Install the engine wire and connector to the engine.

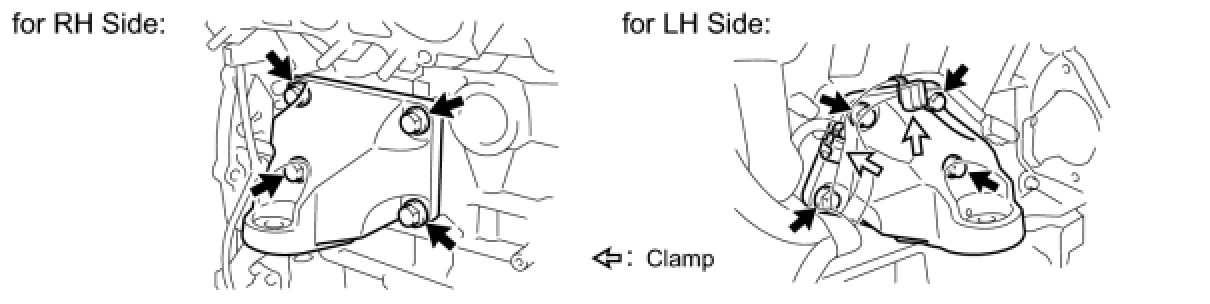

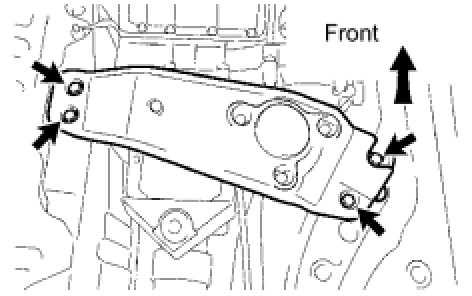

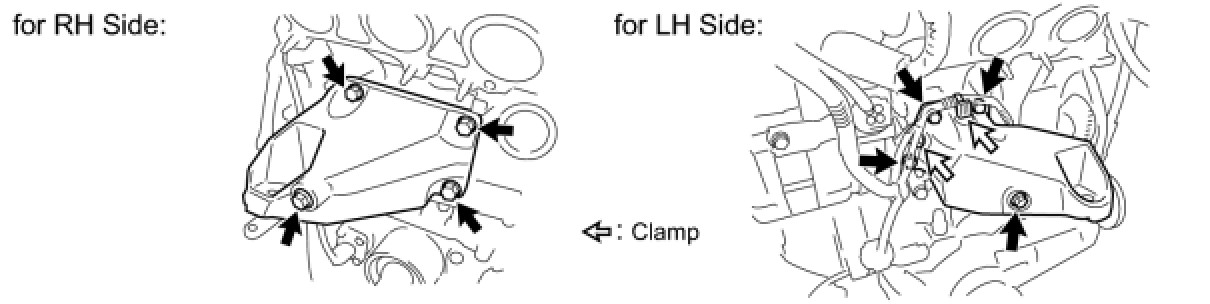

29. INSTALL ENGINE MOUNTING BRACKET (for 2WD)

(a) Install the 2 brackets with the 8 bolts.

Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

(b) Connect the 2 clamps to the LH side.

30. INSTALL ENGINE MOUNTING BRACKET (for 4WD)

(a) Install the 2 brackets with the 8 bolts.

Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

(b) Connect the 2 clamps to the LH side.

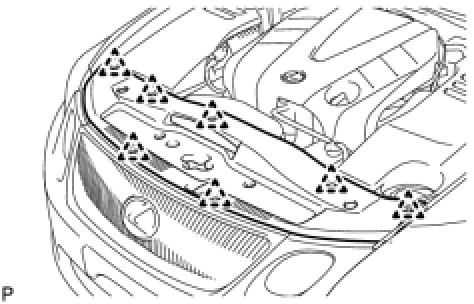

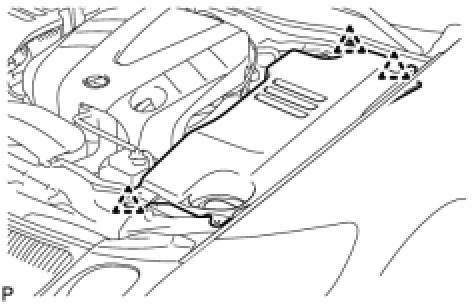

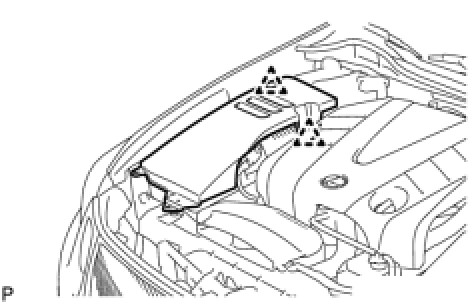

31. INSTALL NO. 1 ENGINE COVER

(a) Install the cover with the 3 clamps.

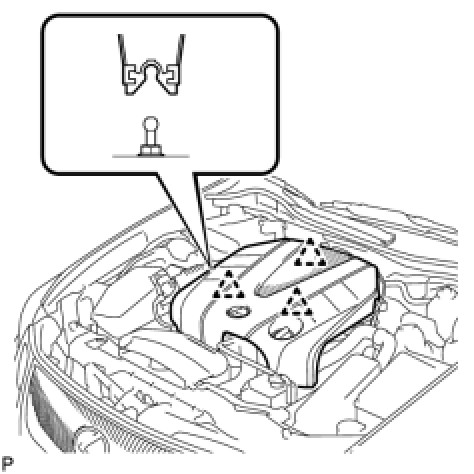

32. INSTALL NO. 2 ENGINE COVER

(a) Install the cover with the 3 clips.

(b) Connect the clamp.

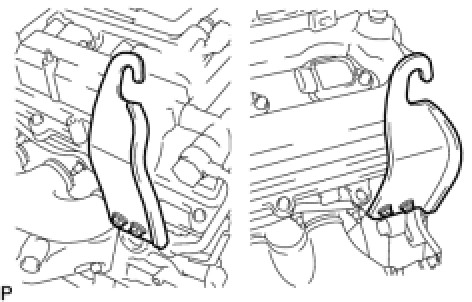

33. INSTALL NO. 1 ENGINE HANGER

(a) Install the 2 engine hangers with the 4 bolts as shown in the illustration.

Torque : 33 Nm (336 kgf-cm, 24 ft-lbf)

34. REMOVE ENGINE STAND

(a) Attach an engine sling device and hang the engine with a chain block.

(b) Lift the engine, and remove it from the engine stand.

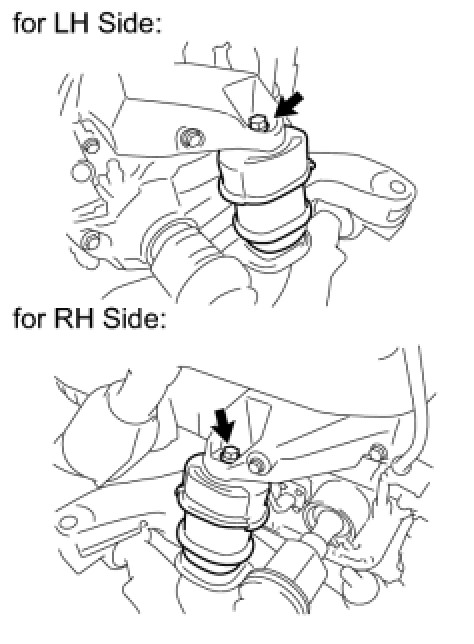

35. INSTALL ENGINE TO FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (for 2WD)

(a) Install the engine to the front suspension crossmember with the 2 bolts.

Torque : 35 Nm (357 kgf-cm, 26 ft-lbf)

36. INSTALL ENGINE TO FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (for 4WD)

(a) Install the engine to the front suspension crossmember with the 2 bolts.

Torque : 35 Nm (357 kgf-cm, 26 ft-lbf)

37. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

(a) Using SST, hold the crankshaft.

SST : 09213-70011

09213-70020

SST : 09330-00021

(b) Apply adhesive to 2 or 3 threads and under the heads of new bolts.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

(c) Temporarily install the front spacer, drive plate and rear spacer with the 8 bolts.

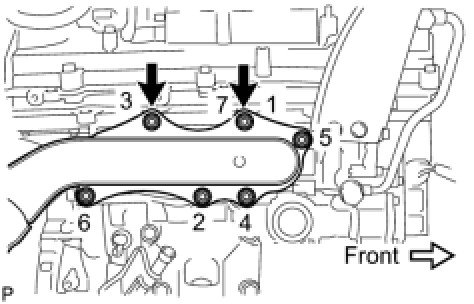

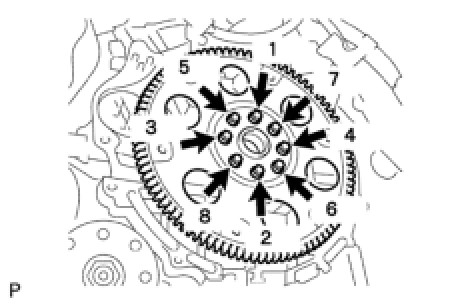

(d) Tighten the 8 bolts uniformly in several steps in the order shown in the illustration.

Torque : 83 Nm (850 kgf-cm, 61 ft-lbf)

NOTICE:
Do not start the engine for at least 1 hour after installing.

38. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD) Installation

39. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 4WD) Installation

40. TIGHTEN DRIVE PLATE & TORQUE CONVERTER CLUTCH SETTING BOLT Installation

41. INSTALL FLYWHEEL HOUSING SIDE COVER Installation

42. CONNECT HARNESS AND CONNECTOR TO AUTOMATIC TRANSMISSION (for 2WD) Installation

43. CONNECT HARNESS AND CONNECTOR TO AUTOMATIC TRANSMISSION (for 4WD) Installation

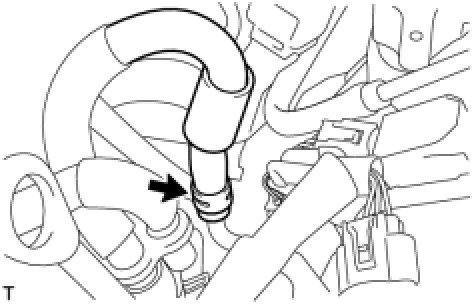

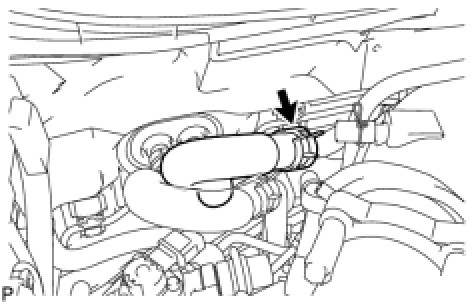

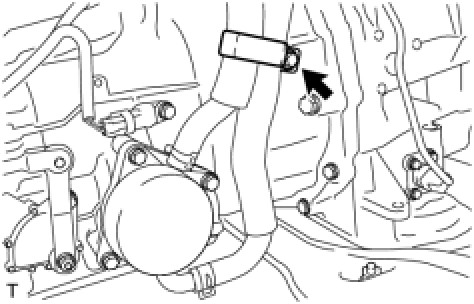

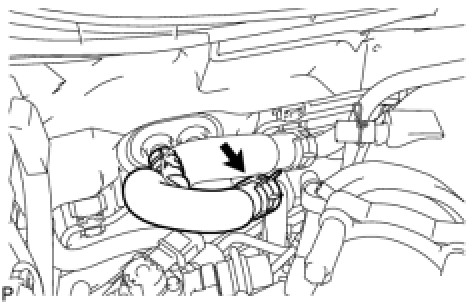

44. CONNECT WATER BY-PASS HOSE

(a) Connect the 2 hoses.

(b) Install the clamp with the bolt.

Torque : 20 Nm (204 kgf-cm, 5 ft-lbf)

45. INSTALL STARTER ASSEMBLY Installation

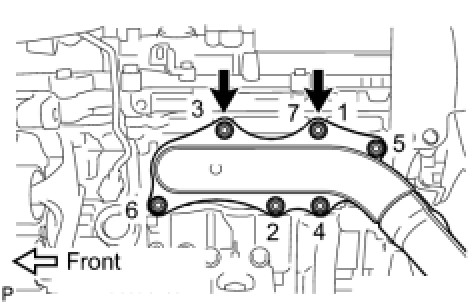

46. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH

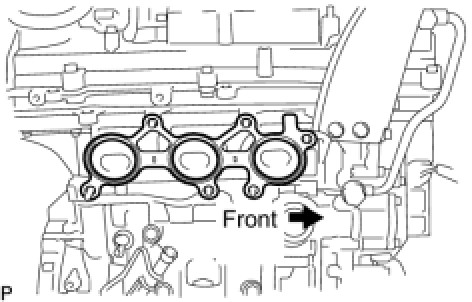

(a) Install a new gasket as shown in the illustration.

(b) Install the exhaust manifold to the cylinder head with the 6 nuts in the order shown in the illustration.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

NOTICE:
Do not damage the stud bolt when installing the exhaust manifold.

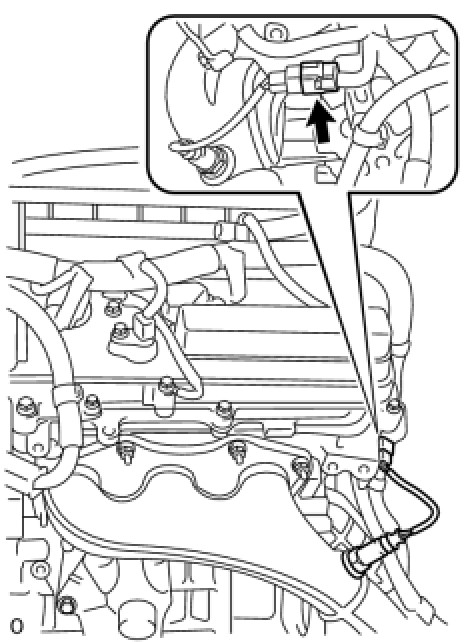

(c) Connect the A/F sensor (for Bank 1 Sensor 1) connector.

47. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH

(a) Install a new gasket as shown in the illustration.

(b) Install the exhaust manifold to the cylinder head with the 6 nuts in the order shown in the illustration.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

NOTICE:
Do not damage the stud bolt when installing the exhaust manifold.

(c) Connect the A/F sensor (for Bank 2 Sensor 1) connector.

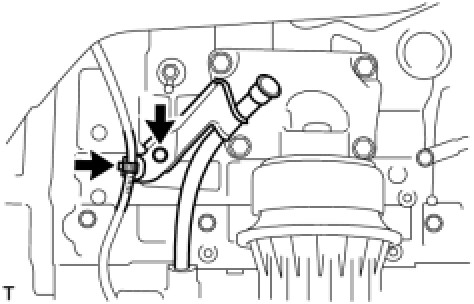

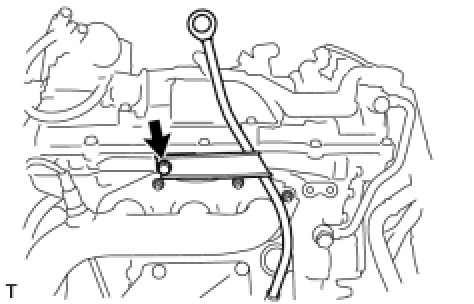

48. INSTALL OIL DIPSTICK GUIDE (for 2WD)

(a) Install a new O-ring to the guide.

(b) Apply a light coat of engine oil to the O-ring.

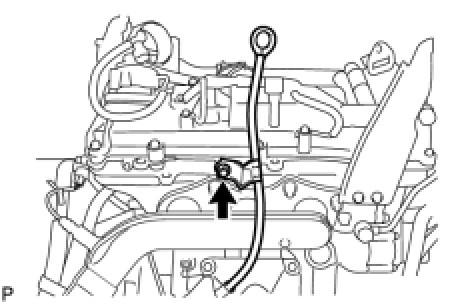

(c) Push in the No. 1 guide end into the guide hole.

(d) Install the No. 1 guide with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(e) Connect the harness clamp.

(f) Install a new O-ring to the guide.

(g) Apply a light coat of engine oil to the O-ring.

(h) Push in the No. 2 guide end into the No. 1 guide hole.

(i) Install the No. 2 guide with the bolt.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

(j) Install the dipstick.

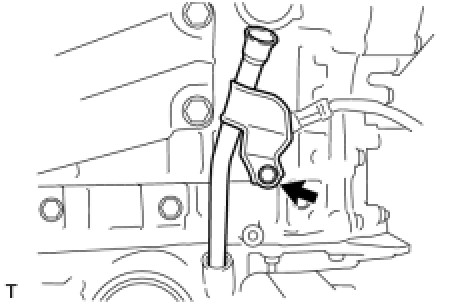

49. INSTALL OIL DIPSTICK GUIDE (for 4WD)

(g) Install the No. 2 guide with the bolt.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

(h) Install the dipstick.

50. REMOVE NO. 1 ENGINE HANGER

(a) Using the sling device and chain block to lift the engine, set the engine on an engine lifter.

(b) Remove the 4 bolts and 2 engine hangers.

51. INSTALL ENGINE AND TRANSMISSION (for 2WD)

(a) Operate the engine lifter, then install the engine to the vehicle.

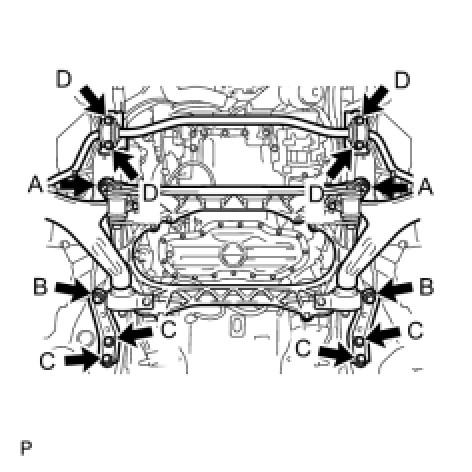

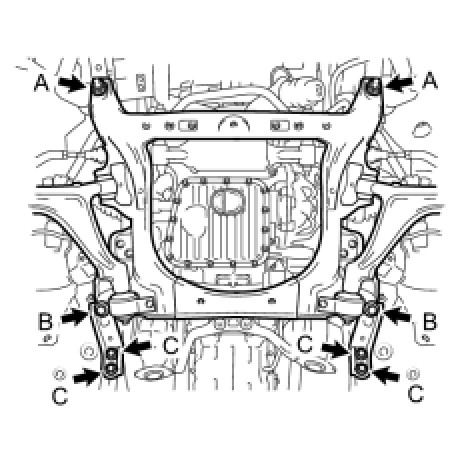

(b) Install the engine and transmission with crossmember with the 10 bolts and 2 nuts.

Torque : 167 Nm (1703 kgf-cm, 123 ft-lbf for nut A)

Torque : 204 Nm (2080 kgf-cm, 150 ft-lbf for bolt B)

Torque : 50 Nm (510 kgf-cm, 37 ft-lbf for bolt C)

Torque : 49 Nm (500 kgf-cm, 36 ft-lbf for bolt D)

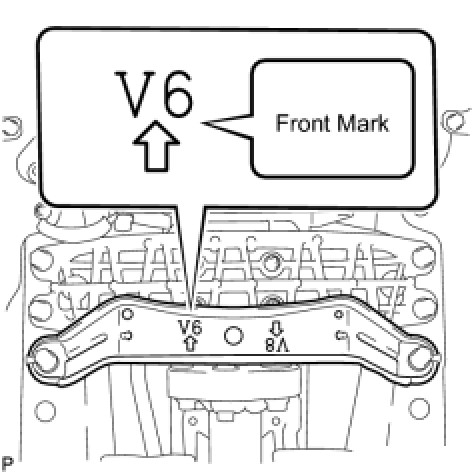

(c) Install the engine rear mounting member with the 4 bolts.

Torque : 26 Nm (265 kgf-cm, 19 ft-lbf)

52. INSTALL ENGINE AND TRANSMISSION (for 4WD)

(a) Operate the engine lifter, then install the engine to the vehicle.

(b) Install the engine and transmission with crossmember with the 6 bolts and 2 nuts.

Torque : 167 Nm (1703 kgf-cm, 123 ft-lbf for nut A)

Torque : 165 Nm (1683 kgf-cm, 122 ft-lbf for bolt B)

Torque : 50 Nm (510 kgf-cm, 37 ft-lbf for bolt C)

(c) Install the engine rear mounting member with the 4 bolts.

Torque : 26 Nm (265 kgf-cm, 19 ft-lbf)

53. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2WD) Installation

54. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4WD) Installation

55. INSTALL FRONT DRIVE SHAFT LH (for 4WD)

56. INSTALL FRONT DRIVE SHAFT RH (for 4WD)

57. INSTALL FRONT LOWER BALL JOINT ASSEMBLY LH (for 2WD) Installation

58. INSTALL FRONT LOWER BALL JOINT ASSEMBLY RH (for 2WD)

HINT
Perform the same procedure as for the LH side.

59. INSTALL FRONT LOWER BALL JOINT LH (for 4WD)

60. INSTALL FRONT LOWER BALL JOINT RH (for 4WD)

HINT
Perform the same procedure as for the LH side.

61. INSTALL TIE ROD ASSEMBLY LH (for 2WD) Installation

62. INSTALL TIE ROD ASSEMBLY RH (for 2WD)

HINT
Perform the same procedure as for the LH side.

63. INSTALL TIE ROD ASSEMBLY LH (for 4WD)

64. INSTALL TIE ROD ASSEMBLY RH (for 4WD)

HINT
Perform the same procedure as for the LH side.

65. TEMPORARILY INSTALL FRONT SHOCK ABSORBER ASSEMBLY LH (for 2WD)

(a) Insert the bolt from the rear of the vehicle, and set the front shock absorber lower side on the front suspension lower arm.

(b) Temporarily tighten the nut while holding the bolt.

66. TEMPORARILY INSTALL FRONT SHOCK ABSORBER ASSEMBLY RH (for 2WD)

HINT
Perform the same procedure as for the LH side.

67. INSTALL FRONT SHOCK ABSORBER ASSEMBLY LH (for 4WD)

(a) Install the front shock absorber to the bracket lower with the bolt.

Torque : 48 Nm (489 kgf-cm, 35 ft-lbf)

68. INSTALL FRONT SHOCK ABSORBER ASSEMBLY RH (for 4WD)

HINT
Perform the same procedure as for the LH side.

69. CONNECT HEIGHT CONTROL SENSOR LINK LH (for 2WD) Installation

70. CONNECT HEIGHT CONTROL SENSOR LINK RH (for 2WD)

HINT
Perform the same procedure as for the LH side.

71. CONNECT HEIGHT CONTROL SENSOR LINK LH (for 4WD) Installation

72. CONNECT HEIGHT CONTROL SENSOR LINK RH (for 4WD)

HINT
Perform the same procedure as for the LH side.

73. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY (for 2WD)

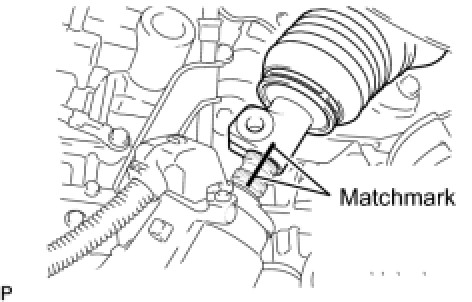

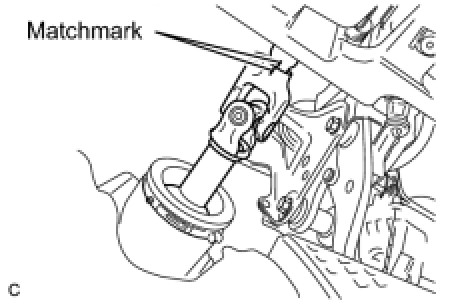

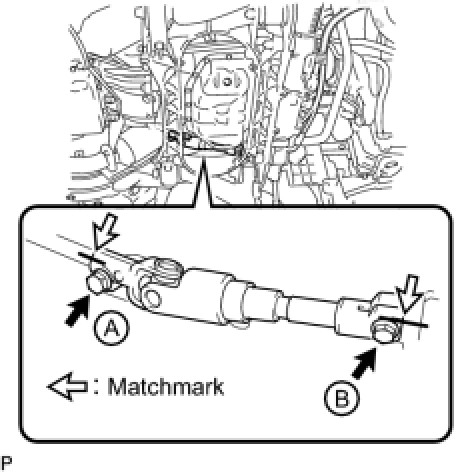

(a) Align the matchmarks of the No. 2 intermediate shaft and steering sliding yoke.

(b) Temporarily install the bolt (B).

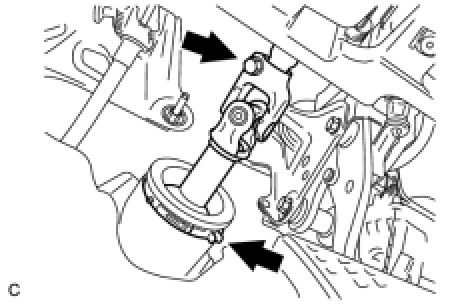

(c) Tighten the 2 bolts (A) and (B).

Torque : 35 Nm (357 kgf-cm, 26 ft-lbf)

74. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD)

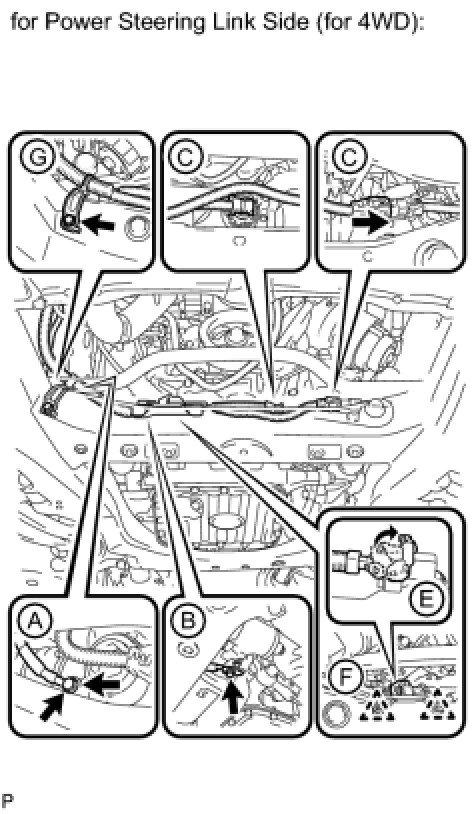

(a) for Exterior Side:

(1) Align the matchmarks of the No. 2 intermediate shaft and power steering link.

(b) for Interior Side:

(1) Align the matchmarks of the No. 2 intermediate shaft and steering column.

(c) for Exterior Side:

(1) Install the bolt.

Torque : 35 Nm (357 kgf-cm, 26 ft-lbf)

(d) for Interior Side:

(1) Install the bolt.

Torque : 35 Nm (357 kgf-cm, 26 ft-lbf)

(2) Install the clamp to the steering column hole cover.

75. INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY (for 4WD) Installation

76. INSTALL NO. 1 AIR DUCT (for 4WD)

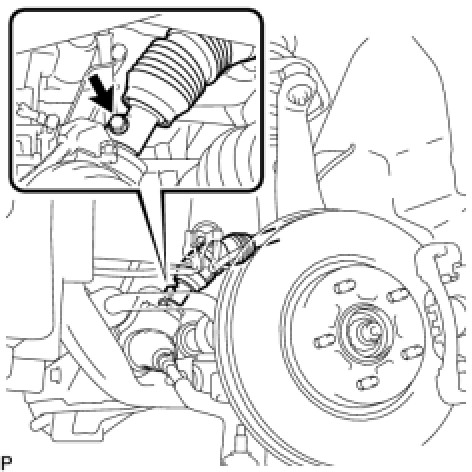

77. INSTALL FRONT SPEED SENSOR LH (for 4WD) Installation

78. INSTALL FRONT SPEED SENSOR RH (for 4WD)

HINT
Perform the same procedure as for the LH side.

79. INSTALL FRONT AXLE HUB NUT LH (for 4WD)

80. INSTALL FRONT AXLE HUB NUT RH (for 4WD)

HINT
Perform the same procedure as for the LH side.

81. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)

82. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 2WD)

83. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD)

84. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR

85. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

86. INSTALL HEATED OXYGEN SENSOR (for Sensor 2)

(a) Install the heated oxygen sensor Installation.

87. INSTALL FRONT FLOOR BRACE CENTER Installation

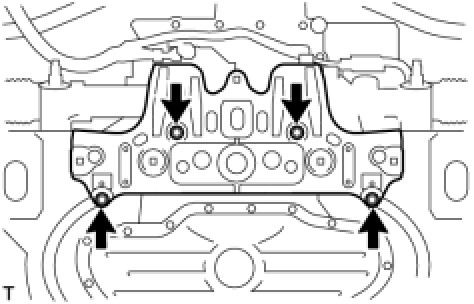

88. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for 2WD)

(a) Install the protector with the 4 bolts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

89. INSTALL GENERATOR WITH CLUTCH PULLEY Installation

90. INSTALL COOLER COMPRESSOR ASSEMBLY (for 2WD) Compressor: Installation

91. INSTALL DISCHARGE HOSE SUB-ASSEMBLY (for 2WD) Compressor: Installation

92. INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE (for 2WD) Compressor: Installation

93. TEMPORARILY TIGHTEN COOLER COMPRESSOR ASSEMBLY (for 4WD) Compressor: Installation

94. INSTALL OIL FILTER BRACKET SUB-ASSEMBLY (for 4WD) Compressor: Installation

95. INSTALL OIL FILTER BRACKET (for 4WD) Compressor: Installation

96. TIGHTEN COOLER COMPRESSOR ASSEMBLY (for 4WD) Compressor: Installation

97. INSTALL DISCHARGE HOSE SUB-ASSEMBLY (for 4WD) Compressor: Installation

98. INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE (for 4WD) Compressor: Installation

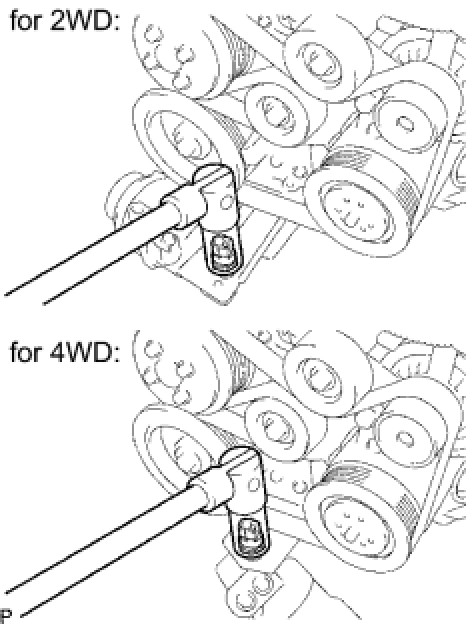

99. INSTALL V-RIBBED BELT Installation

100. INSTALL ENGINE UNDER COVER AIR GUIDE BRACKET (for 2WD)

(a) Install the bracket with the 2 bolts.

Torque : 26 Nm (265 kgf-cm, 19 ft-lbf)

101. CONNECT NO. 3 FUEL HOSE SUB-ASSEMBLY

(a) Connect the fuel hose to the pipe.

102. CONNECT FUEL TUBE SUB-ASSEMBLY

(a) Connect the fuel tube LH and RH side Service Precautions.

103. CONNECT ENGINE WIRE

(a) for Automatic Transmission Side:

(1) Install the ground cable with the nut to the RH side.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

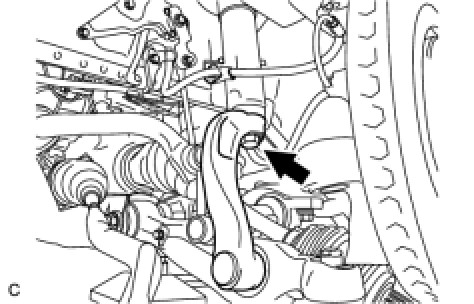

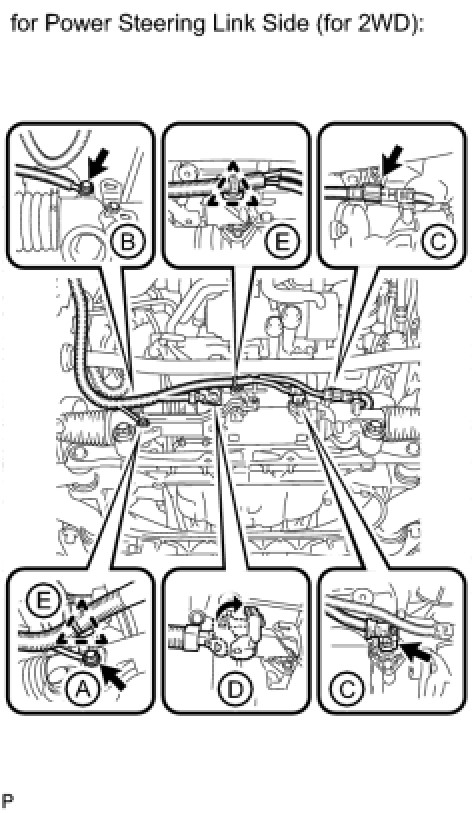

(b) for Power Steering Link Side (for 2WD):

(1) Install the ground cable with the bolt (A) and (B).

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf for bolt A)

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf for bolt B)

(2) Connect the 2 connectors (C).

(3) Connect the connector to the power steering link and securely lock the connector (D).

(4) Attach the 2 clamps (E).

(c) for Power Steering Link Side (for 4WD):

(1) Install the ground cable with the bolt (A) and (B).

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf for bolt A)

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf for bolt B)

(2) Connect the 2 connectors (C).

(3) Connect the connector to the power steering link and securely lock the connector (D).

(4) Attach the 2 clamps (E).

(5) Connect the wire harness bracket to the frame with the bolt (G).

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(d) for RH Side:

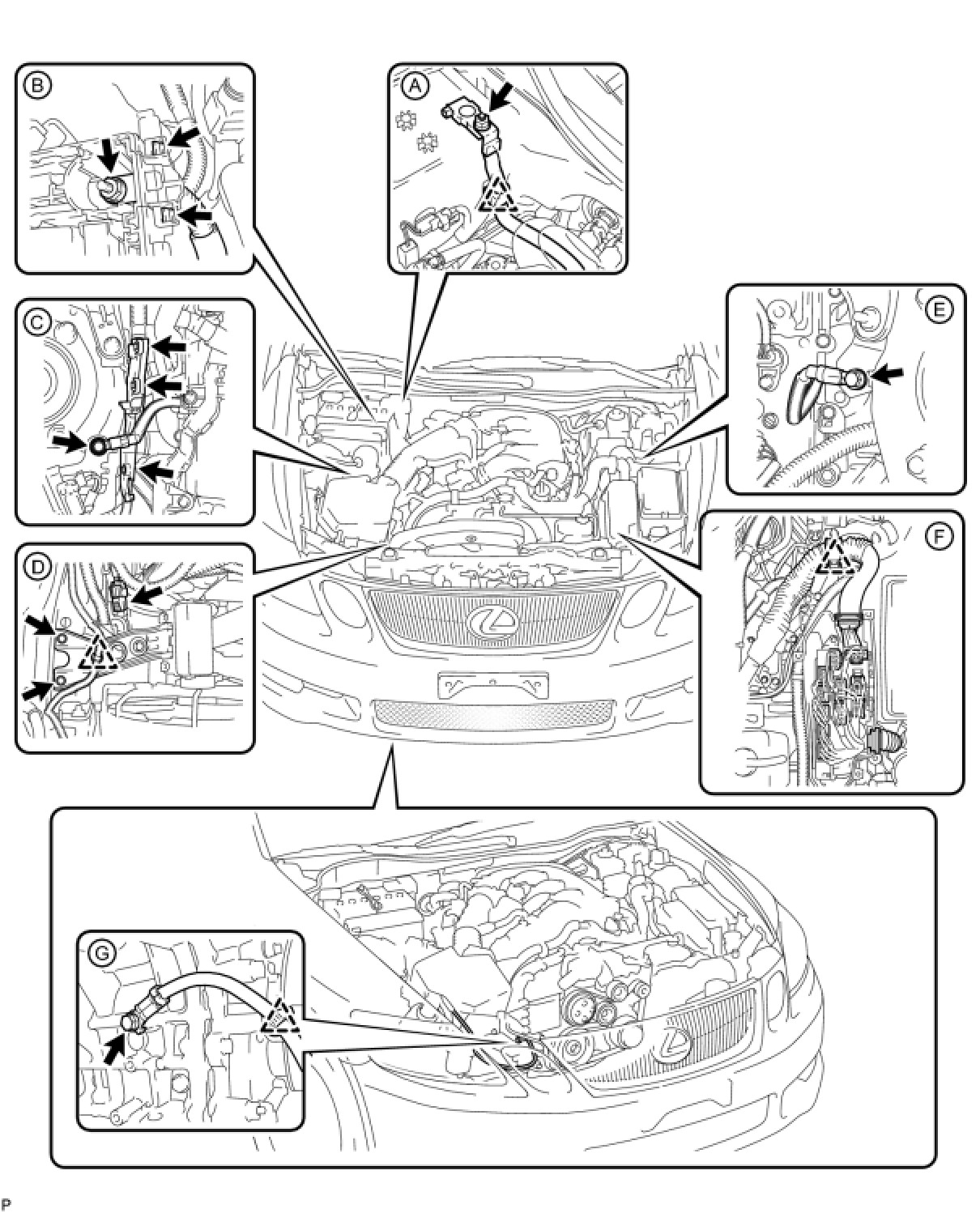

(1) Install the battery positive (+) cable to the battery positive terminal with the nut as shown in the illustration (A) below.

Torque : 13 Nm (133 kgf-cm, 10 ft-lbf)

(2) Connect the cable with the clamp as shown in the illustration (A) below.

(3) Install the No. 1 engine wire with the nut as shown in the illustration (B).

Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

(4) Install the No. 1 relay block cover.

(5) Install the wire harness to the wire harness cover, and attach them as shown in the illustration (C).

(6) Install the No. 2 ground cable with the bolt as shown in the illustration (C).

Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

(7) Install the No. 4 relay block with the 2 bolts as shown in the illustration (D).

Torque : 13 Nm (133 kgf-cm, 10 ft-lbf)

(e) for LH Side:

(1) Connect the No. 2 ground cable with the bolt as shown in the illustration (E).

Torque : 8.8 Nm (90 kgf-cm, 78 in-lbf)

(2) Connect the ECM connectors, and set the connector holder to the ECM box as shown in the illustration (F).

(3) Connect the ECM's harness with the clamp as shown in the illustration (F).

(4) Install the ECM cover with the 3 bolts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(f) for Engine Bank 1 Side:

(1) Install the ground cable with the bolt as shown in the illustration (G).

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

(2) Connect the ground cable with the clamp as shown in the illustration (G).

104. CONNECT UNION TO CHECK VALVE HOSE

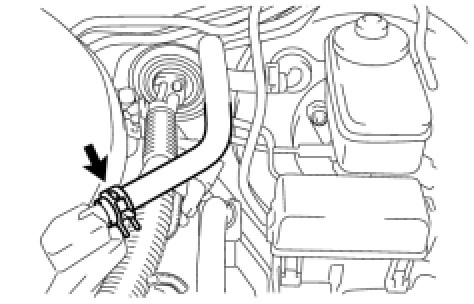

105. CONNECT HEATER WATER OUTLET HOSE A

106. CONNECT HEATER WATER INLET HOSE A

107. CONNECT RADIATOR RESERVOIR HOSE

108. CONNECT NO. 1 RADIATOR HOSE

109. CONNECT NO. 2 RADIATOR HOSE

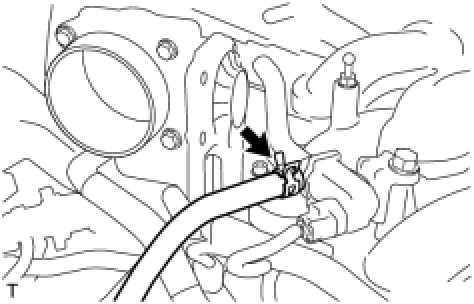

110. CONNECT PURGE LINE HOSE

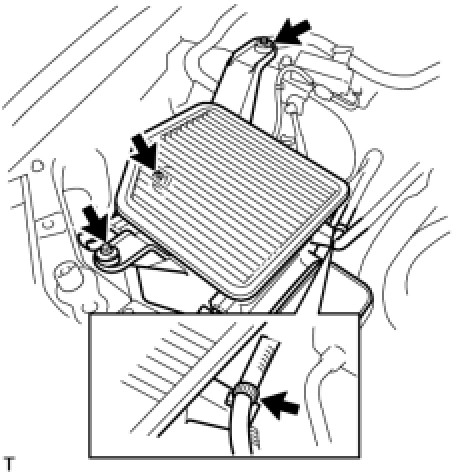

111. INSTALL AIR CLEANER CASE

(a) Install the case with the 3 bolts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(b) Connect the clamp.

112. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation

113. CONNECT NO. 2 VENTILATION HOSE Installation

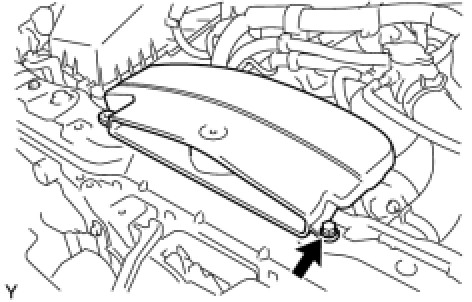

114. INSTALL NO. 1 AIR CLEANER INLET

(a) Install the air cleaner inlet with the bolt.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

115. ADJUST SHIFT LEVER POSITION (for 2WD) A760E Automatic Transmission

116. ADJUST SHIFT LEVER POSITION (for 4WD) A760H Automatic Transmission

117. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

118. INSPECT FOR FUEL LEAK Testing and Inspection

119. ADD ENGINE OIL Replacement

120. ADD DIFFERENTIAL OIL (for 4WD) Adjustments

121. ADD ENGINE COOLANT Service and Repair

122. INSPECT FOR OIL LEAK Testing and Inspection

123. INSPECT FOR COOLANT LEAK Testing and Inspection

124. INSPECT FOR EXHAUST GAS LEAK

125. INSPECT ENGINE OIL LEVEL Testing and Inspection

126. INSPECT ENGINE COOLANT LEVEL Testing and Inspection

127. CHARGE REFRIGERANT Service and Repair

128. INSPECT FOR LEAKAGE OF REFRIGERANT Service and Repair

129. INSPECT IGNITION TIMING Engine

130. INSPECT IDLE SPEED Engine

131. INSPECT CO / HC Engine

132. INSTALL V-BANK COVER SUB-ASSEMBLY

(a) Attach the 3 clips to install the engine cover.

NOTICE:
* Be sure to engage the clips securely.
* Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
133. INSTALL ENGINE ROOM SIDE COVER LH

(a) Install the side cover with the 3 clips.

134. INSTALL ENGINE ROOM COVER SIDE RH

(a) Install the side cover with the 2 clips.

135. INSTALL COOL AIR INTAKE DUCT SEAL

(a) Install the intake duct seal with the 7 clips.

136. STABILIZE SUSPENSION Installation

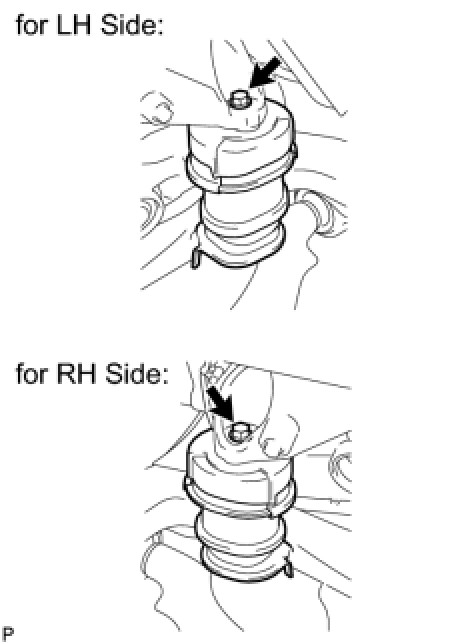

137. TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH (for 2WD) Installation

138. TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY RH (for 2WD)

HINT
Perform the same procedure as for the LH side.

139. TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH (for 4WD) Installation

140. TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY RH (for 4WD)

HINT
Perform the same procedure as for the LH side.

141. INSTALL AIR GUIDE PLATE OUTSIDE RH Installation

142. INSTALL FRONT FLOOR COVER CENTER LH (for 4WD)

143. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD)

(a) Install the under cover with the 4 screws, 2 grommets and 2 spacers.

144. INSTALL REAR ENGINE UNDER COVER LH (for 2WD)

145. INSTALL REAR ENGINE UNDER COVER RH (for 2WD)

146. INSTALL ENGINE UNDER COVER (for 2WD)

147. INSTALL ENGINE UNDER COVER (for 4WD)

148. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

149. INSTALL FRONT WHEELS

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

150. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

(a) Check and adjust the front wheel alignment Front Wheel Alignment.

151. PERFORM RESET MEMORY (for 2WD)

(a) Perform the RESET MEMORY procedures (A/T initialization) A760E Automatic Transmission System.

152. PERFORM RESET MEMORY (for 4WD)

(a) Perform the RESET MEMORY procedures (A/T initialization) A760H Automatic Transmission System.

153. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
