Installation
INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: INSTALLATION
1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

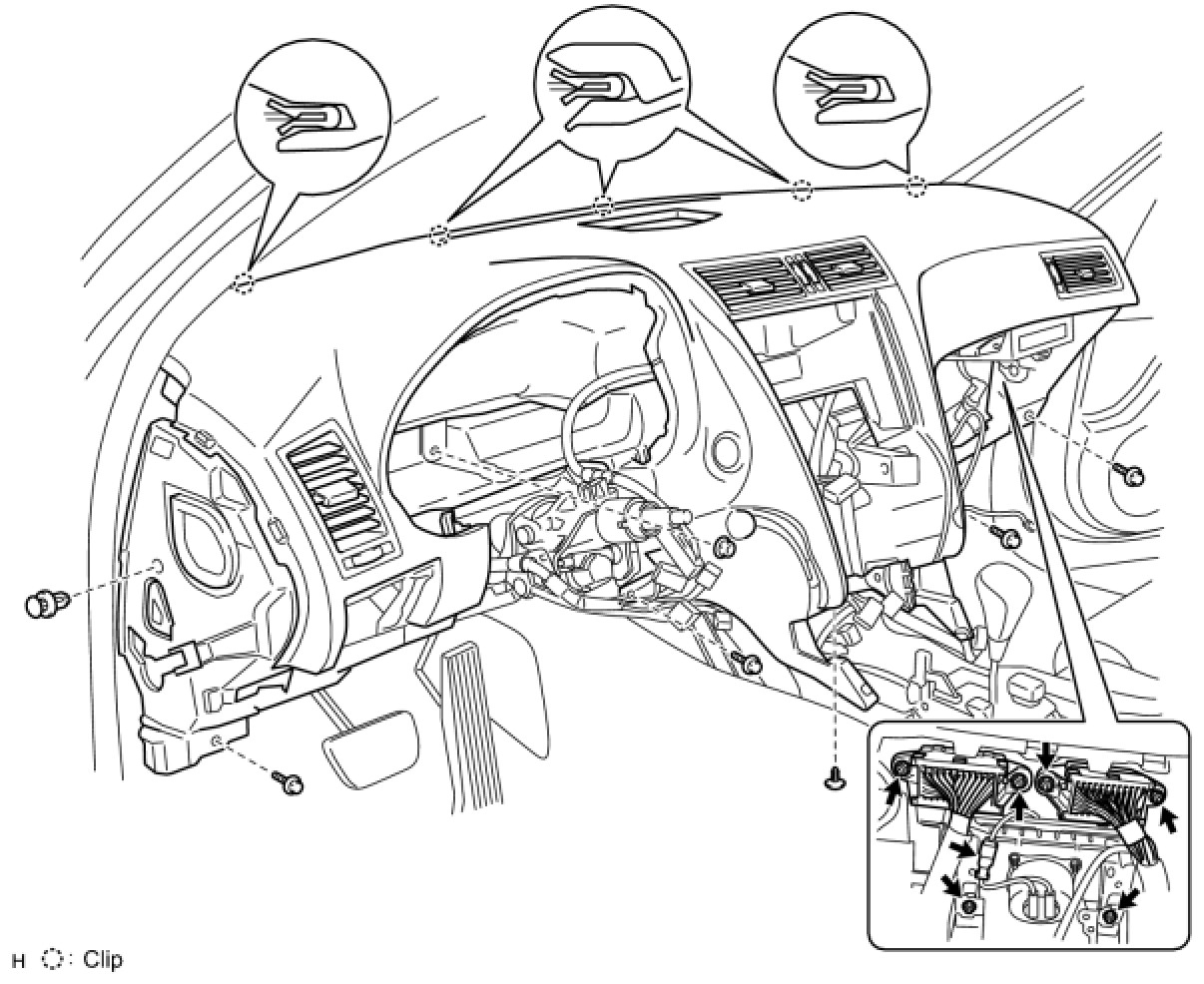

(a) Engage the 5 clips to install the instrument panel safety pad sub-assembly.
(b) Connect the connectors and clamps.
(c) Install the 2 bolts to the passenger airbag.
Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)
(d) Install the 4 bolts, nut and 2 clips.
(e) Install the center junction block RH and LH with the 4 nuts.
2. INSTALL NAVIGATION ECU WITH DISC PLAYER BRACKET (w/ Navigation System for DVD) Installation
3. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Manual (SOS) Switch) Installation
4. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY Installation
5. INSTALL FRONT PILLAR GARNISH LH Installation
6. INSTALL FRONT PILLAR GARNISH RH Installation
7. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

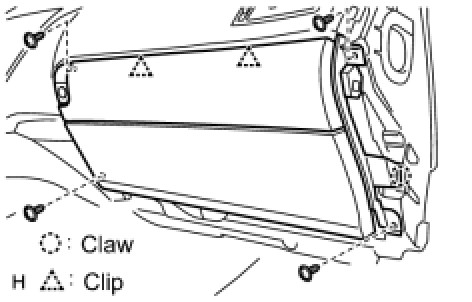

(a) Engage the 2 clips and claw to install the glove compartment door sub-assembly.
(b) Connect the connector and clamp.
(c) Install the 4 screws.
8. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation
9. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
(a) Connect the connector and clamp.
(b) Engage the 2 guides to the guide hole.
(c) Engage the 4 clips to install the No. 2 instrument panel under cover sub-assembly.
10. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
(a) Connect the connector.

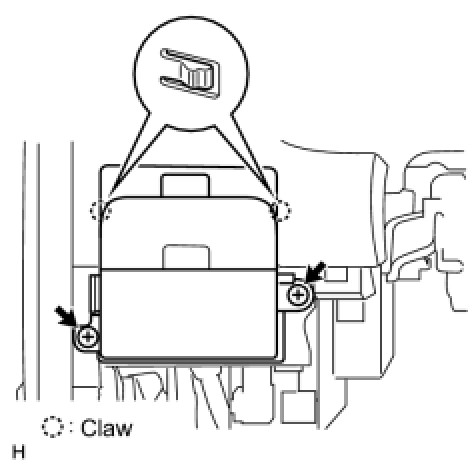

(b) Engage the 2 claws to install the integration control and panel assembly.
(c) Install the 2 screws.
11. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation
12. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Connect the connector.
(b) Install the hood lock control cable to the No.1 instrument panel safety pad sub-assembly.

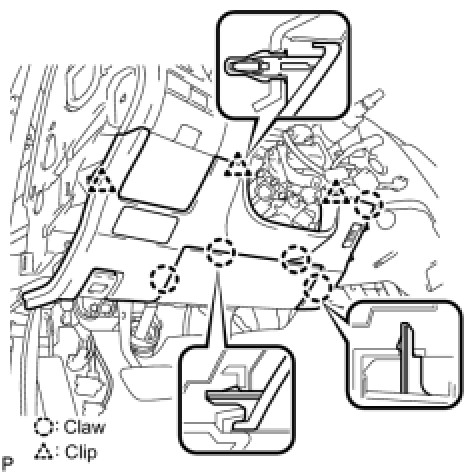

(c) Engage the 3 clips and 5 claws to install the No. 1 instrument panel safety pad sub-assembly.

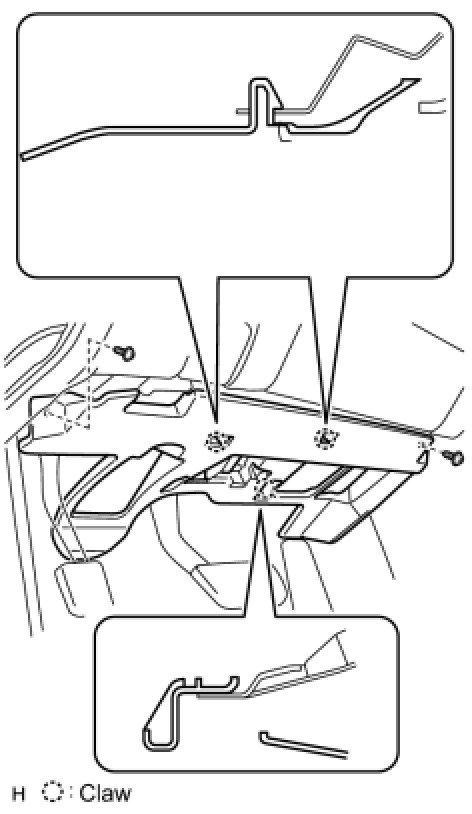

13. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
(a) Connect the connectors.
(b) Engage the 3 claws.
(c) Install the No. 1 instrument panel under cover sub-assembly with the 2 screws.
14. INSTALL INSTRUMENT SIDE PANEL LH

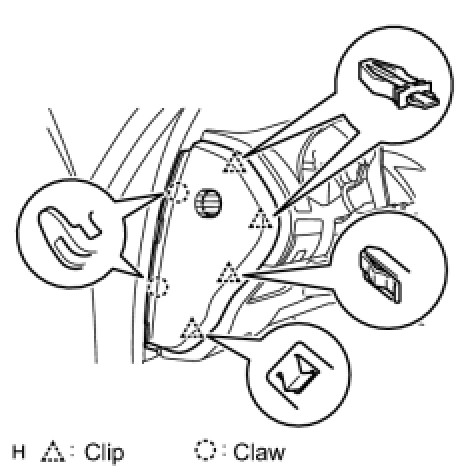

(a) Engage the 2 claws and 4 clips to install the instrument side panel LH.
15. INSTALL INSTRUMENT SIDE PANEL RH

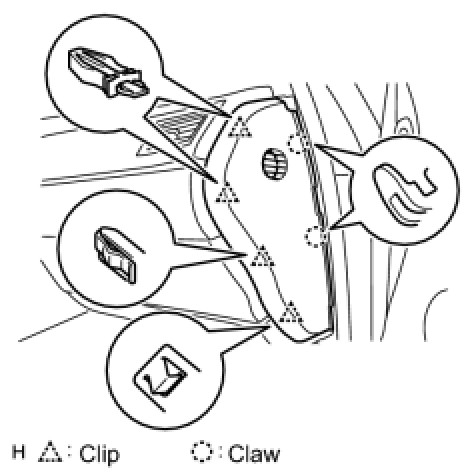

(a) Engage the 2 claws and 4 clips to install the instrument side panel RH.
16. INSTALL COMBINATION METER ASSEMBLY
(a) Connect the connector.

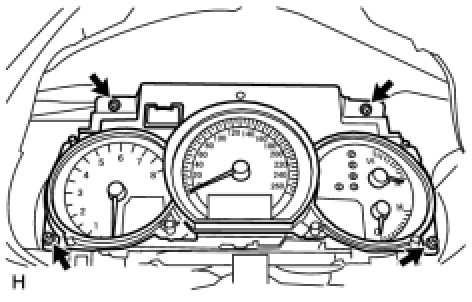

(b) Install the combination meter assembly with the 4 screws.
17. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
(a) Connect the connector.
(b) Engage the 5 clips to install the instrument cluster finish panel sub-assembly.
18. INSTALL CONSOLE BOX ASSEMBLY
(a) Connect the connector.
(b) Install the console box assembly with the 4 bolts and 2 screws.
19. INSTALL CONSOLE BOX REGISTER ASSEMBLY

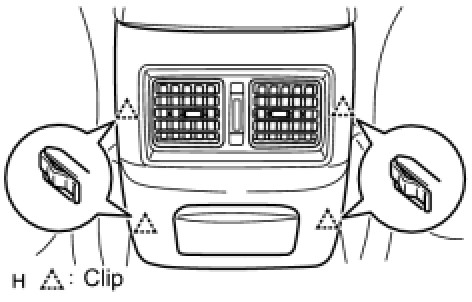

(a) Engage the 4 clips to install the console box register assembly.

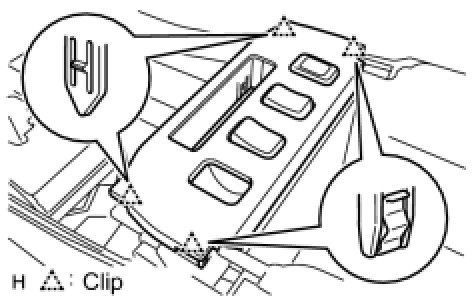

20. INSTALL CONSOLE BOX PLATE
(a) Connect the connector.
(b) Engage the 4 clips to install the console box plate.
21. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
(a) Engage the 4 clips and 3 claws to install the instrument panel finish panel end LH.
(b) Install the screw.
22. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
(a) Engage the 3 clips and 3 claws to install the instrument panel finish panel end RH.
(b) Install the screw.
23. INSTALL CONSOLE UPPER PANEL ASSEMBLY
(a) Connect the connector.
(b) Engage the 9 clips to install the console upper panel assembly.
(c) Install the shift lever knob and turn it in the direction indicated by the arrow.
24. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
(a) Engage the claws to install the front console upper panel garnish.
25. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY Installation
26. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY Installation
27. INSTALL SPIRAL CABLE WITH STEERING SENSOR Installation
28. INSTALL UPPER STEERING COLUMN COVER
for 2GR-FSE: Installation
for 1UR-FSE: Installation
29. INSTALL LOWER STEERING COLUMN COVER
for 2GR-FSE: Installation
for 1UR-FSE: Installation
30. INSTALL STEERING WHEEL ASSEMBLY
for 2GR-FSE: Installation
for 1UR-FSE: Installation
31. INSTALL STEERING PAD Installation
32. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
33. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
34. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
35. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation
36. INSTALL FRONT DOOR SCUFF PLATE LH Installation
37. INSTALL FRONT DOOR SCUFF PLATE RH Installation
38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
39. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System.
