FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2010
>>
GS 350 RWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Multiplex Communication System
Multiplex Communication System
MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

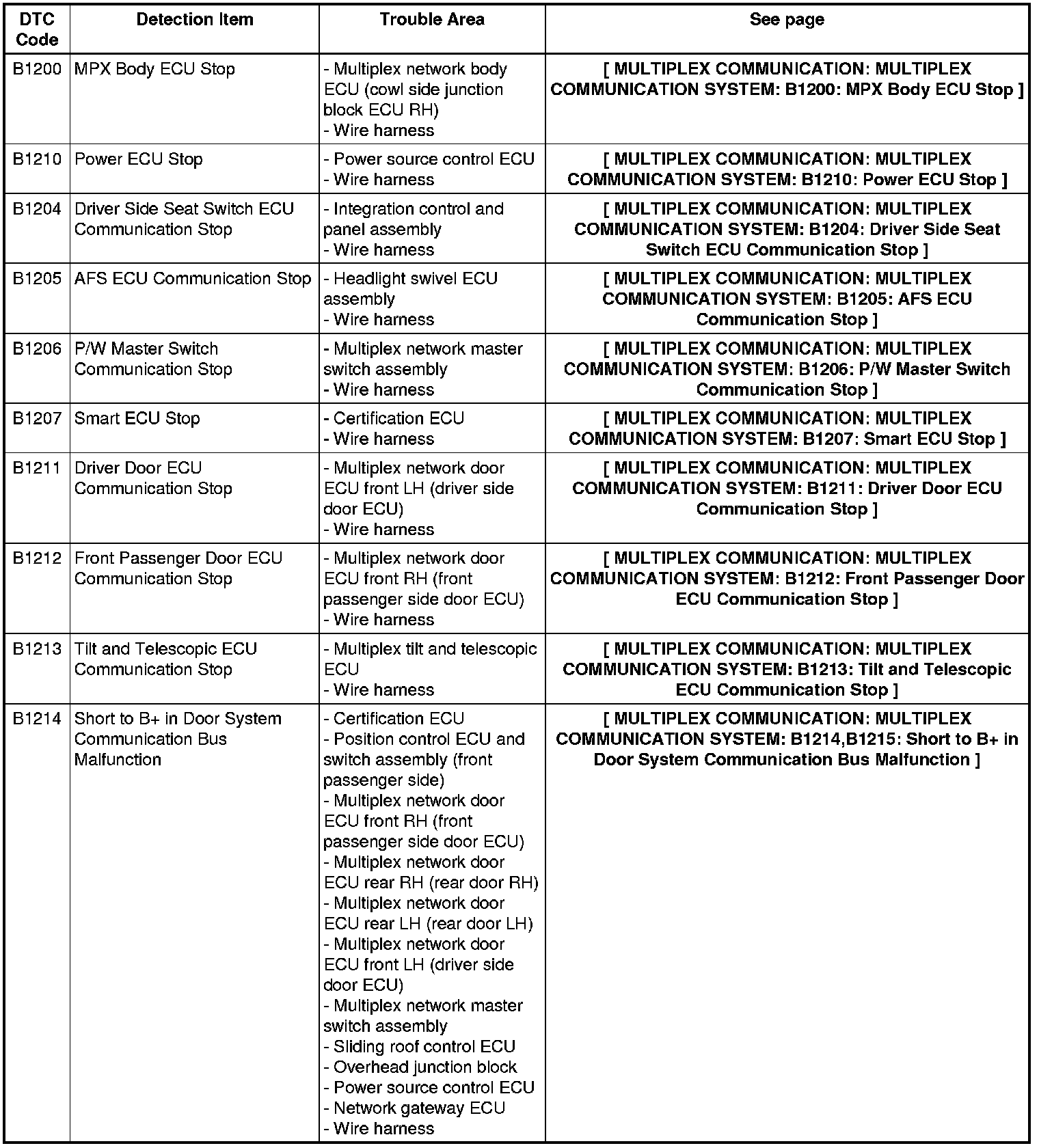

B1200 - B1214:

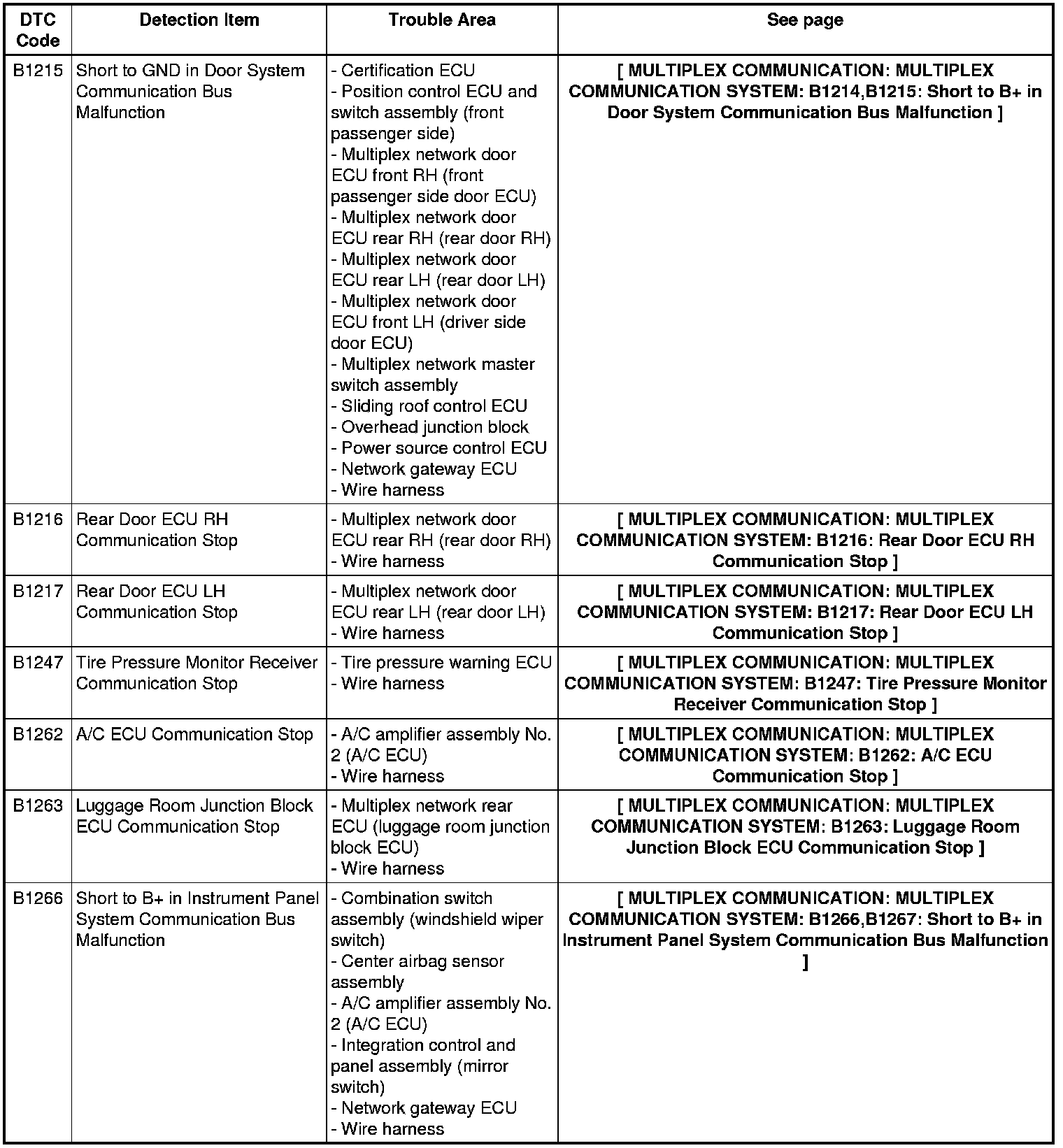

B1215 - B1266:

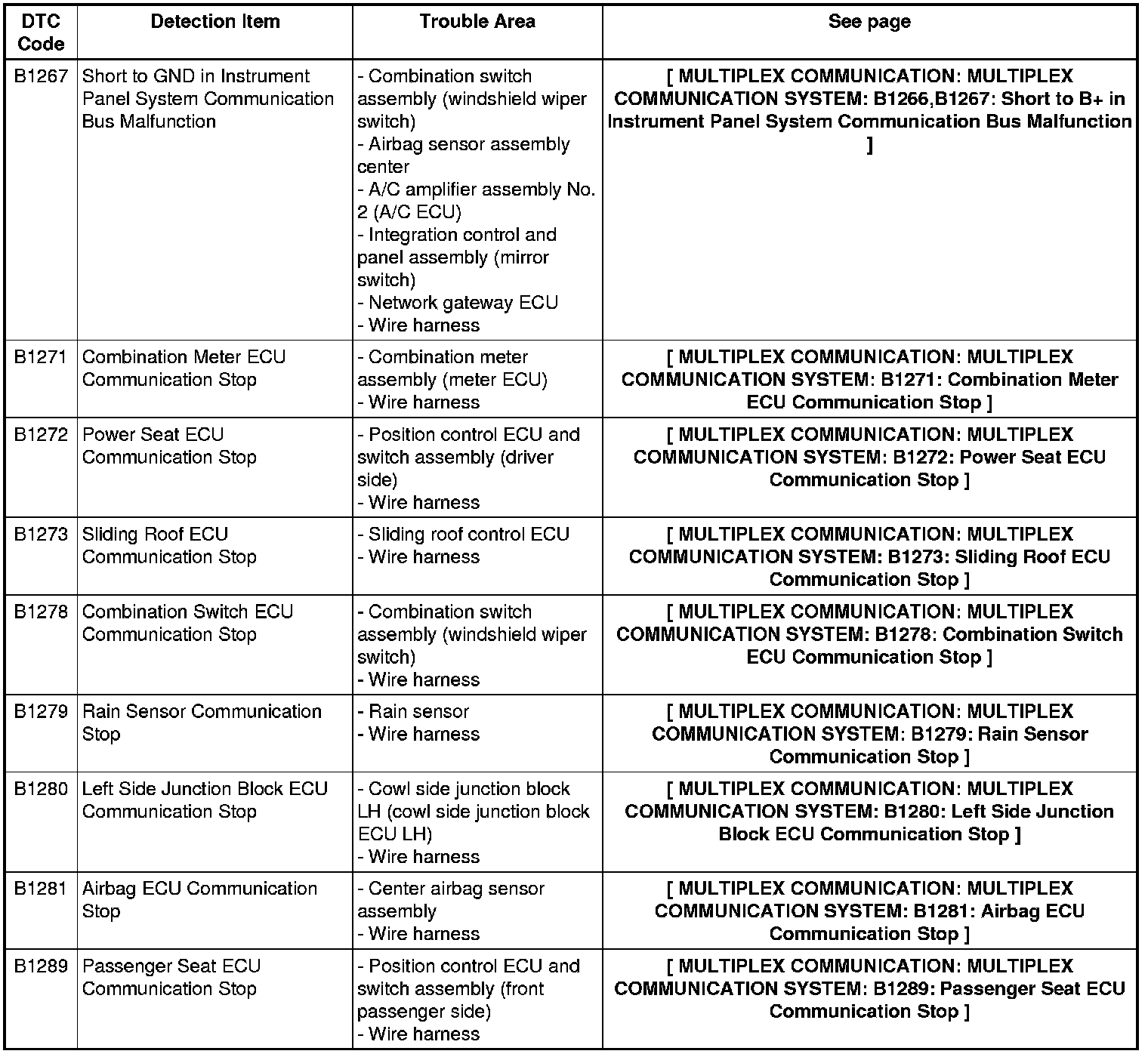

B1267 - B1289:

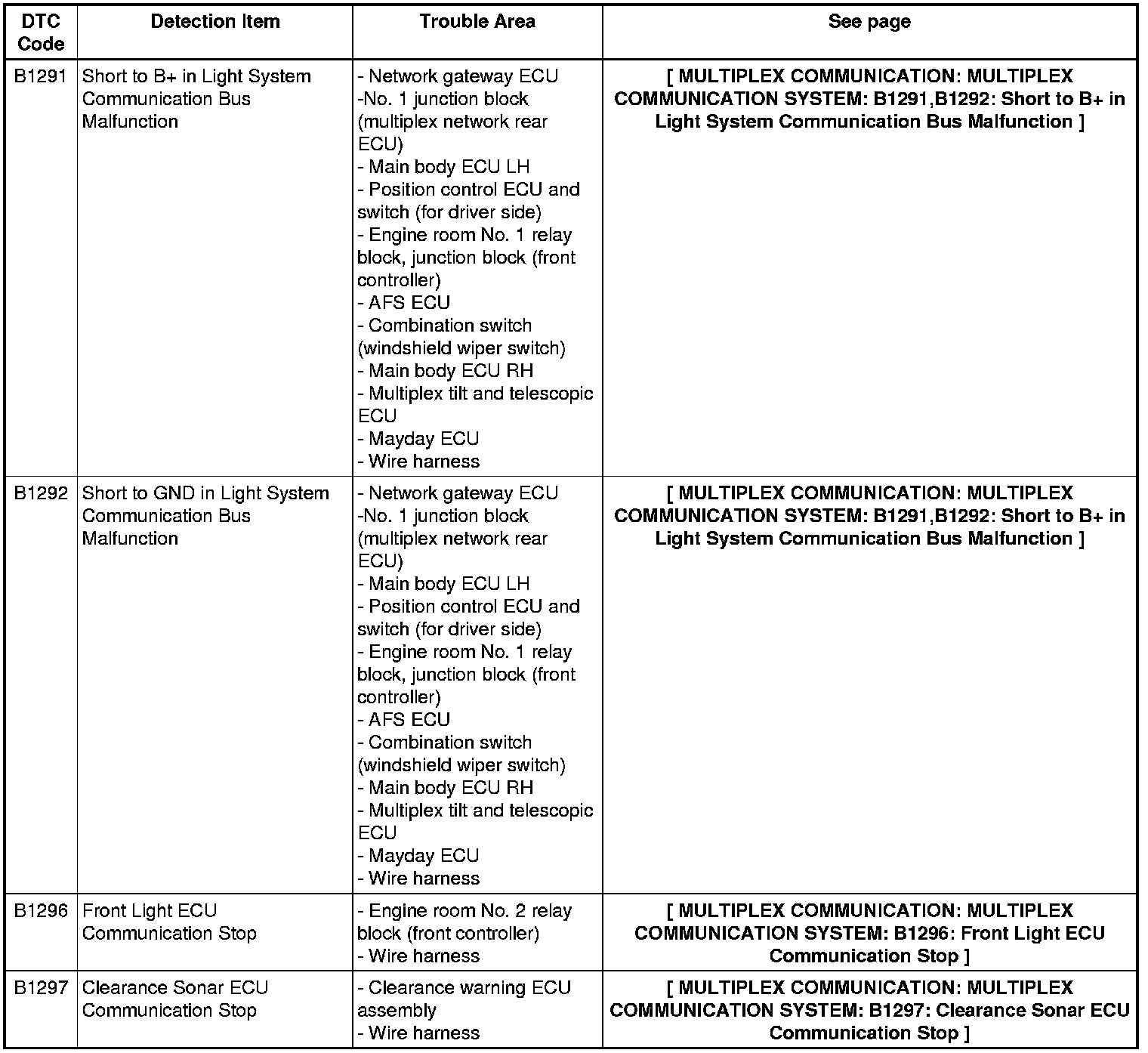

B1291 - B1297:
