A761E AUTOMATIC TRANSMISSION: EXTENSION HOUSING REAR OIL SEAL: REPLACEMENT

REPLACEMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT FLOOR CENTER BRACE
(a) Remove the 4 bolts and floor center brace.
3. DISCONNECT HEATED OXYGEN SENSOR (for Sensor 2)
(a) Disconnect the sensor Removal.
4. REMOVE FRONT EXHAUST PIPE ASSEMBLY
5. REMOVE CENTER EXHAUST PIPE ASSEMBLY
6. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR
(a) Remove the 4 bolts and insulator.
7. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
(a) Remove the 4 bolts and insulator.
8. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
(a) Remove the propeller with center bearing shaft assembly Removal.
9. DRAIN AUTOMATIC TRANSMISSION FLUID

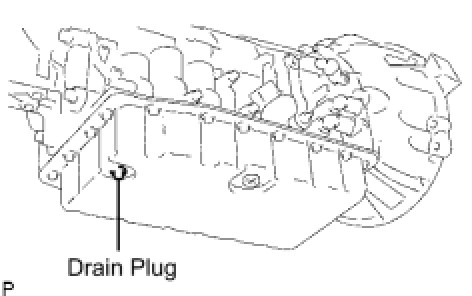

(a) Remove the drain plug, and gasket and drain the ATF.
(b) Install a new gasket and the drain plug.
Torque: 20 Nm (205 kgf-cm, 15 ft-lbf)
10. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

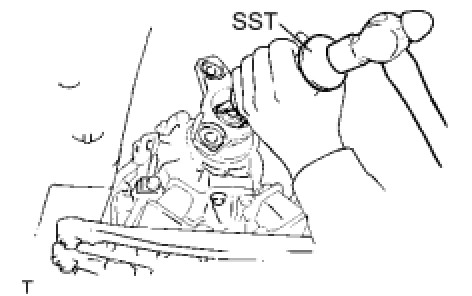

(a) Using SST and a hammer, loosen the staked part of the nut.
SST: 09930-00010
HINT: Move the shift lever to the P position.

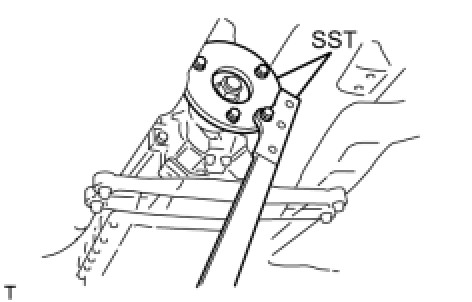

(b) Set SST.
SST: 09330-00021
SST: 09950-30012
09955-03040

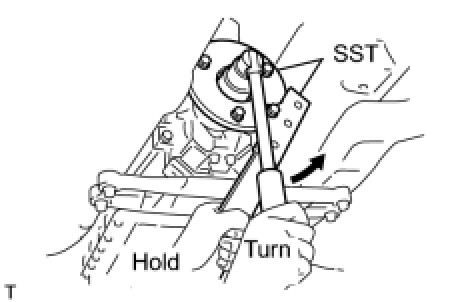

(c) Using SST and a 30 mm socket wrench, remove the nut.
(d) Remove SST.
(e) Tap the output flange with a plastic-faced hammer to remove it.

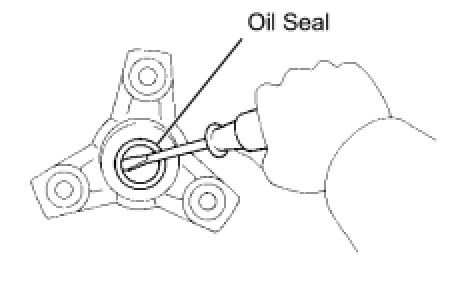

(f) Using a screwdriver, remove the oil seal from the automatic transmission flange yoke.
11. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

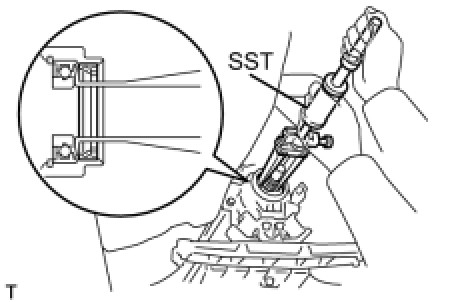

(a) Using SST, tap out the oil seal.
SST: 09308-00010
12. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

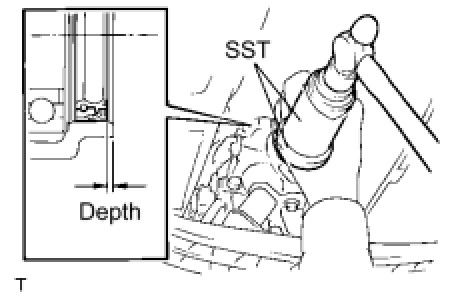

(b) Using SST and a hammer, tap in the oil seal.
SST: 09309-37010
Standard depth:
1.8 to 2.2 mm (0.07 to 0.09 in.)
13. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY





(a) Using SST and a hammer, tap in a new oil seal.
SST: 09517-36010
(b) Install the automatic transmission flange yoke.
(c) Set SST.
SST: 09330-00021
SST: 09950-30012
09955-03040

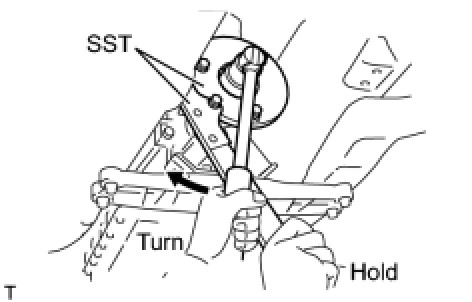

(d) Using SST and a 30 mm socket wrench, install and tighten a new nut.
Torque: 126 Nm (1,285 kgf-cm, 93 ft-lbf)
(e) Using a chisel and hammer, securely stake the nut.
14. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
(a) Install the propeller with center bearing shaft assembly Installation.
15. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
(a) Install the insulator with the 4 bolts.
16. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR
(a) Install the insulator with the 4 bolts.
17. INSTALL CENTER EXHAUST PIPE ASSEMBLY
Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)
18. INSTALL FRONT EXHAUST PIPE ASSEMBLY
Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)
19. CONNECT HEATED OXYGEN SENSOR (for Sensor 2)
(a) Connect the sensor Installation.
20. INSTALL FRONT FLOOR CENTER BRACE
(a) Install the floor brace with the 4 bolts.
21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
22. ADD AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid Procedures.
23. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

24. CHECK FOR EXHAUST GAS LEAKAGE
