Removal

3UZ-FE ENGINE MECHANICAL: TIMING BELT: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 AIR CLEANER INLET Removal
3. DRAIN ENGINE COOLANT Service and Repair
4. REMOVE V-BANK COVER Removal
5. REMOVE INTAKE AIR CONNECTOR PIPE Removal
6. REMOVE ENGINE UNDER COVER
7. DISCONNECT NO. 1 RADIATOR HOSE Removal
8. DISCONNECT NO. 2 RADIATOR HOSE Removal
9. DISCONNECT NO. 1 OIL COOLER INLET TUBE Removal
10. DISCONNECT NO. 1 OIL COOLER OUTLET TUBE Removal
11. REMOVE AIR CLEANER ASSEMBLY Removal
12. REMOVE RADIATOR ASSEMBLY Removal
13. REMOVE FAN AND GENERATOR V BELT Removal
14. REMOVE VANE PUMP ASSEMBLY
(a) Remove the 2 bolts, nut and pump.
HINT: The pump should be removed with the hoses connected. Then hang it with a rope or wire on the vehicle body's side.

15. REMOVE GENERATOR ASSEMBLY Removal
16. DISCONNECT COOLER COMPRESSOR ASSEMBLY
(a) Remove the 3 bolts, nut, stay and wire bracket, and disconnect the cooler compressor.
HINT: The cooler compressor (together with magnetic clutch) should be disconnected with the low-pressure and high-pressure hoses connected, and then hung with a rope or wire on the vehicle body's side.

17. REMOVE IGNITION COIL ASSEMBLY Removal
18. REMOVE SPARK PLUG
19. REMOVE NO. 3 TIMING BELT COVER SUB-ASSEMBLY RH





(a) Disconnect the 2 PS air hoses from the clamp on the timing belt cover.
(b) Remove the cap nut, 3 bolts, timing belt cover and gasket.
20. REMOVE NO. 3 TIMING BELT COVER SUB-ASSEMBLY LH





(a) Remove the cap nut and disconnect the No. 3 water by-pass pipe from the timing belt cover.
(b) Disconnect the 2 water by-pass hoses from the No. 3 water by-pass pipe.





(c) Disconnect the engine wire from the 2 wire clamps.
(d) Disconnect the camshaft position sensor connector.
(e) Disconnect the camshaft position sensor wire from the wire clamp on the timing belt cover.
(f) Remove the wire grommet from the timing belt cover.
(g) Remove the 4 bolts.
(h) Disconnect the timing belt cover from the timing plate and camshaft bearing cap.
(i) Disconnect the wire clamp for the sensor from the timing belt cover.
(j) Remove the connector holder from the sensor connector.
(k) Remove the timing belt cover.
21. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY





(a) Remove the pulley bolt, cover plate and idler pulley.
22. REMOVE NO. 2 TIMING BELT COVER SUB-ASSEMBLY





(a) Remove the 2 bolts and timing belt cover.

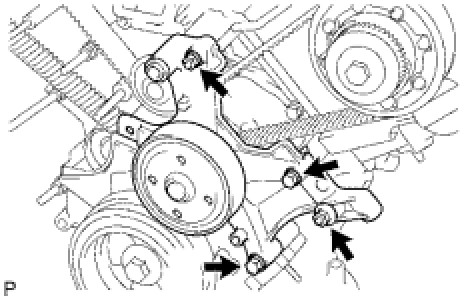

23. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY





(a) Remove the bolt, 2 nuts and belt tensioner.
24. REMOVE IDLER PULLEY ASSEMBLY





(a) Remove the 2 bolts, 2 nuts and idler pulley.
25. REMOVE CRANKSHAFT PULLEY

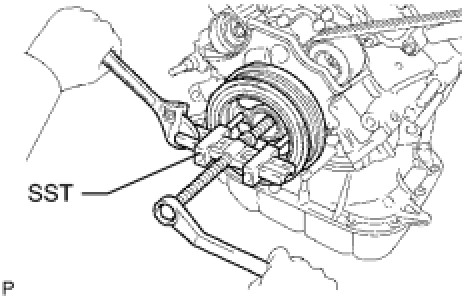

(a) Using SST, remove the pulley bolt.
SST: 09213-70011
SST: 09330-00021

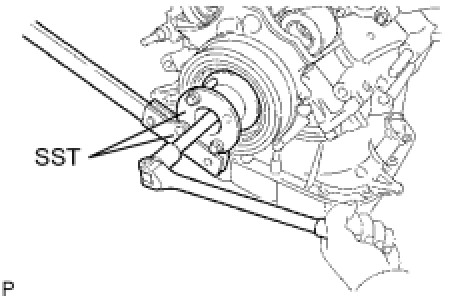

(b) Using SST, remove the pulley.
SST: 09950-50013
09951-05010
09952-05010
09953-05010
09953-05020
09954-05021
26. REMOVE NO. 1 TIMING BELT COVER





(a) Remove the 4 bolts and cover.
27. REMOVE CRANKSHAFT POSITION SENSOR PLATE
(a) Remove the crankshaft position sensor plate from the crankshaft.
28. REMOVE TIMING GEAR COVER SPACER





(a) Remove the cover spacer and gasket.
29. REMOVE TIMING BELT

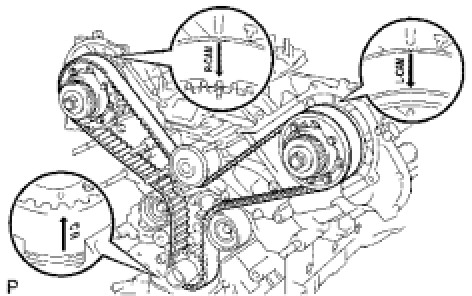

(a) If planning to reuse the belt, check the installation marks on the timing belt.
(1) Check that there are 3 installation marks on the belt by turning the crankshaft as shown in the illustration.
If the installation marks have disappeared, place new installation marks on the belt before removing each part.
(b) Set the No. 1 cylinder to approximately 50° BTDC/compression.




(1) Using the crankshaft pulley bolt, turn the crankshaft to align the timing marks of the crankshaft timing pulley and oil pump body.




(2) Check that the timing marks of the camshaft timing pulleys and timing belt plates are aligned.
If not, turn the crankshaft 1 revolution (360°).

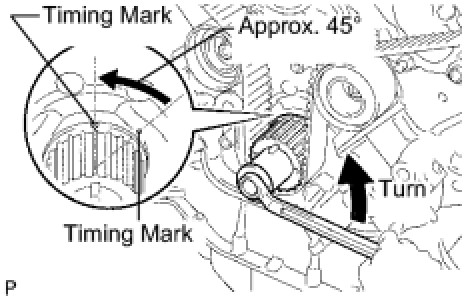

(3) Using the crankshaft pulley bolt, turn the crankshaft counterclockwise by approximately 45°.
NOTE:
With timing belt disengaged:

The crankshaft pulley must be at the correct angle to avoid damage in later steps. If the crankshaft pulley is at the wrong angle and then the camshaft timing pulley and the camshaft are removed, the piston head and valve head may come in contact and be damaged.
(c) Alternately loosen the 2 bolts. Then remove the 2 bolts, belt tensioner and dust boot.

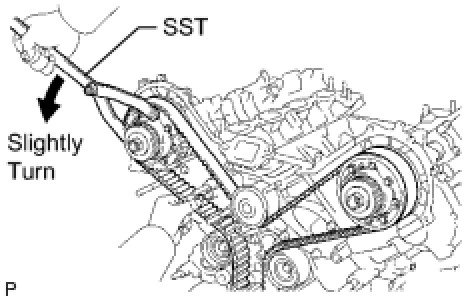

(d) Using SST, loosen the tension between the camshaft timing pulley (RH bank) and crankshaft timing pulley by slightly turning the camshaft timing pulley (RH bank) counterclockwise.
SST: 09960-10010
09962-01000
09963-00350
(e) Disconnect the belt from the No. 1 timing belt idler, and remove the belt.
30. REMOVE NO. 1 TIMING BELT IDLER SUB-ASSEMBLY Disassembly
31. REMOVE NO. 2 TIMING BELT IDLER SUB-ASSEMBLY Disassembly
