Installation

AUDIO / VISUAL: REAR SIDE SPEAKER: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.





1. INSTALL REAR SPEAKER ASSEMBLY LH

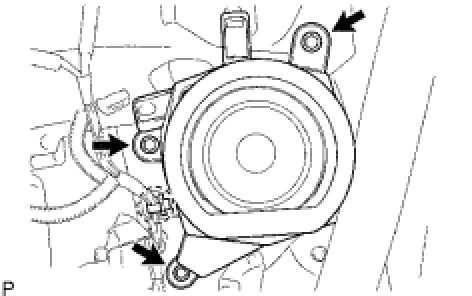

(a) Install the speaker with the 3 screws.
(b) Install the clamp.
(c) Connect the connector.
2. INSTALL QUARTER TRIM PANEL ASSEMBLY FRONT LH
3. INSTALL DOOR SCUFF PLATE ASSEMBLY LH Reassembly
4. INSTALL REAR SEATBACK ASSEMBLY Installation
5. INSTALL REAR SEAT HEADREST ASSEMBLY Installation
6. INSTALL REAR SEAT HEADREST PLATE Installation
7. INSTALL WIND DEFLECTOR BOARD ASSEMBLY Installation
8. INSTALL REAR SEAT HEADREST PLATE COVER Installation
9. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
