C2176

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: C2176/76: Receiver Error

DTC C2176/76 - Receiver Error

DESCRIPTION

This DTC is stored when referencing data becomes impossible due to an internal malfunction in the tire pressure warning ECU and receiver.






INSPECTION PROCEDURE
NOTICE:
- When replacing the tire pressure warning ECU and receiver, read the IDs stored in the old ECU using the Techstream and write them down before removal.
- It is necessary to perform initialization Initialization after registration Registration of the transmitter IDs into the tire pressure warning ECU and receiver after the ECU and/or valve and transmitter has been replaced.

PROCEDURE

1. CLEAR DTC
(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.
(b) Turn the ignition switch OFF.
NEXT -- Continue to next step.
2. CHECK DTC
(a) Check for DTC.

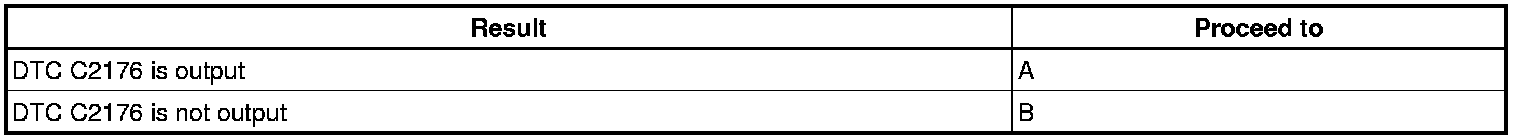

Result





B -- USE SIMULATION METHOD TO CHECK
A -- REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER
