B2545

CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: B2545: ECM Communication Stop

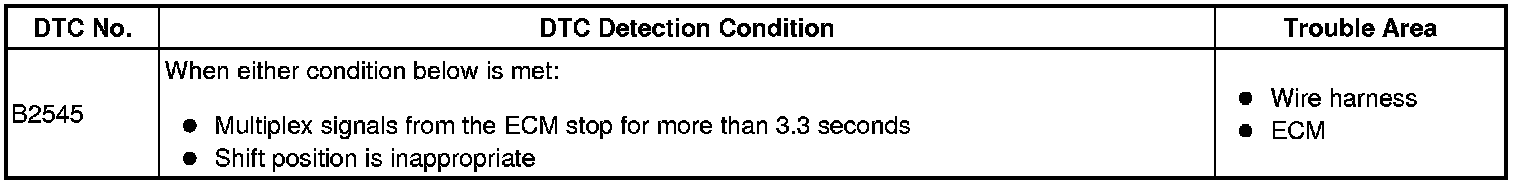

DTC B2545 - ECM Communication Stop

DESCRIPTION

The sliding roof control ECU receives the multiplex signals (shift position, engine speed).
The sliding roof control ECU changes the fixed control number and conditions to permit operation according to the information from the multiplex signals.






WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (SLIDING ROOF CONTROL ECU - ECM)
(a) Check the wire harness B1214.
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE ECM
