Front And Rear Switch Cannot Operate Rear Sunshade

INTERIOR: REAR SUNSHADE SYSTEM: Front and Rear Switch Cannot Operate Rear Sunshade

Front and Rear Switch Cannot Operate Rear Sunshade

DESCRIPTION

A rear sunshade switch signal is sent from the front switch (No. 2 console switch) to the outer mirror switch through LIN communication. The outer mirror then sends the signal to the rear junction block ECU through CAN communication, and the rear sunshade operates. For the rear switch (curtain switch), a rear sunshade signal is sent from the rear power seat module switch to the rear junction block ECU, and the rear sunshade operates.

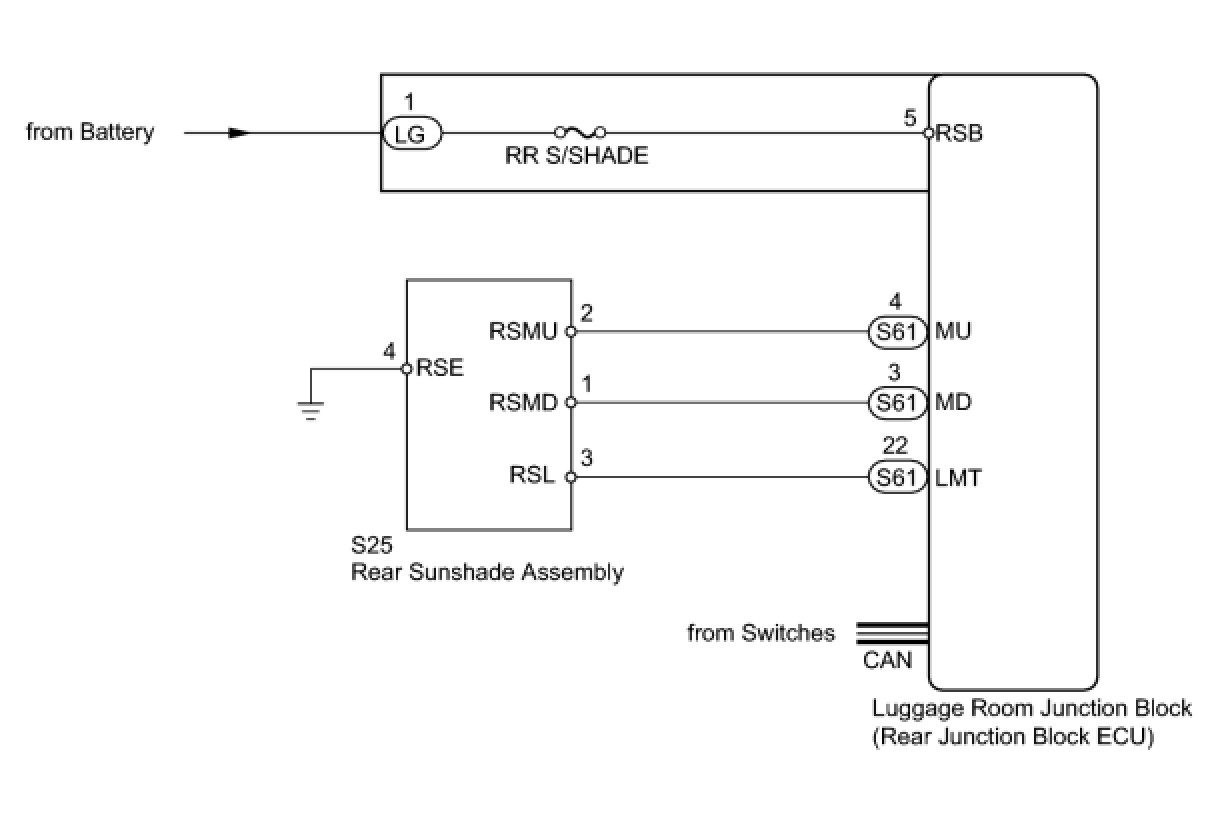

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Rear Sunshade System.
(b) Check for DTCs Rear Sunshade System.

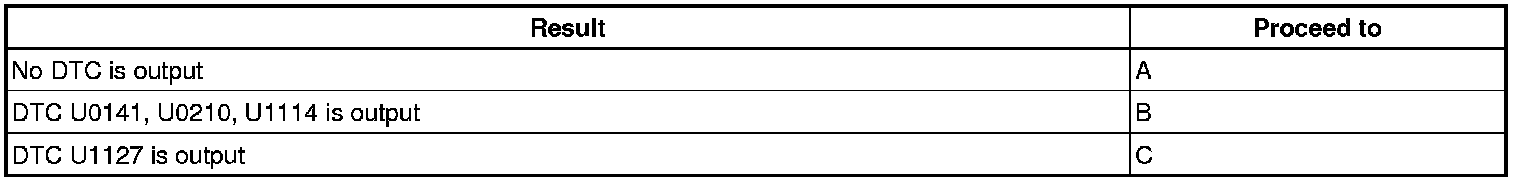

Result





C -- GO TO LIN COMMUNICATION SYSTEM
B -- GO TO CAN COMMUNICATION SYSTEM
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check that the shade raises/lowers.

Body No. 4





OK:
Rear sunshade raises or lowers
NG -- INSPECT FUSE (RR S/SHADE)
OK -- Continue to next step.

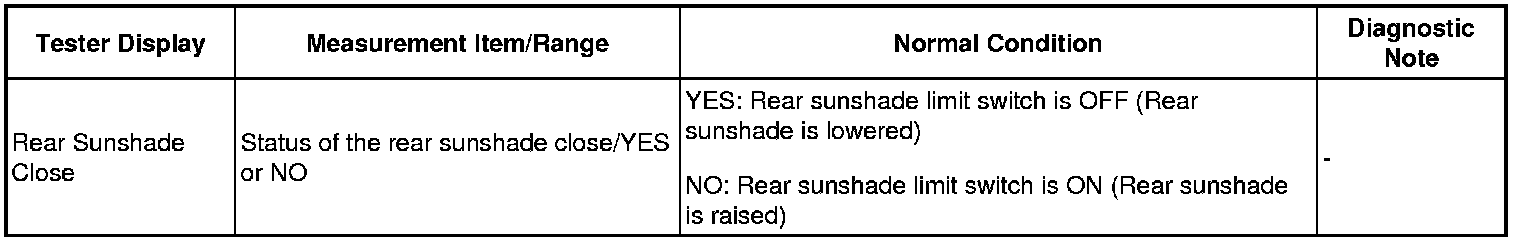

3. READ VALUE USING TECHSTREAM (STATUS OF REAR SUNSHADE CLOSE)
(a) Use the Data List to check if the rear sunshade limit switch is functioning properly.

Body No. 4





OK:
Rear sunshade raises or lowers
OK -- INSPECT FUSE (RR S/SHADE)
NG -- Continue to next step.

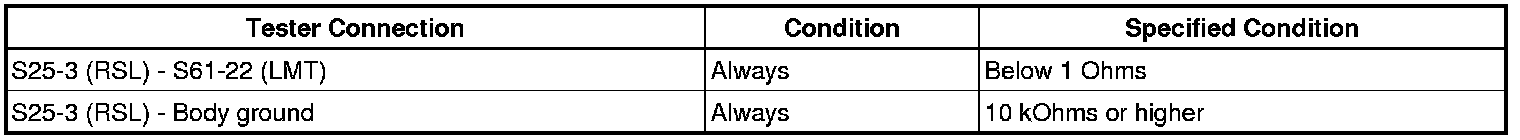

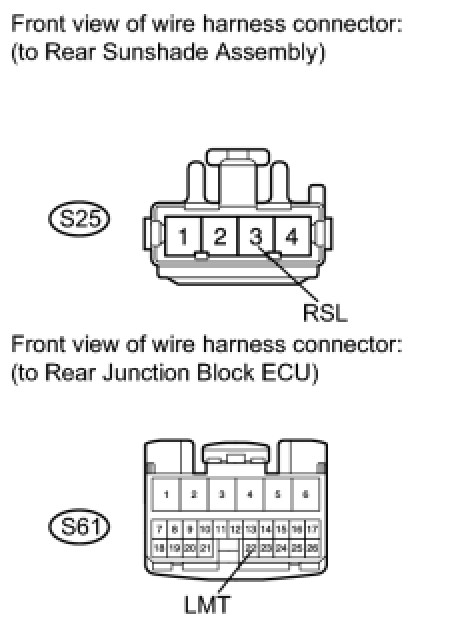

4. CHECK HARNESS AND CONNECTOR (REAR SUNSHADE ASSEMBLY - REAR JUNCTION BLOCK AND BODY GROUND)




(a) Disconnect the S25 shade connector.
(b) Disconnect the S61 ECU connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE REAR SUNSHADE ASSEMBLY
5. INSPECT FUSE (RR S/SHADE)
(a) Remove the RR S/SHADE fuse from luggage room junction block.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE FUSE
OK -- Continue to next step.

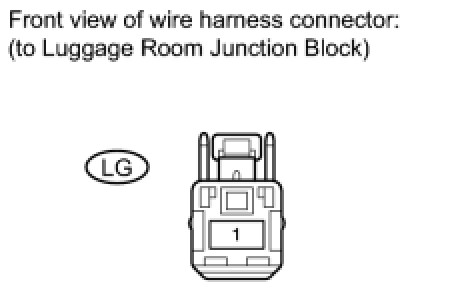

6. CHECK HARNESS AND CONNECTOR (LUGGAGE ROOM JUNCTION BLOCK - BODY GROUND)




(a) Disconnect the LG junction block connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

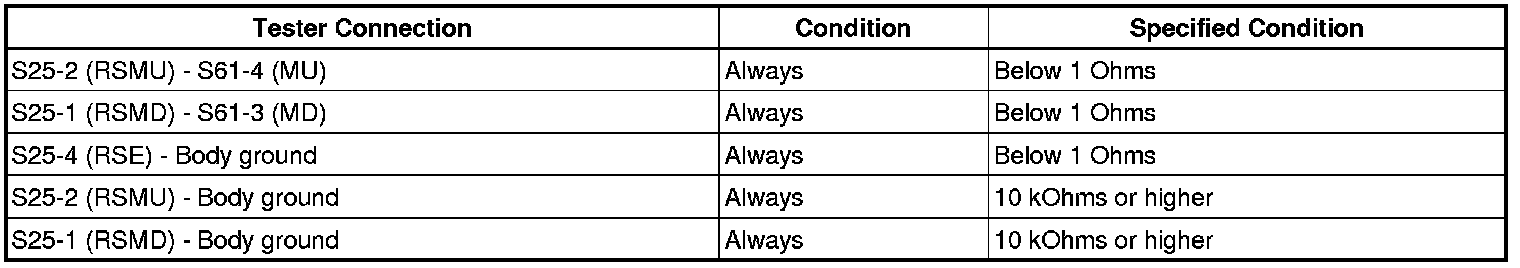

7. CHECK HARNESS AND CONNECTOR (REAR SUNSHADE ASSEMBLY - REAR JUNCTION BLOCK AND BODY GROUND)

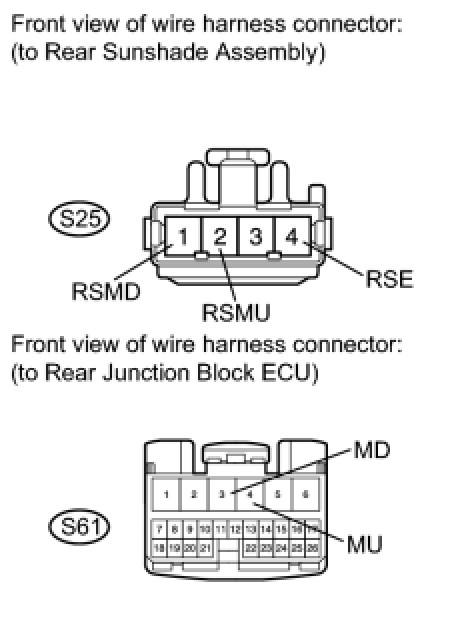

(a) Disconnect the S25 shade connector.
(b) Disconnect the S61 ECU connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

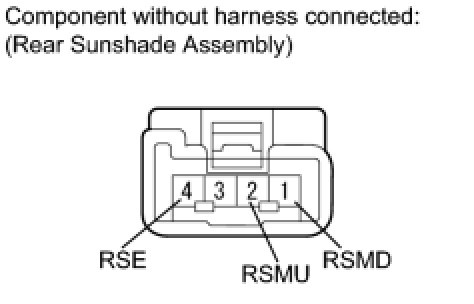

8. INSPECT REAR SUNSHADE ASSEMBLY
(a) Remove the rear sunshade assembly Removal.

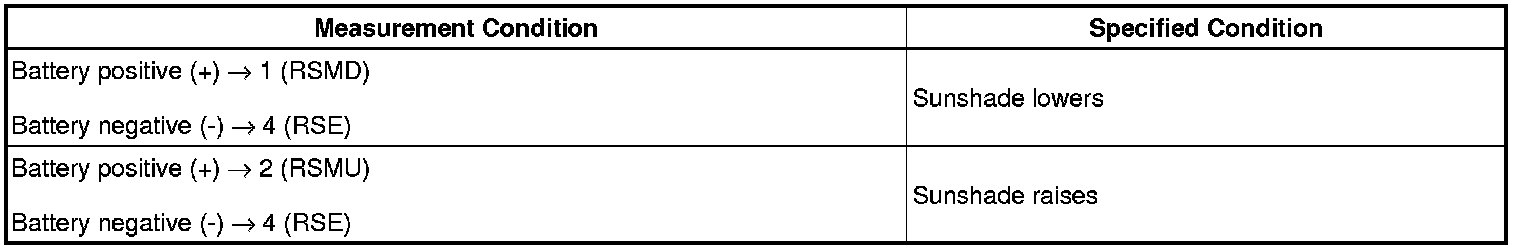

(b) Apply battery voltage and check the operation of the window shade motor.

Standard





NG -- REPLACE REAR SUNSHADE ASSEMBLY
OK -- REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)
