Removal

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for Power Seat): REMOVAL

REMOVAL

1. REMOVE REAR SEAT ASSEMBLY
(a) Remove the rear seat Removal.





2. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

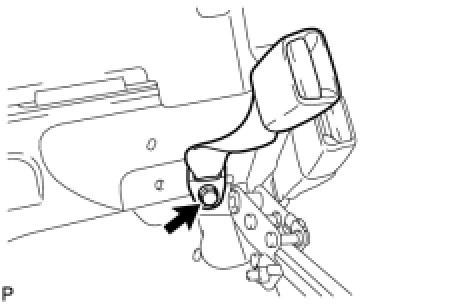

(a) Remove the bolt and seat belt.
3. REMOVE REAR SEAT INNER BELT ASSEMBLY RH
(a) Use the same procedures described for the LH side.





4. REMOVE REAR SEAT INNER BELT ASSEMBLY CENTER
(a) Remove the bolt and seat belt.
