Removal

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: REMOVAL

REMOVAL

1. REMOVE REAR SEAT ASSEMBLY
(a) for Power Seat:
Remove the rear seat Removal.
(b) for Ottoman:
Remove the rear seat Removal.
(c) for Fixed Seat Type:
Remove the rear seat Removal.





2. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY INNER
(a) Except Ottoman:
Remove the 2 bolts and 2 anchor brackets.

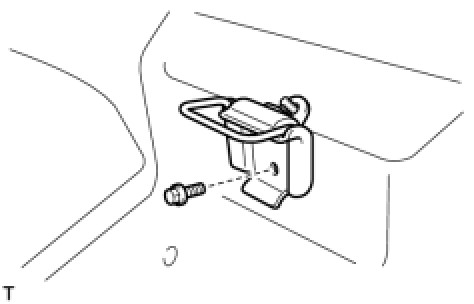

(b) for Ottoman:
Remove the bolt and anchor bracket.
3. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY





(a) Except Ottoman:
Remove the 2 bolts and 2 anchor brackets.
(b) for Ottoman:




(1) for Driver Side:
Remove the bolt and anchor bracket.




(2) for Passenger Side:
Remove the 2 bolts and anchor bracket.
