Pinout Values and Diagnostic Parameters

OTHER SYSTEM: CLOCK SYSTEM (W/ Multi-display): TERMINALS OF ECU

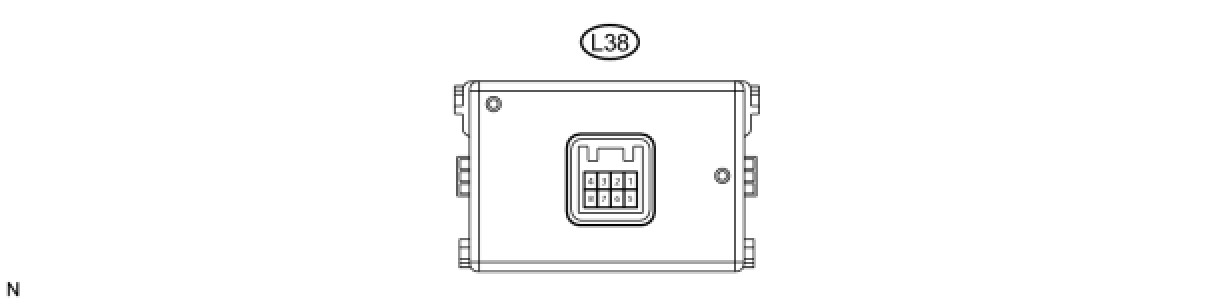

TERMINALS OF ECU

1. CHECK CLOCK





(a) Disconnect the L38 clock connector.

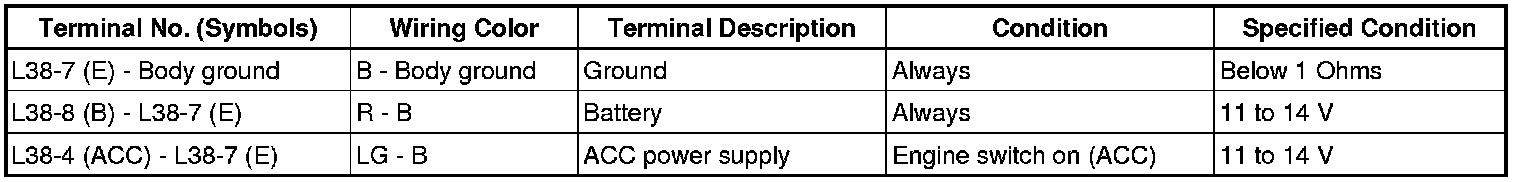

(b) Measure the resistance and voltage according to the value(s) in the table below.





- If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the L38 clock connector.

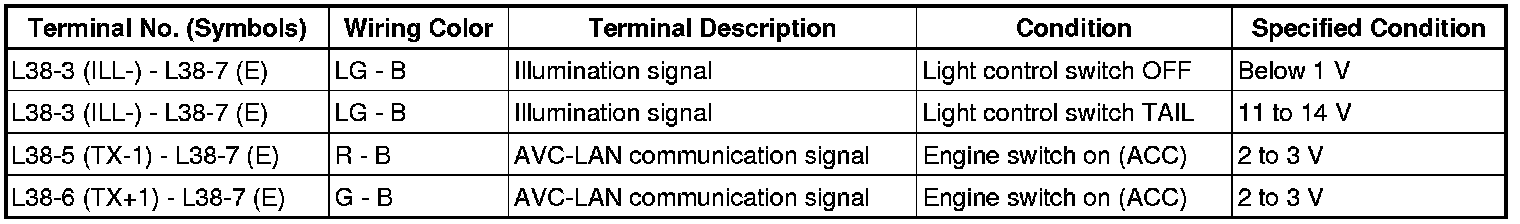

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the clock may have a malfunction.
2. CHECK DISPLAY AND NAVIGATION ASSEMBLY (W/ Navigation System (for HDD)) Navigation System (for HDD)
3. CHECK MULTI-DISPLAY (W/ Navigation System (for DVD)) Navigation System (for DVD)
4. CHECK MULTI-DISPLAY (W/O Navigation System) Audio and Visual System (W/ Multi-display)
