1UR-FSE EXHAUST: EXHAUST MANIFOLD (for AWD): REMOVAL

REMOVAL

1. REMOVE ENGINE AND TRANSMISSION
(a) Remove the engine and transmission Removal.
2. REMOVE FRONT FRAME ASSEMBLY Removal
3. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE Removal

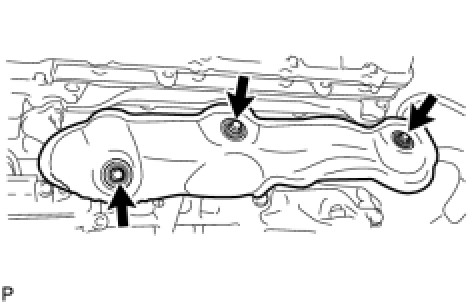

4. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR





(a) Remove the 3 bolts and heat insulator.

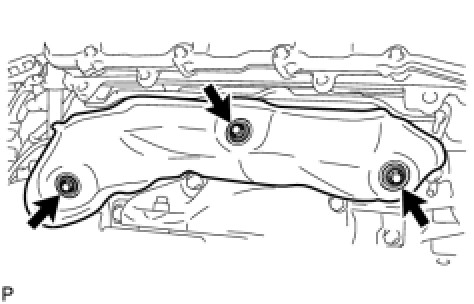

5. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR





(a) Remove the 3 bolts and heat insulator.
6. REMOVE FRONT ENGINE MOUNTING INSULATOR Removal
7. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH Removal
8. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH Removal
9. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

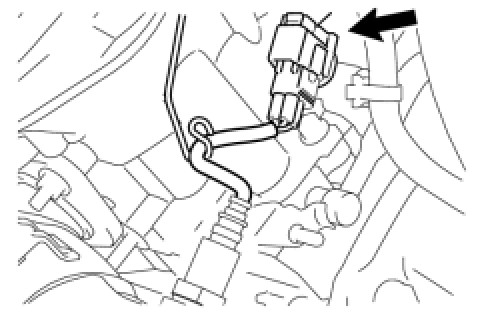

(a) Disconnect the air fuel ratio sensor connector.





(b) Remove the 8 nuts and exhaust manifold RH.
(c) Remove the gasket.
10. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH

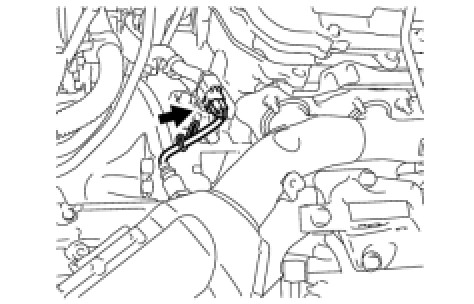

(a) Disconnect the air fuel ratio sensor connector.





(b) Remove the 8 nuts and exhaust manifold LH.
(c) Remove the gasket.
11. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

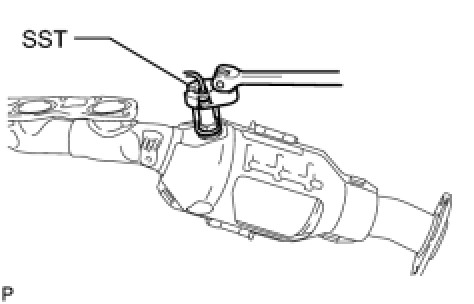

(a) Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
SST: 09224-00010
12. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

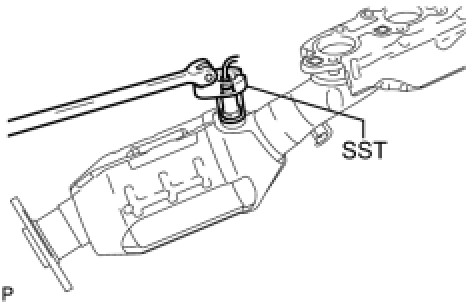

(a) Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
SST: 09224-00010
