Removal

BRAKE: BRAKE PEDAL SUPPORT: REMOVAL

REMOVAL
NOTE:
While the battery is connected, even if the engine switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal and open/close the doors while the battery is connected.

1. PRECAUTION
CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Service Precautions.

2. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Remove the instrument panel safety pad Removal.
5. DISCONNECT CONNECTORS

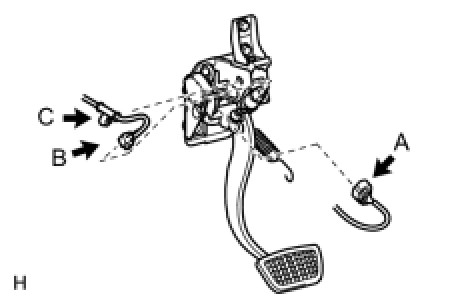

(a) Disconnect the brake pedal stroke sensor connector (labeled A).
(b) Disconnect the stop light switch connector (labeled B), and then detach the wire harness clamp (labeled C).
6. REMOVE BRAKE PEDAL RETURN SPRING





(a) Remove the spring.

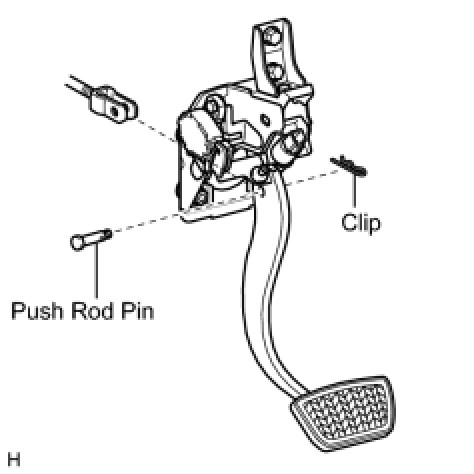

7. REMOVE PUSH ROD PIN





(a) Remove the clip and push rod pin.
8. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

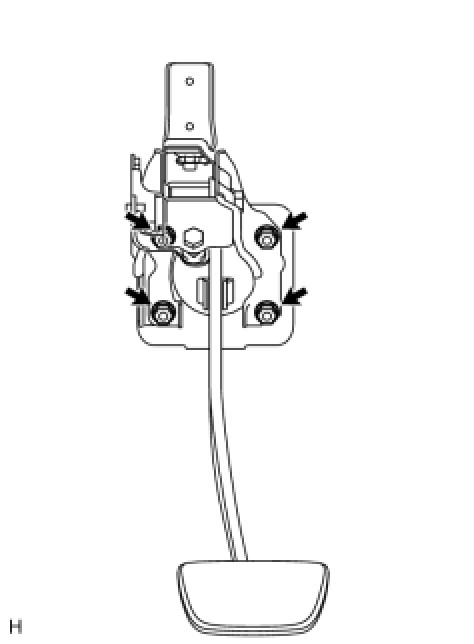

(a) Remove the 4 nuts.

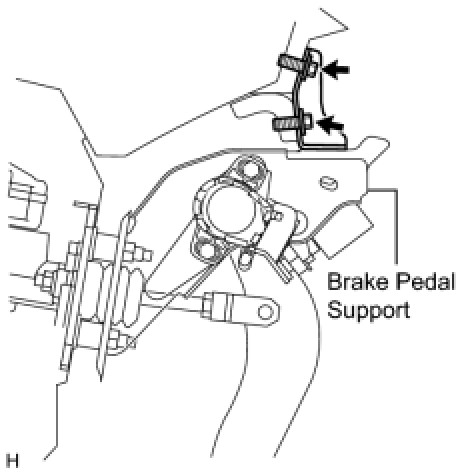

(b) Remove the 2 bolts and brake pedal support.
