ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH: INSTALLATION

INSTALLATION

1. INSTALL LUGGAGE COMPARTMENT DOOR OPENER SWITCH ASSEMBLY





(a) Attach the 4 claws to install the opener switch.

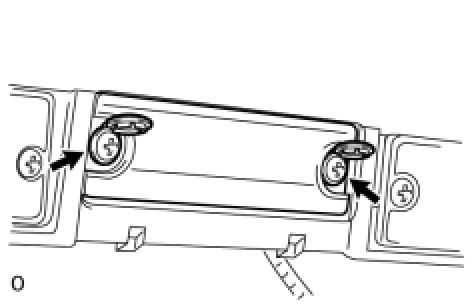

(b) Install the 2 screws and close the screw caps.
2. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY Installation
3. INSTALL LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE
4. INSTALL REAR LIGHT ASSEMBLY RH Installation
5. INSTALL REAR LIGHT ASSEMBLY LH Installation
6. INSTALL TELEVISION CAMERA ASSEMBLY (W/ Rear View Monitor) Installation
7. INSTALL BACK DOOR TRIM COVER Installation
8. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH Installation
9. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH Installation
10. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH Installation
11. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH Installation
12. INSTALL NO. 2 COURTESY LIGHT ASSEMBLY Installation
13. INSTALL SWITCH BEZEL (W/ Power Trunk Lid System) Installation
14. INSTALL DOOR INSIDE HANDLE BEZEL Installation
15. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP Installation
