Removal








SEAT: FRONT POWER SEAT MOTOR ASSEMBLY: REMOVAL

REMOVAL
CAUTION:
Wear protective gloves. Sharp areas on the seat adjuster and seat cushion frame may injure your hands.
HINT:
- Use the same procedures for the LH side and RH side.
- The procedure listed below are for the LH side.

1. REMOVE FRONT SEAT ASSEMBLY LH
(a) Remove the front seat assembly Removal.
2. REMOVE FRONT SEAT CUSHION SHIELD LH Disassembly
3. REMOVE FRONT SEAT CUSHION SHIELD FRONT LH Disassembly
4. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH Removal
5. REMOVE FRONT SEAT CUSHION SHIELD INNER LH Disassembly
6. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY LH Disassembly
7. REMOVE FRONT SEAT CUSHION ASSEMBLY LH Disassembly
8. REMOVE FRONT SEAT HEADREST ASSEMBLY LH Disassembly
9. REMOVE FRONT SEAT HEADREST SUPPORT LH Disassembly
10. REMOVE SEATBACK COVER WITH PAD Disassembly

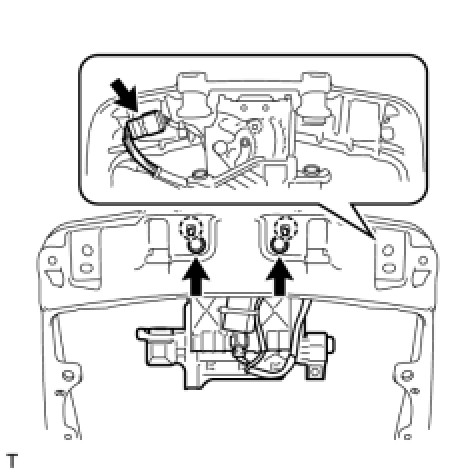

11. REMOVE FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
(a) Disconnect the connector.
(b) Remove the 2 bolts and detach the 2 claws.
(c) Remove the headrest adjuster.
12. REMOVE FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY (W/ Retractable Headrest)
(a) Disconnect the connector.





(b) Remove the 2 screws and headrest motor from the seatback frame.
(c) Remove the 4 bolts and detach the 2 claws.
(d) Remove the headrest adjuster.





(e) Detach the 2 claws and remove the motor.
13. REMOVE FRONT SEATBACK FRAME ASSEMBLY LH Disassembly
14. REMOVE RECLINING ADJUSTER INSIDE COVER LH Disassembly
15. REMOVE RECLINING ADJUSTER INSIDE COVER RH Disassembly
16. REMOVE FRONT SEAT CUSHION SHIELD LOWER Disassembly
17. REMOVE FRONT SEAT CUSHION SPRING Disassembly
18. REMOVE NO. 1 SEAT CUSHION PLATE Disassembly
19. REMOVE FRONT NO. 2 SEAT TRAVEL LINK Disassembly
20. REMOVE FRONT NO. 1 SEAT TRAVEL LINK Disassembly
21. REMOVE SEAT CLIMATE CONTROL ECU (W/ Climate Control Seat System) Disassembly
22. REMOVE SEAT CLIMATE CONTROL BLOWER LH (W/ Climate Control Seat System) Disassembly
23. REMOVE OCCUPANT CLASSIFICATION ECU (for Front Passenger Side) Disassembly
24. REMOVE SEAT POSITION AIR BAG SENSOR Removal
25. REMOVE FRONT SEAT WIRE LH
