DOOR LOCK: ELECTRICAL KEY OSCILLATOR (for Rear Floor): REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type) Removal

2. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR (for Fixed Seat Type)

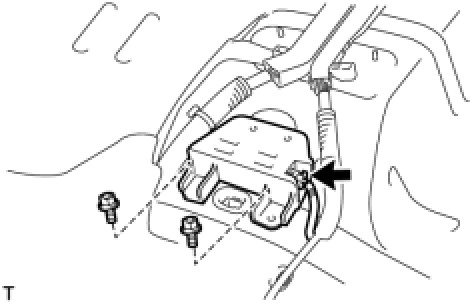

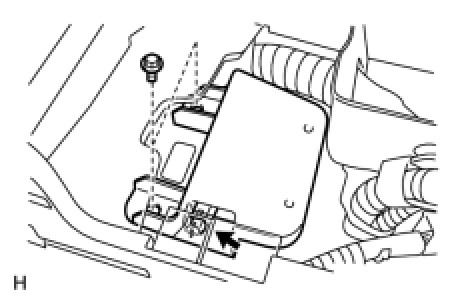

(a) Disconnect the connector.
(b) Remove the 2 bolts and electrical key.
3. REMOVE REAR SEAT CUSHION ASSEMBLY CENTER (for Power Seat) Removal

4. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR (for Power Seat)

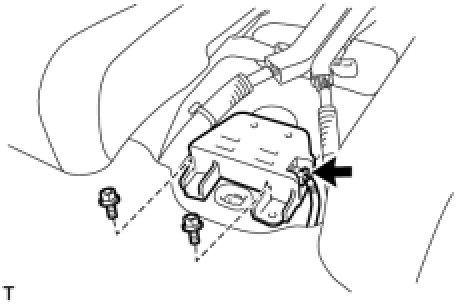

(a) Disconnect the connector.
(b) Remove the 2 bolts and electrical key.
5. REMOVE REAR SEAT CONSOLE ARMREST GARNISH LH (for Ottoman) Removal
6. REMOVE REAR SEAT CONSOLE ARMREST GARNISH RH (for Ottoman) Removal
7. REMOVE REAR SEAT CONSOLE PANEL ASSEMBLY (for Ottoman) Removal
8. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR (for Ottoman)

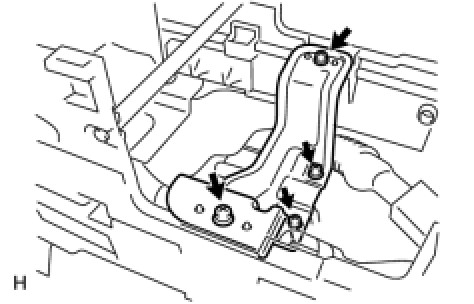

(a) Remove the 4 screws and bracket.
(b) Disconnect the connector.
