Installation

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

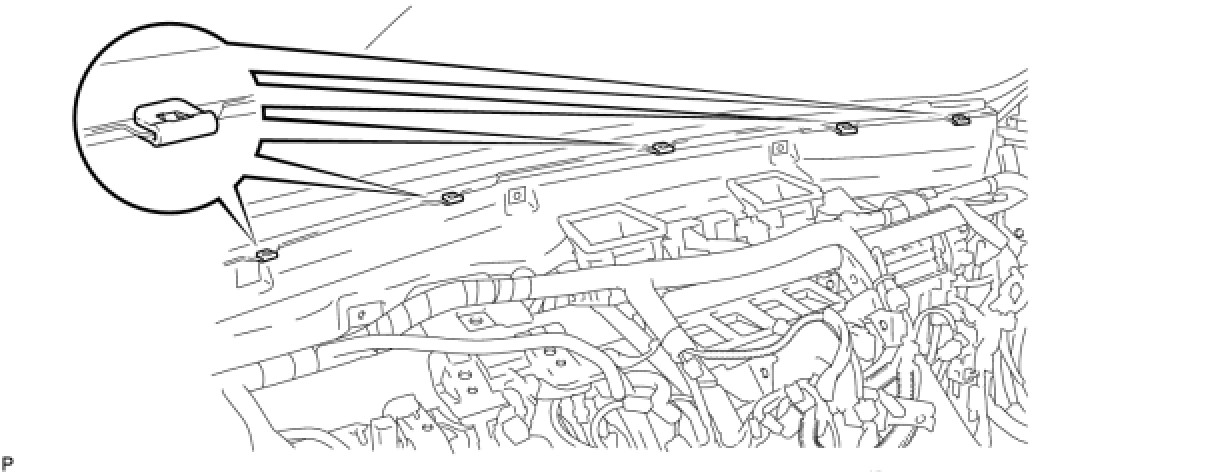

1. INSTALL NO. 3 INSTRUMENT PANEL STAY
(a) Attach the 5 claws to install the 5 stays.

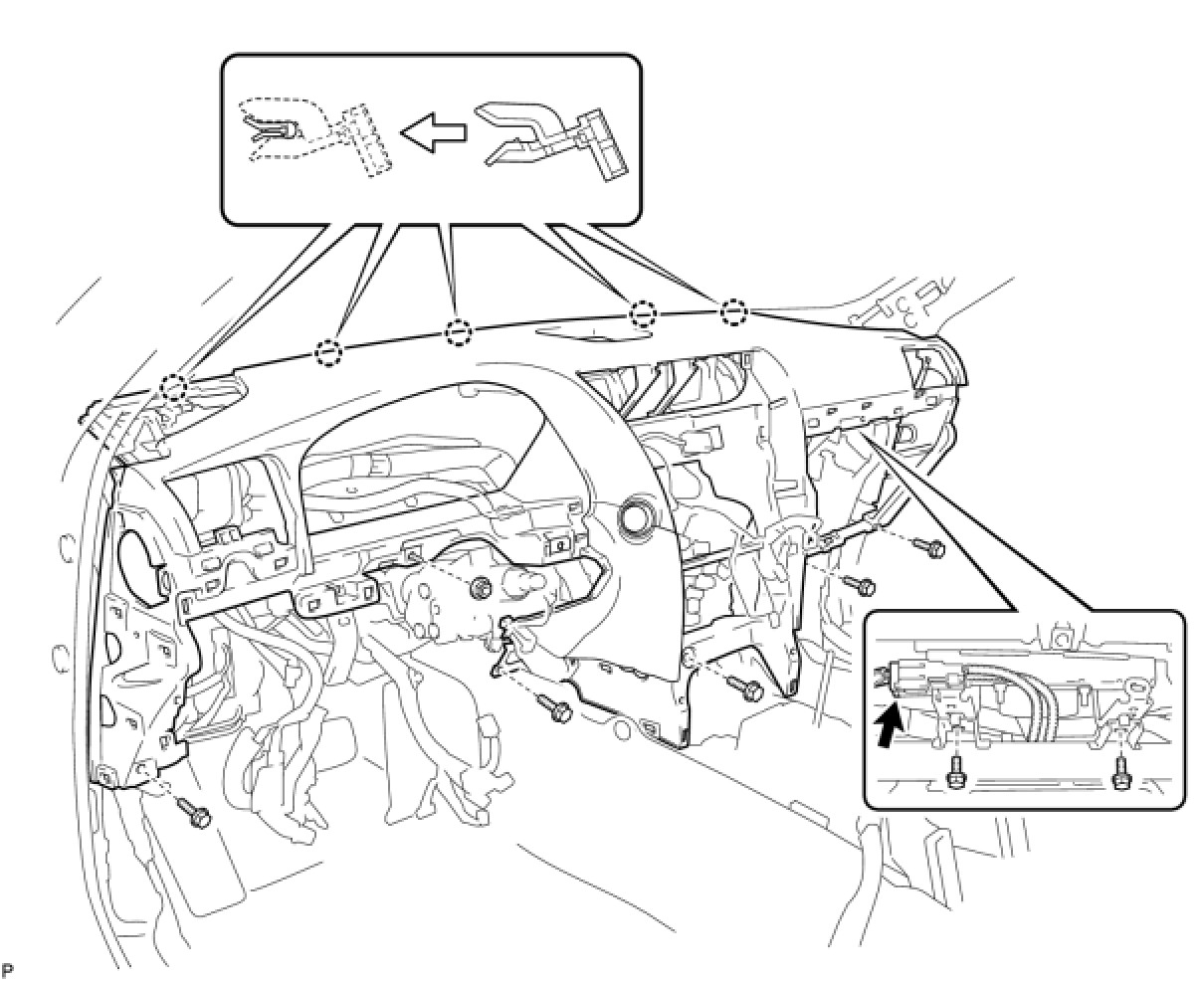

2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Attach the 5 claws to install the safety pad.
(b) Install the 5 bolts and nut.
(c) Install the 2 passenger airbag bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)





(d) Connect the connectors and clamps.





3. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY Installation
4. INSTALL NO. 1 SPEAKER HOLE COVER Installation
5. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side) Installation
6. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY Installation
7. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side) Installation
8. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY Installation

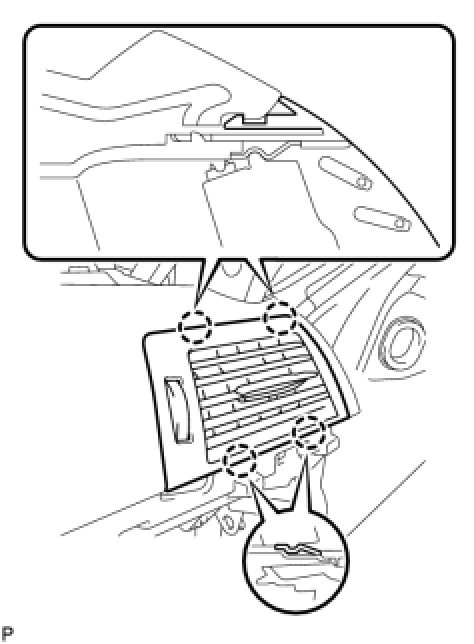

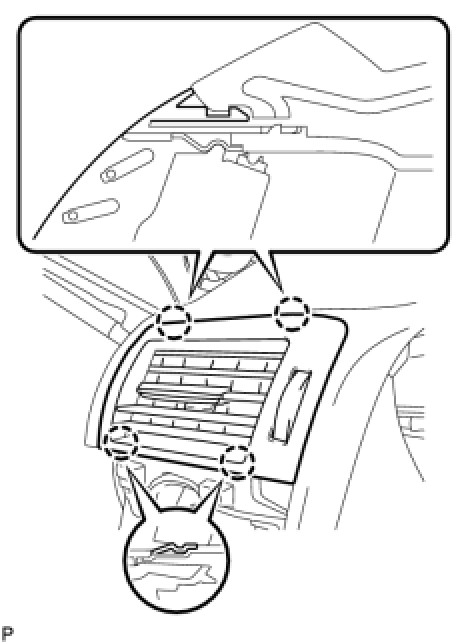

9. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY





(a) Connect the connector.
(b) Attach the 4 claws to install the register.
10. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY





(a) Connect the connector.
(b) Attach the 4 claws to install the register.
11. INSTALL FRONT PILLAR GARNISH LH Installation
12. INSTALL FRONT PILLAR GARNISH RH Installation
13. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY WITH BRACKET (W/O Navigation System) Installation
14. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET (for DVD) Installation
15. INSTALL DISPLAY AND NAVIGATION ASSEMBLY WITH BRACKET (for HDD) Installation
16. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET Installation

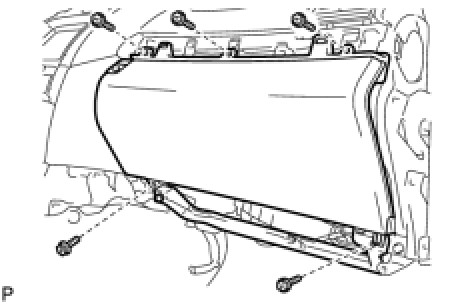

17. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY





(a) Connect the connector and clamp, and install the compartment door.
(b) Install the 5 screws.

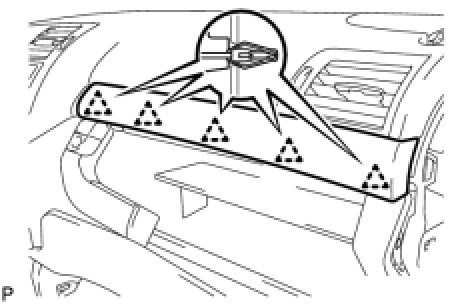

18. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING





(a) Attach the 5 clips to install the moulding.
19. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation
20. INSTALL INSTRUMENT PANEL LOWER Installation

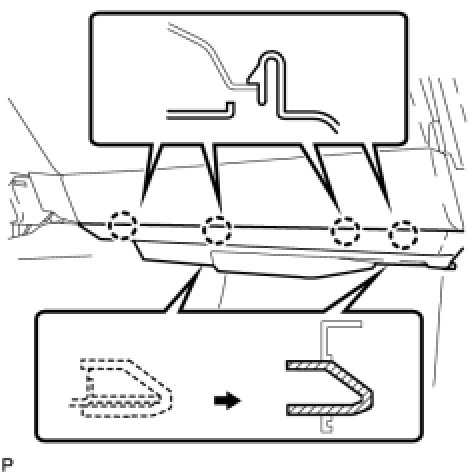

21. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY





(a) Connect the connector.
(b) Attach the 4 claws to install the under cover.

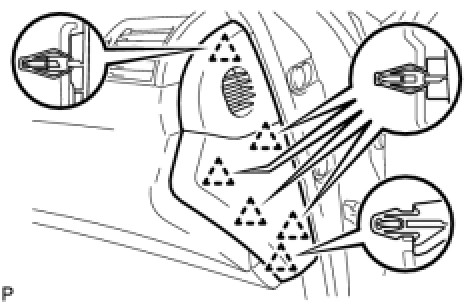

22. INSTALL INSTRUMENT SIDE PANEL RH





(a) Attach the 6 clips to install the side panel.
23. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

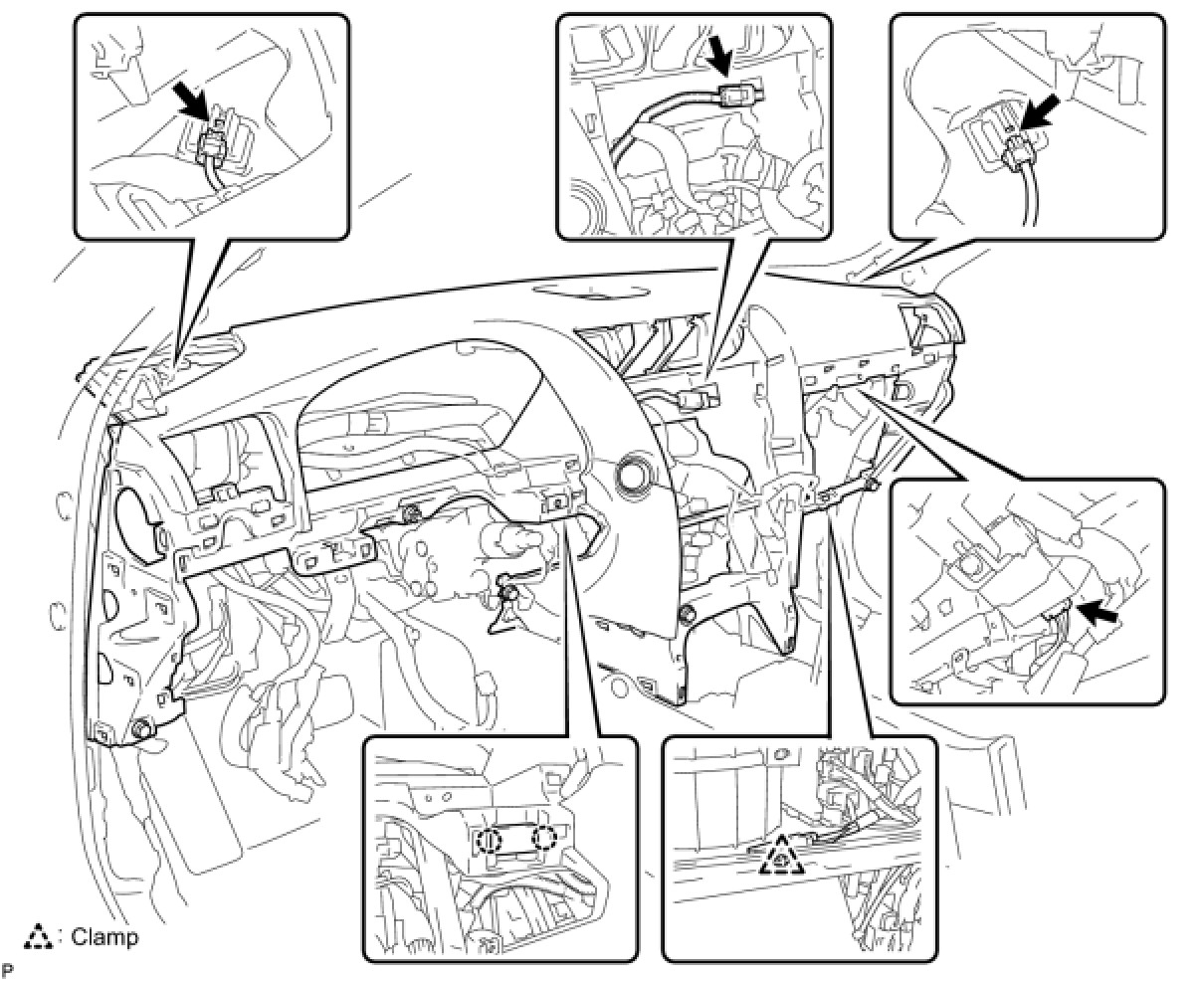

24. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY





(a) Connect the connectors.
(b) Attach the 5 clips and claw to install the safety pad.
(c) Install the 2 screws.





(d) Attach the claw to install the cover.

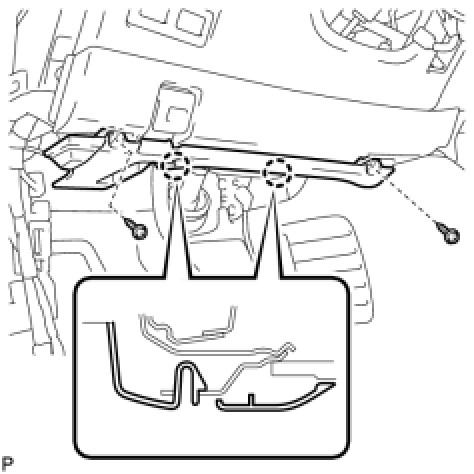

25. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY





(a) Connect the connectors and clamp.
(b) Attach the 2 claws.
(c) Install the under cover with the 2 screws.

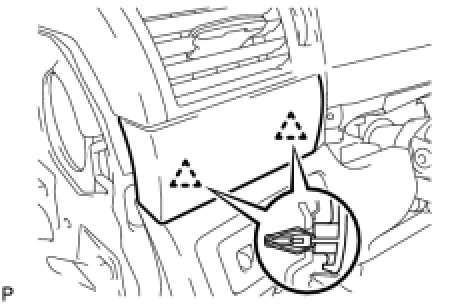

26. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING





(a) Attach the 2 clips to install the moulding.

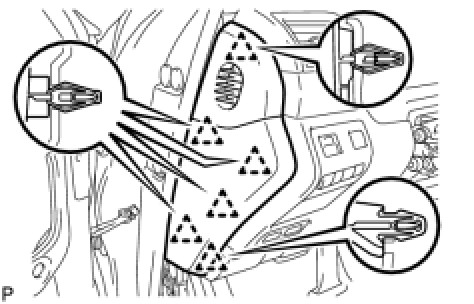

27. INSTALL INSTRUMENT SIDE PANEL LH





(a) Attach the 6 clips to install the side panel.

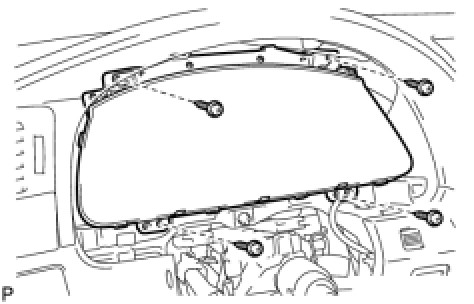

28. INSTALL COMBINATION METER ASSEMBLY





(a) Connect the connector.
(b) Install the combination meter with the 4 screws.

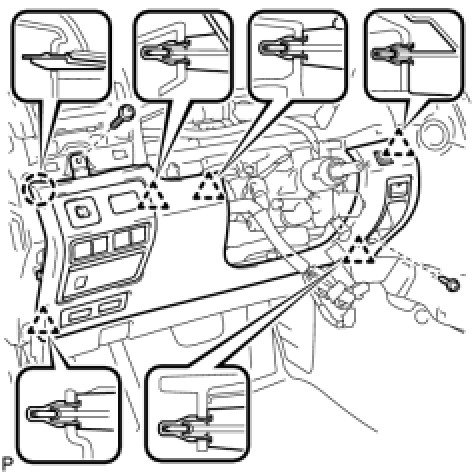

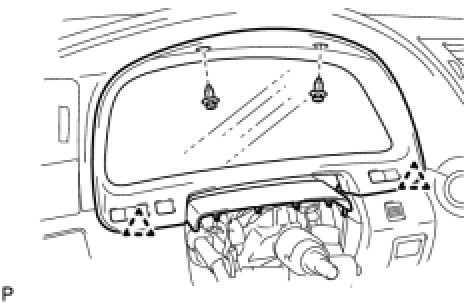

29. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY





(a) Connect the connectors.
(b) Attach the 2 clips to install the finish panel.
(c) Install the 2 clips.
30. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY Installation
31. INSTALL STEERING COLUMN COVER Installation
32. INSTALL STEERING WHEEL ASSEMBLY Installation
33. INSTALL STEERING PAD ASSEMBLY Installation
34. INSTALL NO. 2 STEERING WHEEL COVER LOWER Installation
35. INSTALL SWITCH AND VOLUME CASE Installation
36. INSTALL CONSOLE BOX ASSEMBLY
(a) Attach the 2 claws.
(b) Connect the connectors.
(c) Install the console box with the 4 bolts and 2 screws.





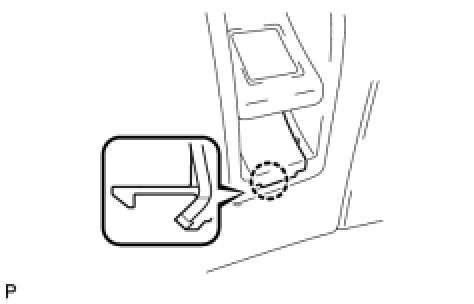

37. INSTALL CONSOLE COVER LOWER
(a) Install the cover.
38. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY





(a) Connect the connector.
(b) Attach the 5 clips and 2 claws to install the end panel.
39. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER





(a) Connect the connector.
(b) Attach the 2 clips to install the panel.
40. INSTALL REAR CONSOLE PANEL UPPER





(a) Connect the connectors.
(b) Attach the 6 clips.
(c) Install the panel with the 2 screws.
41. INSTALL NO. 3 BOX PANEL





(a) Attach the 4 claws to install the No. 3 panel.
42. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY





(a) Install the shift lever knob and twist it in the direction indicated by the arrow.
43. INSTALL INSTRUMENT PANEL FINISH PANEL END RH





(a) Attach the 8 clips and claw to install the finish panel.
44. INSTALL INSTRUMENT PANEL FINISH PANEL END LH





(a) Attach the 8 clips and claw to install the finish panel.
45. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter Repair Instruction - Customize Parameters.

46. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
47. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

48. SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
