Installation

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: INSTALLATION

INSTALLATION

1. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY





(a) Install the opening switch to the back door garnish retainer with the 2 screws.

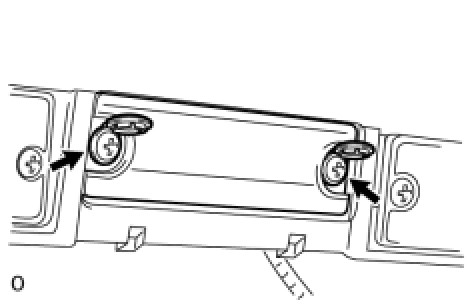

2. INSTALL LICENSE PLATE LIGHT ASSEMBLY





(a) Install the license plate light with the 2 screws.

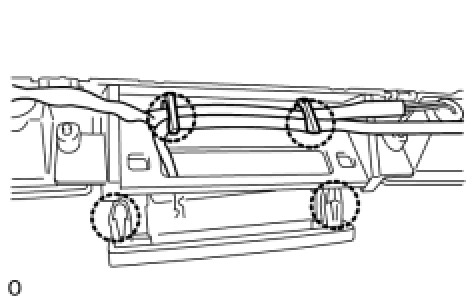

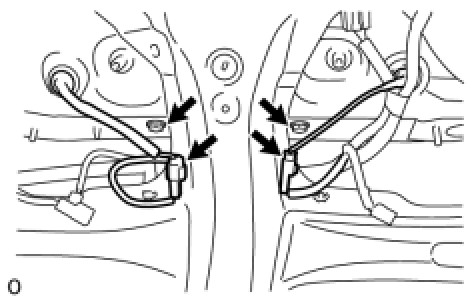

3. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY
(a) Attach the 2 clips.





(b) Install the back door garnish retainer to the luggage compartment door with the 2 bolts.
(c) Connect the connector.
4. INSTALL LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE
5. INSTALL REAR LIGHT ASSEMBLY RH Installation
6. INSTALL REAR LIGHT ASSEMBLY LH Installation

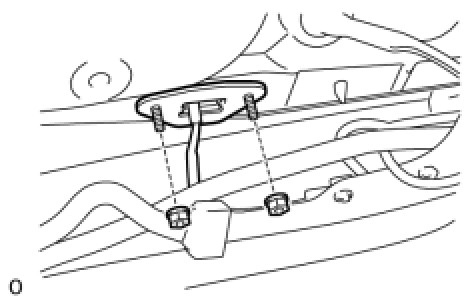

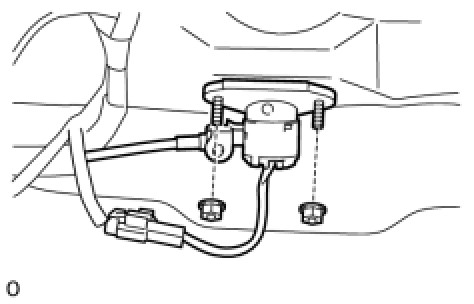

7. INSTALL TELEVISION CAMERA ASSEMBLY (W/ Rear View Monitor)





(a) Connect the connector.
(b) Install the television camera assembly with the 2 nuts.

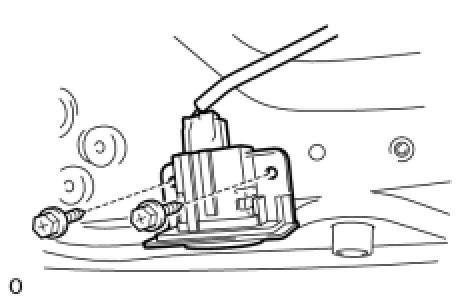

8. INSTALL LUGGAGE COMPARTMENT DOOR CLOSER SWITCH (W/ Power Trunk Lid System)





(a) Connect the connector.
(b) Install the door closer switch with the 2 screws.
9. INSTALL LUGGAGE COMPARTMENT LOCK CYLINDER





(a) Connect the connector.
(b) Install the lock cylinder with the 2 nuts.

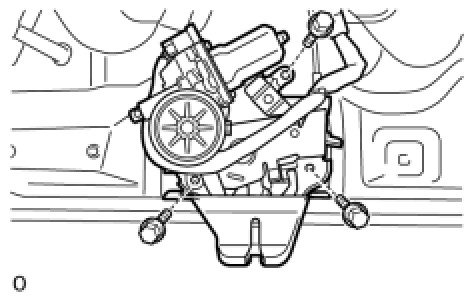

10. INSTALL LUGGAGE DOOR CLOSER ASSEMBLY





(a) Connect the connector.
(b) Install the luggage door closer with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)

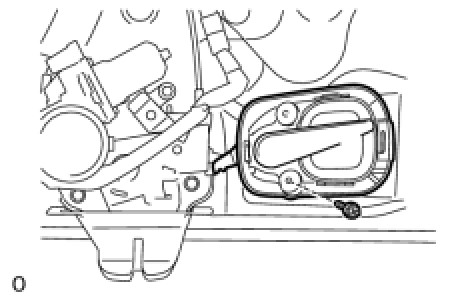

11. INSTALL LUGGAGE DOOR LOCK OPENER ASSEMBLY





(a) Install the door lock opener with the screw.

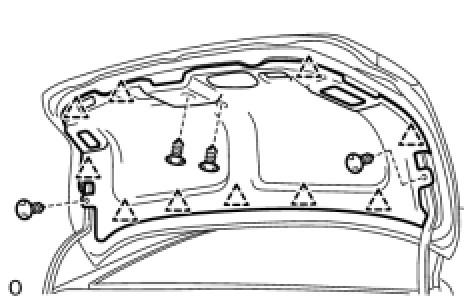

12. INSTALL BACK DOOR TRIM COVER





(a) Install the cover with the 10 clips.
(b) Attach the 4 clips.

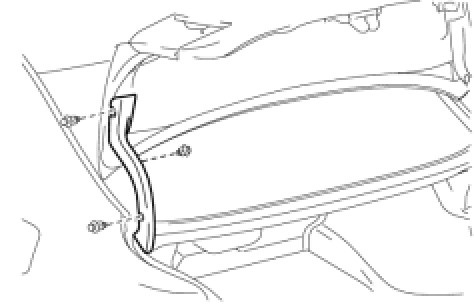

13. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH





(a) Install the cover with the 3 clips.

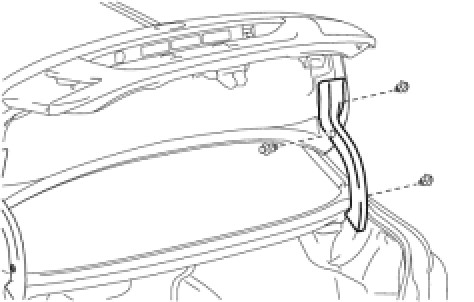

14. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH





(a) Install the cover with the 3 clips.
15. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH
(a) Attach the 3 claws to install the cover.
16. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH
(a) Attach the 3 claws to install the cover.
17. INSTALL NO. 2 COURTESY LIGHT ASSEMBLY





(a) Connect the connector.
(b) Install the courtesy light with the claws.
18. INSTALL SWITCH BEZEL (W/ Power Trunk Lid System)





(a) Attach the 2 claws to install the switch bezel.

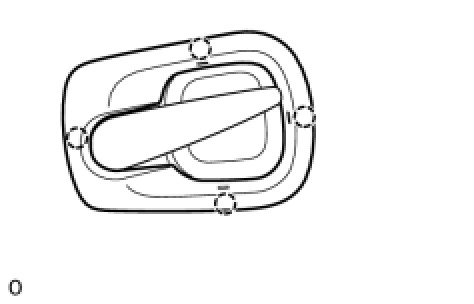

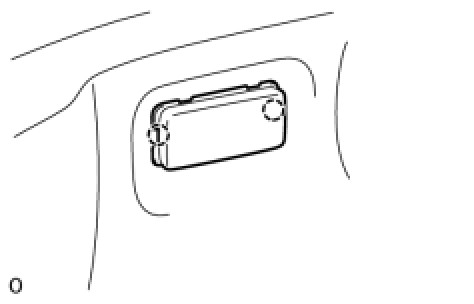

19. INSTALL DOOR INSIDE HANDLE BEZEL





(a) Attach the 4 claws to install the handle bezel.

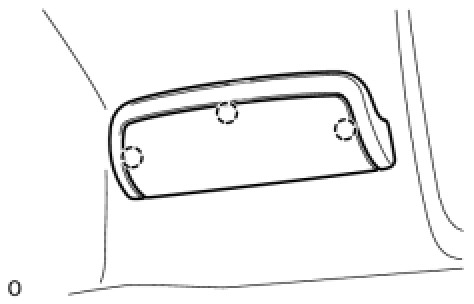

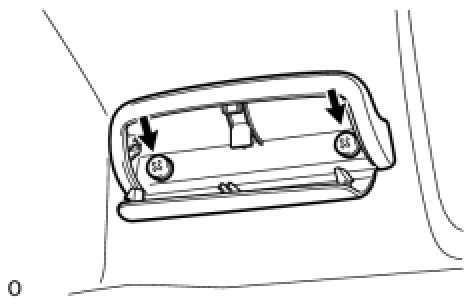

20. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP





(a) Install the assist grip with the 2 screws.





(b) Attach the 3 claws to install the cover.
21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
22. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
