ENGINE HOOD / DOOR: HOOD LOCK CONTROL CABLE ASSEMBLY: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - How To Determine Bolt Strength.

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

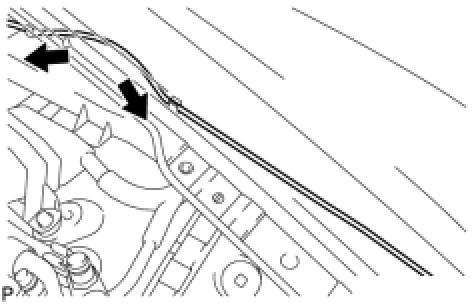

(a) Pass the cable into the engine room.
(b) Pass the cable rear side through the grommet until the cable stopper is attached to the grommet.
(c) Pass the cable front side through the upper radiator support.

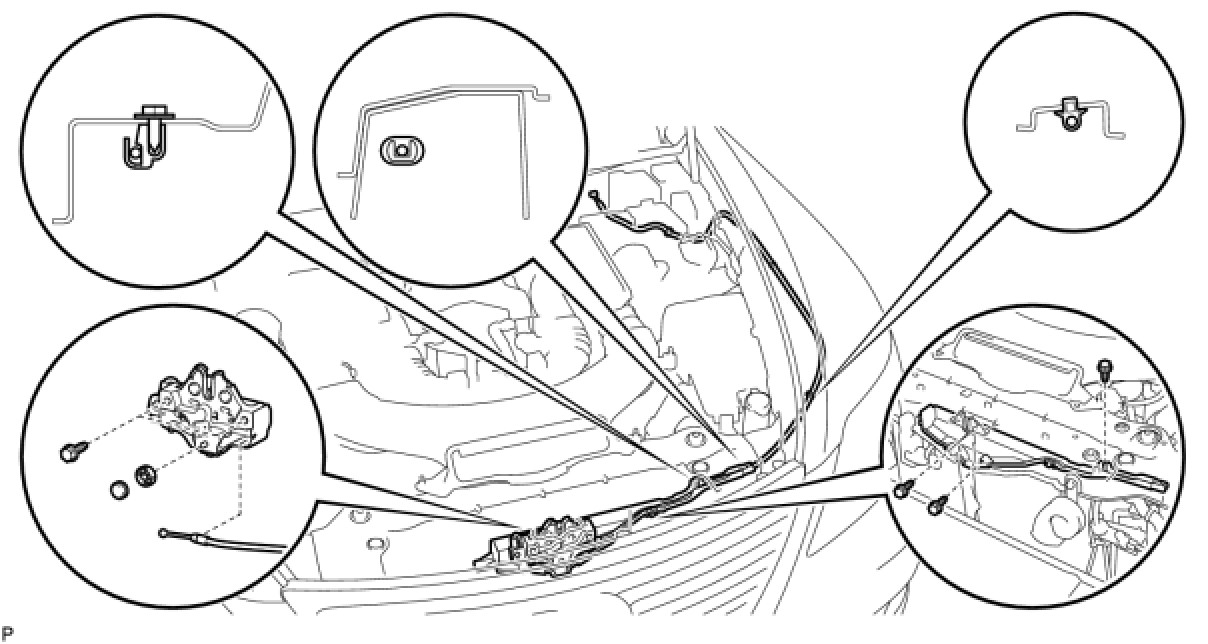

(d) Connect the clamps as shown in the illustration.





2. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

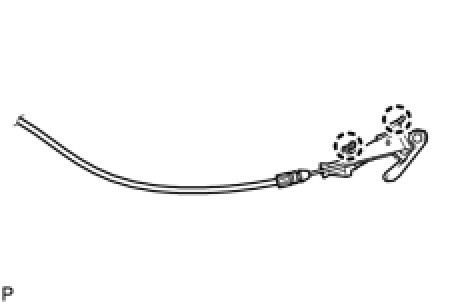

(a) Install the hood lock lever and connect the hood lock control cable.
(b) Attach the 2 claws.
3. INSTALL HOOD LOCK ASSEMBLY

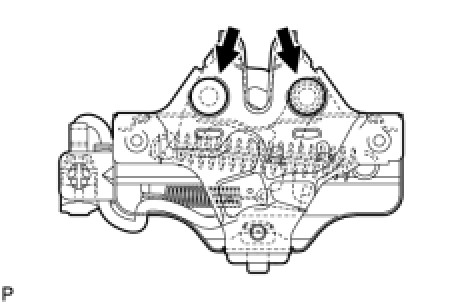

(a) Apply MP grease to the sliding areas of the lock.





(b) Connect the hood lock control cable.
(c) Install the hood lock.

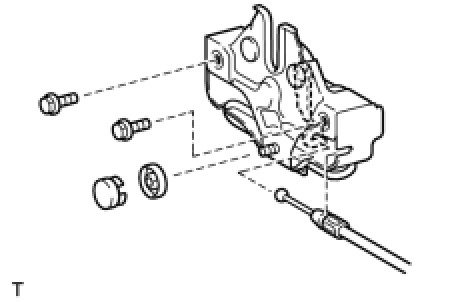

(d) Install the 2 bolts and nut.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(e) Install a new cap.
4. INSTALL FRONT FENDER PROTECTOR UPPER LH

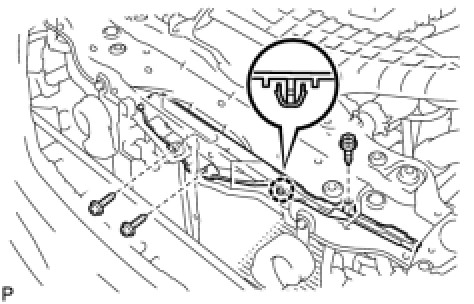

(a) Attach the 3 clips to install the protector.
5. INSTALL HOOD LOCK CONTROL CABLE COVER





(a) Attach the claw to install the cable cover.
(b) Install the 3 screws.
6. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY Installation
7. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY Adjustments
8. INSTALL RADIATOR GRILLE ASSEMBLY Installation
9. INSTALL COOL AIR INTAKE DUCT SEAL Installation
10. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation
11. INSTALL ENGINE ROOM SIDE COVER RH Installation
12. INSTALL ENGINE ROOM SIDE COVER LH Installation
13. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
14. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
