Installation

EXTERIOR: FRONT BUMPER: INSTALLATION

INSTALLATION

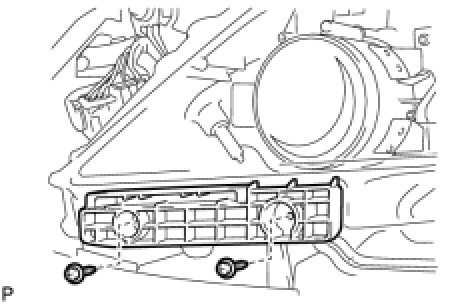

1. INSTALL FRONT BUMPER BAR REINFORCEMENT LH
(a) Install the bumper bar reinforcement with the 2 screws.
2. INSTALL FRONT BUMPER BAR REINFORCEMENT RH
HINT: Use the procedure described for the LH side.

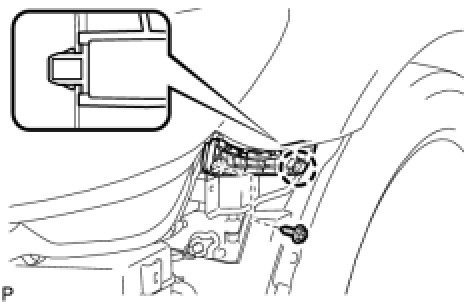

3. INSTALL FRONT BUMPER SIDE RETAINER LH
(a) Attach the claws to install the retainer.
(b) Install the screw.
4. INSTALL FRONT BUMPER SIDE RETAINER RH
HINT: Use the procedure described for the LH side.

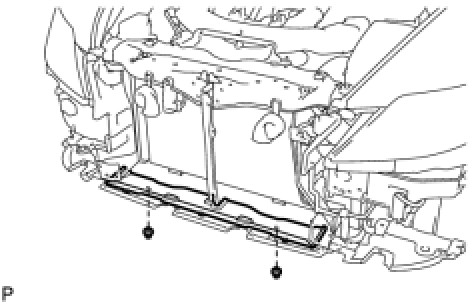

5. INSTALL RADIATOR SUPPORT OPENING COVER
(a) Install the radiator support opening cover with the 2 clips.

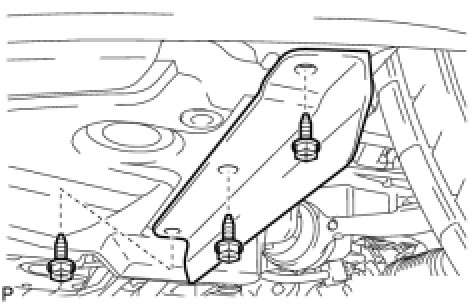

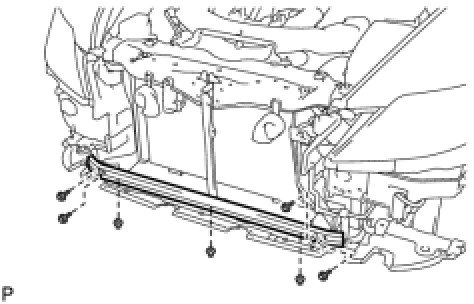

6. INSTALL FRONT SUSPENSION LOWER CROSSMEMBER
(a) Install the lower crossmember with the 4 bolts and 3 clips.
Torque: 25 Nm (255 kgf-cm, 18 ft-lbf)

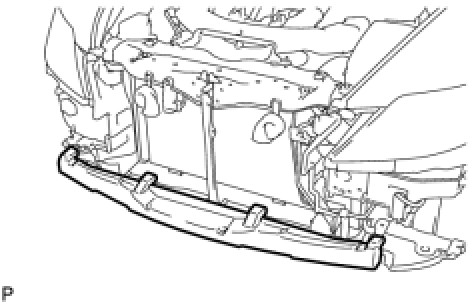

7. INSTALL FRONT BUMPER LOWER ABSORBER
(a) Install the lower absorber.

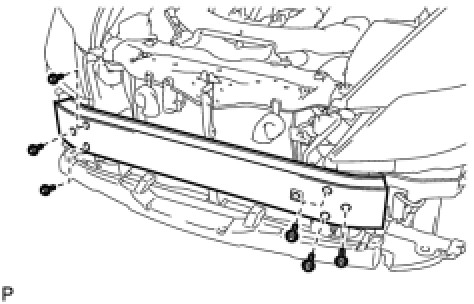

8. INSTALL FRONT BUMPER REINFORCEMENT
(a) Install the reinforcement with the 6 bolts.
Torque: 29 Nm (296 kgf-cm, 21 ft-lbf)
(b) Connect the cooler thermistor connector.
(c) W/ Air Suspension:
Install the height control cleaner to the reinforcement.
(d) W/ Headlight Cleaner System:
Attach the headlight cleaner hose clamps.

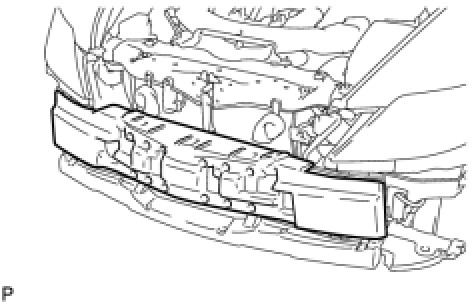

9. INSTALL FRONT BUMPER ENERGY ABSORBER
(a) Install the energy absorber.

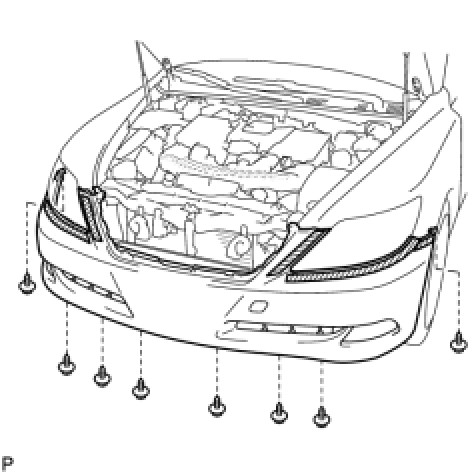

10. INSTALL FRONT BUMPER COVER
(a) Connect the 2 fog light connectors and install the front bumper.
(b) W/ Intuitive Parking Assist System:
Connect the No. 4 engine room main wire connector and install the front bumper.

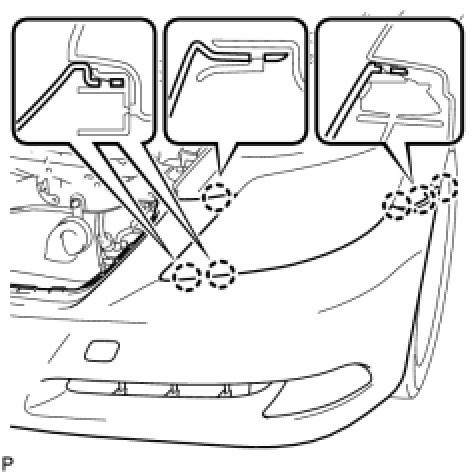

(c) Attach the 6 claws to the connect the front bumper, as shown in the illustration.
HINT: Use the same procedure for the RH and LH sides.





(d) Install the bumper seal bracket and attach the clip.
HINT: Use the same procedure for the RH and LH sides.





(e) Install the 8 screws.

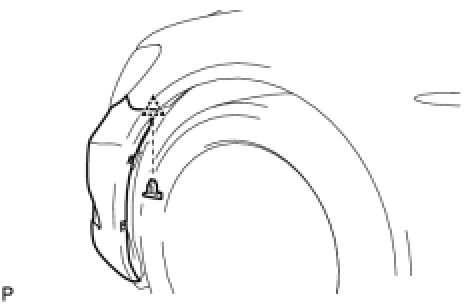

11. INSTALL FRONT FENDER LINER LH
(a) Position the groove on the 2 pin hold clips vertically and insert the 2 clips to install them.
NOTE:
Make sure that the groove on the pin hold clip is positioned vertically.

12. INSTALL FRONT FENDER LINER RH
HINT: Use the procedure described for the LH side.

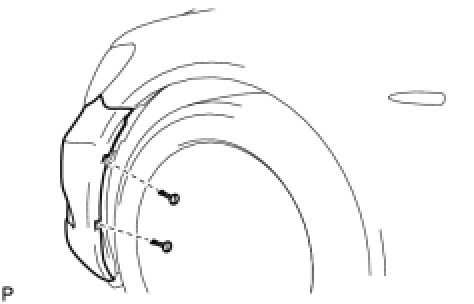

13. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH





(a) for 2WD:
Install the extension pad with the 3 screws.

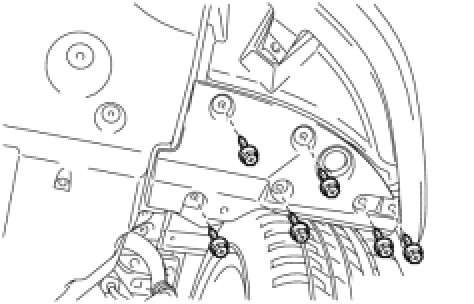

(b) for AWD:
Install the extension pad with the 6 screws.
14. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
HINT: Use the procedure described for the LH side.

15. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH
16. INSTALL FRONT FENDER WHEEL OPENING MOULDING RH
HINT: Use the procedure described for the LH side.

17. INSTALL RADIATOR GRILLE ASSEMBLY Installation
18. INSTALL COOL AIR INTAKE DUCT SEAL Installation
19. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation
20. INSTALL ENGINE ROOM SIDE COVER LH Installation
21. INSTALL ENGINE ROOM SIDE COVER RH Installation
22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
23. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
24. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

25. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
