Navigation Check Mode

NAVIGATION: NAVIGATION SYSTEM (for HDD): NAVIGATION CHECK MODE

NAVIGATION CHECK MODE
HINT:
- This mode displays GPS satellite information.
- Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE Navigation System (for HDD)
2. NAVIGATION CHECK

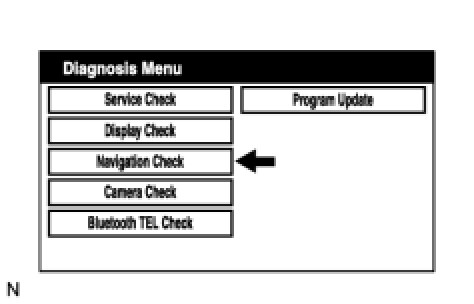

(a) Select "Navigation Check" from the "Diagnosis Menu" screen.

3. GPS INFORMATION

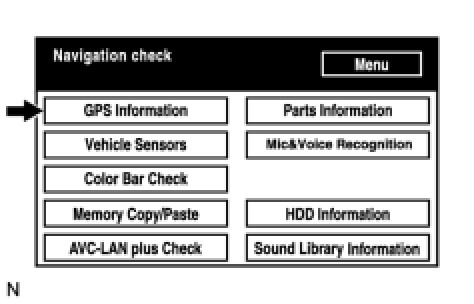

(a) Select "GPS Information" from the "Navigation check" screen.

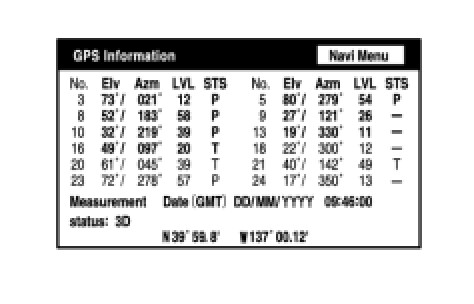

(b) When GPS information is displayed, check the GPS conditions.
- This screen is updated once per second when input signals to the vehicle are changed.
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.

4. VEHICLE SENSORS

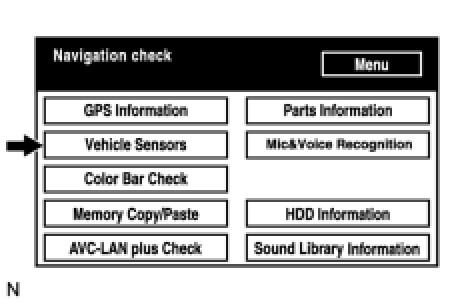

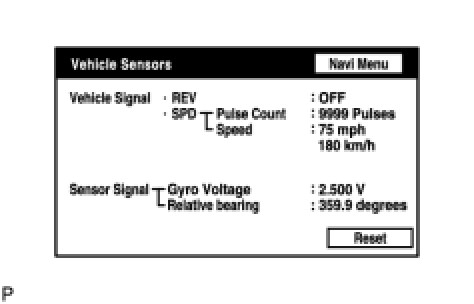

(a) Select "Vehicle Sensors" from the "Navigation check" screen.





(b) Check all the signals and sensors when vehicle signal information is displayed.
- This screen is updated once per second when input signals to the vehicle are changed.
- This screen displays vehicle signals input to the navigation ECU.
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.

5. COLOR BAR CHECK

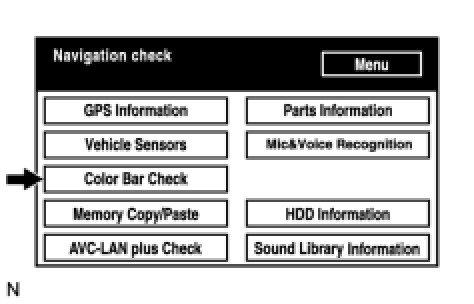

(a) Select "Color Bar Check" from the "Navigation check" screen.





(b) Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.
- Colors will not be displayed full-screen as in "Display Check Mode".
- This screen displays the navigation ECU display color.

6. MEMORY COPY/PASTE CHECK

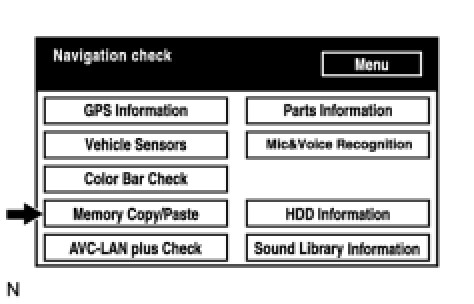

(a) Select "Memory Copy/Paste" from "Navigation check" screen.

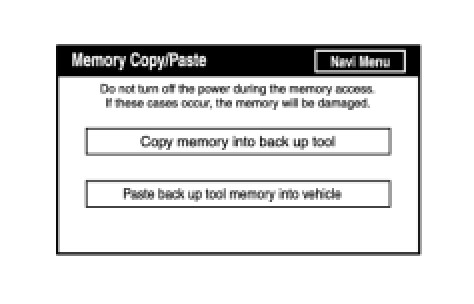

(b) HDD memory can be copied or pasted.

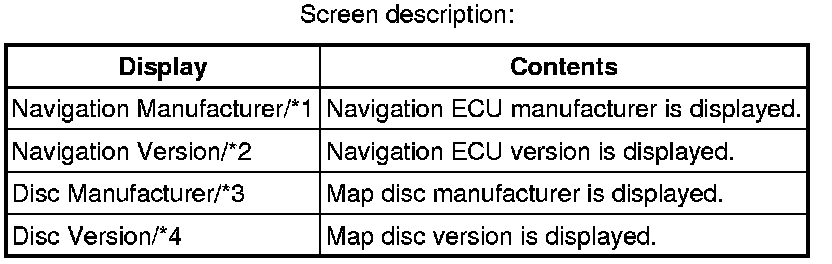

7. PARTS INFORMATION

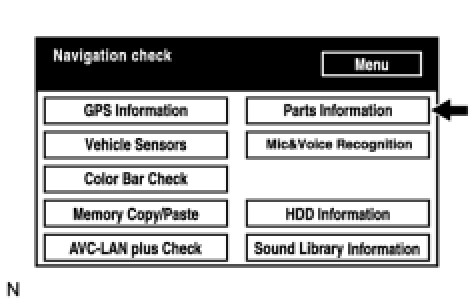

(a) Select "Parts Information" from the "Navigation check" screen.

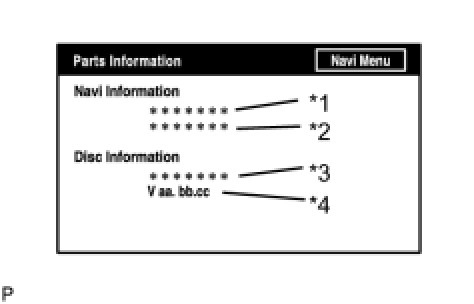

(b) Check the navigation and disc information when the "Parts Information" screen is displayed.

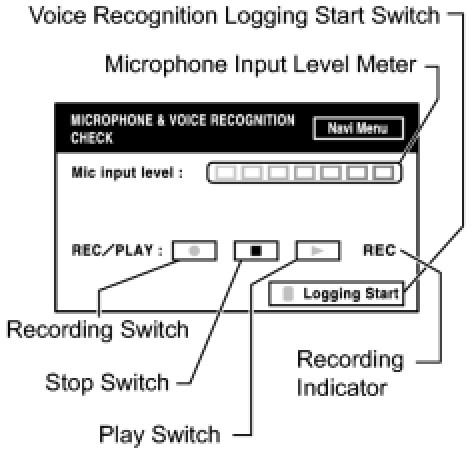

8. MIC & VOICE RECOGNITION CHECK

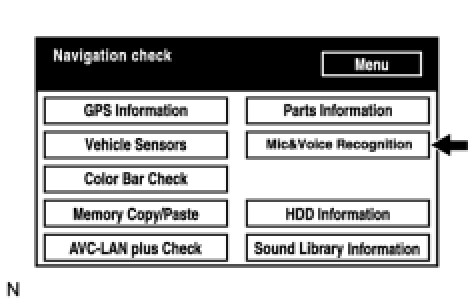

(a) Select "Mic & Voice Recognition Check" on the "Navigation check" screen to display the "MICROPHONE & VOICE RECOGNITION CHECK" screen.





(b) When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.

(c) Push the recording switch and perform voice recording.
(d) Check that the recording indicator remains on while recording and that the recorded voice is played normally.
HINT:
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.
- This function is controlled by the navigation ECU.

9. HDD INFORMATION

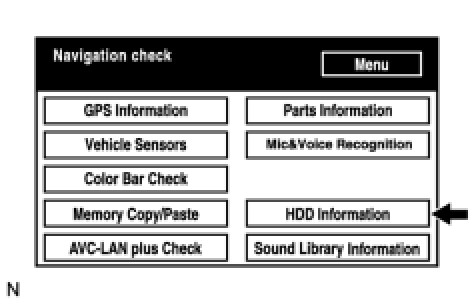

(a) Select "HDD Information" from the "Navigation check" screen.





(b) Check for DTCs.
- This is the HDD check function in the display and navigation assembly.
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.

10. AVC-LAN PLUS CHECK





(a) Select "AVC-LAN plus Check" from the "Navigation check" screen.

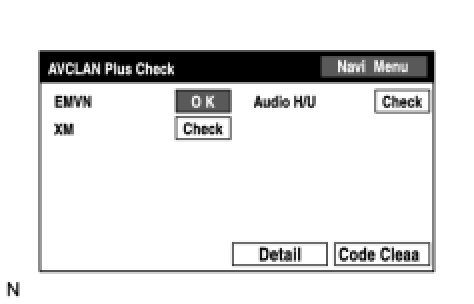

(b) Check the AVC-LAN plus check result.
- This is the AVC-LAN plus check function in the display and navigation assembly.
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.

11. SOUND LIBRARY INFORMATION

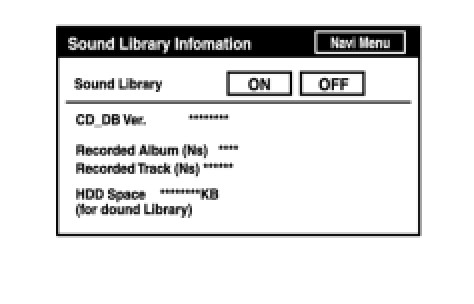

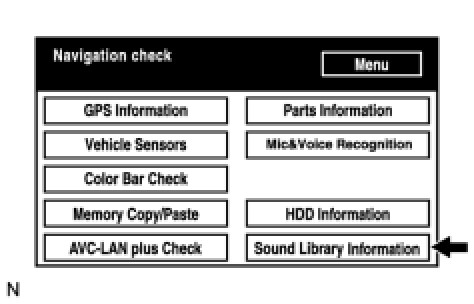

(a) Select "Sound Library" from the "Navigation check" screen.





(b) Check the sound library data.
- This is the sound library information function in the display and navigation assembly.
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.
