Removal

AUDIO / VISUAL: RADIO ANTENNA CORD: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
6. REMOVE NO. 3 BOX PANEL Removal
7. REMOVE CONSOLE UPPER PANEL REAR Removal
8. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal
9. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET Removal
10. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET Removal
11. REMOVE ANTENNA CORD SUB-ASSEMBLY
(a) Disconnect the 2 connectors.
(b) Detach the clip and remove the antenna cord.





12. REMOVE ANTENNA CORD SUB-ASSEMBLY (for DVD)
(a) Disconnect the 3 connectors.
(b) Detach the clip and remove the antenna cord.





13. REMOVE FRONT CONSOLE BOX ASSEMBLY
(a) Remove the front console box Removal.
14. REMOVE FRONT SEAT ASSEMBLY RH
(a) Remove the front seat RH Removal.
15. REMOVE REAR SEAT ASSEMBLY
(a) for Power Seat:
(1) Remove the rear seat Removal.
(b) for Ottoman:
(1) Remove the rear seat Removal.
(c) for Fixed Seat:
(1) Remove the rear seat Removal.
16. REMOVE REAR DOOR SCUFF PLATE RH
(a) for Standard Body:
(1) Remove the rear door scuff plate RH Removal.
(b) for Long Body:
(1) Remove the rear door scuff plate RH Removal.
17. REMOVE REAR SEAT SIDE GARNISH RH Removal
18. REMOVE ROOF SIDE GARNISH INNER RH Removal

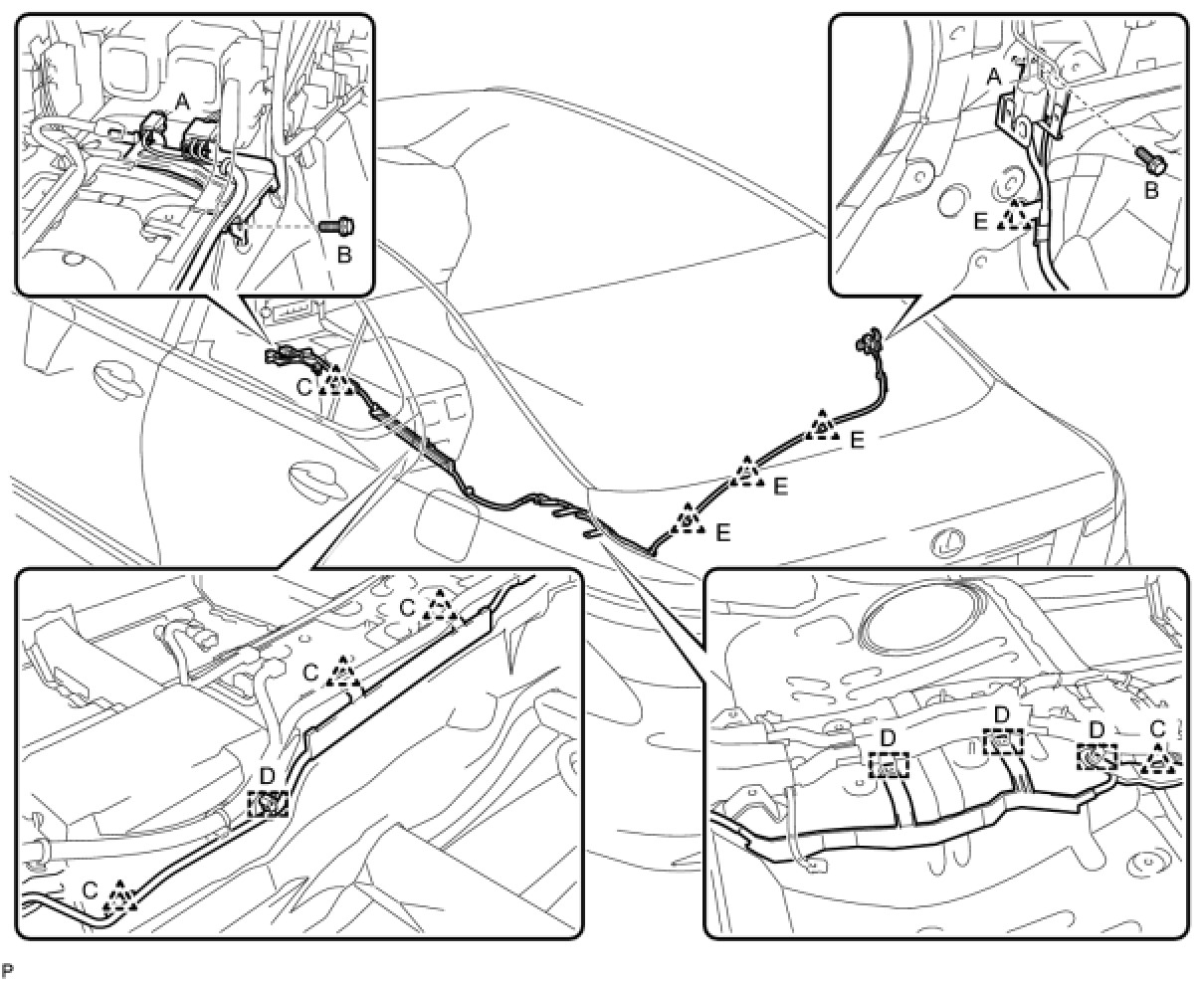

19. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Standard Body)
(a) Disconnect the connectors labeled A.
(b) Remove the 2 bolts labeled B.
(c) Detach the 4 clips labeled C.
(d) Detach the 4 clamps labeled D from the floor stud bolts.
(e) Detach the 4 clips labeled E and remove the antenna cord.

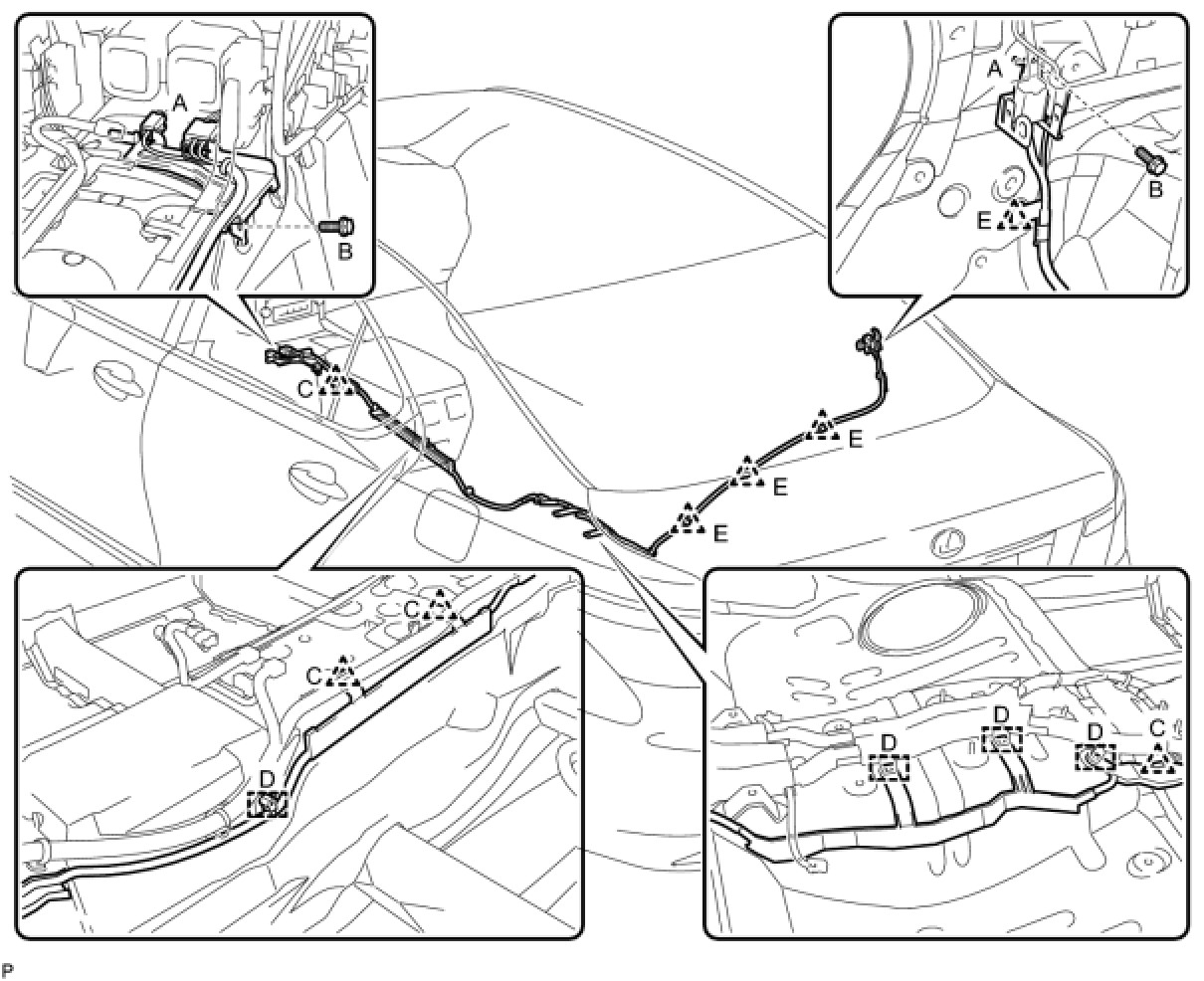

20. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Long Body)
(a) Disconnect the connectors labeled A.
(b) Remove the 2 bolts labeled B.
(c) Detach the 5 clips labeled C.
(d) Detach the 4 clamps labeled D from the floor stud bolts.
(e) Detach the 4 clips labeled E and remove the antenna cord.
