Pre-Collision System








PRE-COLLISION: PRE-COLLISION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Pre-collision system

B2000-B2025:

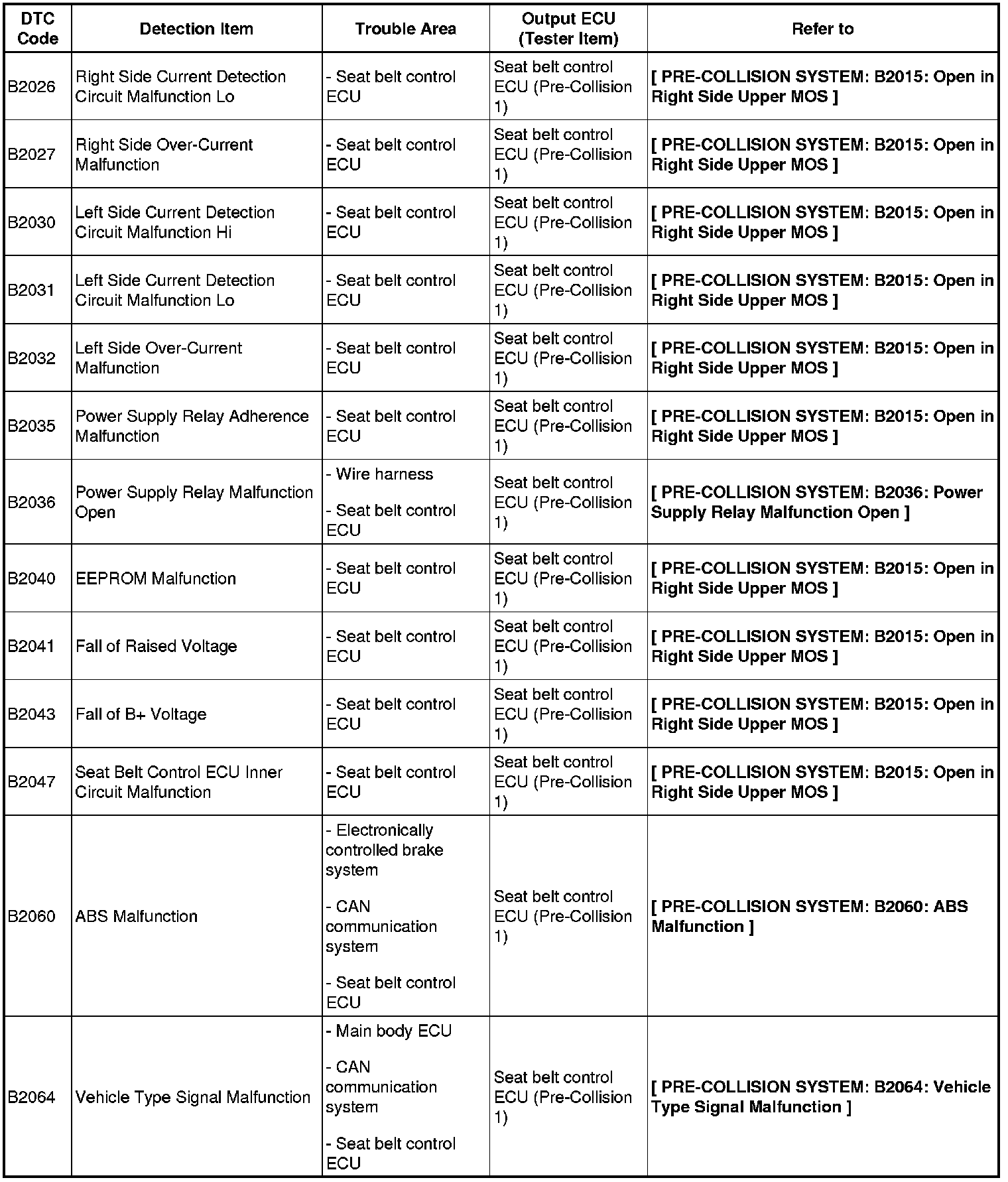

B2026-B2064:

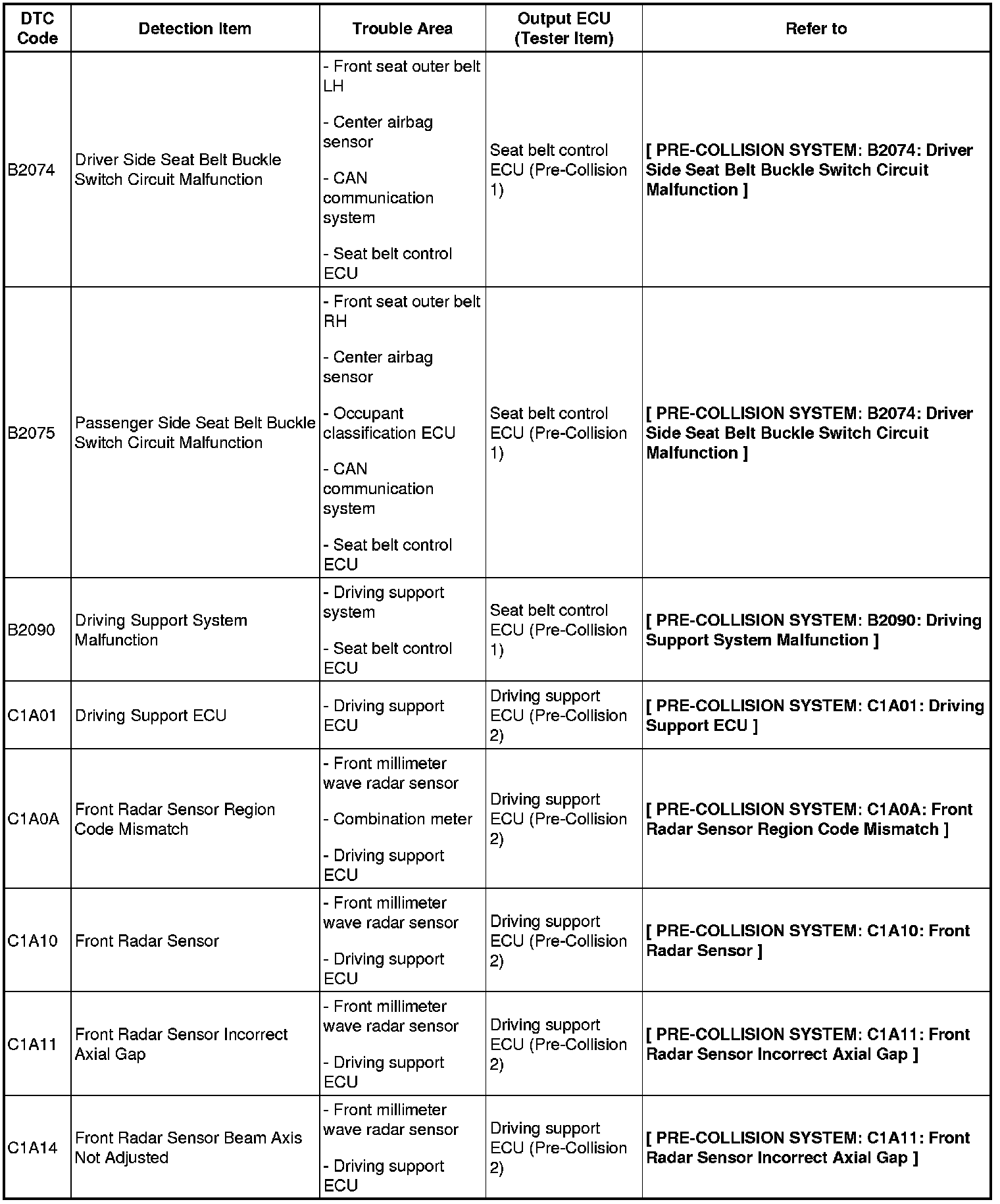

B2074-B2090/C1A01-C1A14:

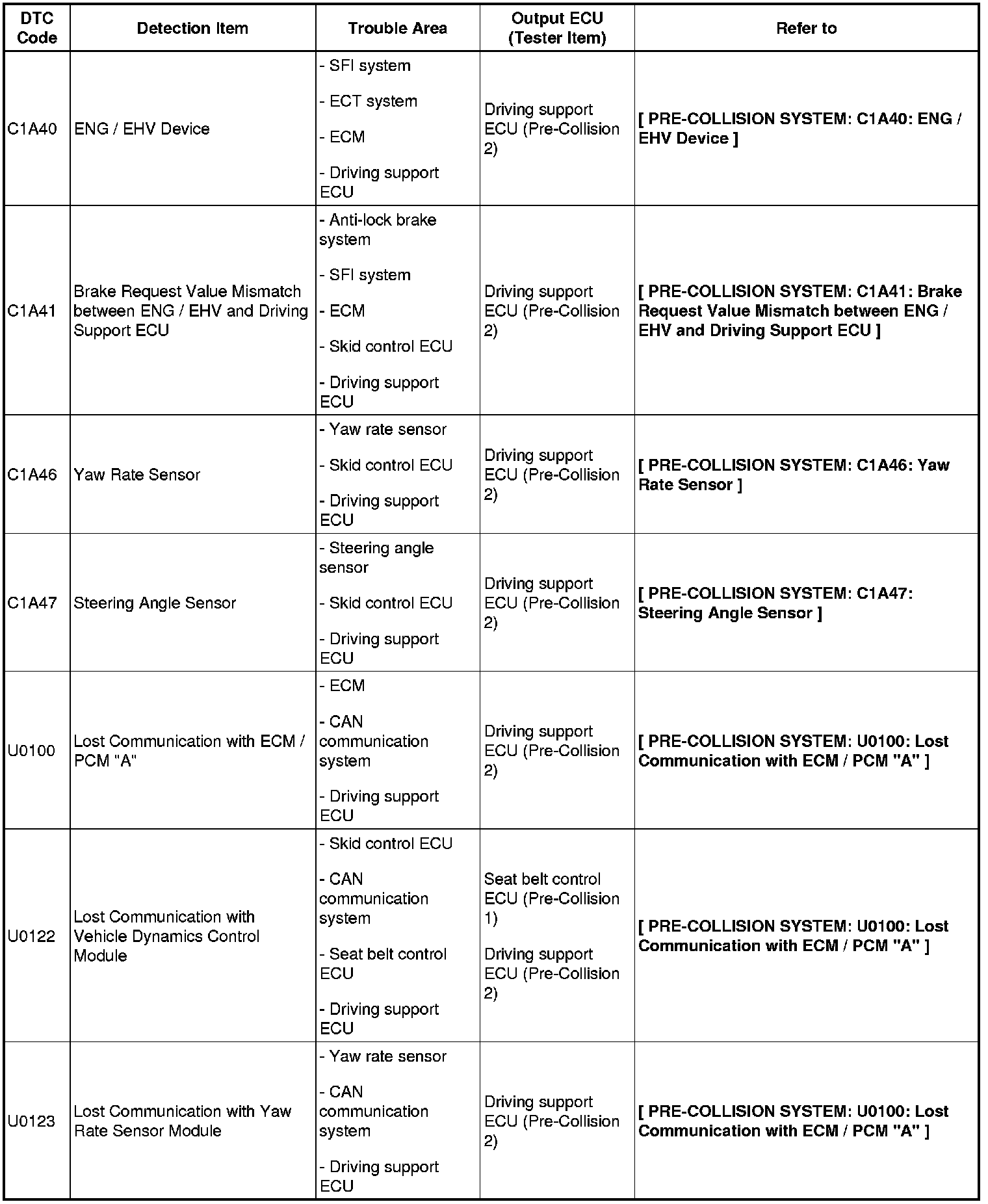

C1A40-C1A47/U0100-U0123:





U0126-U1104:
