Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART





1. DTC CHART OF ABS
HINT:
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
- Inspect the fuses and relays before investigating the trouble areas as shown in the table below.

DTC chart of ABS

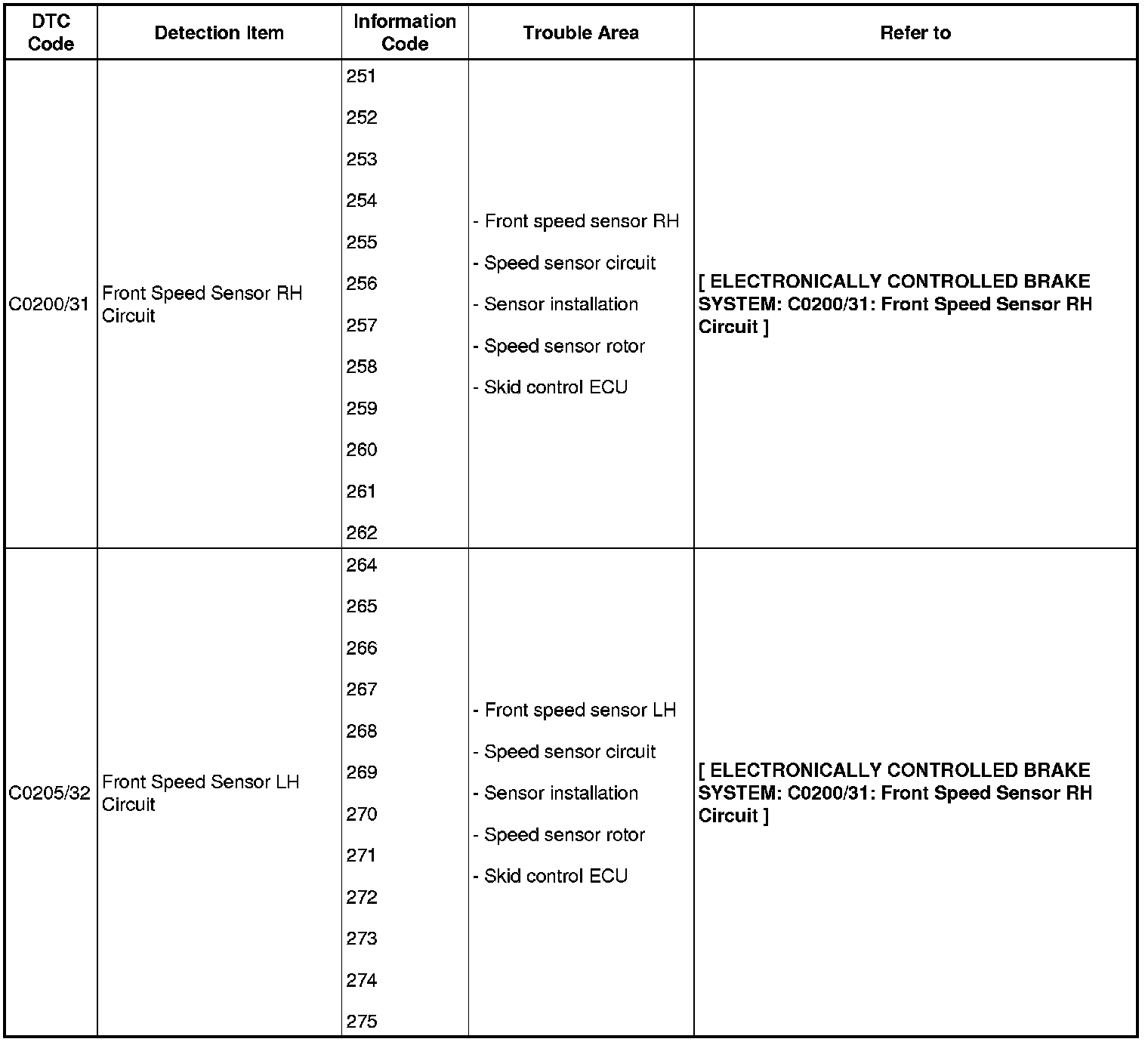

C0200/31-C0205/32:

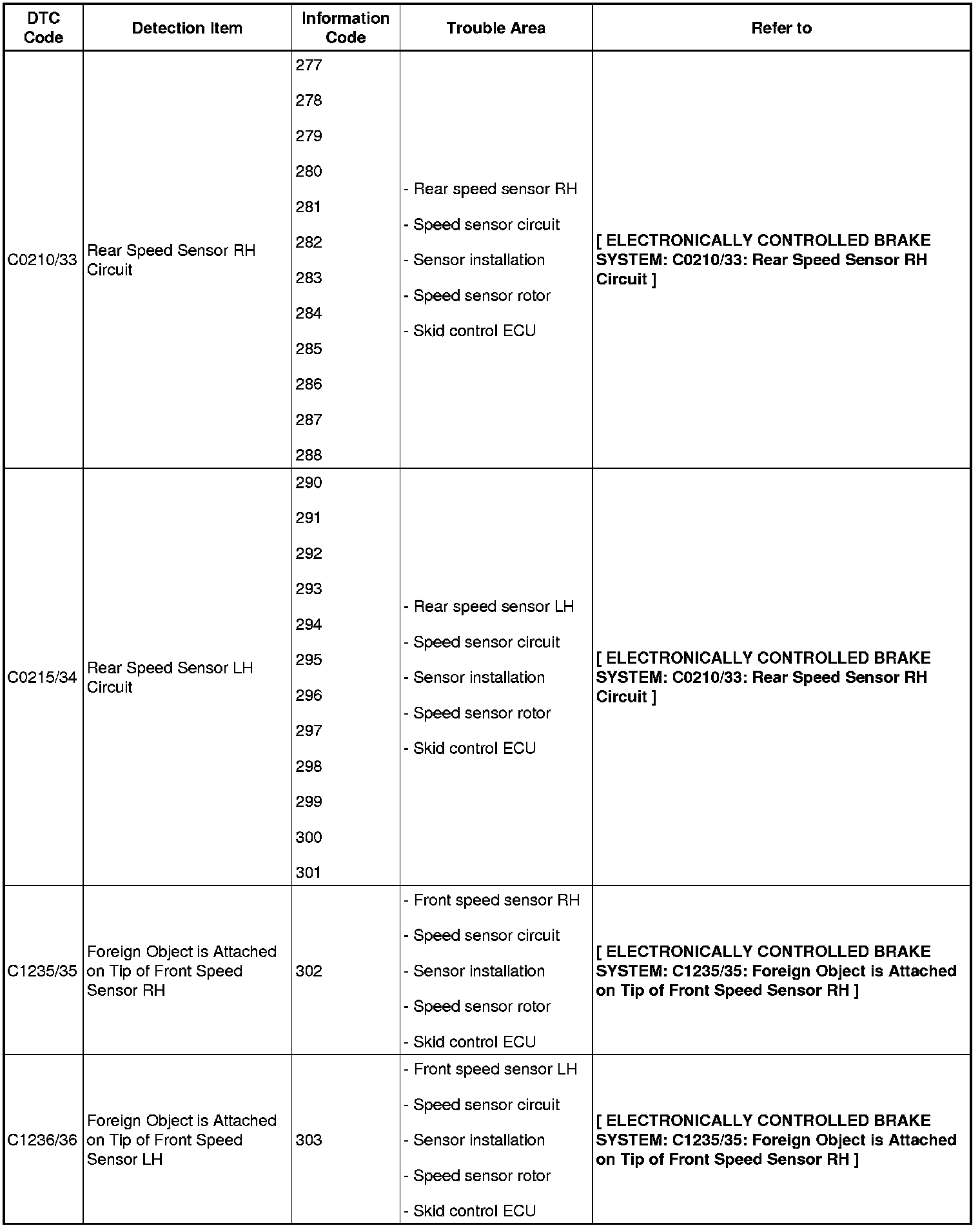

C0210/33-C1236/36:

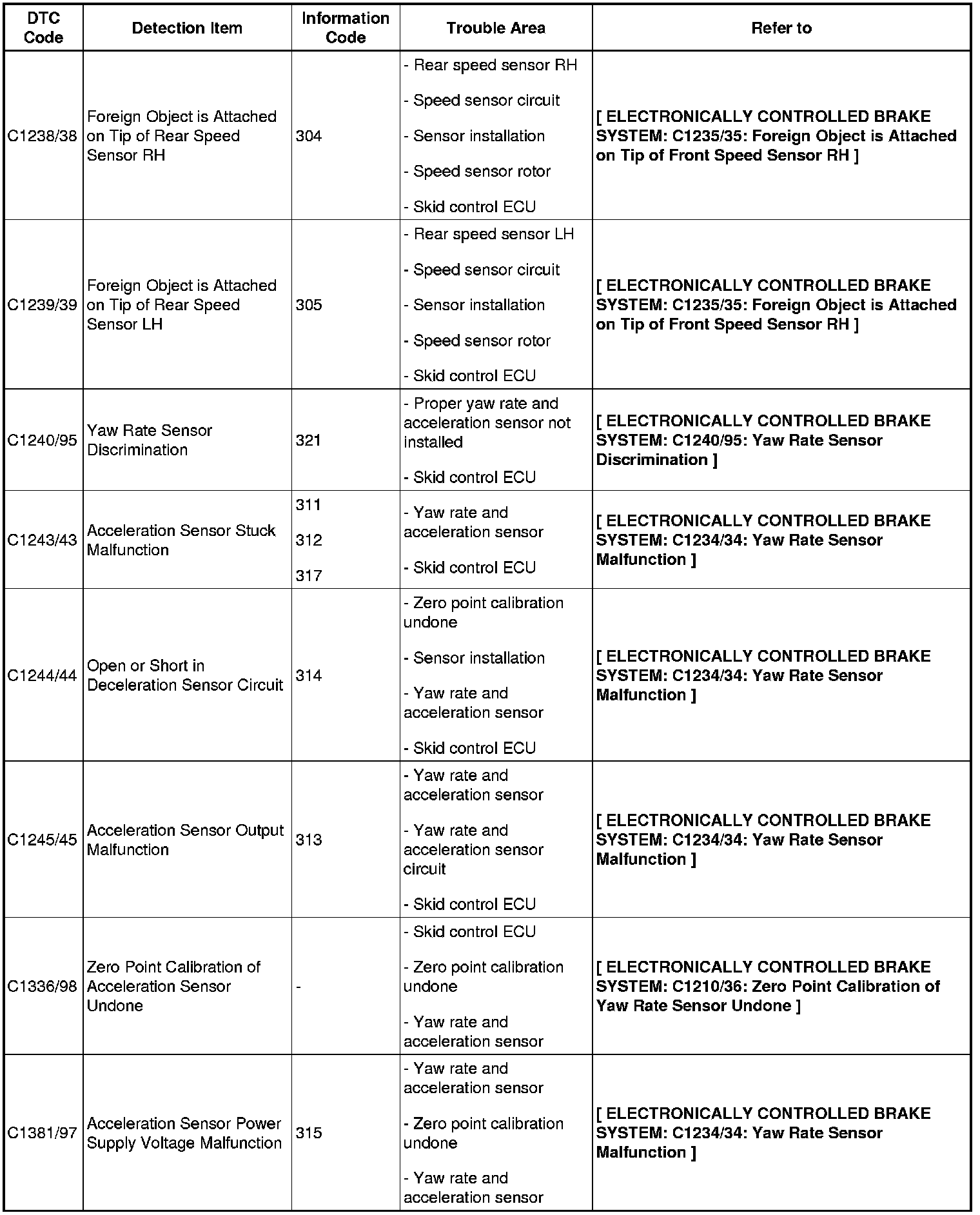

C1238/38-C1381/97:

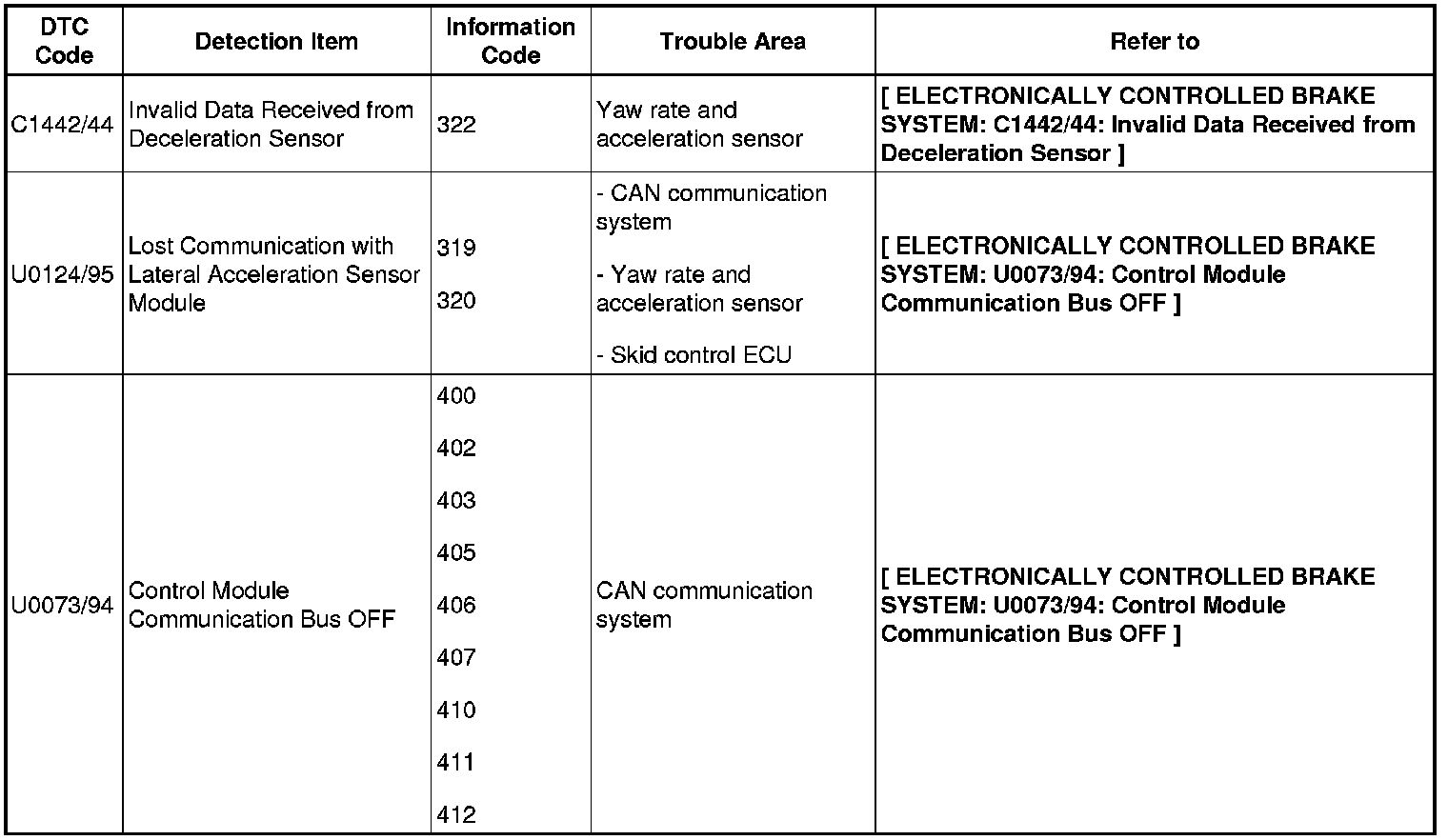

C1442/44/U0124/95-U0073/94:

HINT:
- In some cases, the Techstream cannot be used when ABS warning light remains on.
- When U0073/94, U0293/59, U0123/62, U0124/95, U0126/63, U0130/68 or U0131/67 is output, inspect and repair the trouble areas indicated by these codes first.
- Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.
1 Drive the vehicle at the speed of 50 km/h (31 mph) and depress the brake pedal strongly for approximately 3 seconds.
2 Repeat the above operation 3 times or more and check that the ABS warning light goes off.
3 Clear the DTC.





2. DTC CHART OF VSC

DTC chart of VSC

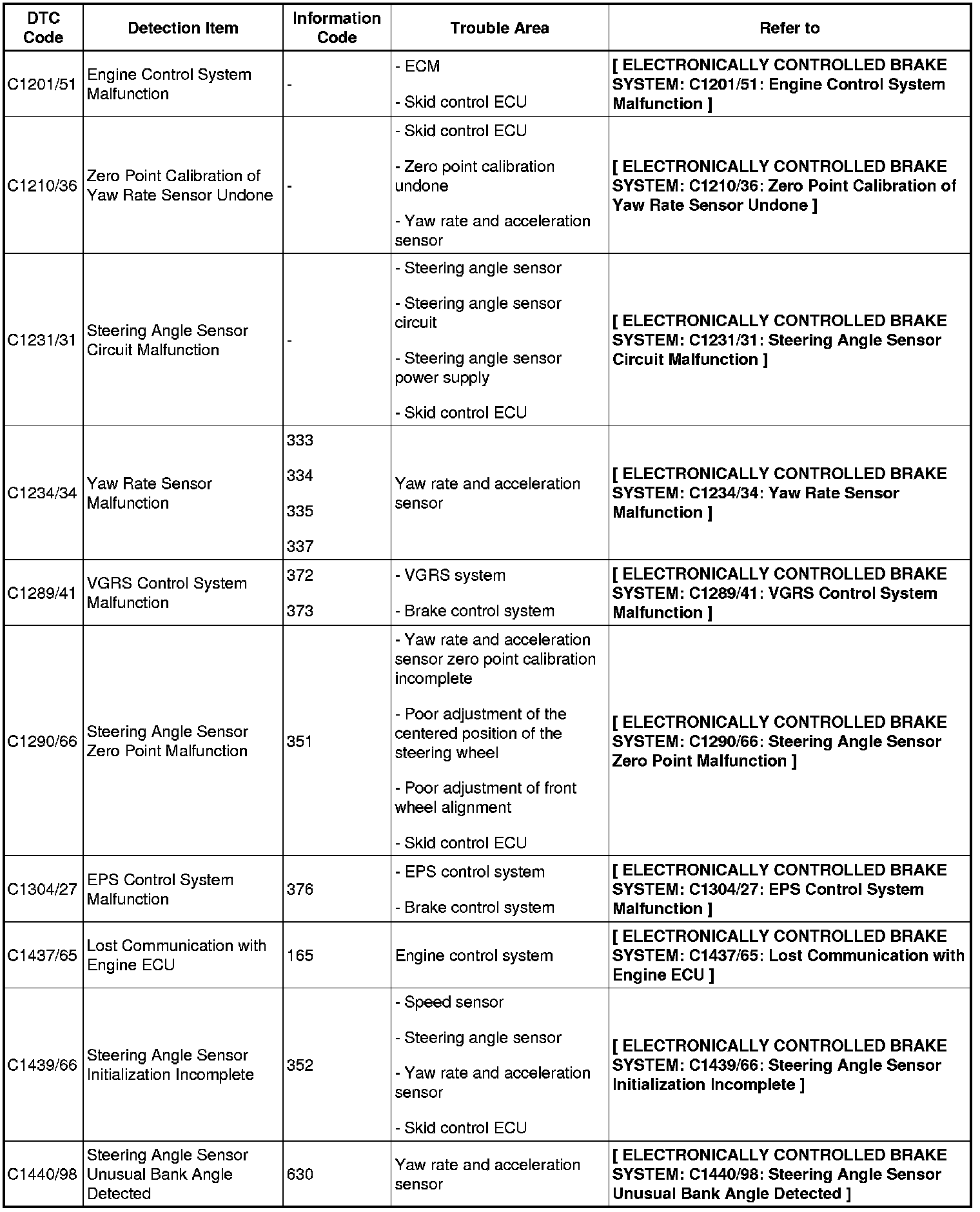

C1201/51-C1440/98:

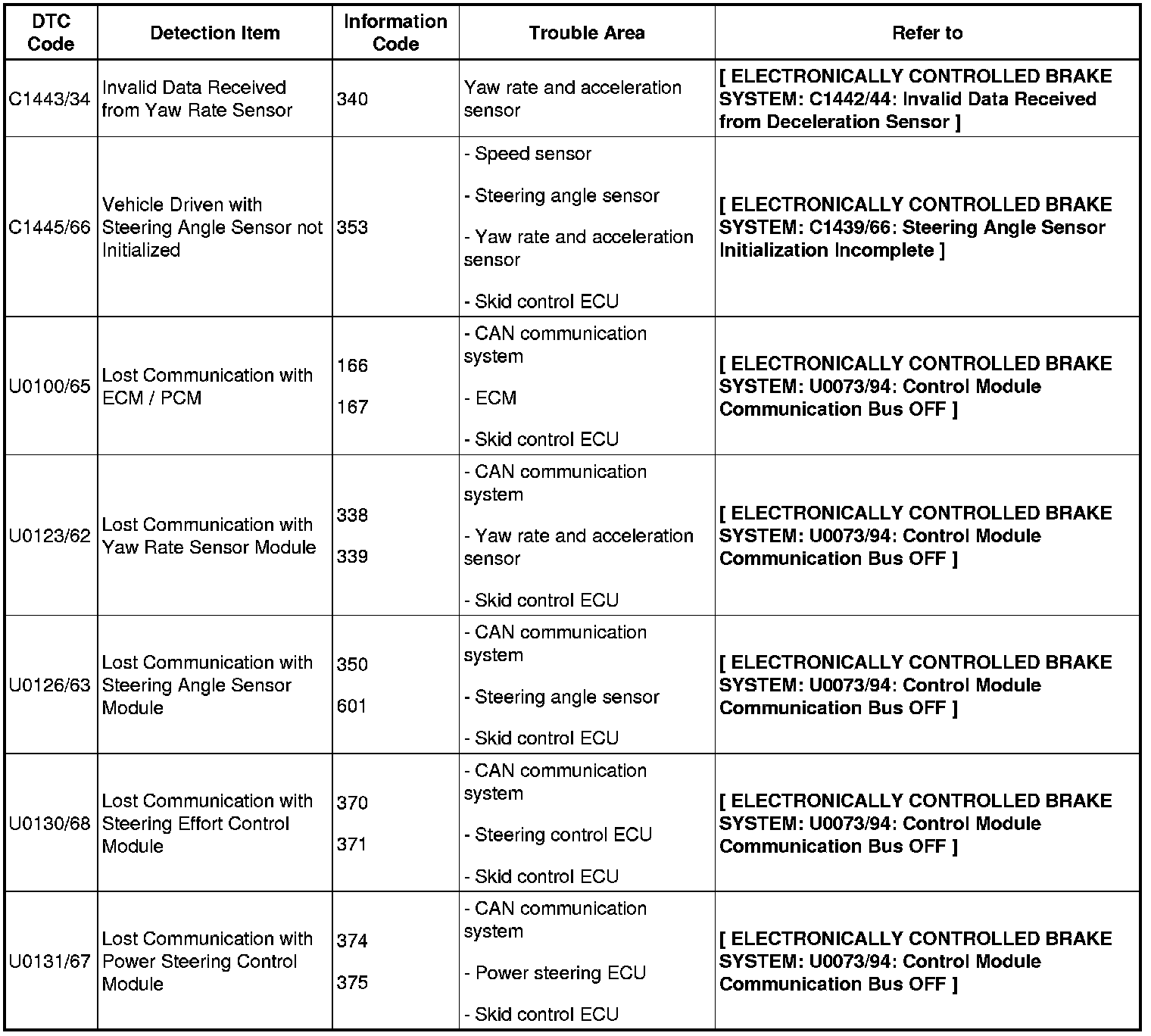

C1443/34-C1445/66/U0100/65-U0131/67:

3. DTC CHART OF ELECTRONICALLY CONTROLLED BRAKE SYSTEM

DTC chart of electronically controlled brake system

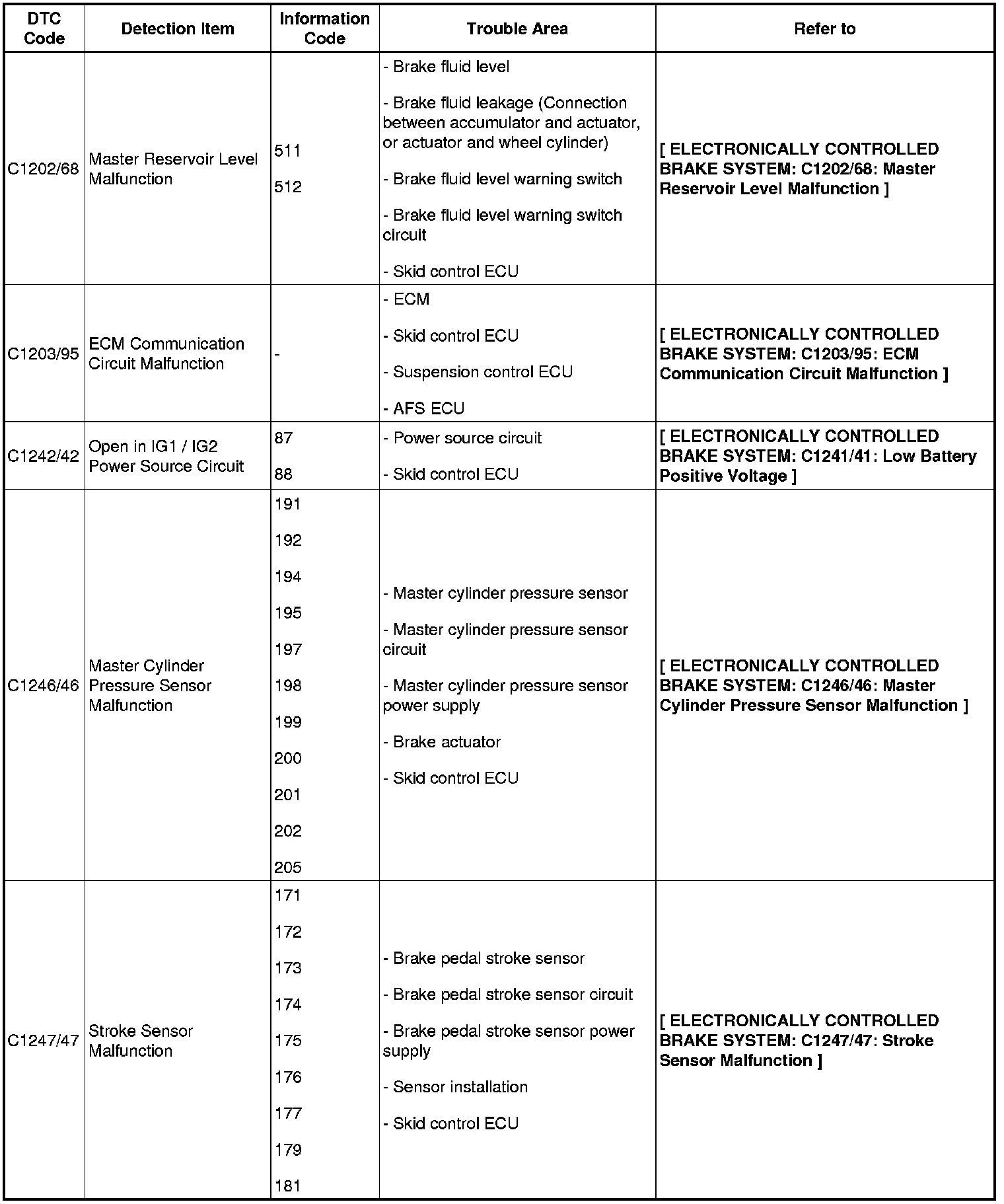

C1202/68-C1247/47:

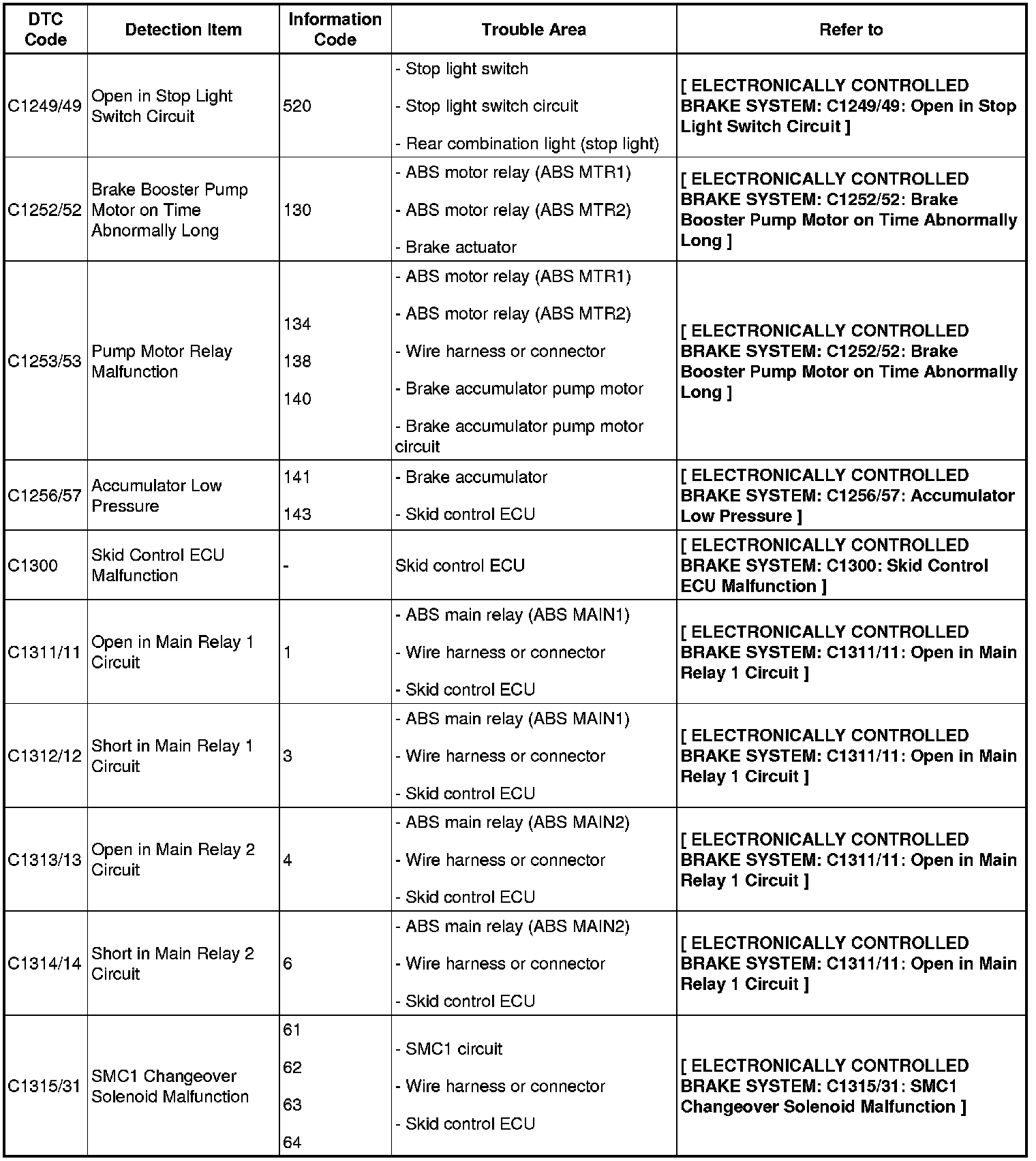

C1249/49-C1315/31:

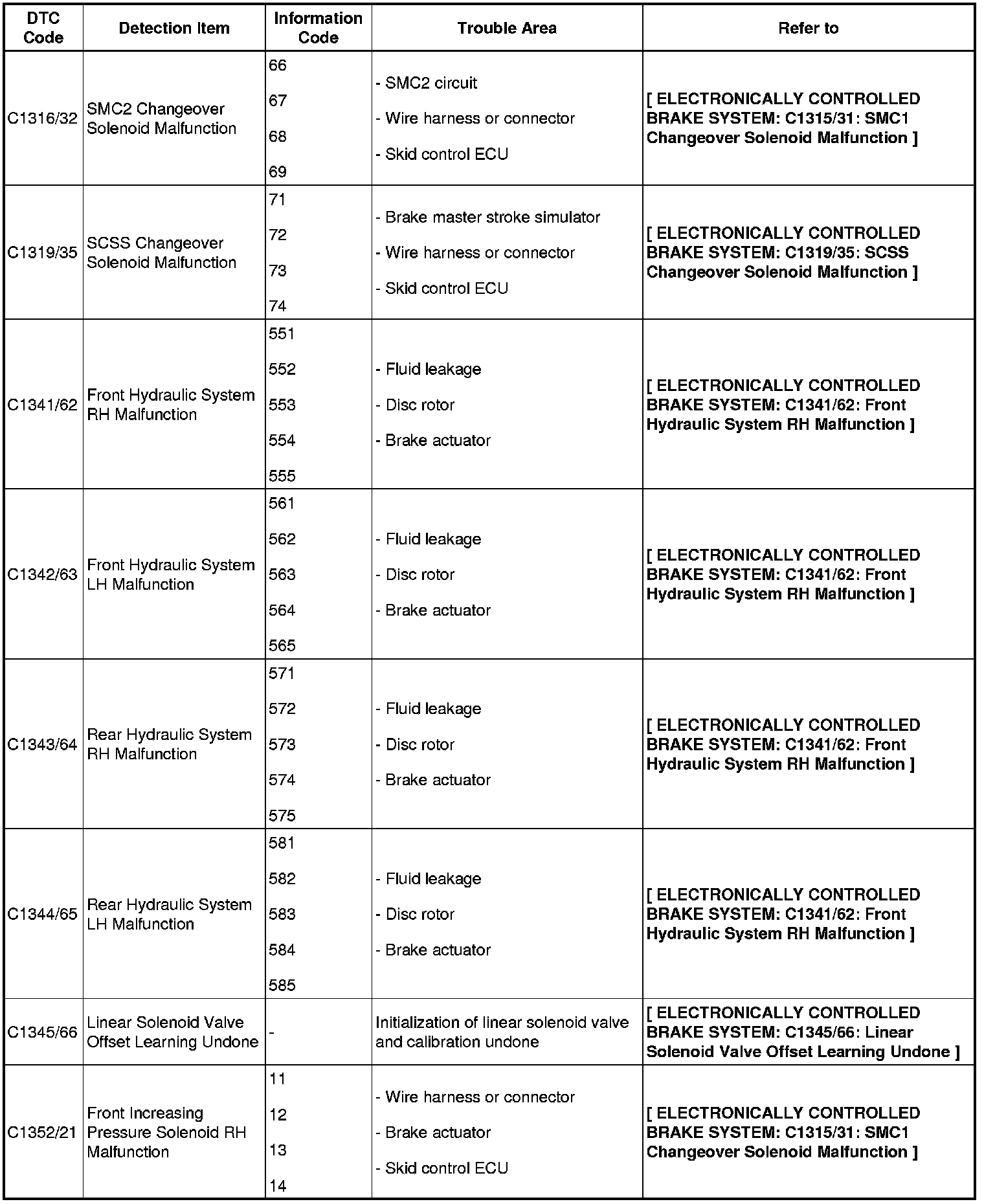

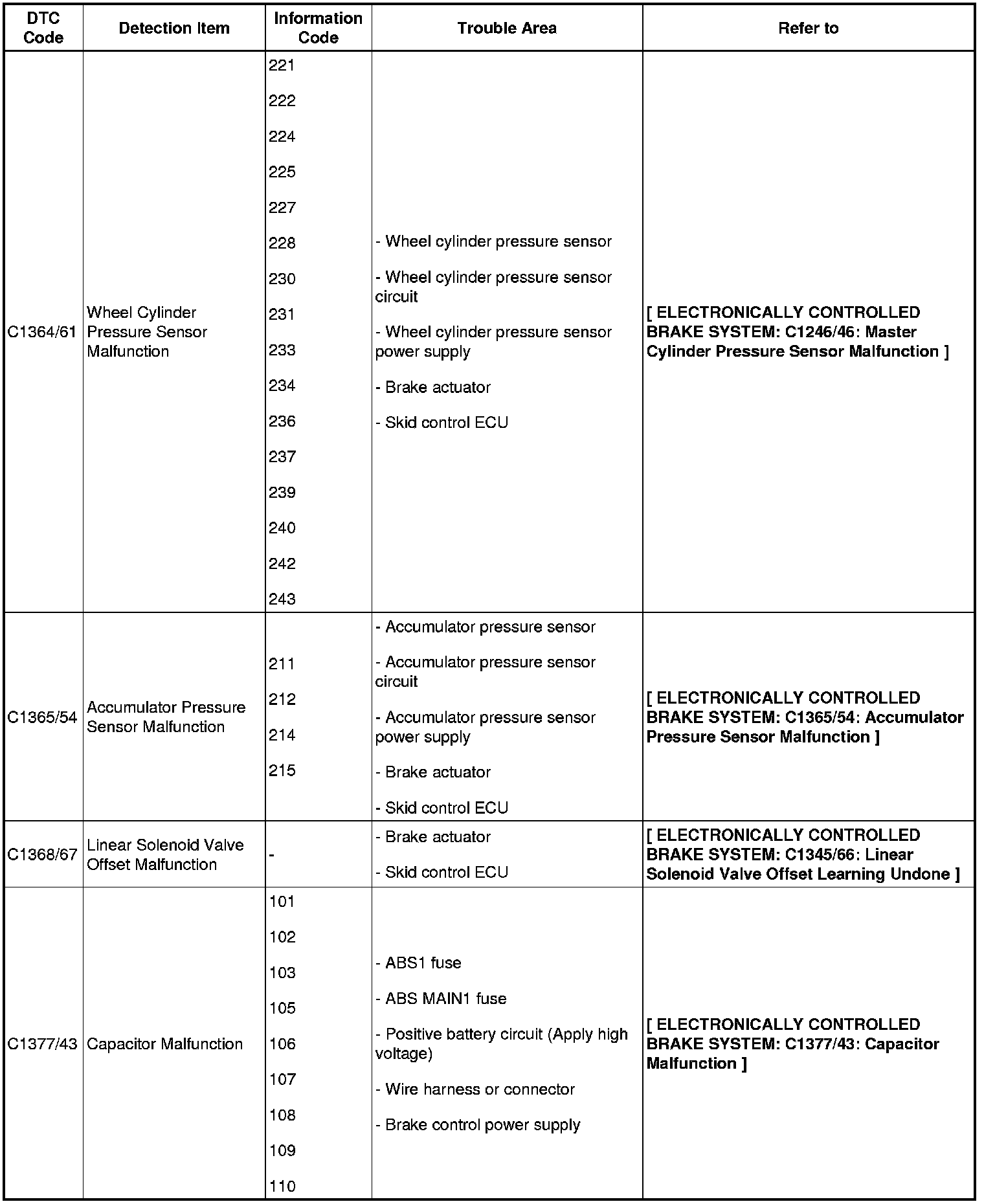

C1316/32-C1352/21:

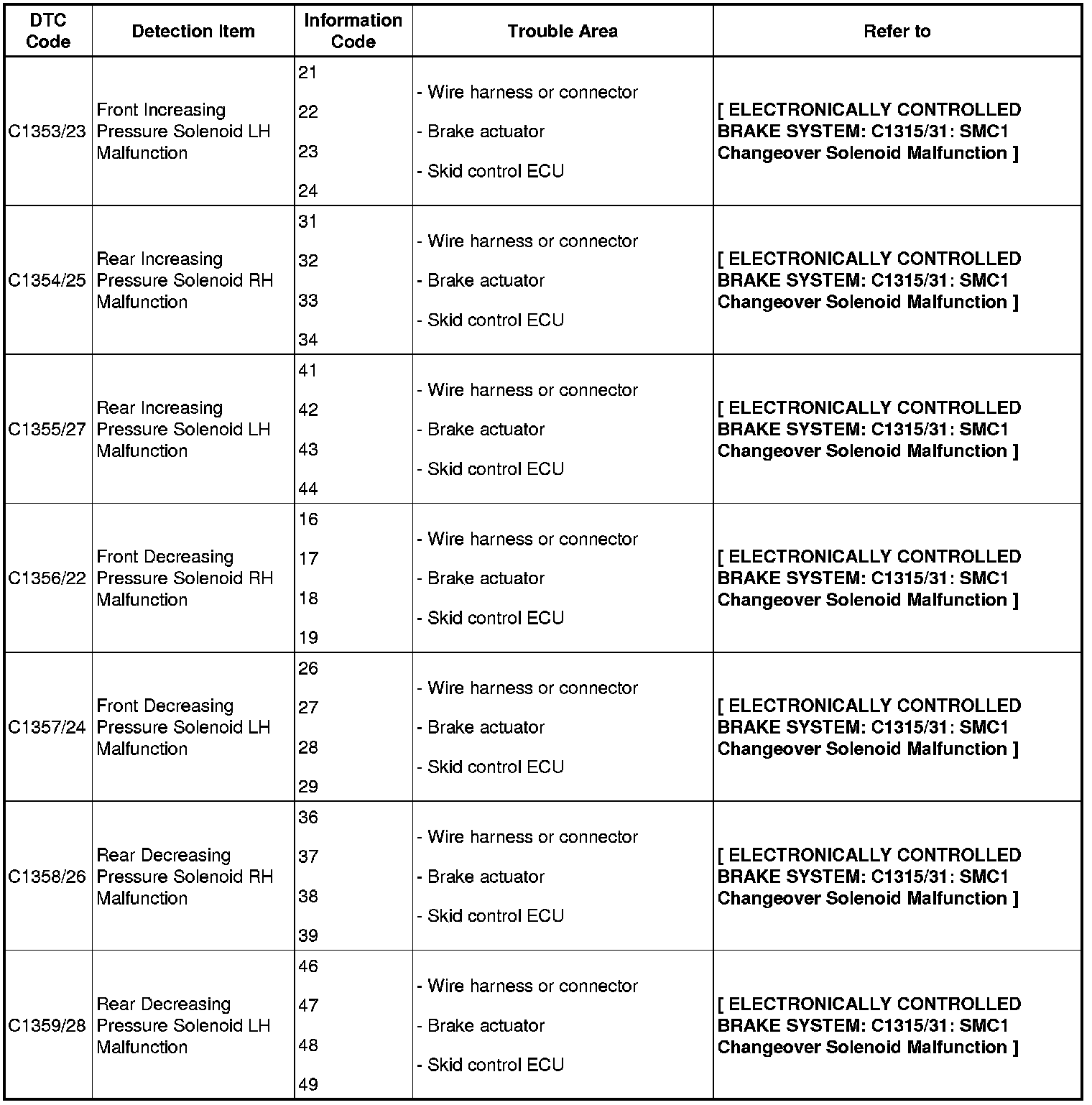

C1353/23-1359/28:

1364/61-C1377/43:

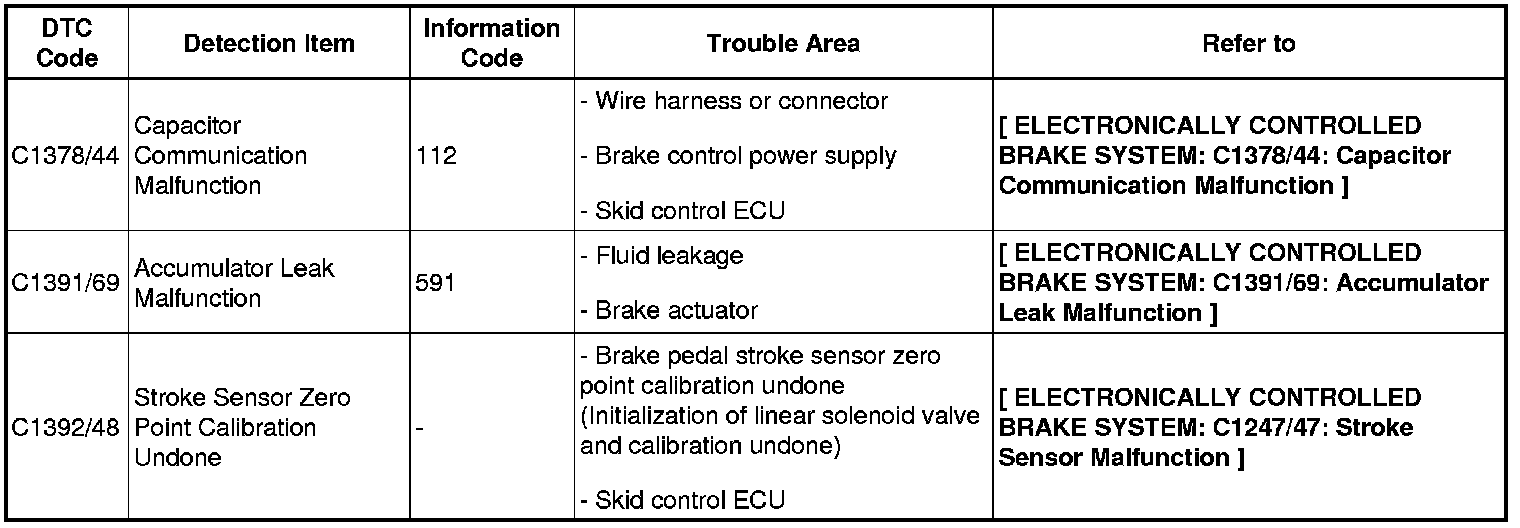

C1378/44-C1392/48:

4. DTC CHART OF ABS AND ELECTRONICALLY CONTROLLED BRAKE SYSTEM

DTC chart of ABS and electronically controlled brake system

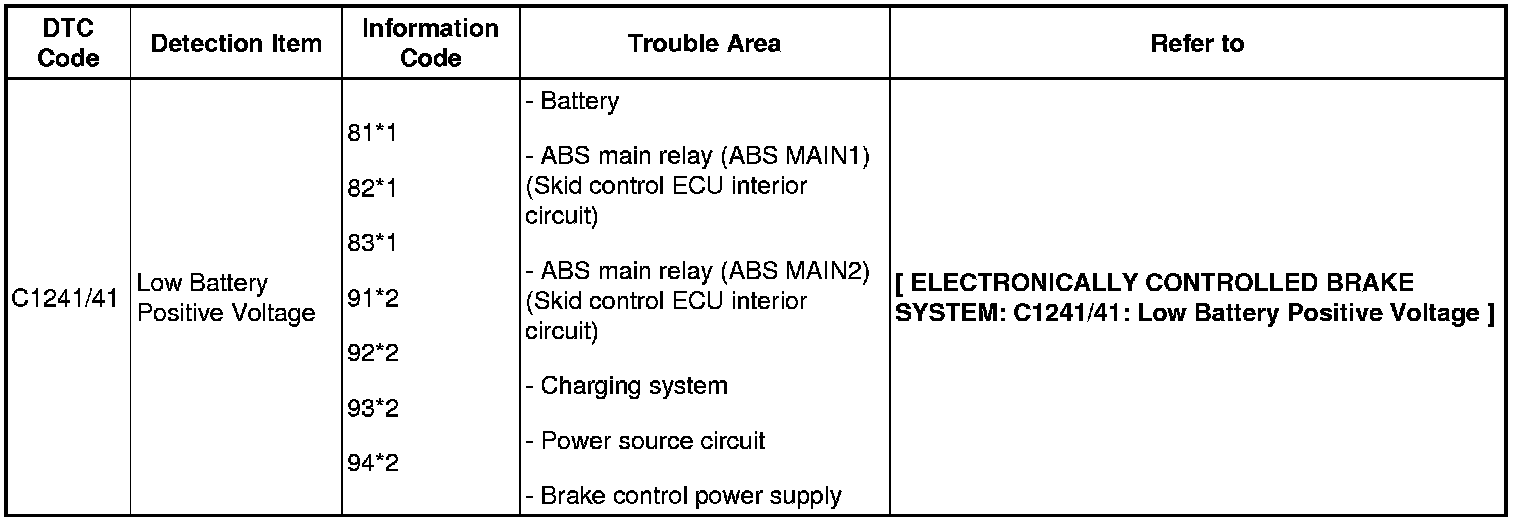

C1241/41:

HINT:
- *1: for Electronically controlled brake system function
- *2: for ABS function





5. DTC CHART OF BRAKE HOLD

DTC of brake hold

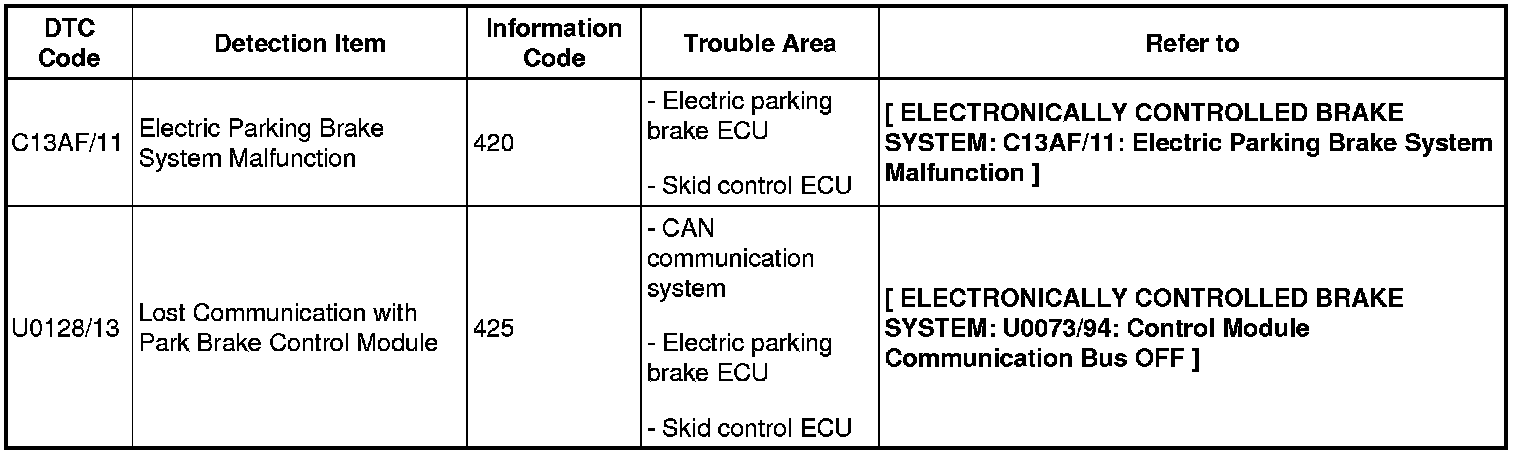

C13AF/11/U0128/13:

6. TEST MODE DTC OF ABS

Test mode DTC of ABS

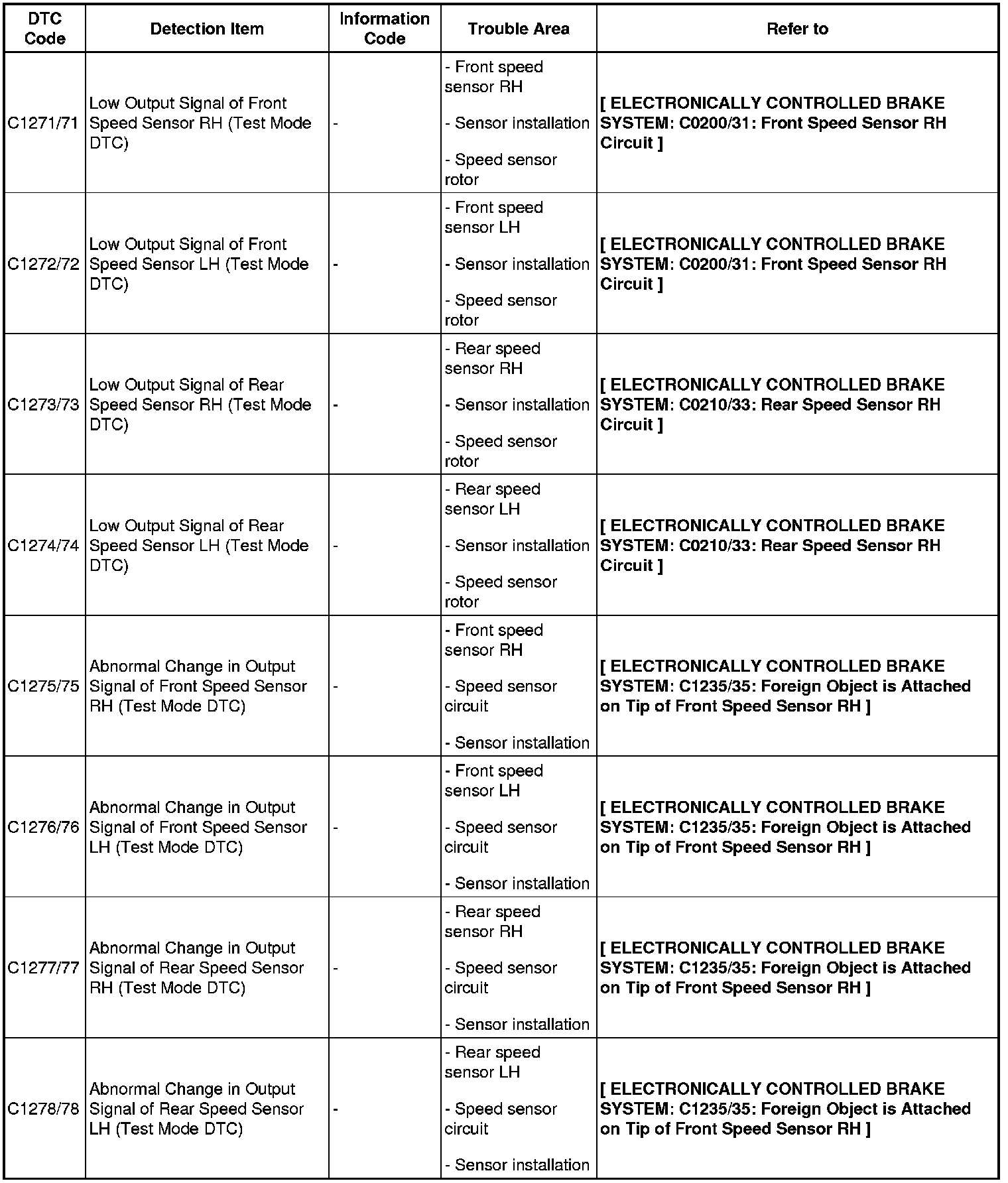

C1271/71-C1278/78:

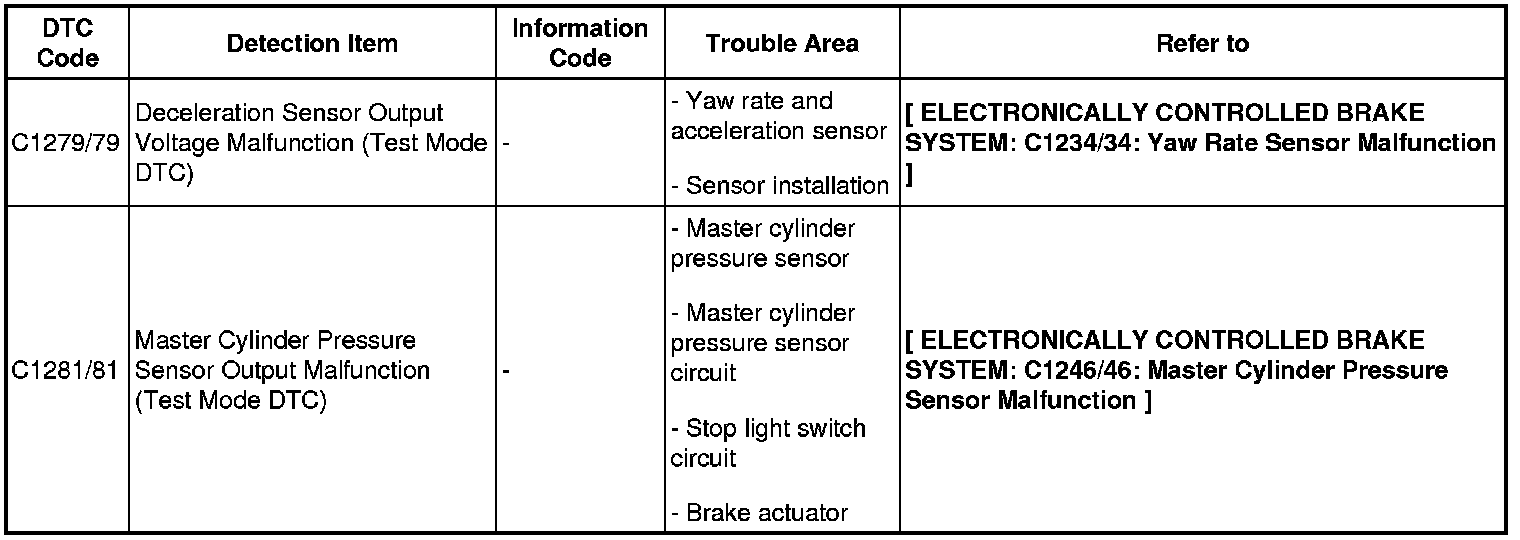

C1279/79-C1281/81:

7. TEST MODE DTC OF ELECTRONICALLY CONTROLLED BRAKE SYSTEM

Test mode DTC of electronically controlled brake system

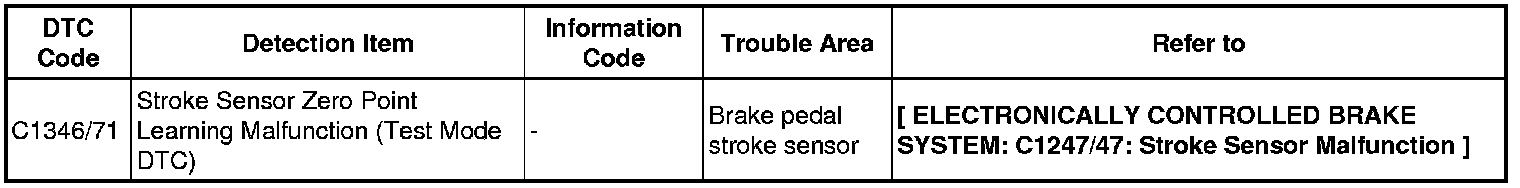

C1346/71:

8. TEST MODE DTC OF VSC SYSTEM

Test mode DTC of VSC

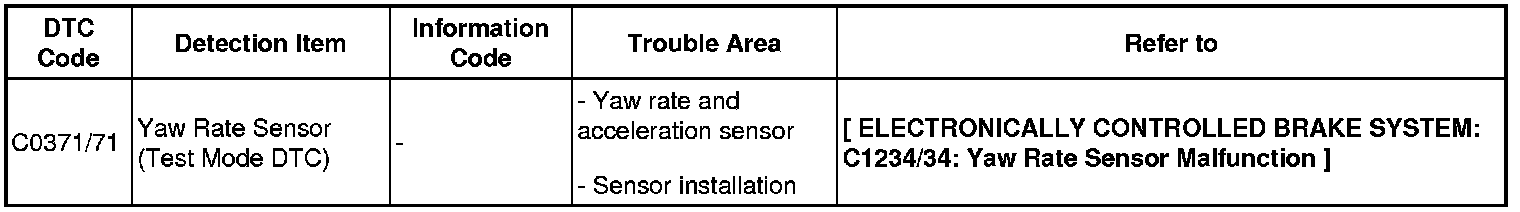

C0371/71:

9. INTERNAL GATEWAY ECU
HINT: After replacing the skid control ECU with a normally functioning one, make sure to initialize the skid control ECU (internal gateway ECU). If the ECU is not initialized, DTCs indicating communication malfunctions with other ECUs may be output, as the information of the previous vehicle remains in the ECU.
